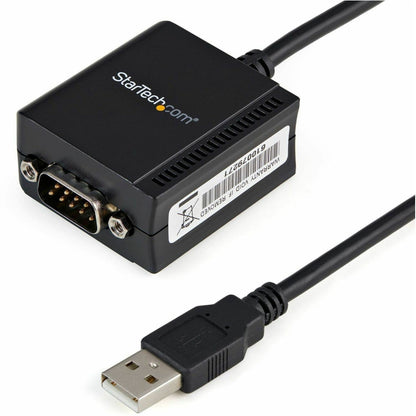

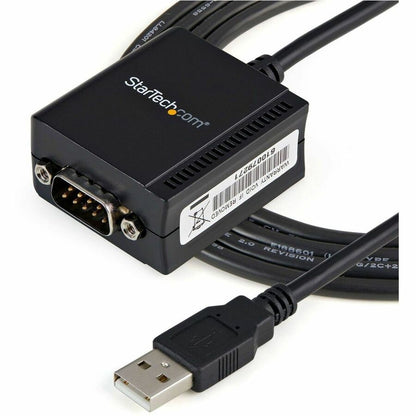

StarTech.com 1 Port FTDI USB to Serial RS232 Adapter Cable with COM Retention - ICUSB2321F
Key Features
- COMPACT DESIGN: Designed with a small form factor, this serial RS232 converter is USB powered and requires no bulky power adapters or an outlet
- CUSTOMIZABLE SOLUTION: This USB serial hub features an FTDI chipset, making it highly customizable and compatible, and the ideal solution for any setup
- EASY INSTALLATION: This serial adapter ensures easy installation and operation with COM port retention that provides robust serial connectivity for legacy devices
- MULTI-USE FUNCTIONALITY: This versatile USB to serial RS232 adapter is perfect for a range of applications, from digital signage to connecting point-of-sale systems and barcode scanners
- TECH SPECS: 6 feet (1.8 meters); FTDI FT232RL Chipset; Max Baud Rate: 115.2 Kbps; 256 Bytes FIFO; None/Odd/Even/Mark Parity Modes; 7 or 8 Data Bits; 1 or 2 Stop bits; TAA Compliant
Product Overview
The ICUSB2321F 1-Port USB to Serial RS232 Adapter Cable with FTDI chipset and COM Retention converts an available USB 1.1 or 2.0 port into an RS232 serial DB9 port to connect, monitor and control your serial devices.
This compact adapter features COM retention, allowing the same COM port value to automatically be re-assigned to the port if the cable is disconnected and re-connected to the host computer, or if the system is rebooted. The ICUSB2321F uses the FTDI chipset which supports additional customization, advanced features, and compatibility not necessarily offered by other solutions.
Compatibility with a broad list of Operating Systems including Windows®, Windows CE, Mac OS and Linux, makes this product easy to integrate into mixed environments.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
General Information
- Manufacturer: StarTech.com
- Manufacturer Part Number: ICUSB2321F
- Brand Name: StarTech.com
- Product Name: 1 Port FTDI USB to Serial RS232 Adapter Cable with COM Retention
- Packaged Quantity: 1 Each
- Product Type: Data Transfer Adapter
Technical Information
- Connector Type on First End: DB-9 RS-232 Serial - Male
- Connector on First End Details: 1 x 9-pin DB-9 RS-232 Serial - Male

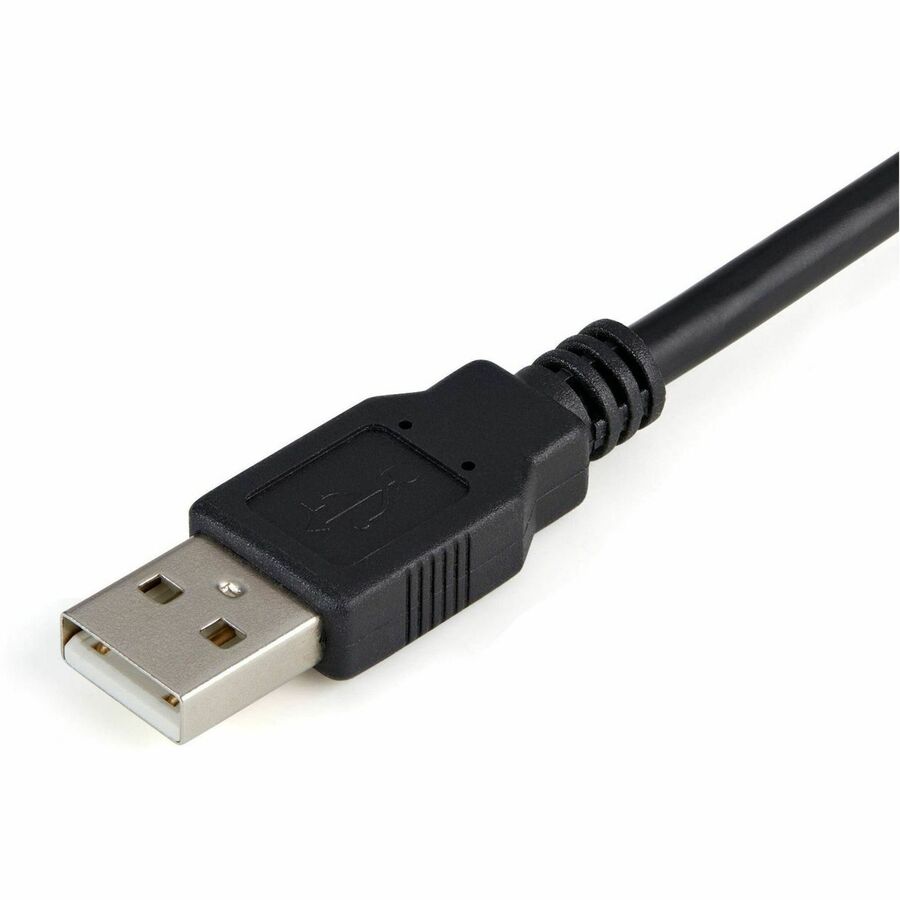

- Connector Type on Second End: USB 2.0 Type A - Male
- Connector on Second End Details: 1 x USB 2.0 Type A - Male
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Product Material: Plastic
- Weight (Approximate): 3.17 oz
Miscellaneous

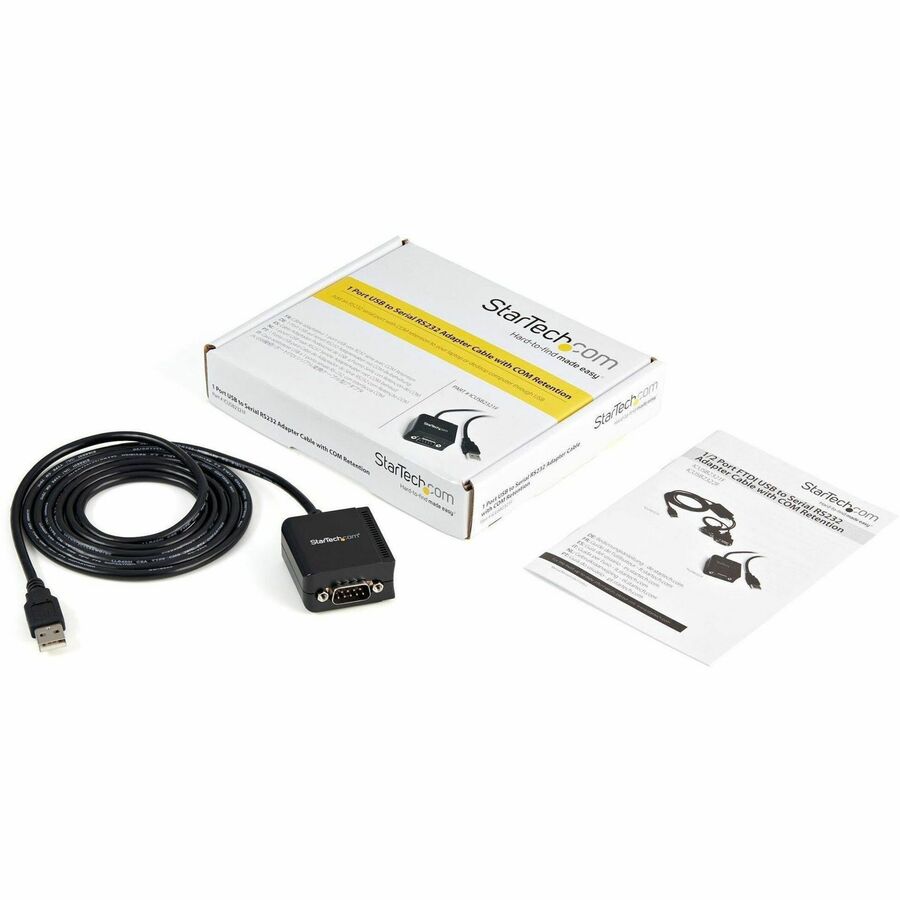

- Package Contents:
- 1 Port FTDI USB to Serial RS232 Adapter Cable with COM Retention
- 1 x Driver CD
- 1 x Instruction Manual
- Country of Origin: Taiwan
- TAA Compliant: Yes
- Environmentally Friendly: Yes
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
- Limited Warranty: 2 Year
