StarTech.com 3ft (91cm) 1-Port USB to Serial Cable, DB9/DB25 RS232 to USB Converter, Prolific, USB to Serial Adapter - ICUSB232DB25
Key Features
- APPLICATIONS: This USB to serial cable is ideal for IT applications such as server rooms, industrial control/automation, logistics, POS, AV installations, laboratories, etc; Continue using legacy hardware with modern systems, using this USB to RS232 cable
- DEVICE COMPATIBILITY: Use this USB to RS232 serial adapter to reliably connect, configure, and monitor serial devices; Compatible with barcode readers / scanners, network switches, receipt printers, PLCs, medical devices, oscilloscopes, scales, etc.
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this USB to serial port adapter is backed for 2-years, including free lifetime 24/5 multilingual technical assistance
- USB TO SERIAL ADAPTER SPECS: 3ft (91cm) Cable Length; Max Baud 230.4 Kbps; 512 Byte FIFO; Supports Windows, macOS, and Linux; Prolific PL2303GC Chipset; Odd/Even/Mark/Space/None Parity Modes; 4/5/6/7/8 Data Bits
- USB TO SERIAL: Connect serial RS232 (DB9 or DB25) devices to a computer with this USB to serial adapter. Secure the cable using the screw-lock nuts located on the male serial DB9/DB25 connector; Reach peripherals with extended cable length 3ft (91cm)
Product Overview

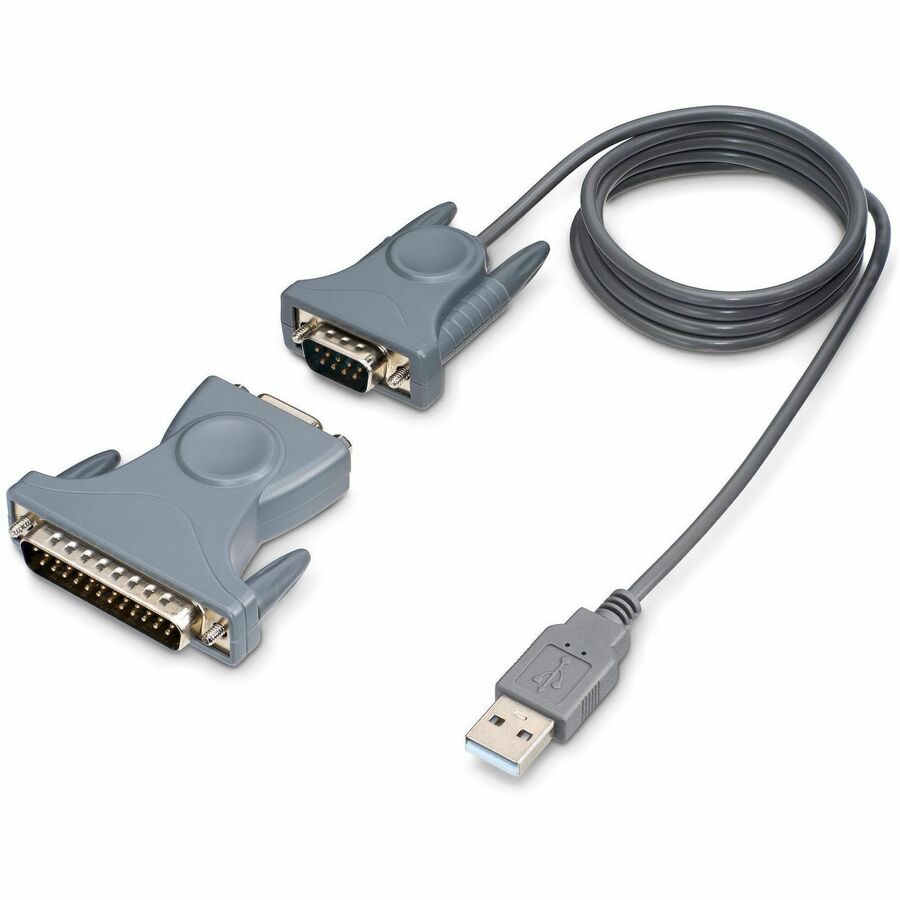

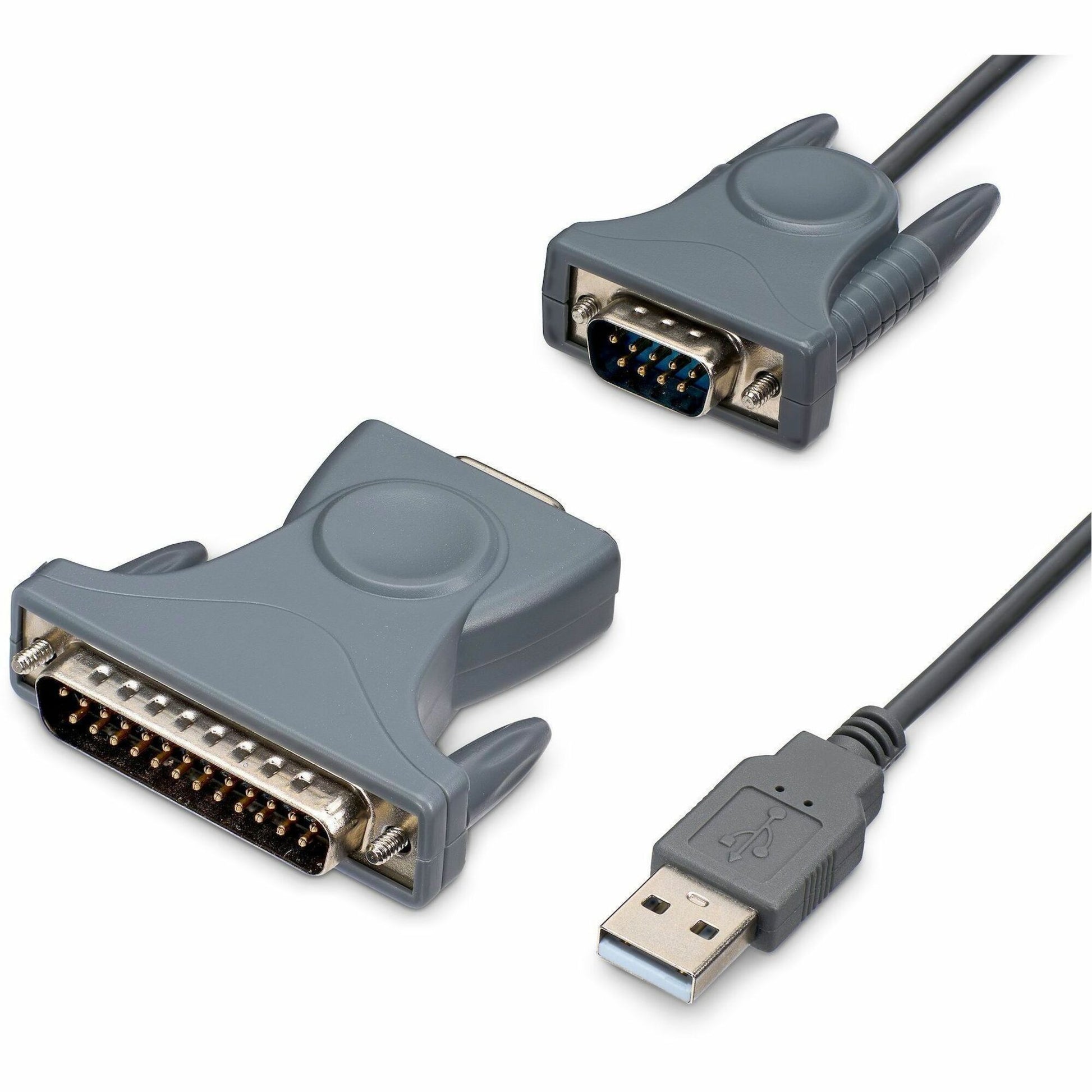

The ICUSB232DB25 USB to RS232 DB9/DB25 Serial Adapter Cable (M/M) lets you connect 9-pin (DB9) or 25-pin (DB25) RS232 serial devices to your laptop or desktop computer through a USB port, as though the computer offered an onboard serial port. The integrated 3-foot (0.9 meter) cable allows it to be connected directly from the serial device to the computer without requiring additional cables.

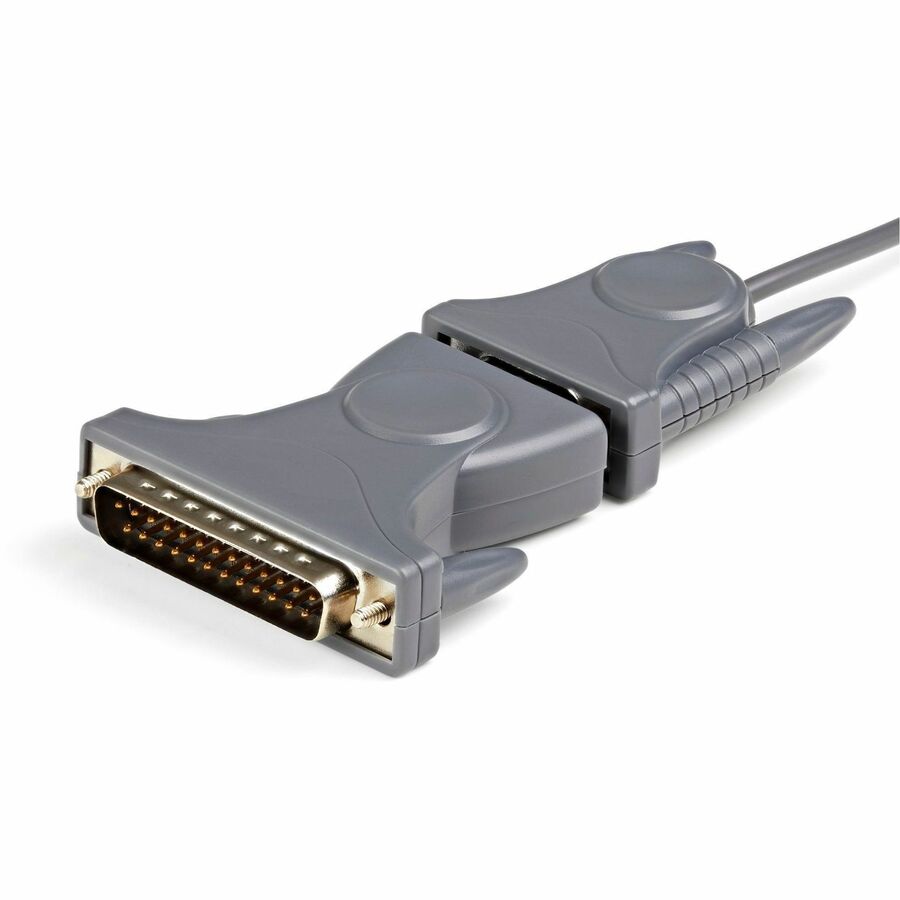

A cost-effective solution that bridges the compatibility gap between modern computers and legacy serial peripherals, this high quality USB/RS232 Serial Adapter cable ships with a DB-9 to DB-25 adapter for connection to varied serial equipment.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
General Information
- Manufacturer: StarTech.com
- Manufacturer Part Number: ICUSB232DB25
- Brand Name: StarTech.com
- Product Name: USB to RS232 DB9/DB25 Serial Adapter Cable - M/M
- Packaged Quantity: 1 Each
- Product Type: Data Transfer Adapter
Technical Information
- Connector Type on First End: DB-9 RS-232 Serial - Male
- Connector on First End Details: 1 x 9-pin DB-9 RS-232 Serial - Male
- Connector Type on Second End: USB 2.0 Type A - Male
- Connector on Second End Details: 1 x USB 2.0 Type A - Male
Physical Characteristics
- Color Family: Gray
- Product Color: Gray
- Weight (Approximate): 2.60 oz
Miscellaneous
- Package Contents:
- USB to RS232 DB9/DB25 Serial Adapter Cable - M/M
- DB9 to DB25 pin Adapter
- Country of Origin: China
- Environmentally Friendly: Yes
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
- Limited Warranty: 2 Year
