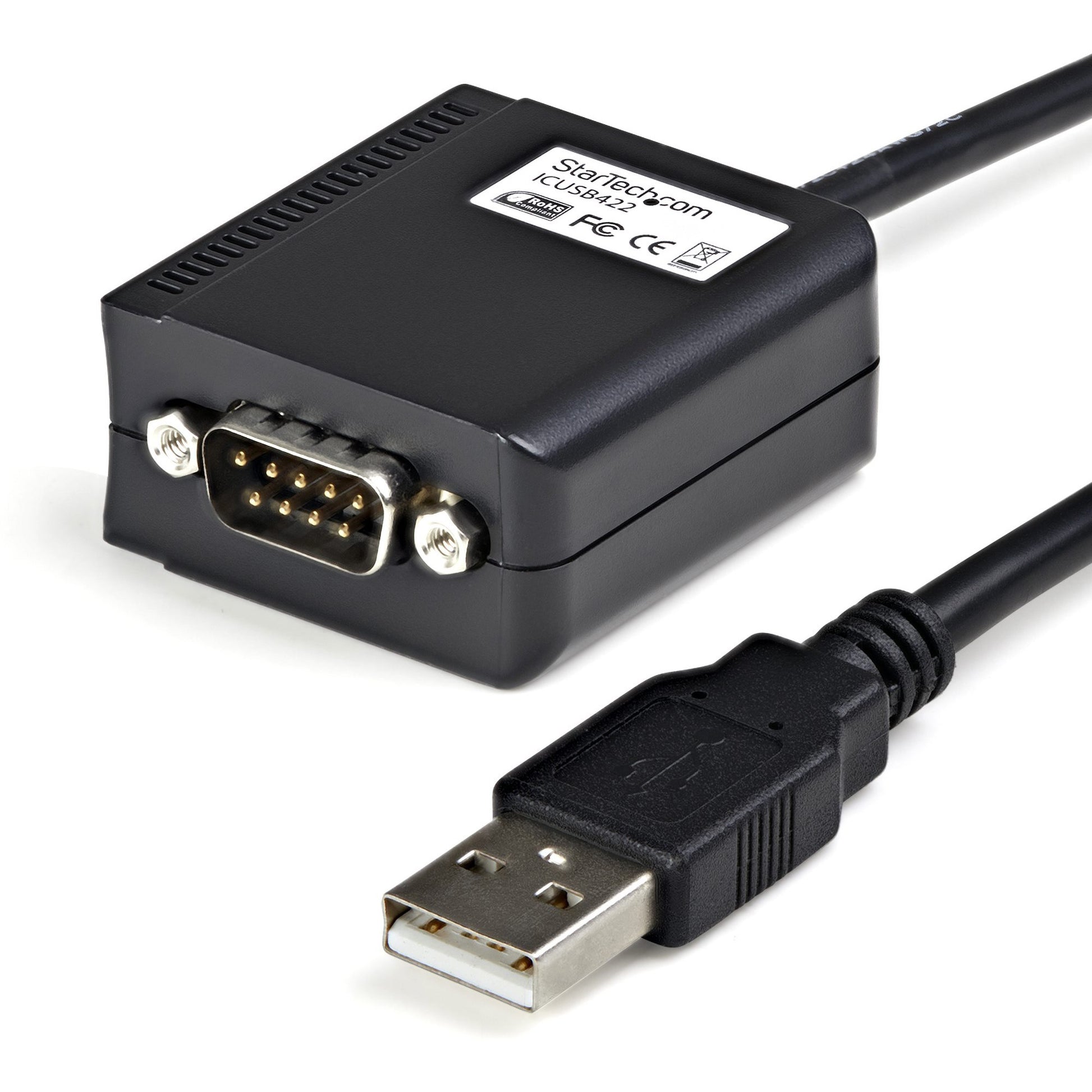

StarTech.com 6ft (1.8m) 1-Port Professional RS422/485 USB Serial Cable Adapter with COM Retention, USB to RS422 Adapter - TAA - ICUSB422
Key Features
- COMPACT DESIGN: Designed with a small form factor, this serial RS422/485 converter is USB powered and requires no bulky power adapters or an outlet
- CUSTOMIZABLE SOLUTION: This USB serial hub features an FTDI chipset, making it highly customizable and compatible, and the ideal solution for any setup
- EASY INSTALLATION: This serial adapter ensures easy installation and operation with COM port retention that provides robust serial connectivity for legacy devices
- MULTI-USE FUNCTIONALITY: This versatile USB to serial RS232 adapter is perfect for a range of applications, from digital signage to connecting point-of-sale systems and barcode scanners
- TECH SPECS: 6 feet (1.8 meters); FTDI FT232RL Chipset; Max Baud Rate: 921.6 Kbps; 256 Bytes FIFO; None/Odd/Even Parity Modes; 7 or 8 Data Bits; 1 or 2 Stop bits; TAA Compliant
Product Overview

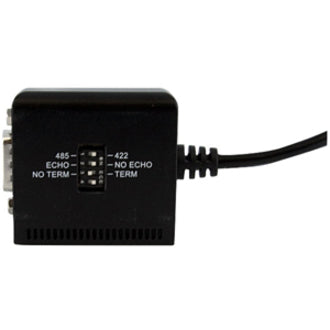

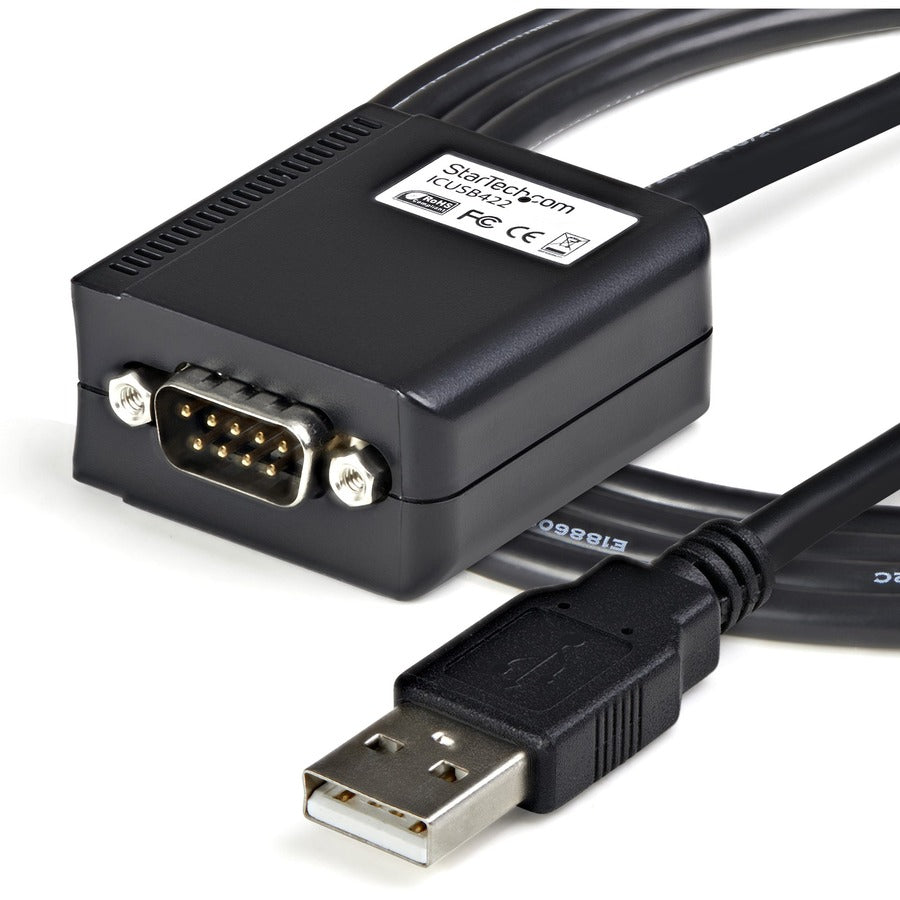

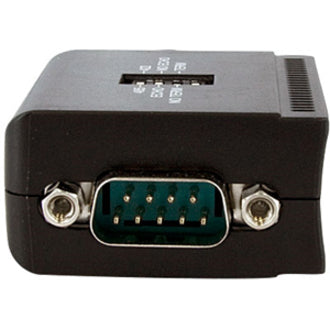

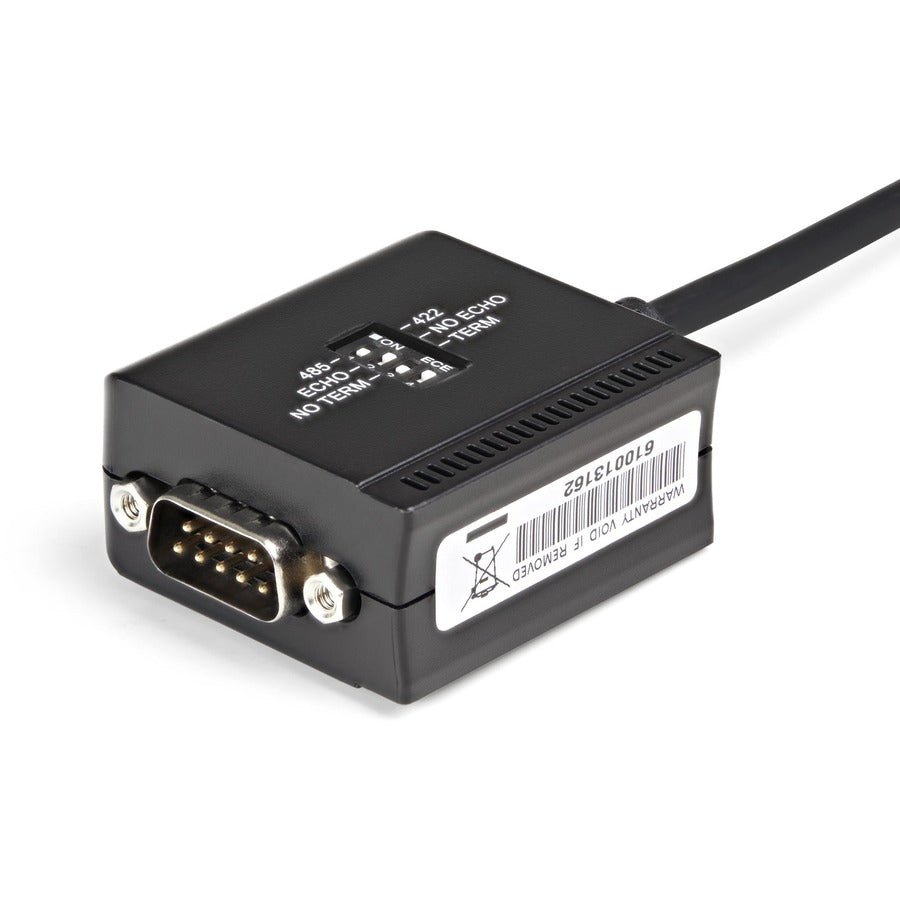

The ICUSB422 6ft Professional RS422/485 USB Serial Cable Adapter with COM Port Retention lets you connect RS422 or RS485 serial devices to your USB-enabled computer. The adapter features a 9-pin (DB9) male serial connector as well as dipswitch controls for easy port configuration, and requires minimal software.
The serial adapter is USB-powered, eliminating the aggravation of requiring an external power adapter. With COM port retention, assigned port settings are saved, so you can disconnect and reconnect the adapter with virtually no configuration required on the host computer.
The ICUSB422 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
General Information
- Manufacturer: StarTech.com
- Manufacturer Part Number: ICUSB422
- Brand Name: StarTech.com
- Product Name: 6ft RS422/485 USB Serial Adapter with COM Retention
- Packaged Quantity: 1 Each
- Product Type: Data Transfer Adapter
Technical Information
- Connector Type on First End: DB-9 RS-422 Serial - Male
- Connector on First End Details: 1 x 9-pin DB-9 RS-422 Serial - Male
- Connector Type on Second End: USB 1.1 Type A - Female
- Connector on Second End Details: 1 x USB 1.1 Type A - Female
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Weight (Approximate): 3.53 oz
Miscellaneous
- Package Contents:
- 6ft RS422/485 USB Serial Adapter with COM Retention
- 1 x Driver CD
- 1 x Instruction Manual
- Country of Origin: Taiwan
- TAA Compliant: Yes
- Environmentally Friendly: Yes
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
- Limited Warranty: 2 Year
