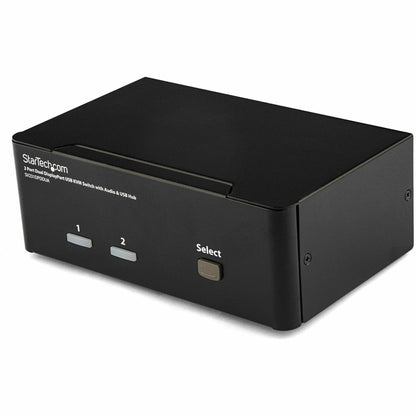

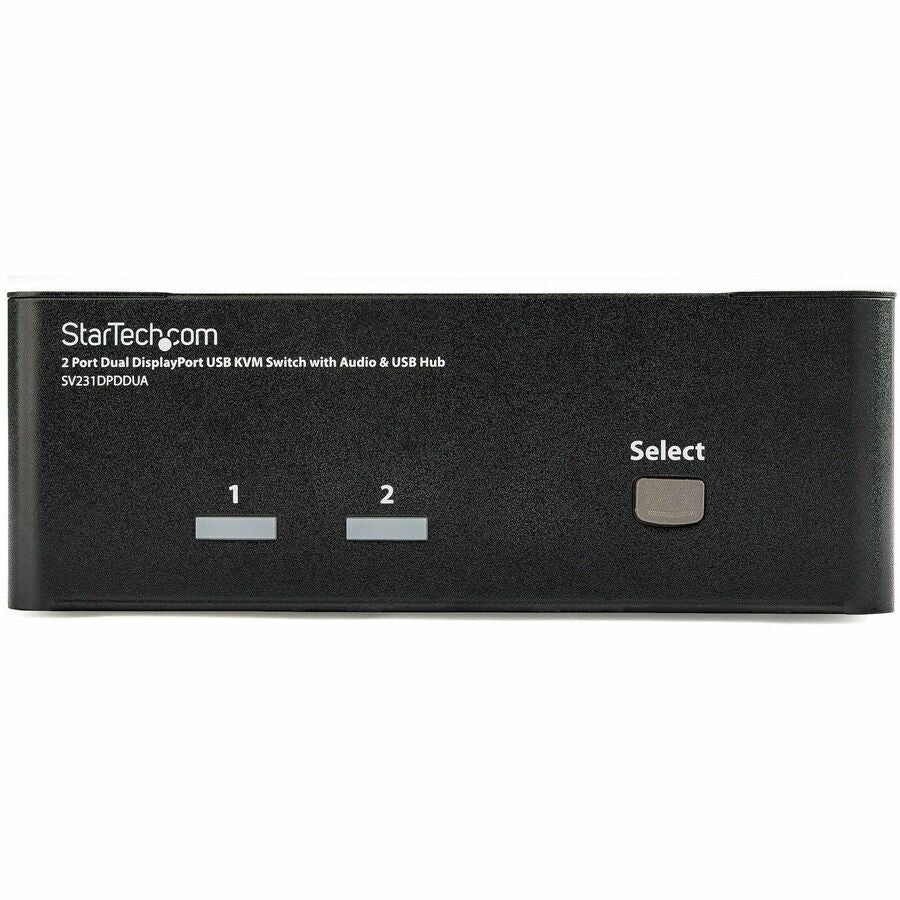

StarTech.com 2 Port Dual DisplayPort USB KVM Switch with Audio - SV231DPDDUA
Key Features
- 3.5mm 2-channel stereo audio and microphone
- 7.1 Channel High Definition Digital Audio supported via the DisplayPort interface
- Full plug-and-play support with USB console interfaces
- Hotkey and push-button switching
- Integrated 2 port hub for USB 2.0 peripheral sharing
- Maximum resolutions of 3840x2400 at lower refresh rates
- Native dual DisplayPort connections - no adapter required
- No driver or software installation required
- OS Independent
- Supports 2560x1600 @ 60Hz resolutions; beyond 1080p
Product Overview
The SV231DPDDUA 2-Port USB Dual DisplayPort KVM Switch with Audio and USB 2.0 Hub combines next generation digital display standards with seamless KVM control, allowing you to switch between 2 dual head or twin DisplayPort systems. Also ideal for systems with a single DisplayPort output, and a second video source such as DVI or HDMI, using a low cost accessory adapter.
Delivering multi-computer control for high-res multimedia applications, the dual view KVM supports resolutions of 2560x1600 (@60 Hz) with DisplayPort HD audio, as well as 2-channel analog stereo audio and microphone input.
Suitable for high quality static imaging, such as medical applications (MRI, X-ray, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.
More from the Manufacturer
General Information
- Manufacturer: StarTech.com
- Manufacturer Part Number: SV231DPDDUA
- Brand Name: StarTech.com
- Product Model: SV231DPDDUA
- Product Name: 2-port Dual Display DisplayPort KVM
- Packaged Quantity: 1 Each
- Product Type: KVM Switchbox
Technical Information
- Number of Computers Supported: 2
- Number of Local Users Supported: 1
Video
- Graphic Mode: WQUXGA
- Maximum Video Resolution: 3840 x 2400

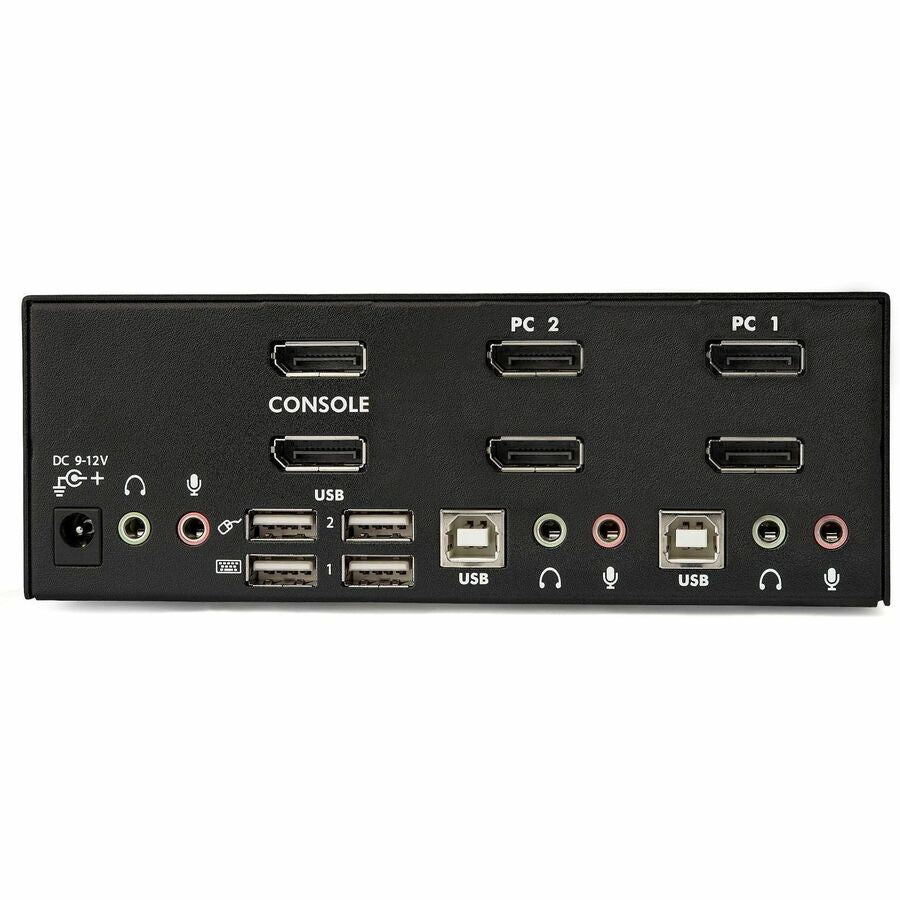

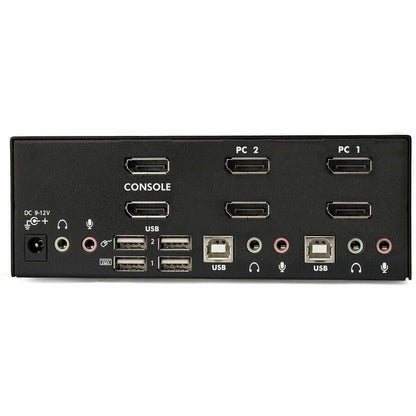

Interfaces/Ports
- USB: Yes
- DisplayPort: Yes
- Number of USB Ports: 6
- Number of DisplayPorts: 6
Power Description
- Input Voltage Range: 110V AC to 240V AC
Physical Characteristics
- Form Factor: Desktop
- Height: 2.3"
- Width: 6.3"
- Depth: 3.9"
- Weight (Approximate): 1.62 lb
Miscellaneous

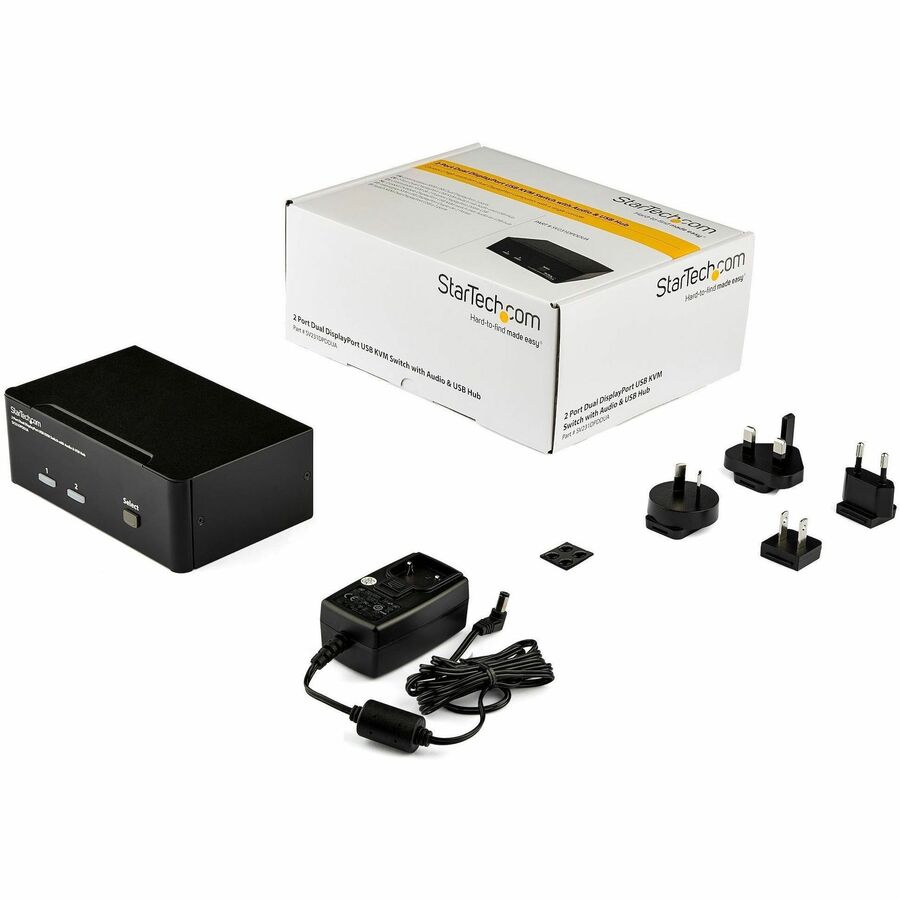

- Package Contents:
- 2-port Dual Display DisplayPort KVM
- 1 x Universal Power Adapter (NA/EU/UK/AU)
- 1 x Instruction Manual
- Environmentally Friendly: Yes
- Country of Origin: Taiwan
- TAA Compliant: Yes
Warranty
- Limited Warranty: 3 Year
