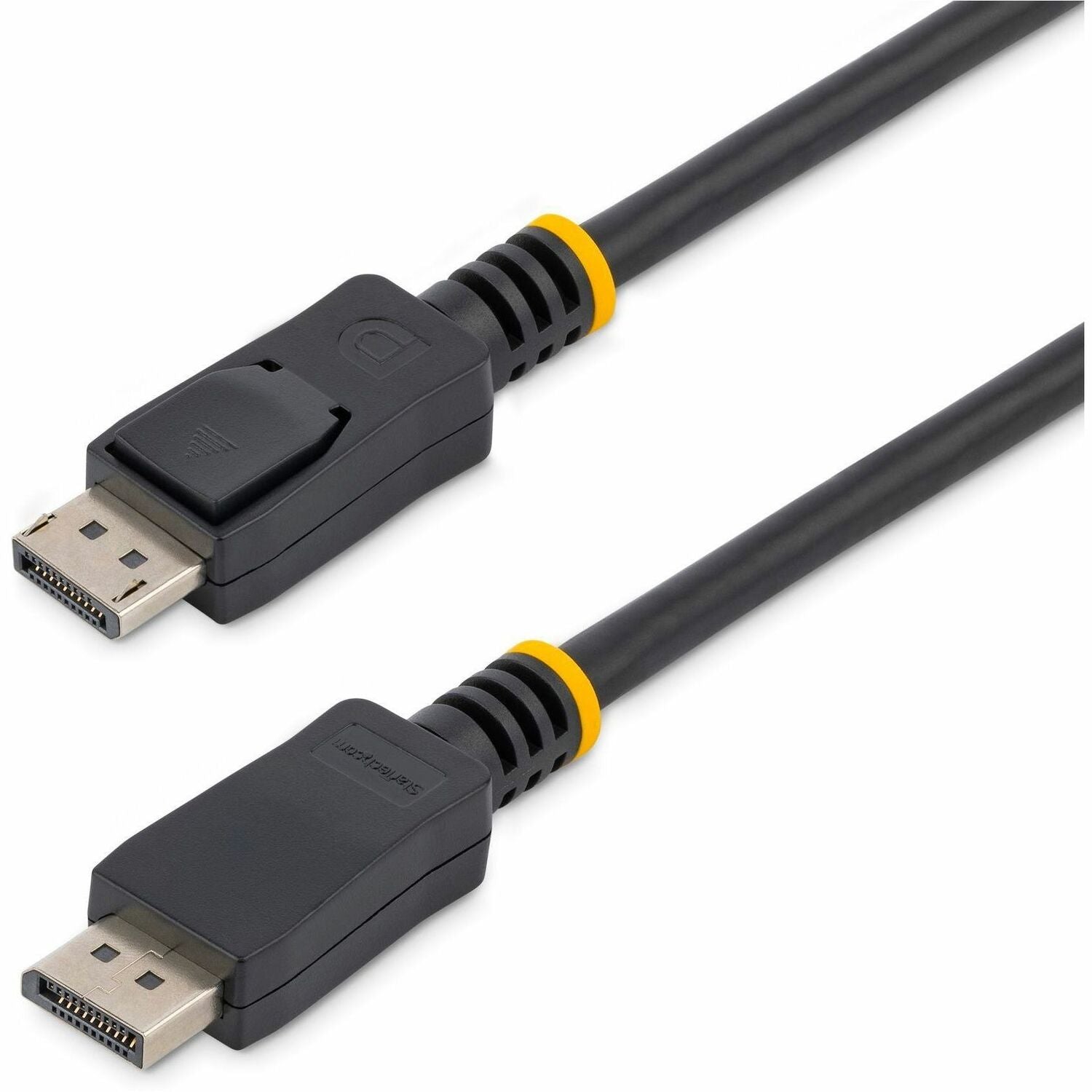

StarTech.com 15ft (4.6m) DisplayPort 1.2 Cable, 4K x 2K UHD VESA Certified DP Cable, DP Cord for Monitor, with Latching Connectors - DISPLPORT15L
Key Features
- APPLICATIONS: Ideal for home/offices/boardrooms/conference rooms/classrooms; works with your professional workstations with FirePro™ S9000/7000, W8100/7100/5100 or R5000 graphic cards; Use with 1080p/UHD/4K monitors, projector or large display
- HIGH PERFORMANCE CABLE: This 15ft (4.6m) VESA Certified DisplayPort v1.2 cable supports 4K x 2K (3840x2400p 60Hz), 21.6 Gbps bandwidth, HBR2, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz)
- QUALITY CONSTRUCTION: 28AWG wire with gold-plated connectors for improved signal integrity and reliability; Superior EMI shielding with Al-Mylar foil and copper braid provides higher quality video and audio; Backwards compatible with DP 1.1
- RELIABLE DESIGN: Durable ABS connectors with flexible PVC strain relief & jacket prevents fraying/damage due to bending or rough usage; Metal connector sub-structure provides EMI shielding; Latching DP connectors prevent accidental disconnection
- SPECS: 15 ft (4,6 m)
- Black
- DisplayPort v1.2
- DP Latching Male to Male
- 26/28 AWG
- PVC cable jacket, ABS connector shell
- Shield: Al-Mylar foil with Braid
- Protocols: HBR 2, MST, GTC
Product Overview
This DisplayPort ™ cable provides reliable long-distance connections between your sources and displays. This DP cable support resolutions up to 4k x 2k (4096 x 2160) @ 60Hz for high quality video.
High Quality Performance
The male to male DisplayPort cables support DP 1.2 features, including a maximum HBR2 bandwidth of 21.6 Gbps. The DP cables also support Multi-Stream (MST) for daisy-chaining multiple monitors with optional audio support. And they are backwards compatible with DisplayPort 1.1.

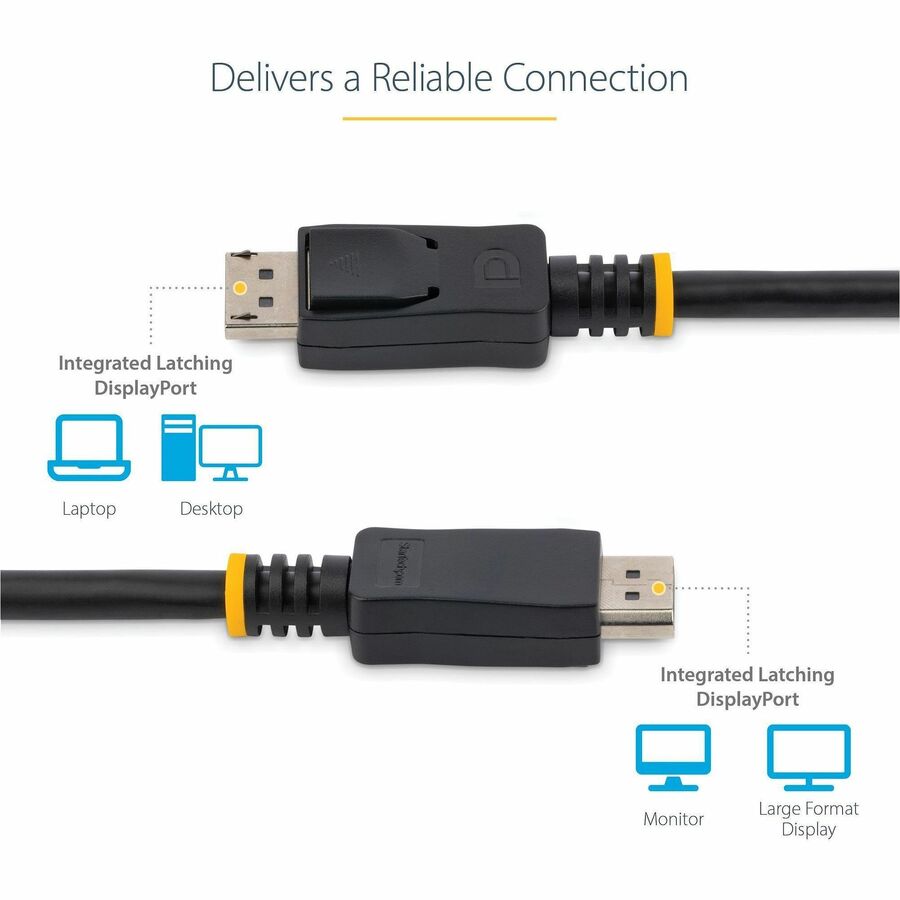

Reliable Latching Connectors
The black DP cables feature latches on each connector that provide a secure connection between your devices. They have a professional grade 28 AWG construction allowing for flexible and clean quality installations.
Comprehensive Product Testing & Expert Technical Support
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to our customers. Our local StarTech.com Technical Advisors have a broad product expertise and work directly with StarTech.com Engineers to provide support for our customers both pre and post-sales.
General Information
- Manufacturer: StarTech.com
- Manufacturer Part Number: DISPLPORT15L
- Brand Name: StarTech.com
- Product Name: 15 ft Long DisplayPort 1.2 Cable with Latches M/M - DisplayPort 4k
- Packaged Quantity: 1 Each
- Product Type: Video Cable
Technical Information
- Cable Type: DisplayPort
- Cable Length: 15 ft
- Connector Type on First End: DisplayPort 1.2 Digital Audio/Video - Male
- Connector Gender on First End: Male
- Connector on First End Details: 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male
- Connector Type on Second End: DisplayPort 1.2 Digital Audio/Video - Male
- Connector Gender on Second End: Male
- Connector on Second End Details: 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male
- Connector Plating: Gold
- Shielding: Yes
- Jacket Type: CMG
- Device Supported:
- Audio/Video Device
- Monitor
- Projector
- Workstation
- Notebook
- Graphics Card
- American Wire Gauge: 28 AWG
- Data Transfer Rate: 21.6 Gbit/s
- Supported Resolution: 4096 x 2160
- Features:
- HDCP
- DPCP
- Multi-Stream Transport (MST) Support
- Strain Relief
- Latching Connector
- Molded
- EMI Protection
- Flexible
- Fray Resistant
- Damage Resistant
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Weight (Approximate): 0.73 lb
Miscellaneous
- Compatibility:
AMD Graphic Cards
- FirePro S9000
- 7000
- W8100
- 7100
- 5100
- R5000
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
- Country of Origin: China
Warranty
- Limited Warranty: Lifetime
