APC Smart-UPS, Line Interactive, 1500VA, Tower, 120V, 8x NEMA 5-15R outlets, SmartConnect Port+SmartSlot, AVR, LCD - SMT1500C
Key Features
- 1440VA/1000W line interactive pure sine wave tower UPS
- Automatic Voltage Regulation helps correct utility voltage
- Cloud-based remote power monitoring via SmartConnect Ethernet Port
- Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
- Ideal for servers, storage, network closets, business VoIP & desktops, retail POS
Product Overview
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1440VA line interactive tower UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 8 NEMA 5-15R outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
General Information
- Manufacturer: Schneider Electric SA
- Manufacturer Part Number: SMT1500C
- Brand Name: APC by Schneider Electric
- Product Line: Smart-UPS
- Product Model: SMT1500C
- Product Name: Smart-UPS 1500VA LCD 120V with SmartConnect
- Packaged Quantity: 1 Each
- Product Type: Line-interactive UPS
Technical Information
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15P

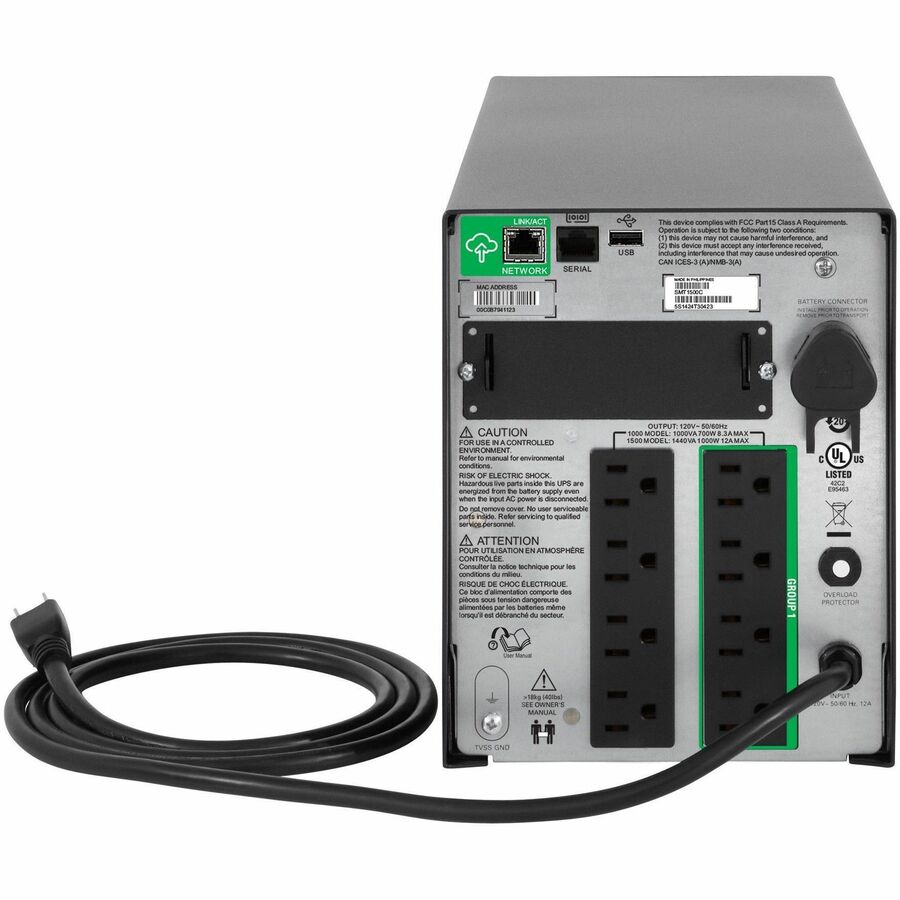

- Receptacle Detail: 8 x NEMA 5-15R
- Number of Battery & Surge Outlets: 8
- Cord Length: 6 ft
- Transfer Time: 6 ms
- Phase: Single Phase
- Application/Usage:
- Server
- POS Terminal
- Router
- Switch
- Network Hub
- Network Device
Power Description
- Load Capacity (VA): 1440 VA
- Load Capacity (Watt): 1000 W
- Input Voltage: 120 V
- Input Voltage Range:
- 82 V AC - 144 V AC
- 75 V AC - 154 V AC
- Output Voltage: 120 V AC
- Input Frequency: 60 Hz
- Output Frequency: 60 Hz
- Waveform Type: Sine Wave
- Surge Energy Rating: 680 J
Management
- Network Management: SmartConnect
- Alarm:
- Low Battery
- Configurable Delay
Controls/Indicators
- Status Indicators: LCD Status
Battery Information
- Number of Batteries: 1
- Battery Chemistry: Lead Acid
- Backup/Run Time (Full Load): 7 Minute
- Battery Life: 5 Year
- Hot Swappable: Yes
- Typical Battery Recharge Time: 3 Hour
- Replaceable Battery: Yes
Environmental Conditions
- Maximum Operating Elevation: 10000 ft
- Maximum Storage Elevation: 50000 ft
- Storage Temperature: 41°F (5°C) - 235.4°F (113°C)
- Storage Relative Humidity: 0% - 95%
- Maximum Operating Temperature: 104°F (40°C)
- Sound Emission (A-Weighted): 45 dB(A)
- Thermal Dissipation: 65.94 W

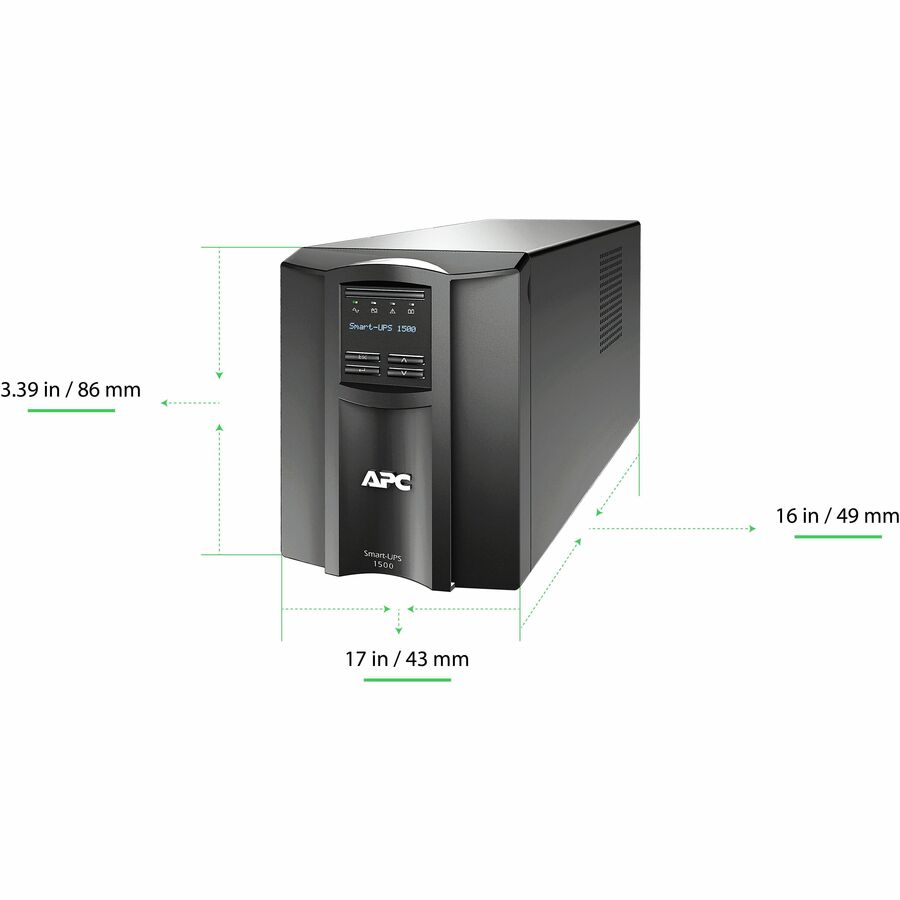

Physical Characteristics
- Product Color: Black
- Height: 8.6"
- Width: 6.7"
- Depth: 17.3"
- Form Factor: Tower
- Weight (Approximate): 54.23 lb
Miscellaneous
- Package Contents:
- Smart-UPS 1500VA LCD 120V with SmartConnect
- Installation guide
- USB cable
- Software Included: Powerchute Serial Edition
- Energy Star: Yes
- Country of Origin: Vietnam
- Environmentally Friendly: Yes
- Energy Efficiency Certification: ENERGY STAR 2.0
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
- Additional Warranty Information: UPS: 36 month(s)|Battery: 24 month(s)
