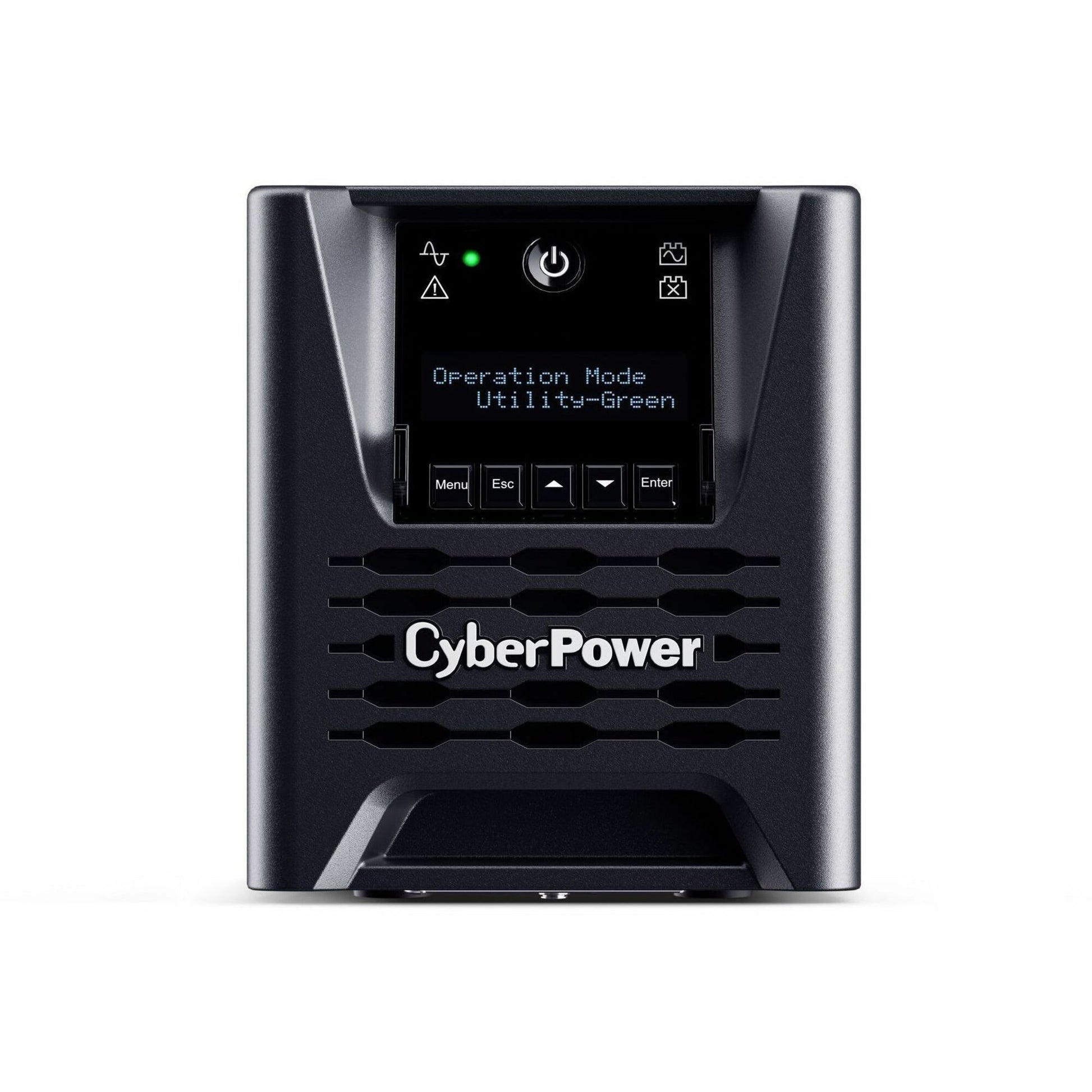

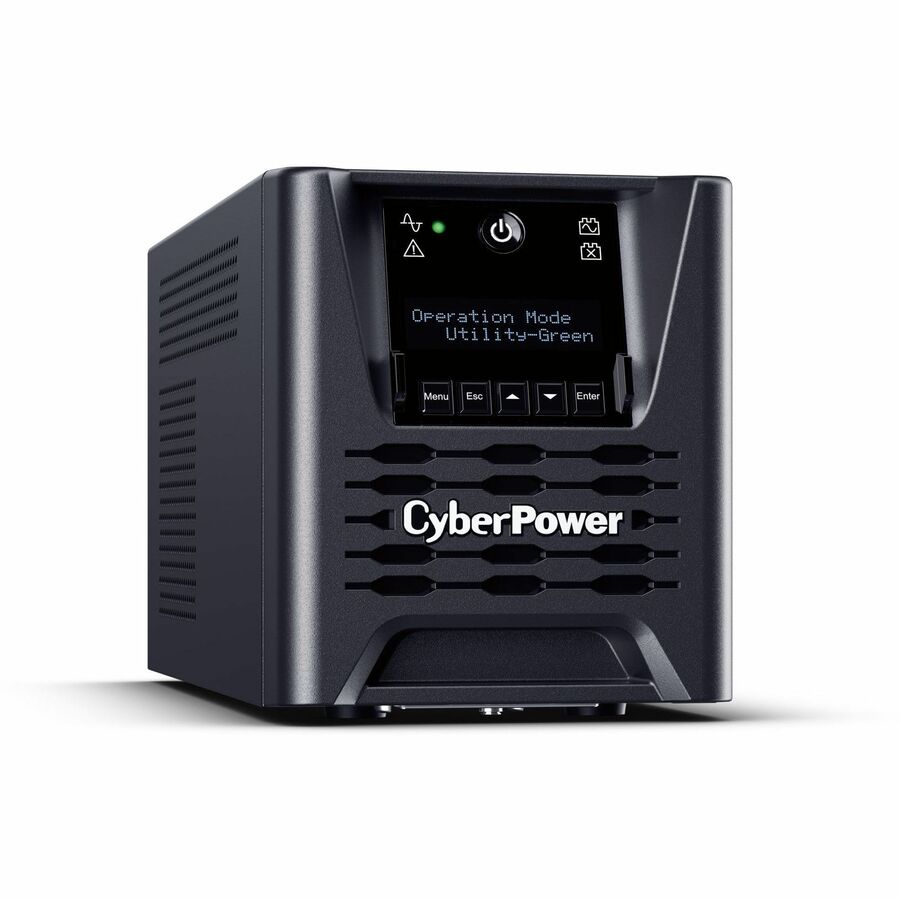

CyberPower PR750LCD3C Smart App Sinewave UPS Systems - PR750LCD3C
Key Features
- Capacity: 750 VA / 750 W
- Cisco compatible: Yes
- Communication: USB, Serial, SNMP, Relay, EPO, Cloud
- Connected Equipment Guarantee: $375,000
- ENERGY STAR® qualified: Yes
- Environmental sensor: Yes, with optional RMCARD205
- Management software: PowerPanel® Business Edition

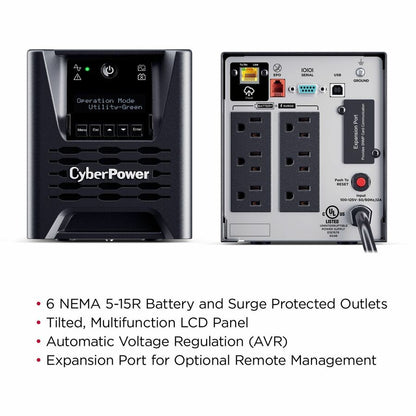

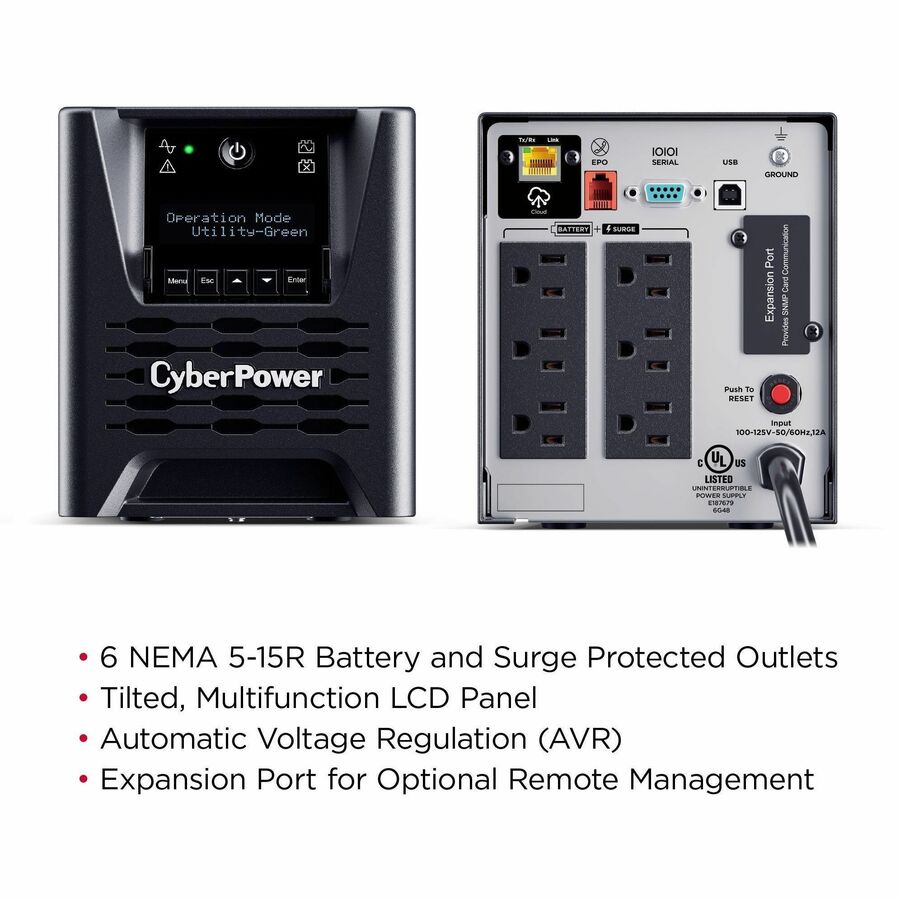

- Outlet types: 6 × NEMA 5-15R
- Outlets: 6 surge + battery backup
- Output: 120 VAC ± 5%
- Plug type & cord: NEMA 5-15P, 5 ft. cord
- Remote management: Yes
- Runtime (half/full): 10.7 minutes / 3.3 minutes
- Topology: Line Interactive
- Warranty: 3 year
- Waveform: Sine Wave
Product Overview
A mini-tower UPS with line interactive topology, the CyberPower Smart App Sinewave PR750LCD3C provides battery backup, power protection (using sine wave output), and surge protection for corporate servers, department servers, storage appliances, network devices, and telecom installations requiring Active PFC power source compatibility. The PR750LCD3C uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The PR750LCD3C comes with a three-year warranty (including coverage of batteries) and a ,375,000 Connected Equipment Guarantee.
General Information
- Manufacturer: CyberPower Systems, Inc
- Manufacturer Part Number: PR750LCD3C
- Brand Name: CyberPower
- Product Line: Smart App Sinewave
- Product Model: PR750LCD3C
- Product Name: PR750LCD3C Smart App Sinewave UPS Systems
- Product Type: Line-interactive UPS
Technical Information
- AVR: Yes
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15R
- Receptacle Detail: 6 x NEMA 5-15R
- Number of Battery & Surge Outlets: 6
- Overload Protection: Yes
- Cord Length: 5 ft
- Transfer Time: 4 ms
- EMI/RFI Noise Filter: Yes
- Energy Saving: GreenPower UPS™ Bypass Technology
- Application/Usage:
- Server
- Storage Device
- Network Device
- Corporate
- Telecommunication
- VoIP
- Surge Suppression: Yes
- Features: Audible Alarm
Power Description
- Load Capacity (VA): 750 VA
- Load Capacity (Watt): 750 W
- Input Voltage: 120 V AC
- Input Voltage Range:
- 74 V AC - 154 V AC
- 100 V AC - 125 V AC
- Output Voltage: 120 V AC
- Input Frequency:
- 63 Hz
- 47 Hz
- Output Frequency:
- 60 Hz
- 50 Hz
- Waveform Type: Sine Wave
- Surge Energy Rating: 1350 J
- Circuit Breaker: Yes
- Output Power Factor: 1
Display & Graphics
- Display: LCD
Management
- Network Management:
- SNMP/HTTP Remote Monitoring
- Relay-MS Card
- Alarm:
- Battery Mode
- Low Battery
- Overload
- Fault
- Replace Battery
Controls/Indicators
- Status Indicators:
LED Indicators:
- Power On
- On-Line
- Battery Mode
- Fault

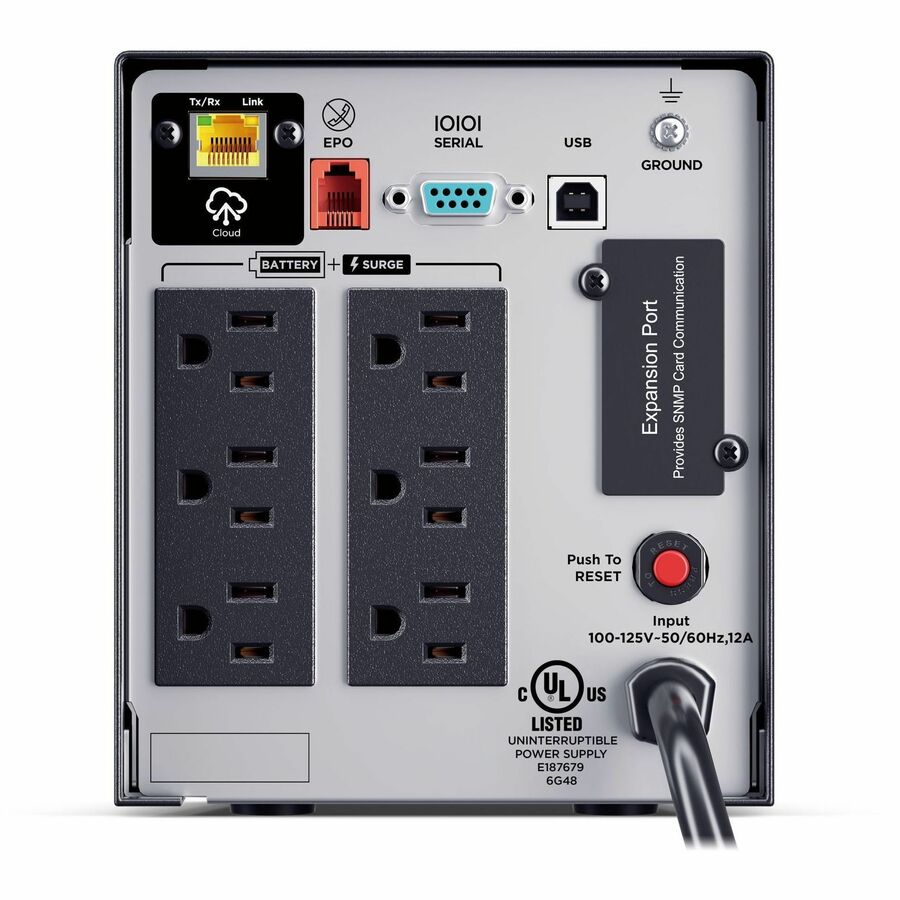

Interfaces/Ports
- Serial Port: Yes
- USB: Yes
- EPO Port: Yes
- USB (HID Compliant) Port: Yes
Battery Information
- Number of Batteries: 2
- Battery Characteristics: Sealed
- Battery Chemistry: Lead Acid
- Battery Size: 12V
- Battery Capacity: 7000 mAh
- Backup/Run Time (Full Load): 3.30 Minute
- Backup/Run Time (Half Load): 10.70 Minute
- Hot Swappable: Yes
- Typical Battery Recharge Time: 8 Hour
- Replaceable Battery: Yes
Environmental Conditions
- Maximum Operating Elevation: 10000 ft
- Storage Temperature: 5°F (-15°C) - 113°F (45°C)
- Operating Humidity: 0% - 95%
- Minimum Operating Temperature: 32°F (0°C)
- Maximum Operating Temperature: 104°F (40°C)

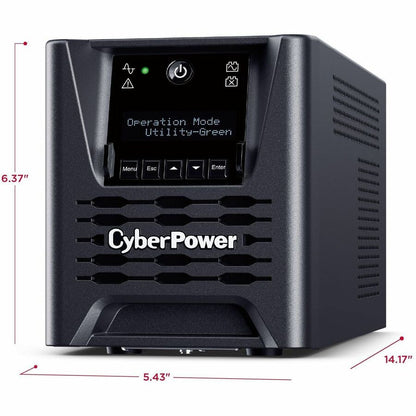

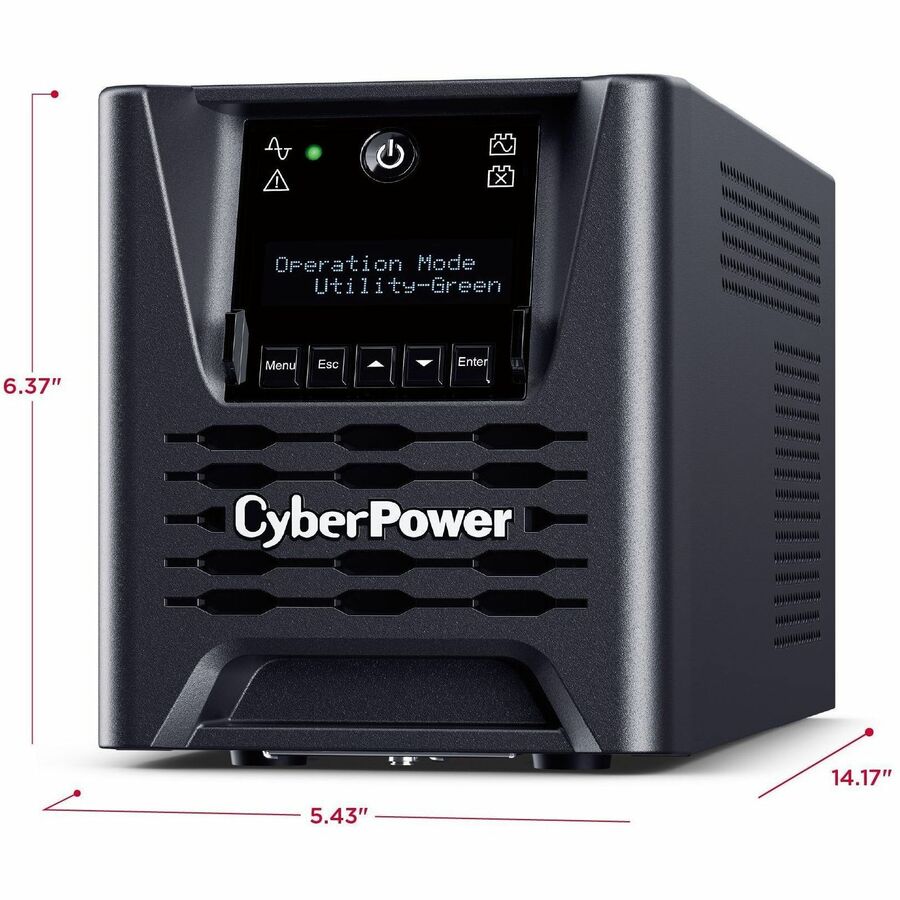

Physical Characteristics
- Product Color: Black
- Height: 6.38"
- Width: 5.43"
- Depth: 14.17"
- Form Factor: Mini-tower
- Weight (Approximate): 26.01 lb
Miscellaneous
- Energy Star: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
- Additional Warranty Information:
Three-year warranty (including coverage of batteries)
