CyberPower CP1500AVRT AVR UPS Systems - CP1500AVRT
Key Features
- $500,000
- 10 (5 surge, 5 surge + battery backup)
- 120Vac ± 5%
- 1500 VA / 900 W
- 3 year
- Capacity:
- Connected Equipment Guarantee:
- Data line protection:
- ENERGY STAR® certified:
- Line Interactive
- Management software:
- NEMA 5-15P, 6 ft. cord
- Network, Coaxial
- Outlets:
- Output:
- Plug type & cord:
- PowerPanel® Personal
- Simulated Sine Wave
- Topology:
- Warranty:
- Waveform:
- Yes
Product Overview

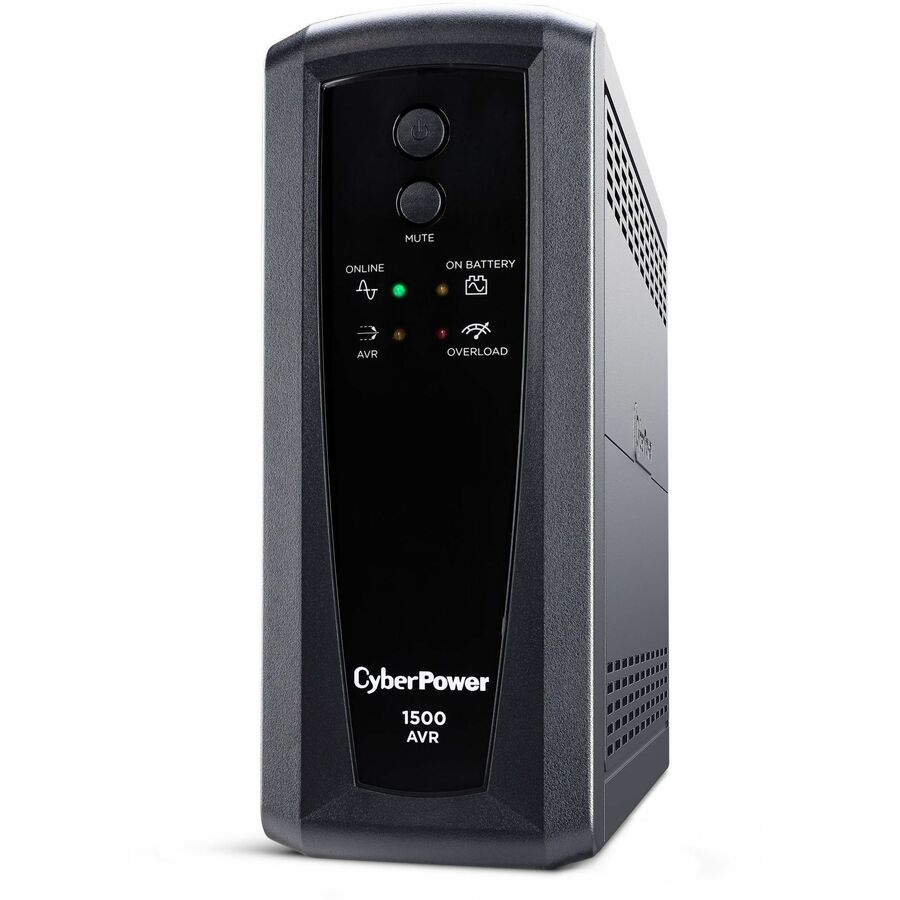

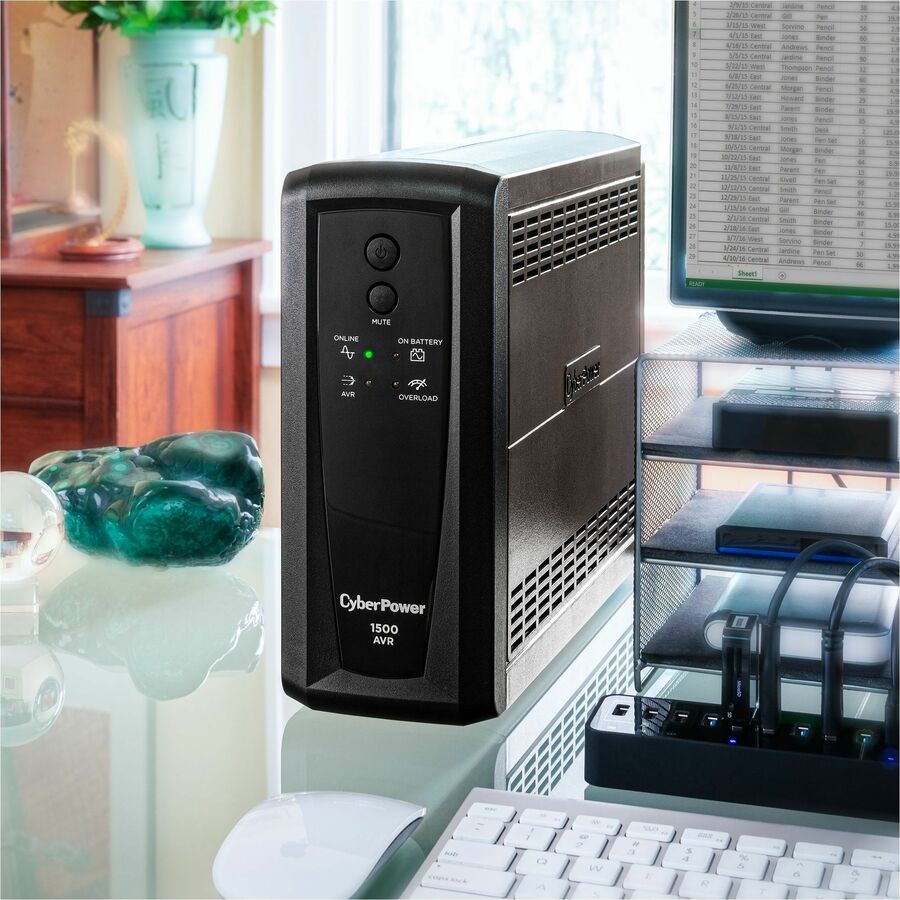

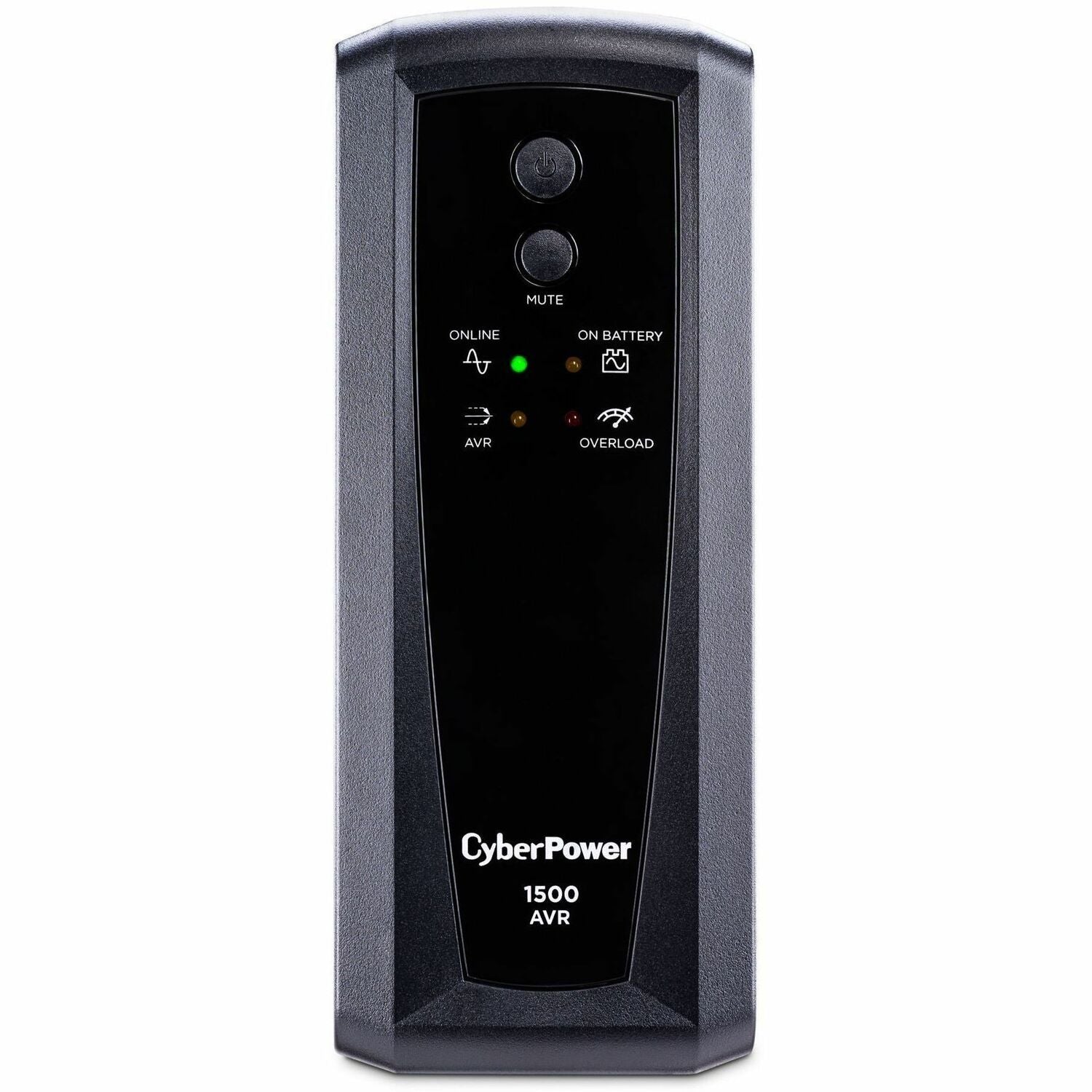

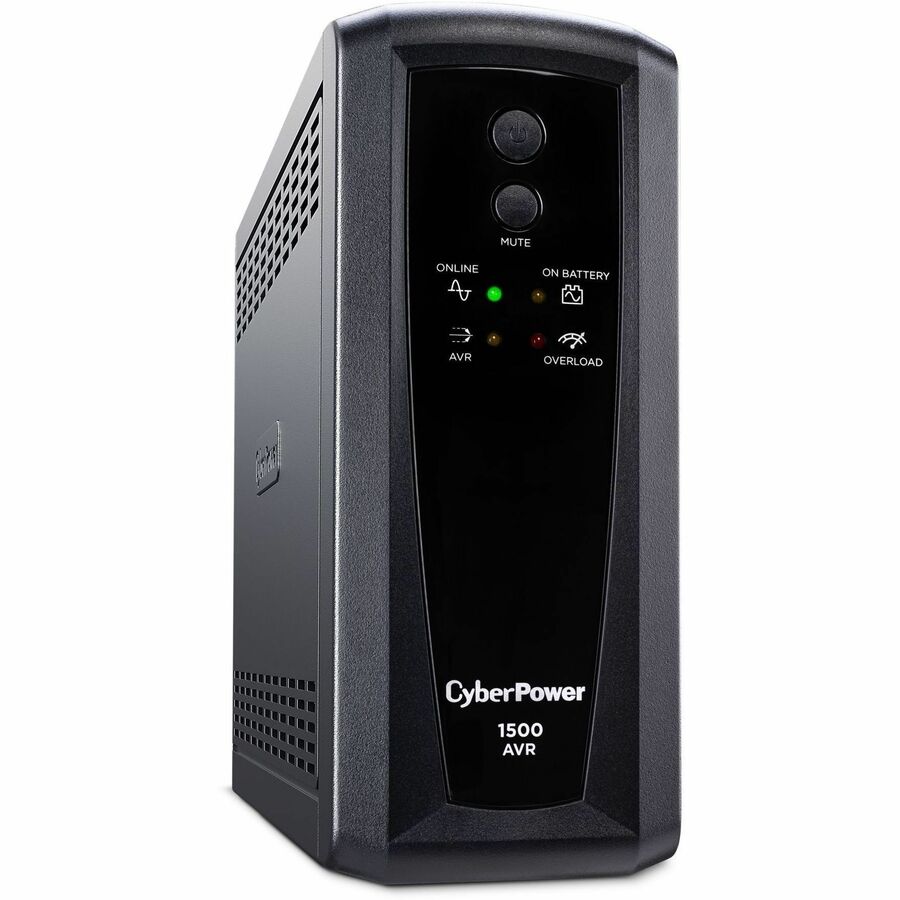

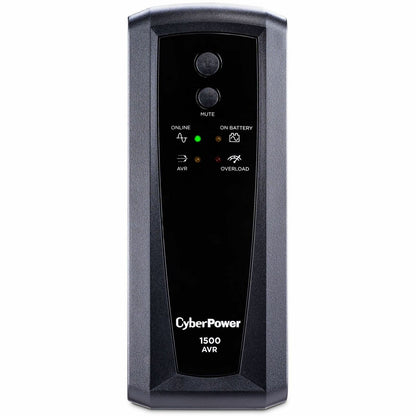

A mini-tower UPS with line interactive topology, the CyberPower AVR Series CP1500AVRT provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. During longer power outages, the CP1500AVRT delivers enough battery backup power to perform a graceful shutdown to protect against the loss of data and damage to electronics. It uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CP1500AVRT comes with a three-year warranty (including coverage of batteries) and a ,500,000 Connected Equipment Guarantee.
General Information
- Manufacturer: CyberPower Systems, Inc
- Manufacturer Part Number: CP1500AVRT
- Brand Name: CyberPower
- Product Series: AVR UPS
- Product Model: CP1500AVRT
- Product Name: CP1500AVRT AVR UPS Systems
- Product Type: Line-interactive UPS
Technical Information
- AVR: Yes
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15R

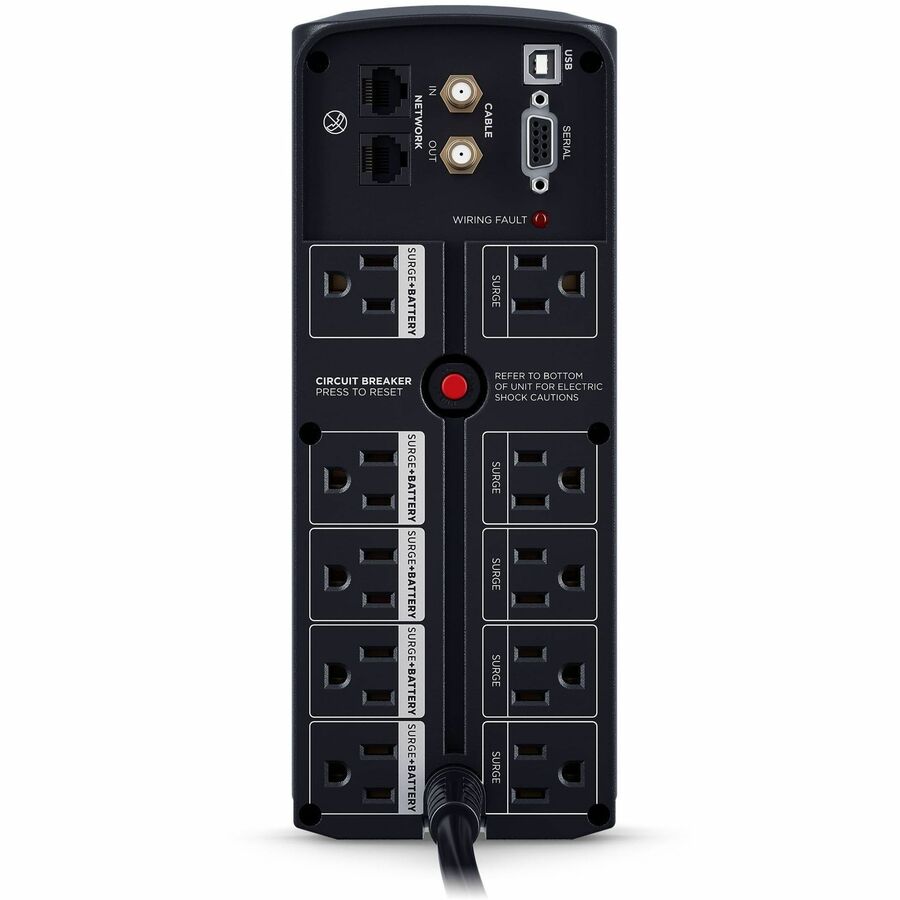

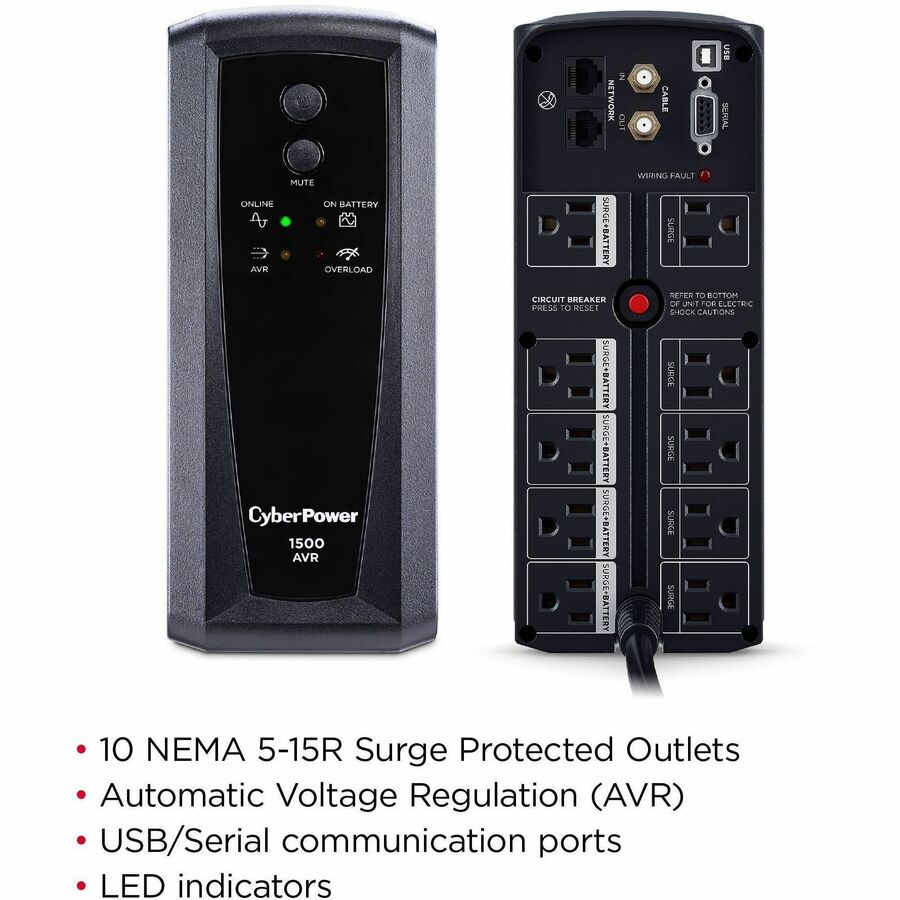

- Receptacle Detail: 10 x NEMA 5-15R
- Number of Battery & Surge Outlets: 5
- Number of Surge-only Outlets: 5
- Dataline Protection:
- RJ-45
- RG-6
- Cord Length: 6 ft
- Transfer Time: 8 ms
- EMI/RFI Noise Filter: Yes
- Energy Saving: GreenPower UPS™ Bypass Technology
Power Description
- Load Capacity (VA): 1500 VA
- Load Capacity (Watt): 900 W
- Input Voltage: 120 V AC
- Input Voltage Range: 88 V AC - 144 V AC
- Output Voltage: 120 V AC
- Input Frequency: 63 Hz
- Output Frequency: 60 Hz
- Waveform Type: Simulated Sine Wave
- Surge Energy Rating: 1500 J
- Circuit Breaker: Yes
Management
- Alarm: Battery Mode
Controls/Indicators
- Status Indicators:
- Power On
Interfaces/Ports
- Serial Port: Yes
- USB (HID Compliant) Port: Yes
Battery Information
- Number of Batteries: 2
- Battery Characteristics: Maintenance-free
- Battery Chemistry: Lead Acid
- Battery Size: 12V
- Battery Capacity: 9000 mAh
- Backup/Run Time (Full Load): 3 Minute
- Backup/Run Time (Half Load): 11 Minute
- Battery Life: 6 Year
- Hot Swappable: Yes
- Typical Battery Recharge Time: 8 Hour
- Replaceable Battery: Yes
Environmental Conditions
- Maximum Operating Elevation: 10000 ft
- Maximum Storage Elevation: 50000 ft
- Storage Temperature: 5°F (-15°C) - 113°F (45°C)
- Storage Relative Humidity: 0% - 95%
- Maximum Operating Temperature: 104°F (40°C)
Physical Characteristics
- Product Color: Black

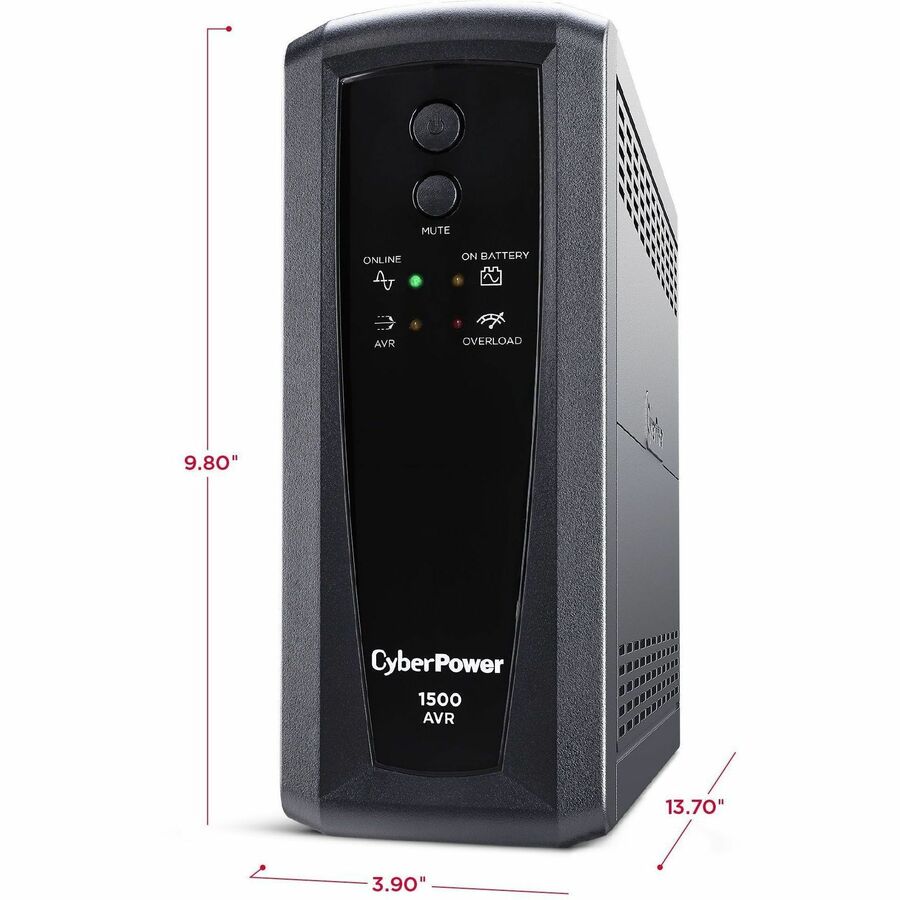

- Height: 9.8"
- Width: 3.9"
- Depth: 13.7"
- Form Factor: Mini-tower
- Weight (Approximate): 24.10 lb
Miscellaneous
- Package Contents:
- AVR CP1500AVRT 1500VA UPS
- User Manual
- Power Management Software
- Warranty Card
- Coaxial Cable
- Phone Cable
- USB Cable
- Software Included: PowerPanel PE
- Energy Star: Yes
- Country of Origin: China
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
- Additional Warranty Information:
- CyberPower stands behind its products by offering an industry leading 3-year warranty
- CyberPower also has a #1 rated technical support team that will assist you with product, installation, or warranty concerns --- Free of charge
- Connected Equipment Guarantee of
- 500,000
