CyberPower CP1500AVRLCD3 Intelligent LCD UPS Systems - CP1500AVRLCD3
Key Features
- $500,000
- 12 (6 surge, 6 surge + battery backup)
- 12 minutes / 3 minutes
- 120 VAC ± 5%
- 1500 VA / 900 W
- 2 (1 USB-A 2.4A, 1 USB-C 15W)
- 3 year
- Capacity:
- Communication:
- Connected Equipment Guarantee:
- Data line protection:
- ENERGY STAR® certified:
- Ethernet, Coaxial
- Line Interactive
- Management software:
- NEMA 5-15P, 6ft. cord
- Outlets:
- Output:
- Plug type & cord:
- PowerPanel® Personal
- Runtime (half/full):
- Simulated Sine Wave
- Topology:
- USB Charge Ports:
- USB, Serial
- Warranty:
- Waveform:
- Yes
Product Overview

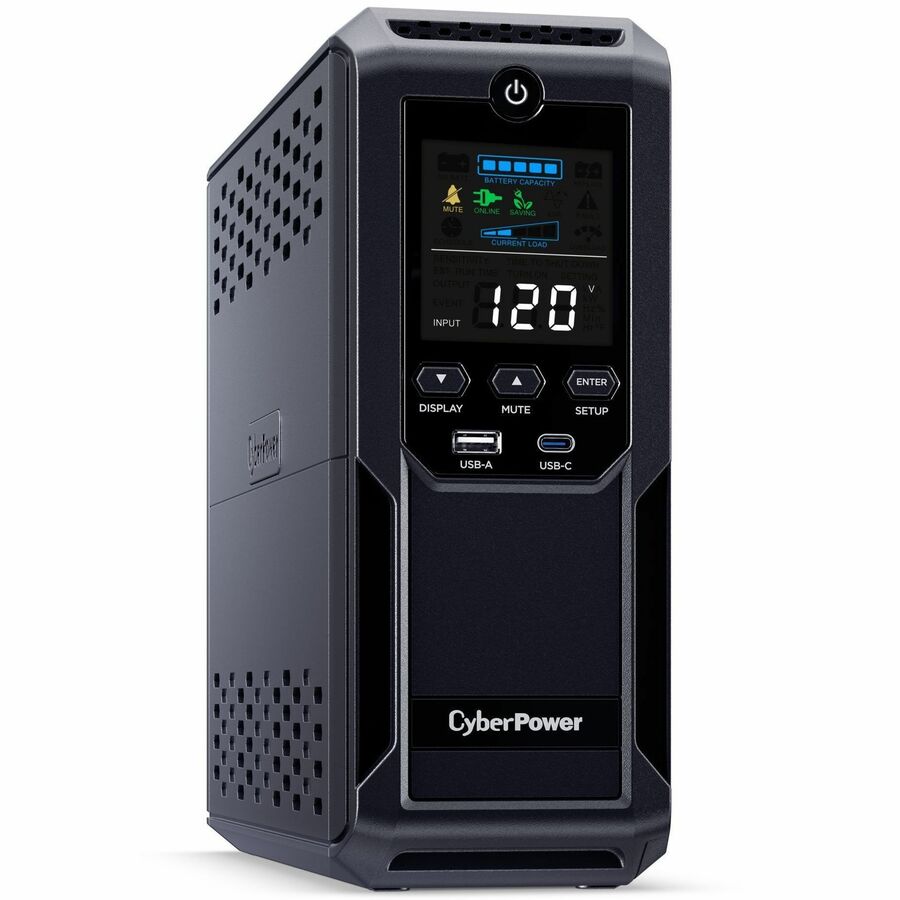

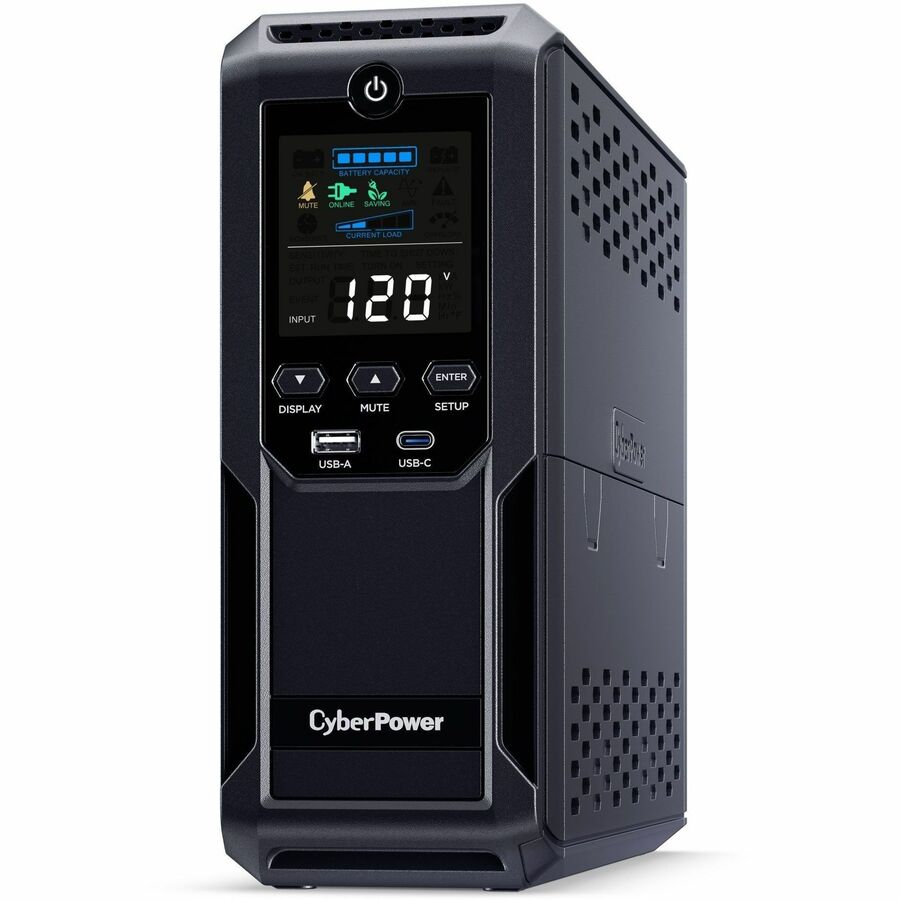

A mini-tower UPS with line interactive topology, the CyberPower Intelligent LCD CP1500AVRLCD3 provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The CP1500AVRLCD3 uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CP1500AVRLCD3 comes with a three-year warranty (including coverage of batteries) and a ,500,000 Connected Equipment Guarantee.
General Information
- Manufacturer: CyberPower Systems, Inc
- Manufacturer Part Number: CP1500AVRLCD3
- Brand Name: CyberPower
- Product Line: Intelligent LCD
- Product Series: Intelligent LCD UPS
- Product Model: CP1500AVRLCD3
- Product Name: CP1500AVRLCD3 Intelligent LCD UPS Systems
- Product Type: Line-interactive UPS
Technical Information
- AVR: Yes
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type:
- USB Type A
- USB Type C
- NEMA 5-15R
- Receptacle Detail:
- 1 x USB Type A
- 1 x USB Type C

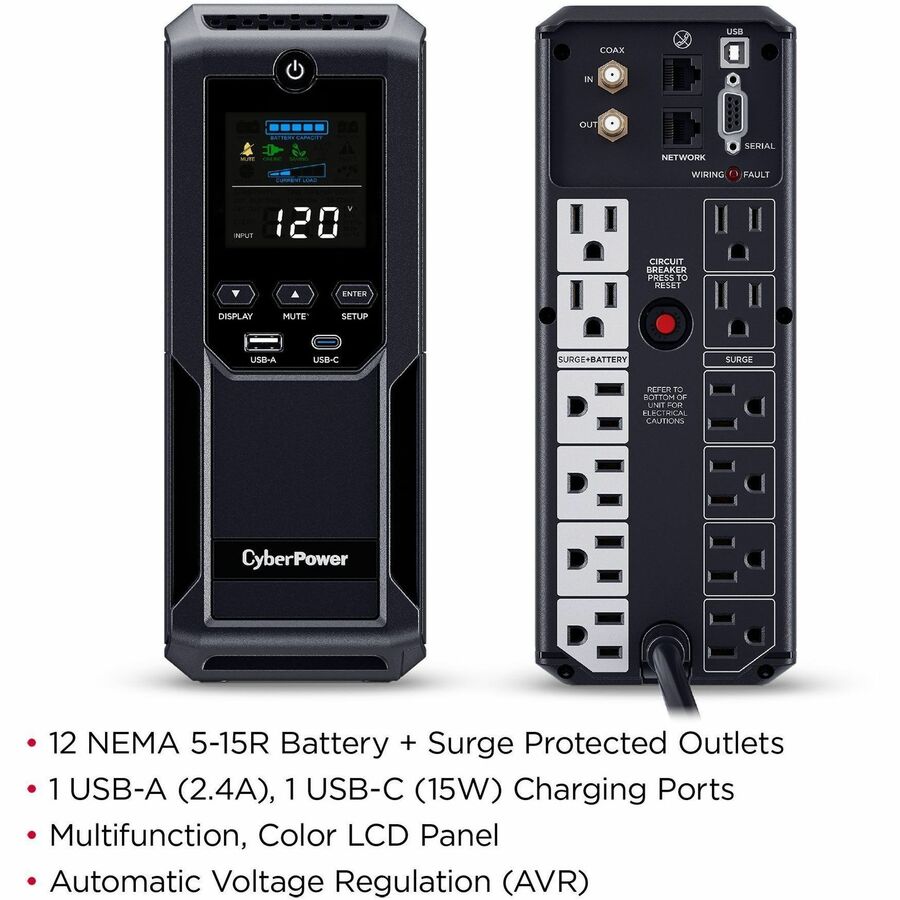

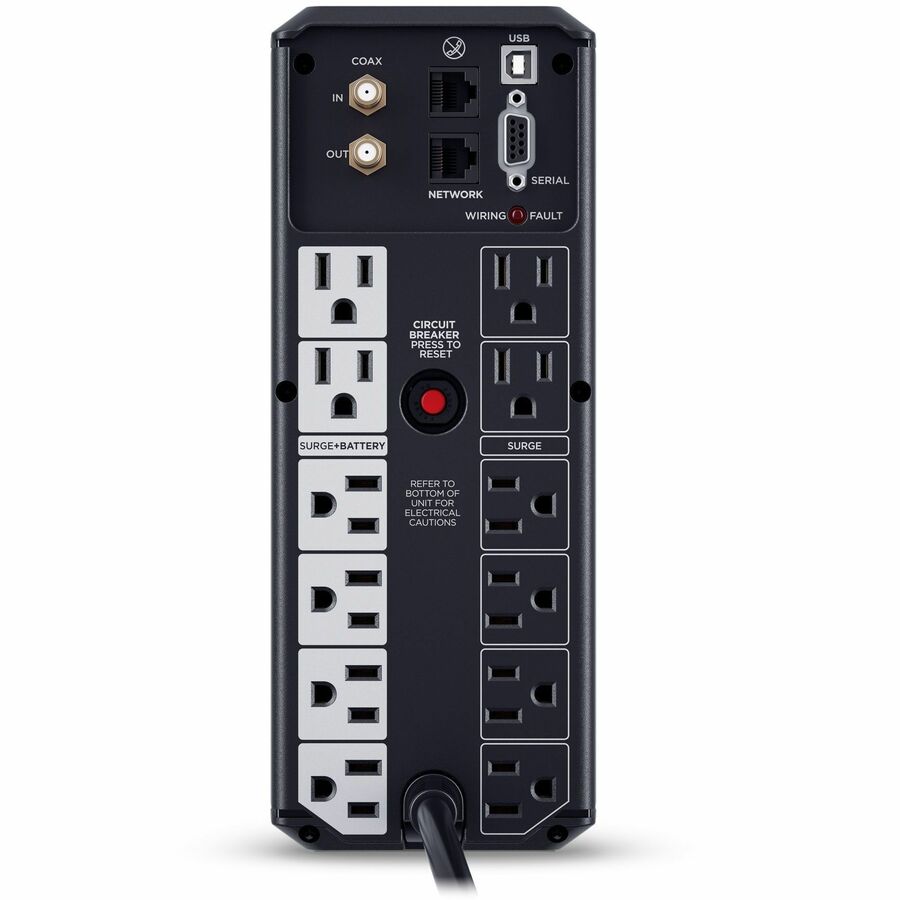

- 12 x NEMA 5-15R

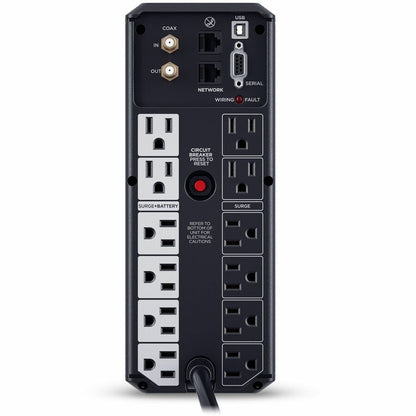

- Number of Battery & Surge Outlets: 6
- Number of Surge-only Outlets: 6
- Dataline Protection:
- RJ-45
- RG-6
- Overload Protection: Yes
- Cord Length: 6 ft
- Transfer Time: 4 ms
- EMI/RFI Noise Filter: Yes
- Energy Saving: GreenPower UPS™ Bypass Technology
- Application/Usage:
- Desktop Computer
- Workstation
- Network Device
- Home Entertainment System
- SOHO Network
- Computer Peripheral
- Home Theater
- Equipment
- Personal Electronic
- Home Network
- Router
- Modem
- VoIP Phone System
- Surge Suppression: Yes
- Features: Audible Alarm
Power Description
- Load Capacity (VA): 1500 VA
- Load Capacity (Watt): 900 W
- Input Voltage: 120 V AC
- Output Voltage: 120 V AC
- Input Frequency:
- 50 Hz
- 60 Hz
- Output Frequency: 60 Hz
- Waveform Type:
- Sine Wave
- Simulated Sine Wave
- Surge Energy Rating: 1500 J
- Circuit Breaker: Yes
- Output Power Factor: 0.6
Display & Graphics

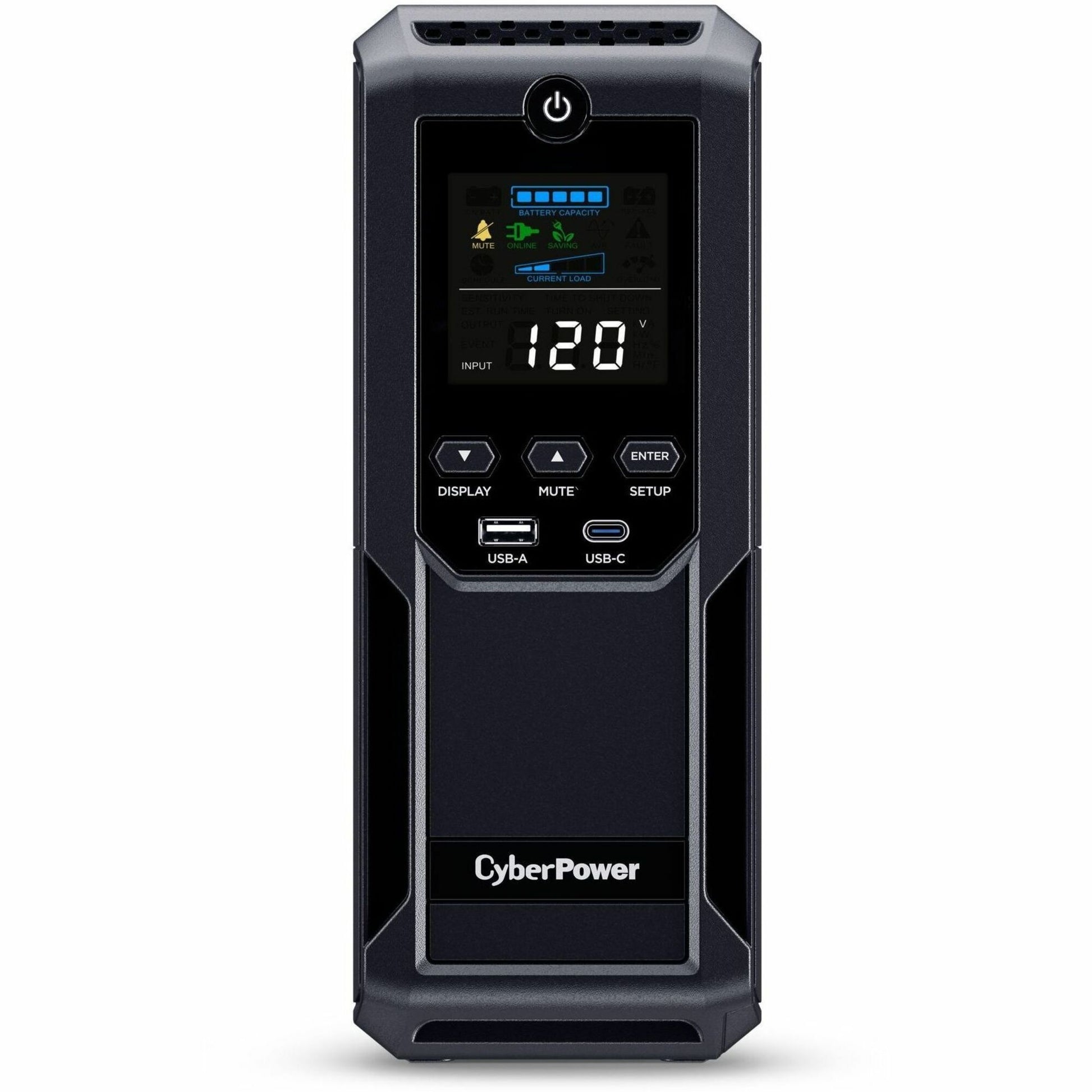

- Display: LCD
Management
- Network Management: RS-232
- Alarm:
- Battery Mode
- Low Battery
- Overload
- Fault
Controls/Indicators
- Status Indicators:
LED Indicators:
- Power On
- Wiring Fault
Interfaces/Ports
- Serial Port: Yes
- USB: Yes
- Network (RJ-45): Yes
- USB (HID Compliant) Port: Yes
- Number of USB Ports: 2
Battery Information
- Number of Batteries: 2
- Battery Characteristics: Sealed
- Battery Chemistry: Lead Acid
- Battery Size: 12V
- Battery Capacity: 9000 mAh
- Backup/Run Time (Full Load): 3 Minute
- Backup/Run Time (Half Load): 12 Minute
- Typical Battery Recharge Time: 8 Hour
- Replaceable Battery: Yes
Environmental Conditions
- Maximum Operating Elevation: 10000 ft
- Maximum Storage Elevation: 50000 ft
- Storage Temperature: 5°F (-15°C) - 113°F (45°C)
- Operating Humidity: 0% - 95%
- Storage Relative Humidity: 0% - 95%
- Minimum Operating Temperature: 32°F (0°C)
- Maximum Operating Temperature: 104°F (40°C)
Physical Characteristics
- Product Color: Black

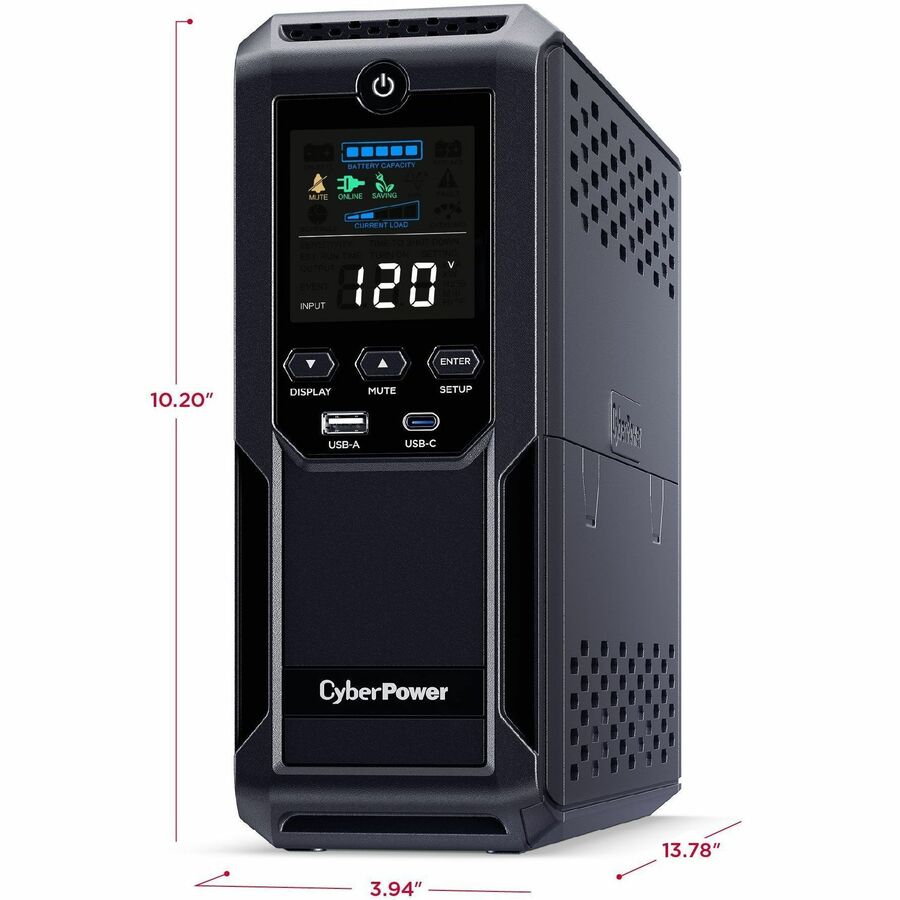

- Height: 10.2"
- Width: 3.9"
- Depth: 13.8"
- Form Factor: Mini-tower
- Weight (Approximate): 23.81 lb
Miscellaneous
- Energy Star: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
- Additional Warranty Information:
Three-year warranty (including coverage of batteries)
