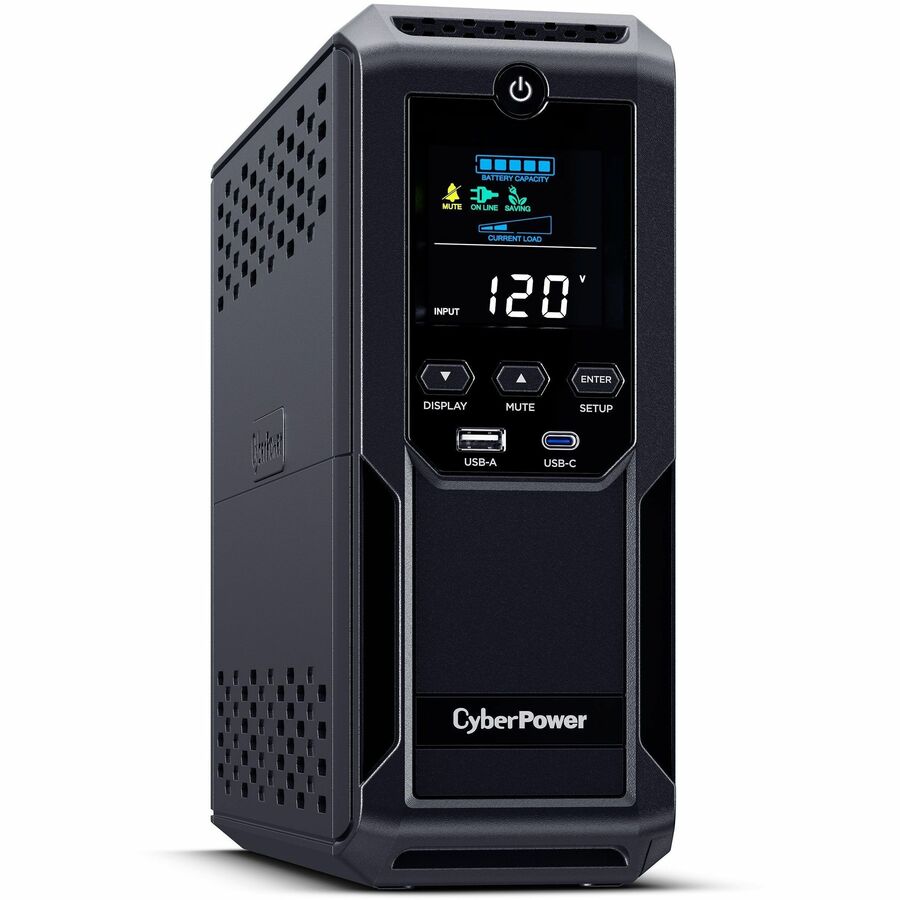

CyberPower BRG1500AVRLCD2 Intelligent LCD UPS Systems - BRG1500AVRLCD2
Key Features
- $500,000
- 12 (6 surge, 6 surge + battery backup)
- 12 minutes / 2 minutes
- 120 VAC ± 5%
- 1500 VA / 900 W

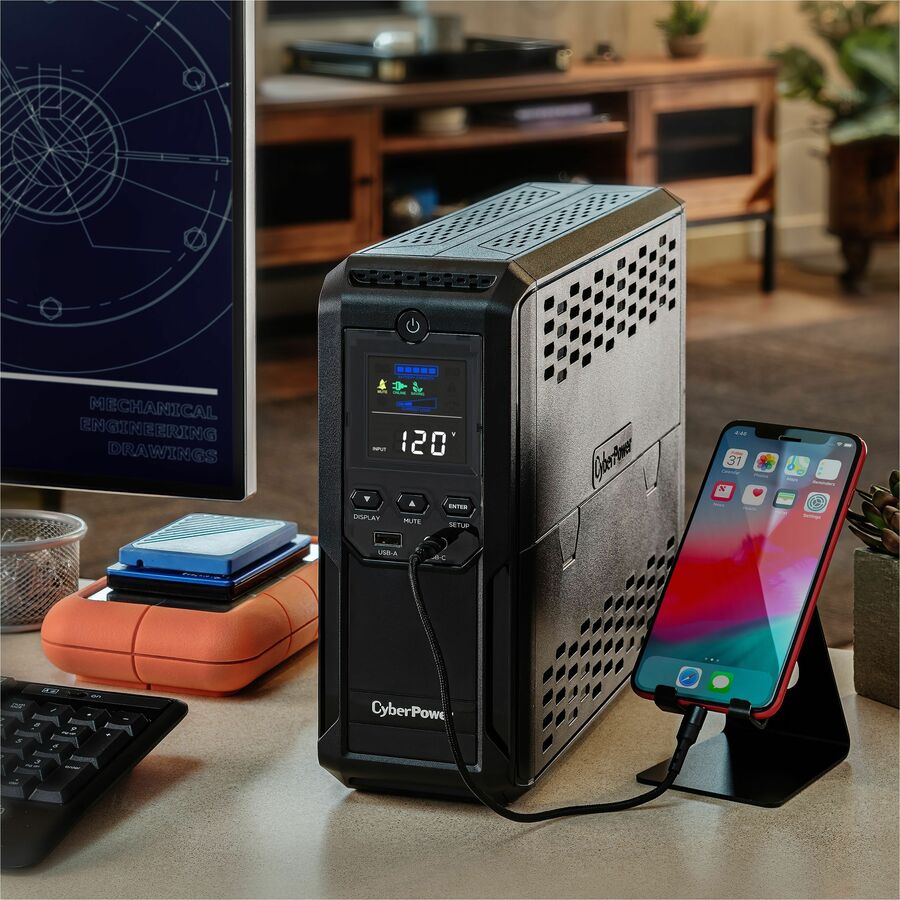

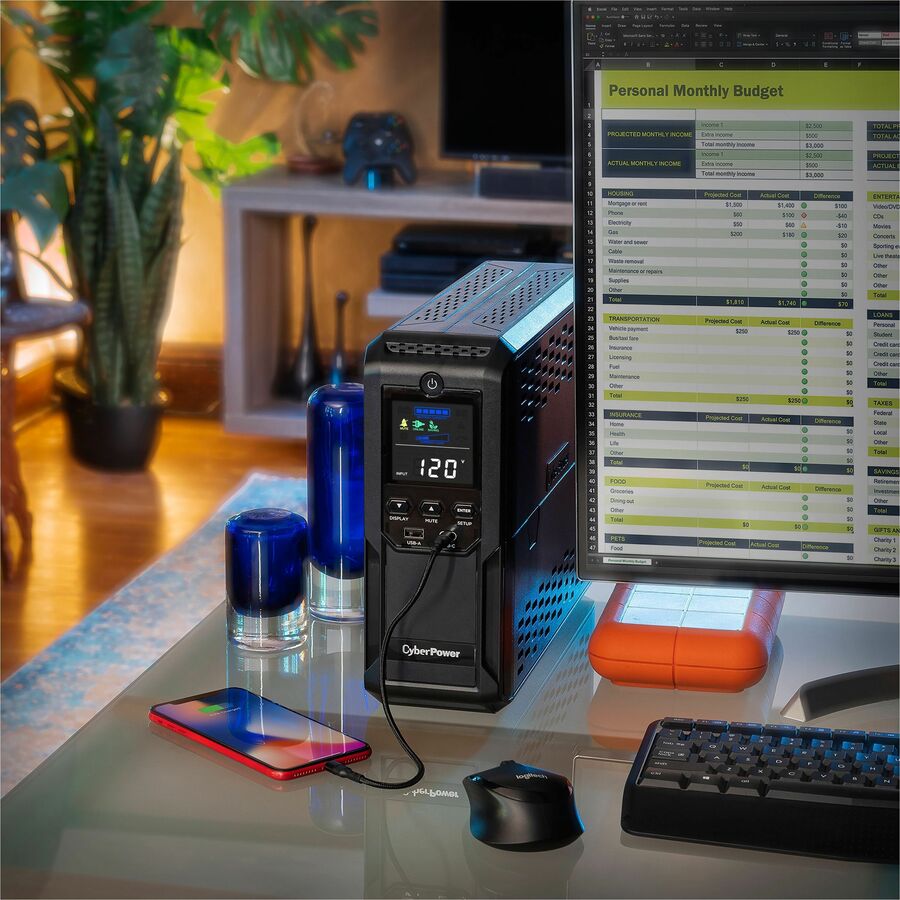

- 2 (1 USB-A 2.4A, 1 USB-C 18W PD)
- 5 year Limited
- Automatic Voltage Regulation:
- Boost (+10%), Buck (-10%)
- Capacity:
- Communication:
- Connected Equipment Guarantee:
- Data line protection:
- ENERGY STAR® certified:
- Ethernet
- Line Interactive
- Management software:
- NEMA 5-15P, 6ft. cord
- Outlets:
- Output:
- Plug type & cord:
- PowerPanel® Personal
- Runtime (half/full):
- Simulated Sine Wave
- SNMP/HTTP Remote management:
- Topology:
- USB Charge Ports:
- USB, Serial
- Warranty:
- Waveform:
- Yes
- Yes, with optional RMCARD205, RCCARD100 or RWCCARD100
Product Overview

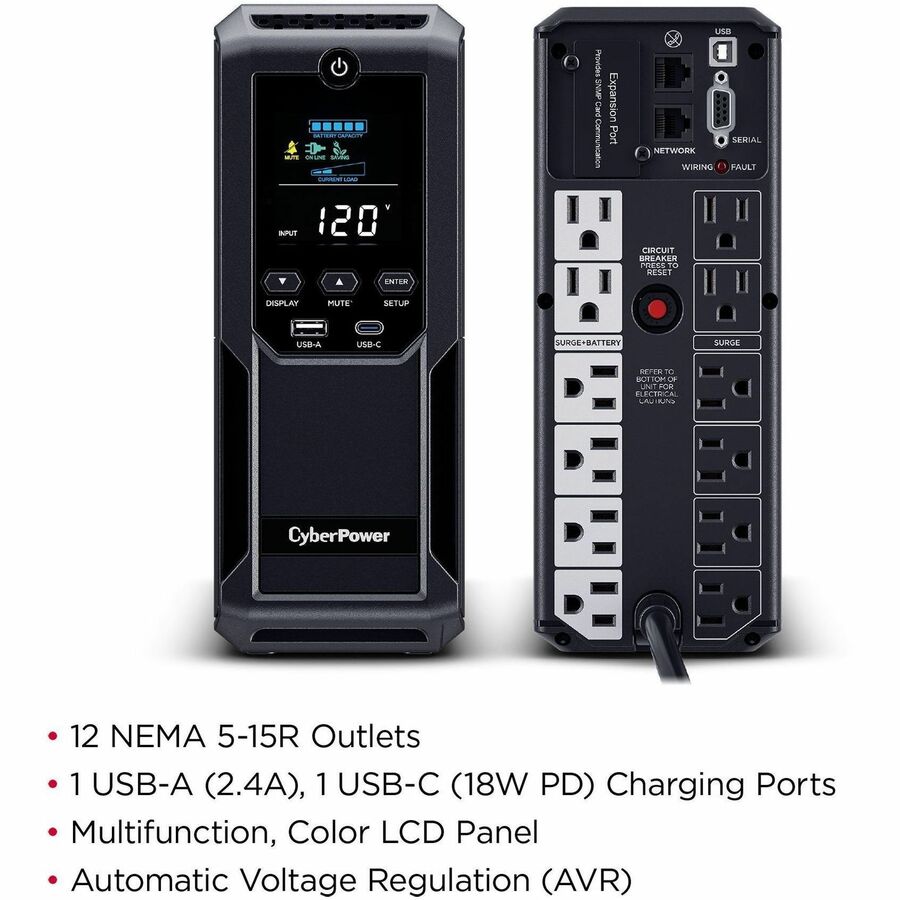

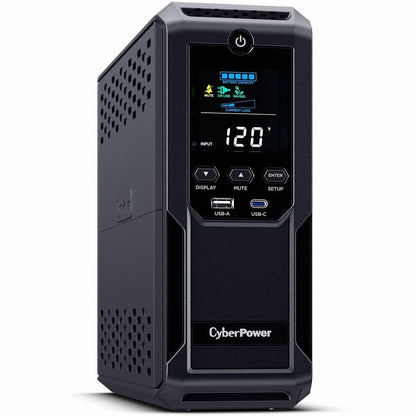

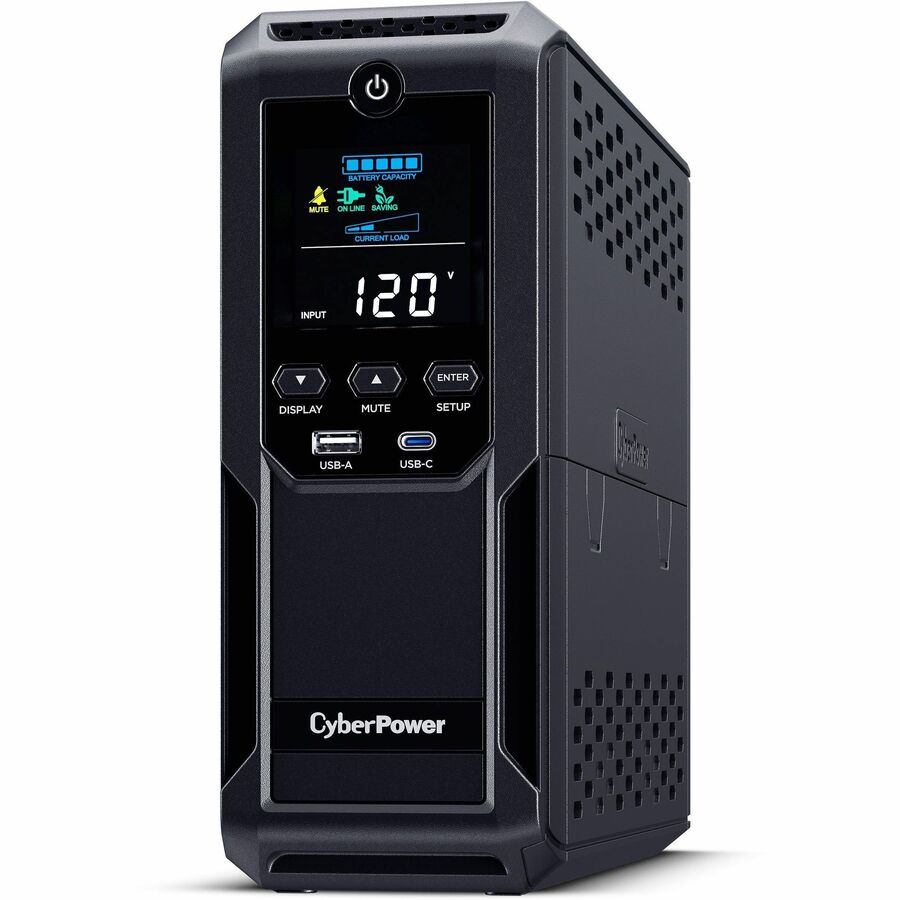

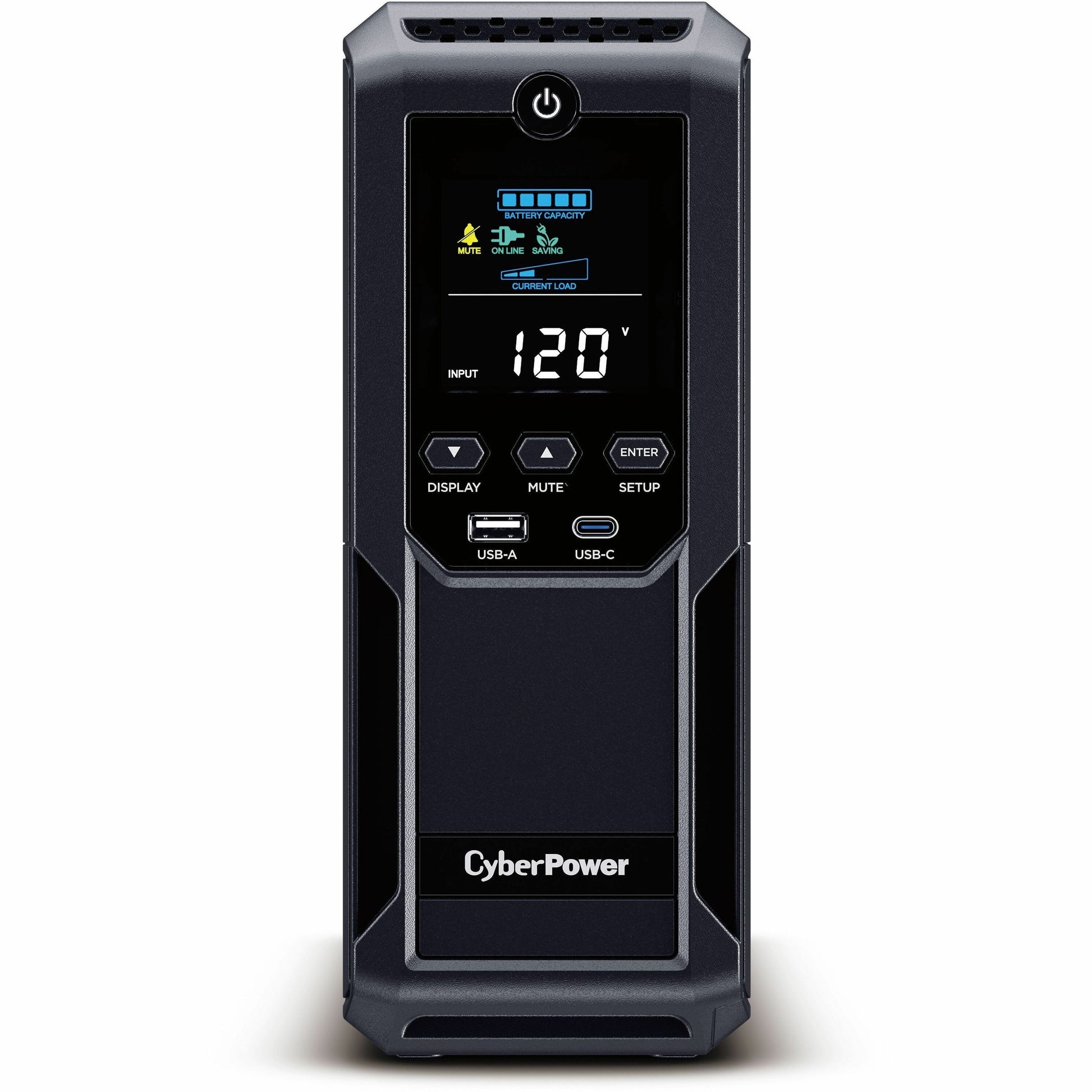

A mini-tower UPS with line interactive topology, the CyberPower Intelligent LCD provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The BRG1500AVRLD2 uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The BRG1500AVRLD2 comes with a five year warranty (including coverage of batteries) and a ,500,000 Connected Equipment Guarantee.
General Information
- Manufacturer: CyberPower Systems, Inc
- Manufacturer Part Number: BRG1500AVRLCD2
- Brand Name: CyberPower
- Product Line: Intelligent LCD
- Product Model: BRG1500AVRLD2
- Product Name: BRG1500AVRLCD2 Intelligent LCD UPS Systems
- Product Type: Line-interactive UPS
Technical Information
- AVR: Yes
- AVR Range: Boost +10% / Buck --10%
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15R

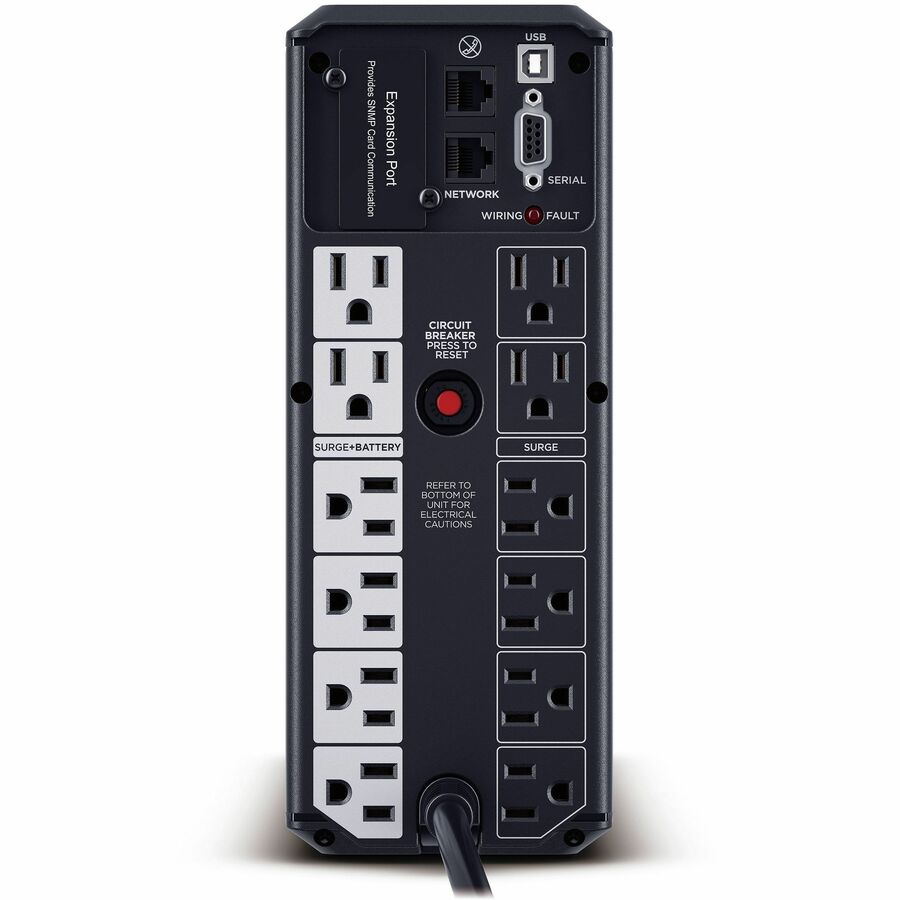

- Receptacle Detail: 12 x NEMA 5-15R
- Number of Battery & Surge Outlets: 6
- Number of Surge-only Outlets: 6
- Dataline Protection: RJ-45
- Overload Protection: Yes
- Transfer Time: 4 ms
- EMI/RFI Noise Filter: Yes
- Energy Saving: GreenPower UPS Bypass Technology
- Application/Usage:
- Desktop Computer
- Workstation
- Network Device
- Home Entertainment System
- Personal Electronic
- Home Network
- Router
- Modem
- VoIP Phone System
Power Description
- Load Capacity (VA): 1500 VA
- Load Capacity (Watt): 900 W
- Input Voltage: 120 V AC
- Output Voltage: 120 V AC
- Input Frequency: 63 Hz
- Output Frequency: 60 Hz
- Waveform Type: Simulated Sine Wave
- Surge Energy Rating: 1500 J
Management
- Network Management: SNMP/HTTP Remote Monitoring
- Alarm:
- Battery Mode
- Low Battery
- Overload
- Fault
Controls/Indicators
- Status Indicators: LED Indicators:
- Power On
- Wiring Fault
Interfaces/Ports
- Serial Port: Yes
- Network (RJ-45): Yes
- USB (HID Compliant) Port: Yes
Battery Information
- Number of Batteries: 2
- Battery Characteristics: Sealed
- Battery Chemistry: Lead Acid
- Battery Size: 12V
- Battery Capacity: 9000 mAh
- Backup/Run Time (Full Load): 2 Minute
- Backup/Run Time (Half Load): 12 Minute
- Typical Battery Recharge Time: 8 Hour
- Replaceable Battery: Yes
Environmental Conditions
- Maximum Operating Elevation: 10000 ft
- Maximum Storage Elevation: 50000 ft
- Storage Temperature: 5°F (-15°C) - 113°F (45°C)
- Operating Humidity: 0% - 95%
- Storage Relative Humidity: 0% - 95%
- Maximum Operating Temperature: 104°F (40°C)
Physical Characteristics
- Product Color: Black

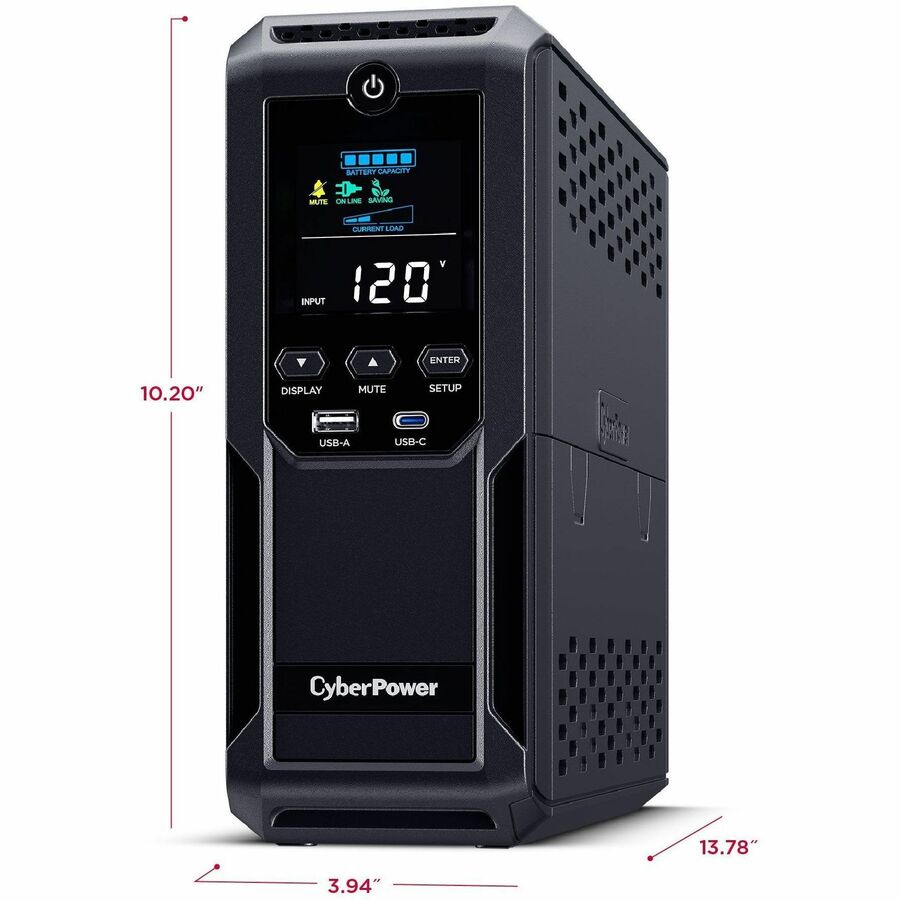

- Height: 10.2"
- Width: 3.9"
- Depth: 13.8"
- Form Factor: Mini-tower
- Weight (Approximate): 23.81 lb
Miscellaneous
- Energy Star: Yes
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 5 Year
