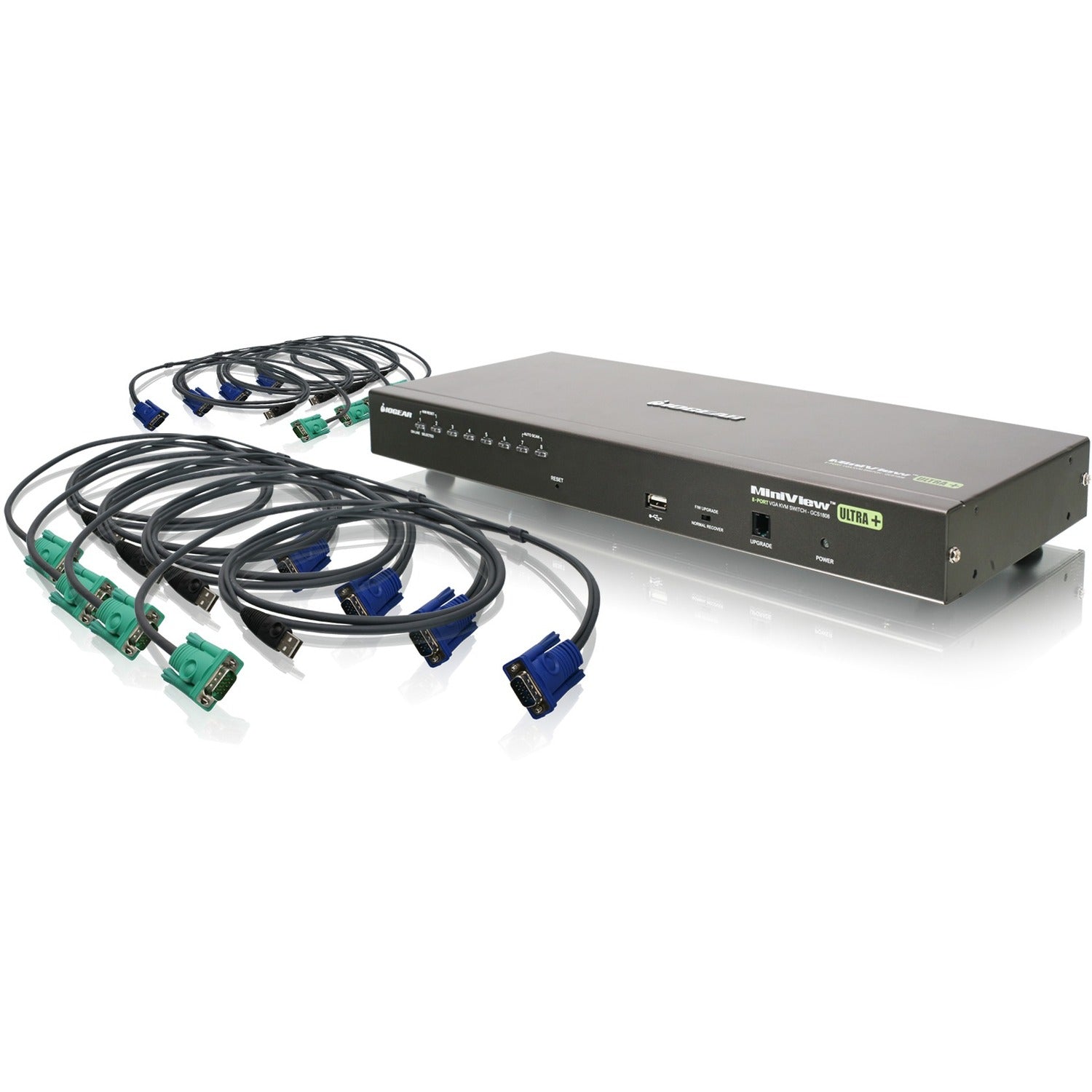

IOGEAR GCS1808KITU Combo KVM Switch - GCS1808KITU
Key Features
- Auto Scan Mode to monitor connected computers
- Broadcast Mode to send commands to all connected computers
- Cascade up to 2 levels* - control up to 128 computers from a single console
- Easy to operate - computer selection via front panel LED's, intuitive OSD (on screen display) and hotkeys
- Front USB Port - for system upgrades and shared peripherals (fully compliant with USB 1.1)
- Maximum video resolution: up to 2048 x 1536
- Multi-platform OS support - Windows®, Mac, Oracle® Solaris and Linux®
- Rack mountable in a 19" (1U) system rack
- Security - 2 level password protection for OSD
- Supports both USB and PS/2, VGA computers
Product Overview
The GCS1808KITU KVM is a combo VGA switch that includes 8 USB KVM cables (4 x 6ft and 4 x 10ft). Access and control of up to 64 computers from a single console (keyboard, mouse, and monitor). As many as 8 additional switches can be cascaded bringing the total number of connected computers to 64 computers that can be controlled from a single keyboard-monitor-mouse console. A custom ASIC (patent pending) provides an auto-sensing function that recognizes the position of each station on the installation, eliminating the need to manually set the position with DIP switches. Additionally, the GCS1808KITU features high density SPHD 15-pin instead of the usual 25-pin connectors thus allowing for a compact design and installation in a 1U system rack.
General Information
- Manufacturer: IOGEAR, Inc
- Manufacturer Part Number: GCS1808KITU
- Brand Name: IOGEAR
- Product Name: GCS1808KITU Combo KVM Switch
- Product Type: KVM Switchbox
Technical Information
- Number of Computers Supported: 8
Video
- Graphic Mode: QXGA
- Maximum Video Resolution: 2048 x 1536
Interfaces/Ports
- USB: Yes
- Number of USB Ports: 1
Physical Characteristics
- Form Factor: Rack-mountable
- Rack Height: 1U
- Height: 1.8"
- Width: 17"
- Depth: 6.3"
- Weight (Approximate): 5.58 lb
Miscellaneous
- Package Contents:
- GCS1808KITU Combo KVM Switch
- 4 x USB KVM Cables (6ft - G2L5202U)
- 4 x USB KVM Cables (10ft - G2L5203U)
- 1 x PS/2 KVM Cable (6ft - G2L5202P)
- 1 x Console Cable
- 1 x Cascade Cable
- 1 x Firmware Upgrade Cable
- 1 x Grounding Wire
- 1 x Foot Pad Set (4 Pads)
- 1 x Power Adapter
- 1 x Standard Rack Mounting Kit
- 1 x Installation Guide
- 1 x Warranty Card
- Environmentally Friendly: Yes
- Country of Origin: China
Warranty
- Limited Warranty: 3 Year
