- Description
- Specifications

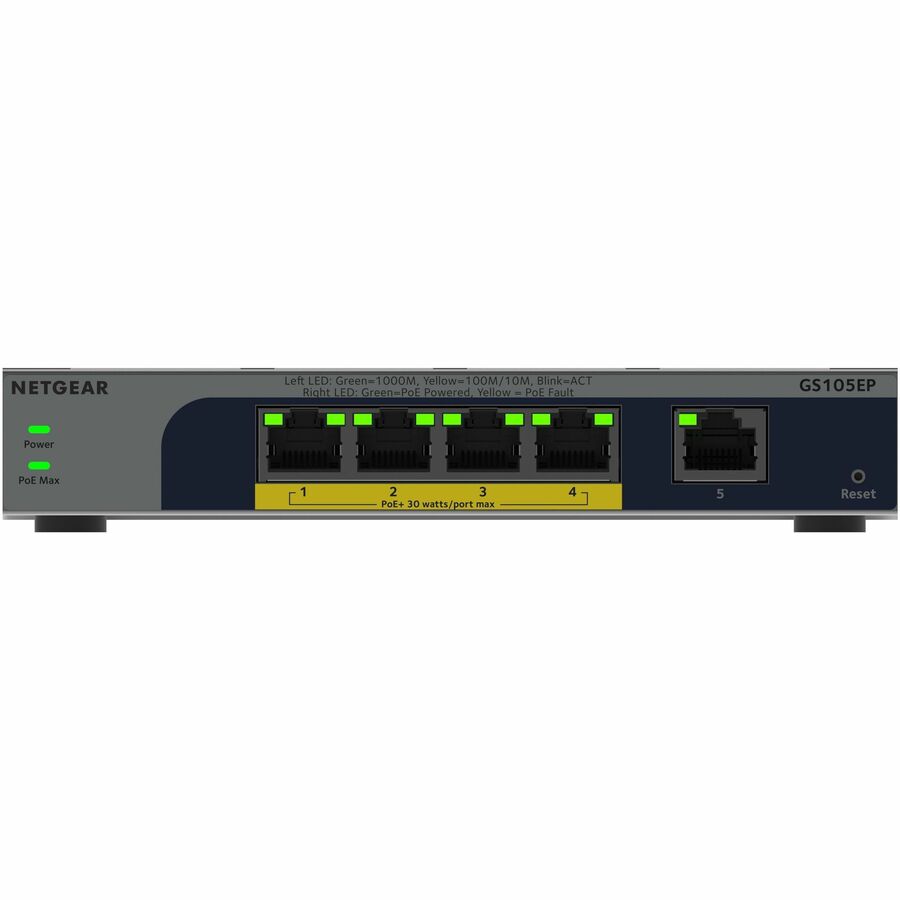

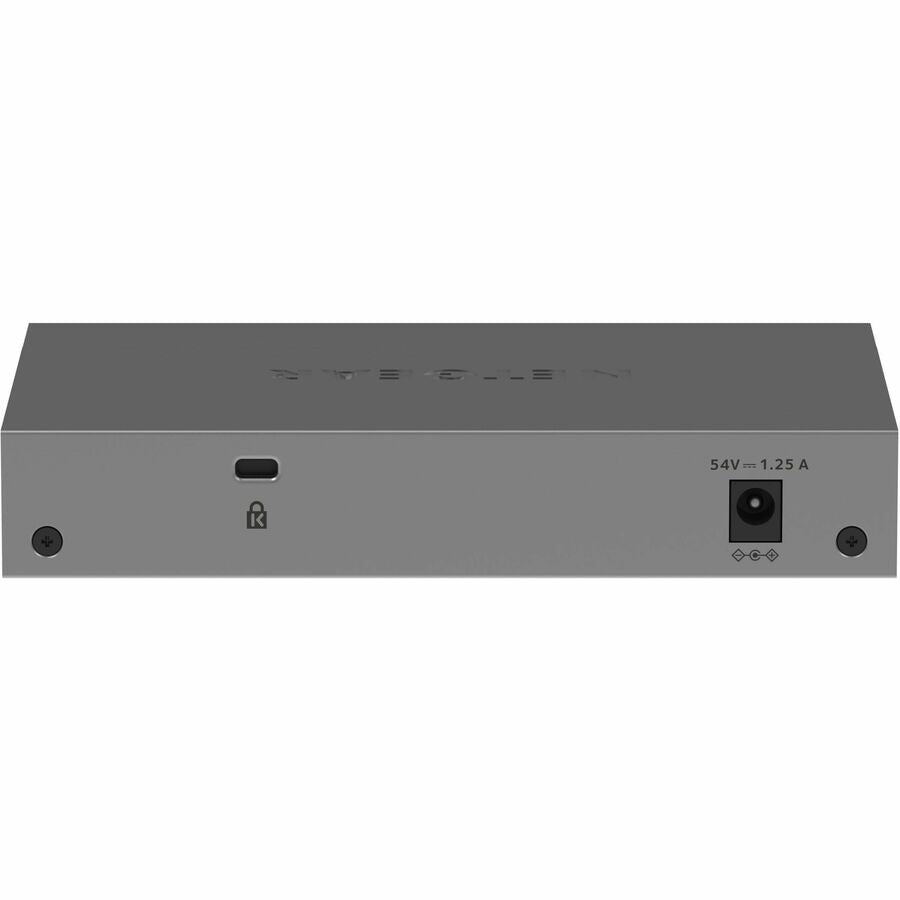

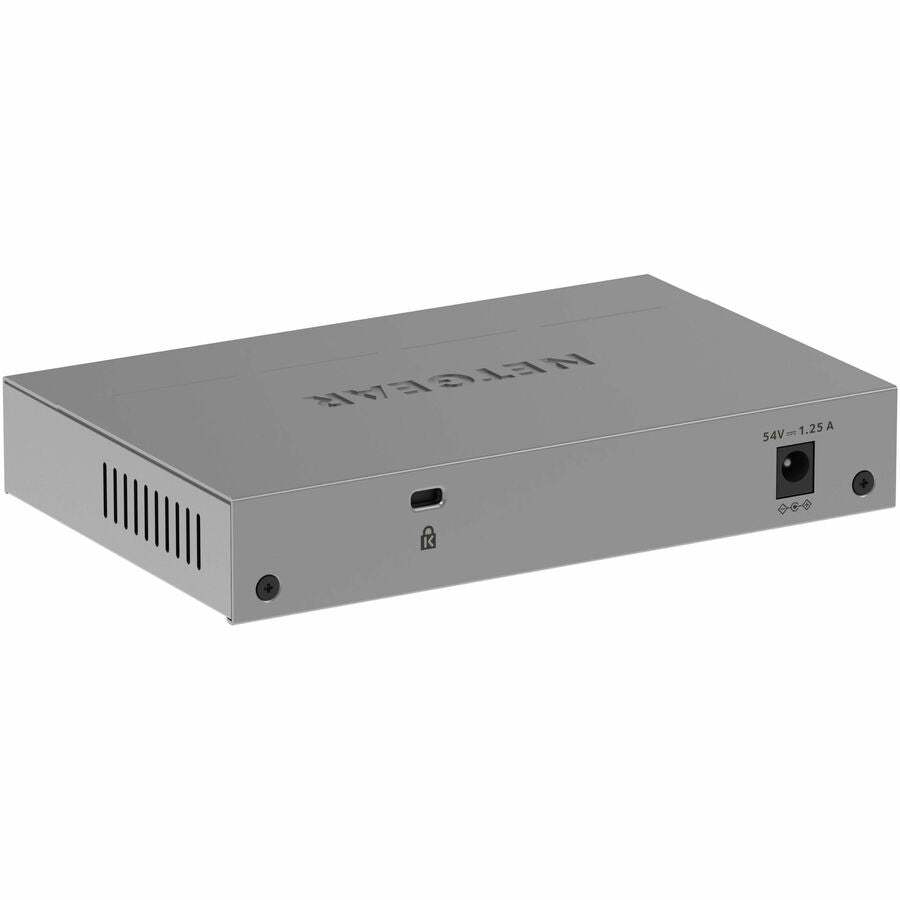

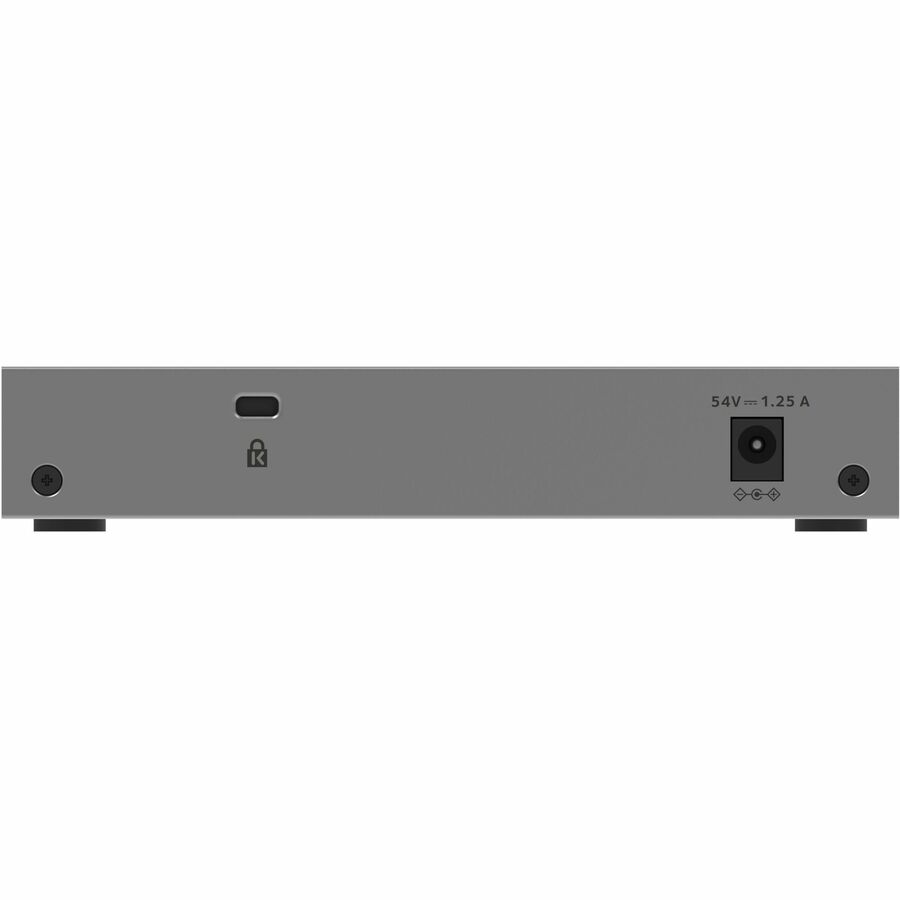

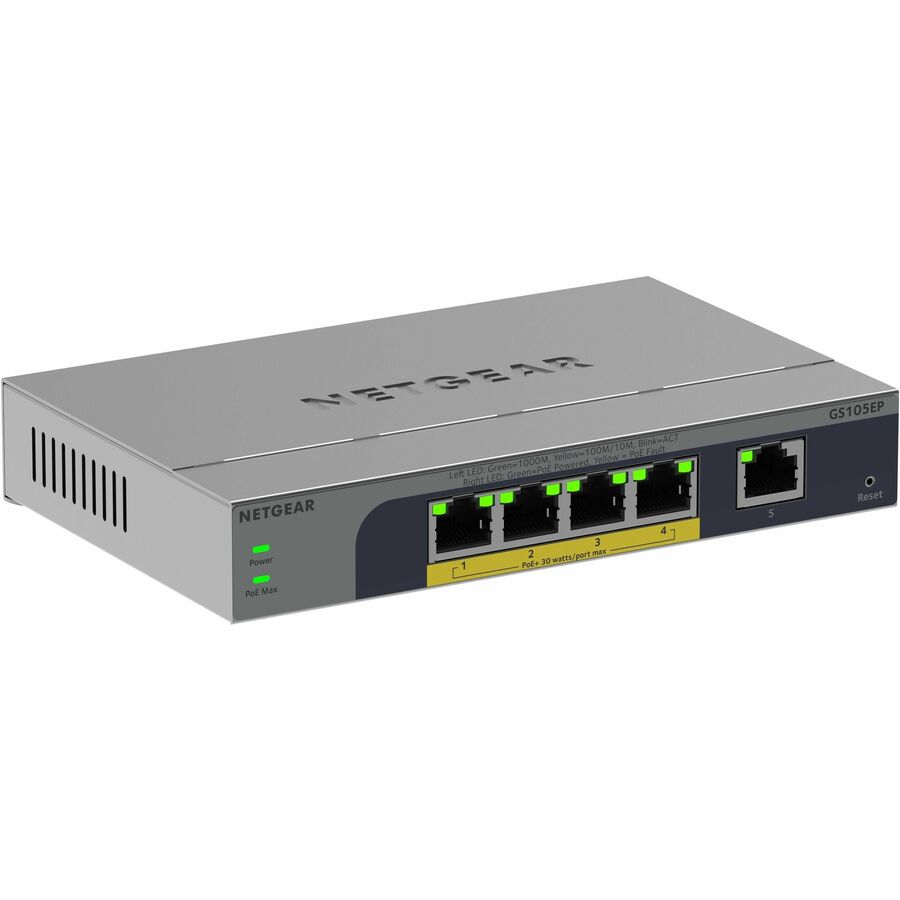

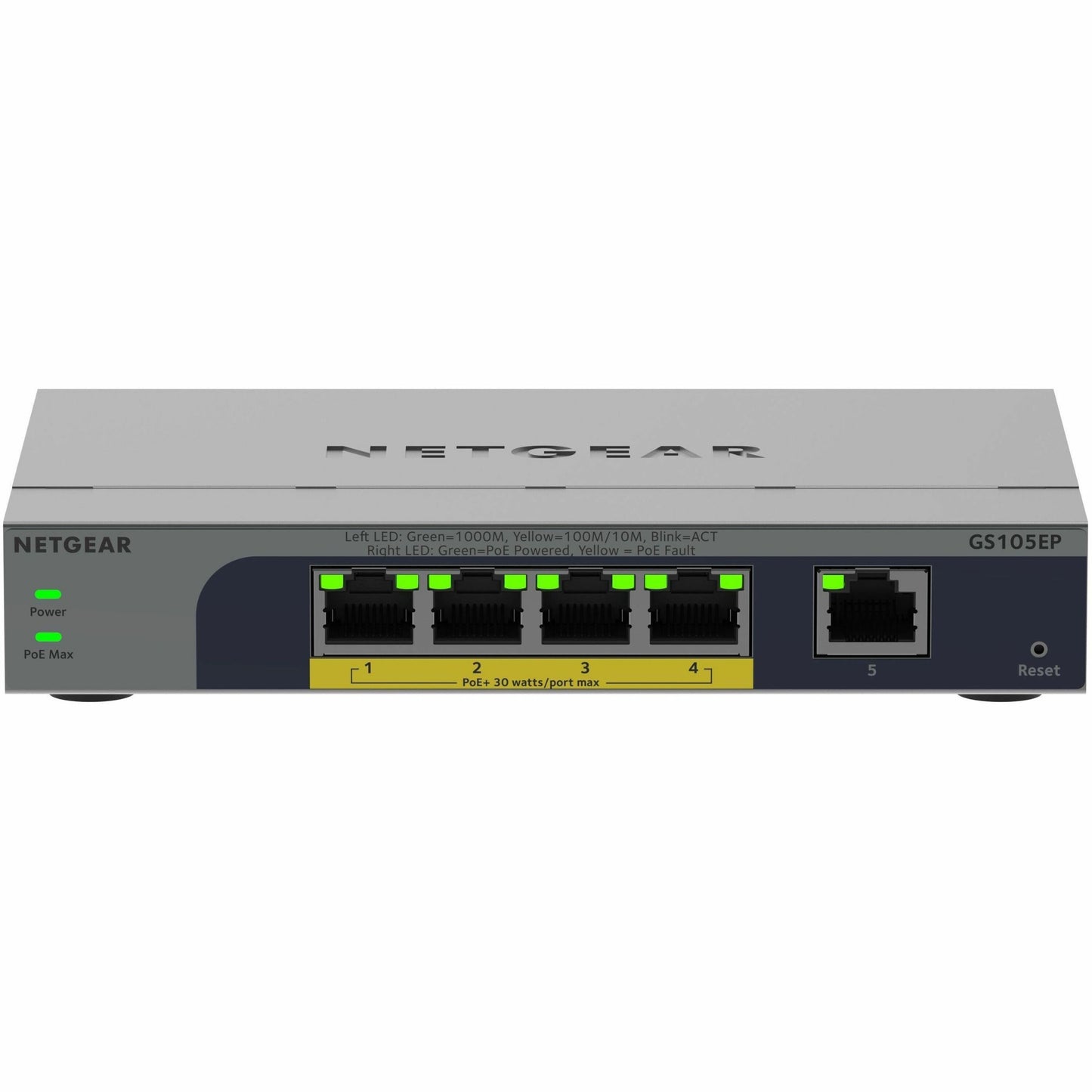

Netgear Business GS105EP Ethernet Switch - GS105EP-100NAS
Key Features
- Can work as layer 3 routing for scalable network design
- Conveniently lets you connect two standard Ethernet ports to ensure maximum efficiency
- Effectively increases available bandwidth on your network
- Gigabit Ethernet port for ultra-fast network speeds
- Managed switch provides a reliable foundation for your network
- Quickly and easily set up a wired network with 5 networking ports
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- The desktop installation makes it ideal for deployments outside the wiring closet
Product Overview
Control and Configure Beyond Plug-and-Play
NETGEAR Easy Smart Managed Switches with PoE+ meet the needs of growing businesses by providing fundamental network features such as simplified VLANs, QoS set-up and IGMP Snooping that help optimize the performance of the network. Easy Smart Managed Switches are the perfect upgrade from the basic Unmanaged Switches, delivering essential networking management features at a very affordable price. These models support Power-Over-Ethernet (PoE) and can power devices such as VOIP phones, surveillance IP cameras, wireless access points and many other PoE devices. These new Gigabit Ethernet PoE+ Easy Smart Managed Switch models include uninterruptable PoE to help optimize the performance and troubleshooting of business networks. The new and improved business-friendly GUI allows easy management and simple configuration. With the growing deployment of applications and an all-in-one solution, providing management and power to these applications would be ideal.
Highlights
- Enable network configuration and management at an affordable price
- Simple, yet useful network set-up on top of plug-and-play connectivity
- Business-friendly and easy-to-use mobile-device friendly web browser-based management GUI
- VLAN support for traffic segmentation
- Quality of Service (QoS) for traffic prioritization
- Auto "denial-of-service" (DoS) prevention
- Troubleshoot connection issues via cable test
- Loop prevention, loop detection, and broadcast storm controls
- Rate limiting for better bandwidth allocation
- Port mirroring for network monitoring
- Jumbo frame support
- Advanced features such as per port PoE controls
- Uninterrupted PoE keeps PoE power on even when the switch is updating firmware or performing a soft reboot
- 802.3at standard providing up to 30W per port
- Fanless with versatile mounting options (desktop and wall-mountable)
General Information
- Manufacturer: Netgear, Inc
- Manufacturer Part Number: GS105EP-100NAS
- Brand Name: Netgear
- Product Line: Business
- Product Model: GS105EP
- Product Name: Business GS105EP Ethernet Switch
- Product Type: Ethernet Switch
Technical Information
- Data Link Protocols: HTTP
- Features:
- Plug and Play
- VLAN Segmentation
- Loop Protection
- Loopback Detection
- Broadcast Storm Control
- Fanless
- Energy Efficient
- Auto Denial of Service (DoS) Prevention
Interfaces/Ports
- Total Number of Network Ports: 5
- Network (RJ-45): Yes
- Uplink Port: Yes
- Port/Expansion Slot Details: 5 x Gigabit Ethernet PoE+
Media & Performance
- Media Type Supported: Twisted Pair
- Ethernet Technology: Gigabit Ethernet
- Network Technology: 10/100/1000Base-T
- Maximum Data Transfer Rate: 128 MB/s
Network & Communication
- Layer Supported: 3
- Networking Standards:
- IEEE 802.3
- IEEE 802.3ab
- IEEE 802.3u
- IEEE 802.1p
- IEEE 802.1Q
- IEEE 802.3x
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3az
Management & Protocols
- Manageable: Yes
- Switch Management Type: Easy Smart Managed
Power Description
- PoE (RJ-45) Port: Yes
- PoE Budget: 63 W
- Power Source: Power Adapter
- Power Consumption: 4.90 W
Physical Characteristics
- Product Material: Metal
- Form Factor:
- Desktop
- Wall Mountable
- Enclosure
- Height: 1.1"
- Width: 6.2"
- Depth: 4"
- Weight (Approximate): 14.11 oz
Miscellaneous
- Package Contents:
- Business GS105EP Ethernet Switch
- Power Adapter (power cable varies by region)
- Wall-mount Installation Kit
- Rubber Feet
- Documentation Download Flyer
Warranty
- Limited Warranty: Lifetime
