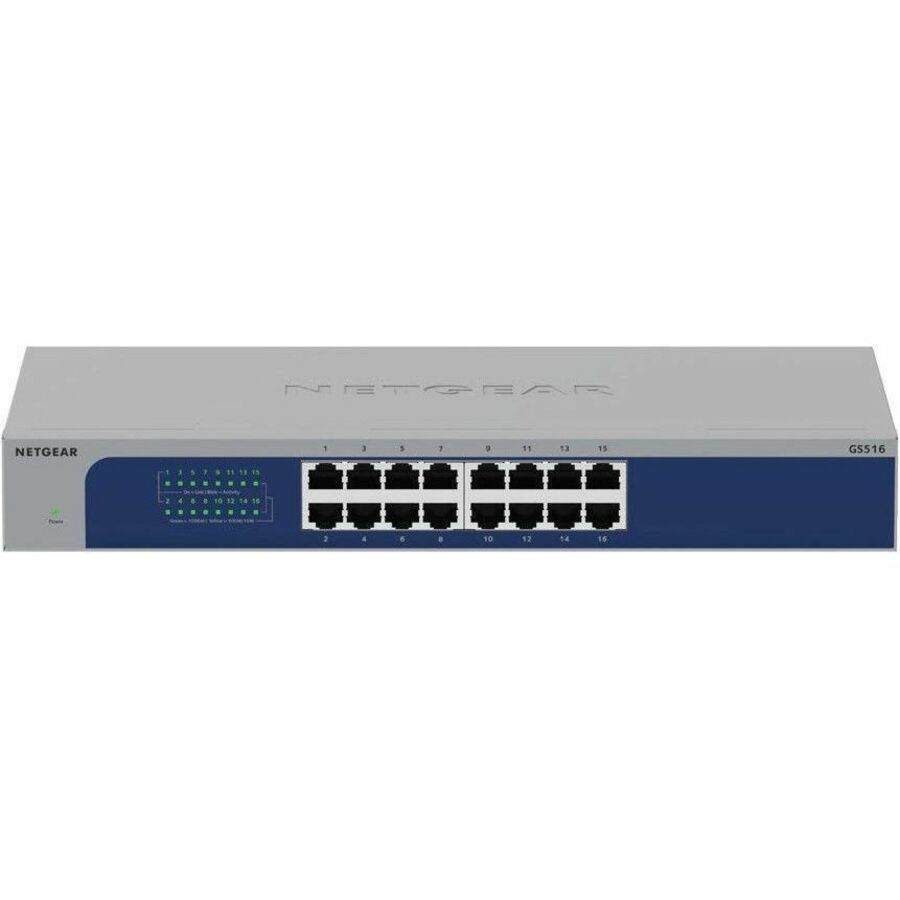

Netgear Business GS516v3 Ethernet Switch - GS516-300NAS
Key Features
- 16 or 24 ports deliver up to 2000Mbps of dedicated, non-blocking bandwidth per port
- 16 or 24 switched ports provide bandwidth for PCs, servers or switches
- 802.1p QoS support for prioritizing voice and video in the network Jumbo Frame Support up to 9KB
- Auto green mode detects cable length and adjusts power usage to save energy
- Auto power-down mode saves energy when port is unused
- Auto Uplink automatically adjusts for straight-through or crossover cables
- Backed by a NETGEAR Limited Lifetime Warranty
- Compact size for desktop, wall mount or rack mount in a standard 19-inch rack
- Easily combine new or existing 10-, 100- and 1000Mbps devices within your network
- Fast, auto-switching and auto-sensing 10/100/1000Mbps Ethernet connection
- Honors TOS/802.1p prioritization
- Instant Plug-N-Play connectivity with Auto-negotiation and Auto MDI/MDI-X
- Packaging manufactured with at least 80% recycled materials
- Plug and play begins working as soon as it is powered on
- Secure, durable metal housing includes a Kensington locking slot for theft prevention
- Up to 50% lower power consumption
General Information
- Manufacturer: Netgear, Inc
- Manufacturer Part Number: GS516-300NAS
- Brand Name: Netgear
- Product Line: Business
- Product Model: GS516v3
- Product Name: Business GS516v3 Ethernet Switch
- Product Type: Ethernet Switch
Technical Information
- Features:
- Energy Efficient
- Plug and Play
Interfaces/Ports
- Total Number of Network Ports: 16
- Network (RJ-45): Yes
- Uplink Port: Yes
- Stack Port: No
- Port/Expansion Slot Details: 24 x Gigabit Ethernet Network
Media & Performance
- Media Type Supported: Twisted Pair
- Ethernet Technology: Gigabit Ethernet
- Network Technology: 10/100/1000Base-T
- Maximum Data Transfer Rate: 128 MB/s
Network & Communication
- Layer Supported: 2
- Networking Standards:
- IEEE 802.3i
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3x
- IEEE 802.3az
- IEEE 802.3
- IEEE 802.1p
Management & Protocols
- Manageable: No
Power Description
- Input Voltage:
- 120 V AC
- 230 V AC
- Power Source: Power Supply
- Power Consumption: 10 W
Physical Characteristics
- Product Material: Metal
- Form Factor:
- Desktop
- Rack-mountable
- Wall Mountable
- Compact
- Height: 1.7"
- Width: 12.9"
- Depth: 6.7"
- Weight (Approximate): 3.28 lb
Miscellaneous
- Package Contents:
- Business GS516v3 Ethernet Switch
- Power Cord
- Installation Guide
- Wall/Rackmount Kit
- Warranty/Support Information Card
Warranty
- Limited Warranty: Lifetime
