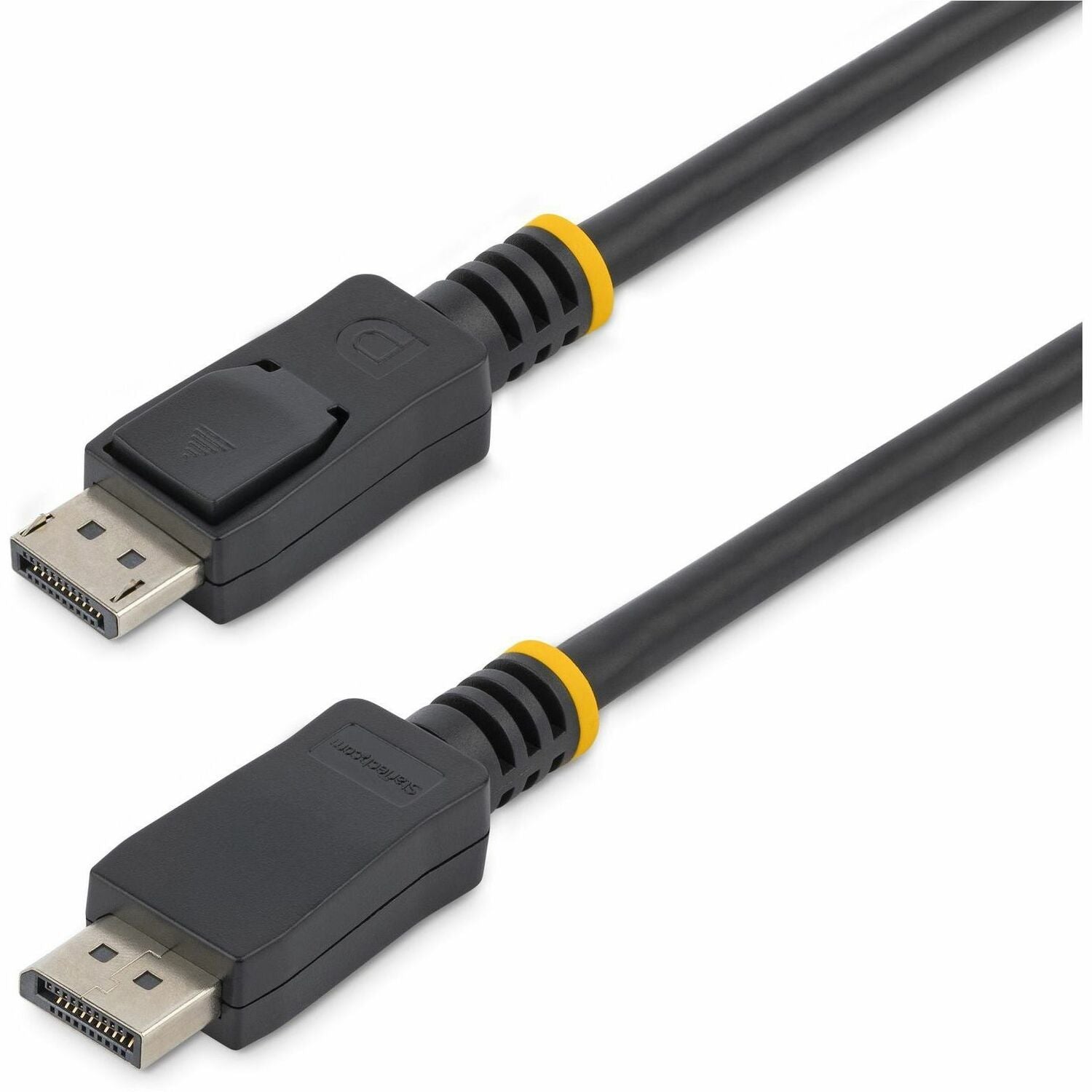

StarTech.com 50cm (1.6ft) DisplayPort 1.2 Cable, 4K x 2K UHD VESA Certified DisplayPort Cable, DP Cable/Cord for Monitor, w/ Latches - DISPL50CM
Key Features
- APPLICATIONS: Ideal for home/offices/boardrooms/conference rooms/classrooms; works with your professional workstations with FirePro™ S9000/7000, W8100/7100/5100 or R5000 graphic cards; Use with 1080p/UHD/4K monitors, projector or large display

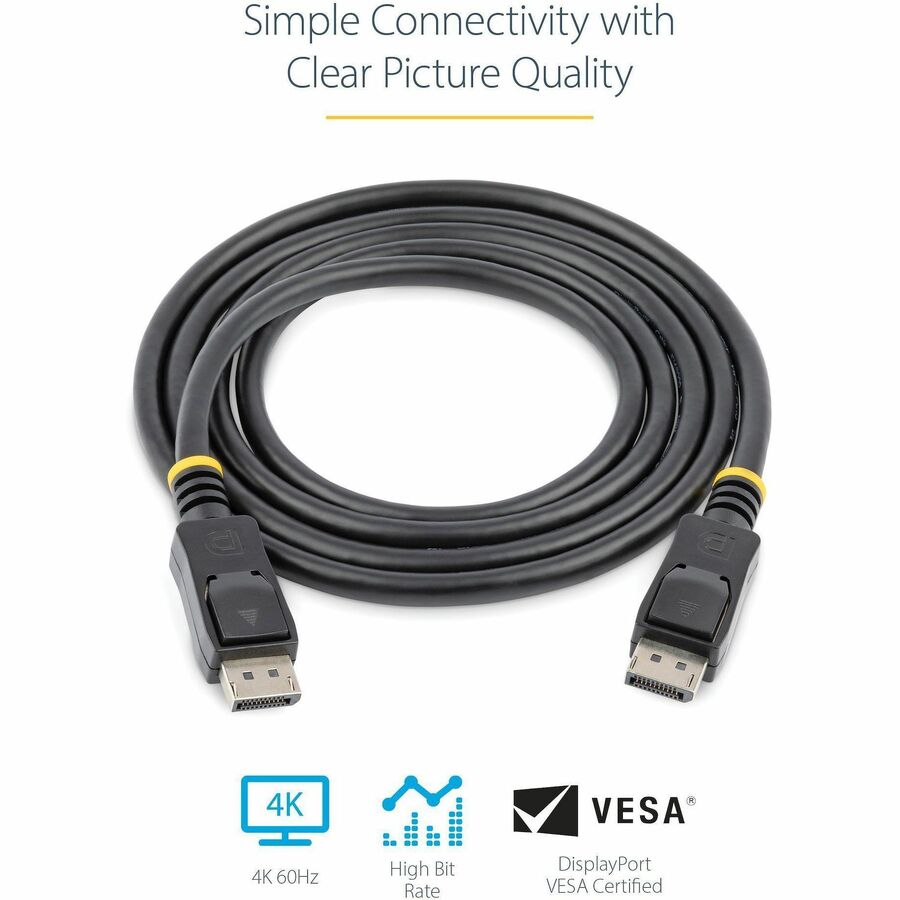

- HIGH PERFORMANCE CABLE: This 50cm VESA Certified DisplayPort v1.2 cable supports 4K x 2K (3840x2400p 60Hz), 21.6 Gbps bandwidth, HBR2, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz)
- QUALITY CONSTRUCTION: 28AWG wire with gold-plated connectors for improved signal integrity and reliability; Superior EMI shielding with Al-Mylar foil and copper braid provides higher quality video and audio; Backwards compatible with DP 1.1

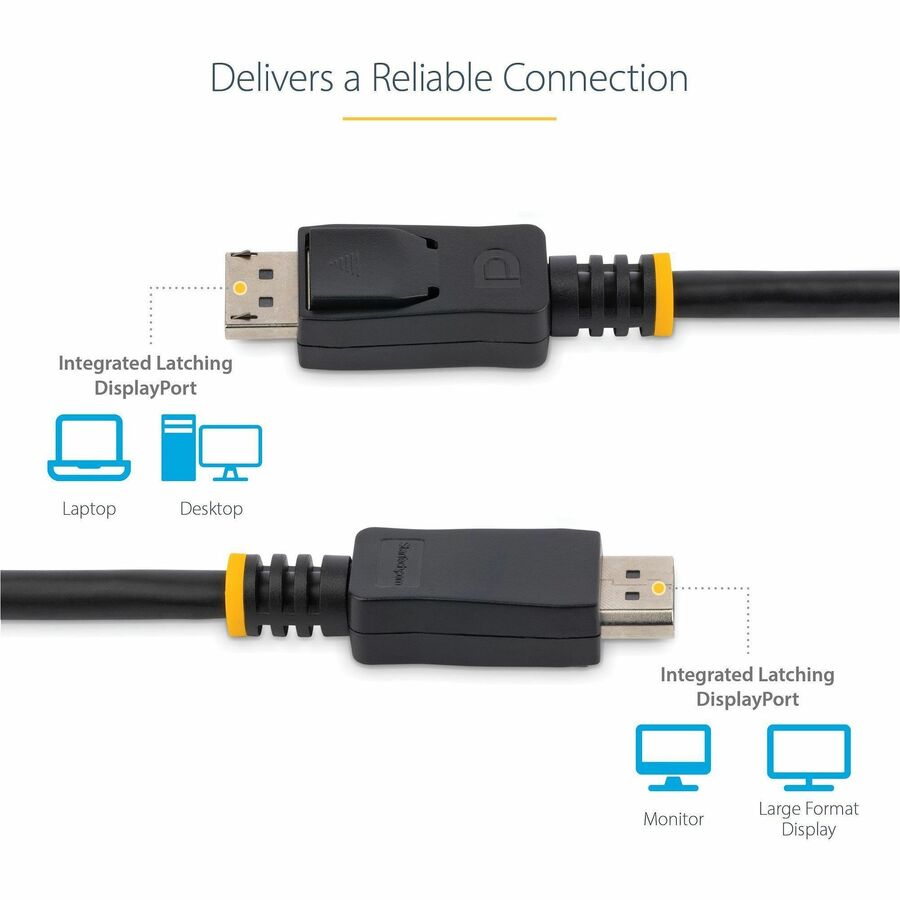

- RELIABLE DESIGN: Durable ABS connectors with flexible PVC strain relief & jacket prevents fraying/damage due to bending or rough usage; Metal connector sub-structure provides EMI shielding; Latching DP connectors prevent accidental disconnection
- SPECS: 50 cm (1.6 foot)
- Black
- DisplayPort v1.2
- DP Latching Male to Male
- 28 AWG
- PVC cable jacket, ABS connector shell
- Shield: Al-Mylar foil with Braid
- Protocols: HBR 2, MST, GTC
- Lifetime Warranty
Product Overview
The DISPL50CM 0.5m/50cm DisplayPort 1.2 Cable with latches provides a secure, connection between your DisplayPort-equipped devices and is capable of providing higher performance than either HDMI® or dual link DVI.
The DP cable supports high resolutions of up to 4k x 2k (4096 x 2160) @ 60Hz with a maximum HBR2 bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.

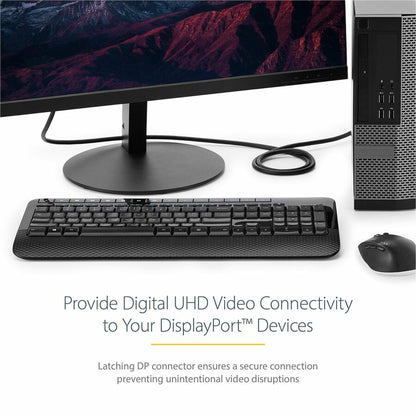

The short 50cm DisplayPort cable is perfect for mobile applications, such as connecting your laptop to a monitor and it provides a portable solution that makes it perfect for carrying as a laptop accessory.
The DISPL50CM is backed by StarTech.com's Lifetime Warranty, for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.
General Information
- Manufacturer: StarTech.com
- Manufacturer Part Number: DISPL50CM
- Brand Name: StarTech.com
- Product Name: 0.5m Short DisplayPort 1.2 Cable with Latches M/M - DisplayPort 4k
- Packaged Quantity: 1
- Product Type: Video Cable

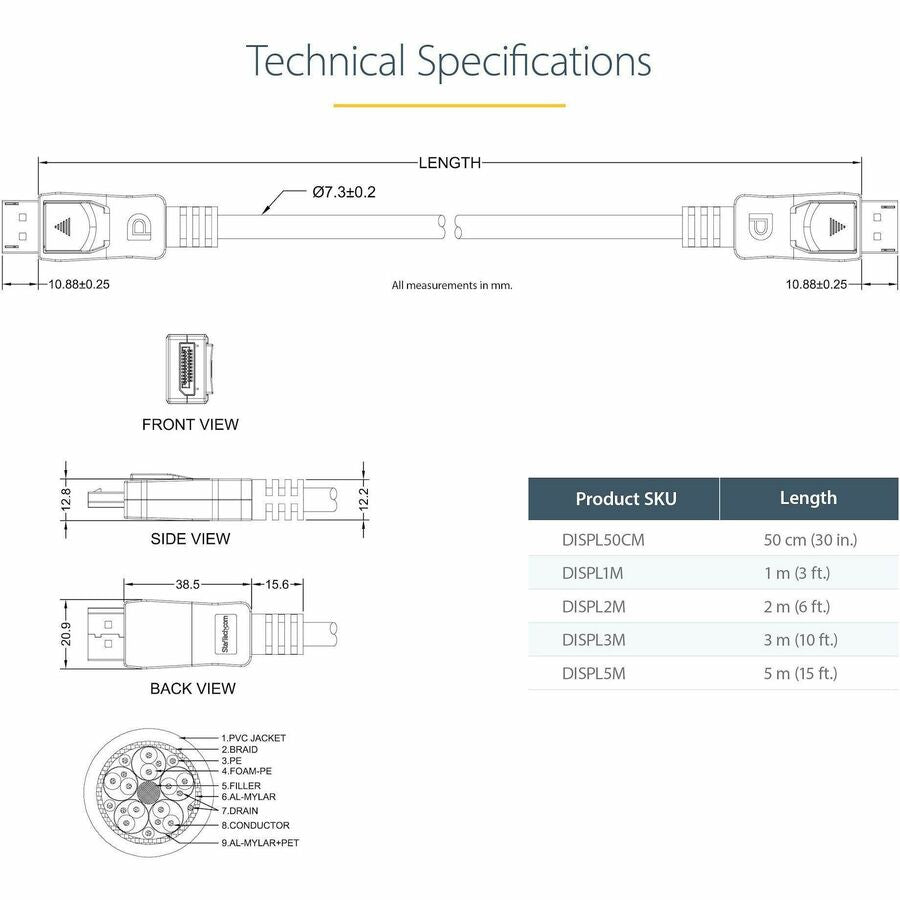

Technical Information
- Cable Type: DisplayPort
- Cable Length: 1.64 ft
- Connector Type on First End: DisplayPort 1.2 Digital Audio/Video - Male
- Connector on First End Details: 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male
- Connector Type on Second End: DisplayPort 1.2 Digital Audio/Video - Male
- Connector on Second End Details: 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male
- Connector Plating: Nickel
- Shielding: Yes
- Jacket Type: CMG
- Device Supported:
- Audio/Video Device
- Monitor
- Notebook
- Workstation
- Graphics Card
- Projector
- American Wire Gauge: 28 AWG
- Data Transfer Rate: 21.6 Gbit/s
- Supported Resolution: 4096 x 2160
- Features:
- Molded
- EMI Protection
- Fray Resistant
- Damage Resistant
- HDCP
- DPCP
- Strain Relief
- Latching Connector
- Flexible
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Jacket Material: Polyvinyl Chloride (PVC)
- Weight (Approximate): 0.12 lb
Miscellaneous
- Compatibility:
AMD Graphic Cards
- FirePro S9000
- 7000
- W8100
- 7100
- 5100
- R5000
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
- Country of Origin: China
Warranty
- Limited Warranty: Lifetime
