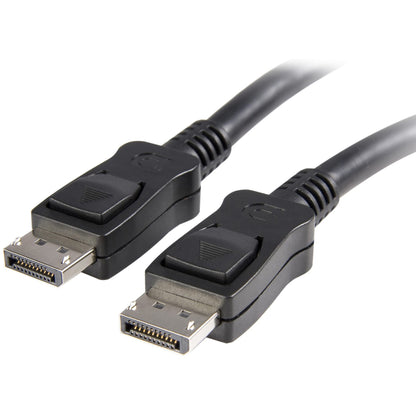

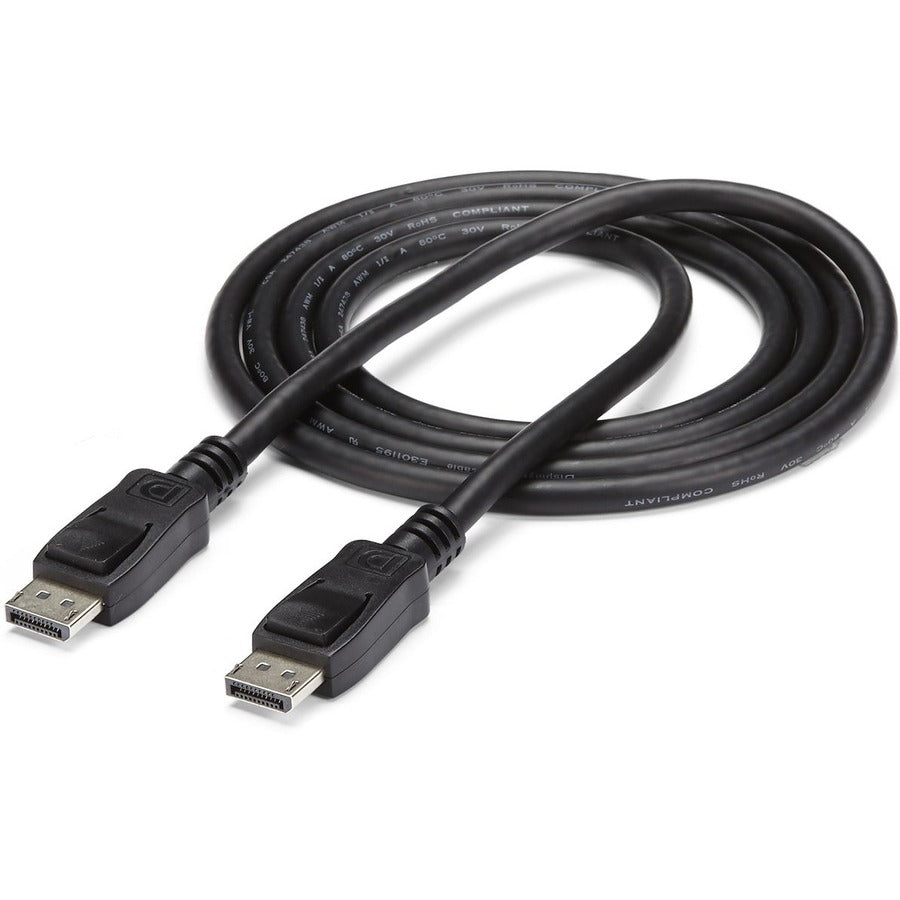

StarTech.com 20 ft DisplayPort Cable with Latches - M/M - DISPLPORT20L
Key Features
- APPLICATIONS: Ideal for home/offices/boardrooms/conference rooms/classrooms; works with your professional workstations with FirePro™ S9000/7000, W8100/7100/5100 or R5000 graphic cards; Use with 1080p/UHD/4K monitors, projector or large display
- HIGH PERFORMANCE CABLE: This 20ft (6m) DisplayPort to DisplayPort cable supports 2K (2560x1440p) 30Hz, Full HD (1920x1200p) 60Hz, 10.8 Gbps bandwidth, Multi-Stream Transport (MST), 5.1, 7.1 Audio Channel, GTC for precise audio channel timing & 3D Stereo
- QUALITY CONSTRUCTION: 26AWG wire with gold-plated connectors for improved signal integrity and reliability; Superior EMI shielding with Al-Mylar foil and copper braid provides higher quality video and audio; Backwards compatible with DP 1.1
- RELIABLE DESIGN: Durable ABS connectors with flexible PVC strain relief & jacket prevents fraying/damage due to bending or rough usage; Metal connector sub-structure provides EMI shielding; Latching DP connectors prevent accidental disconnection
- SPECS: 20 ft (6 m)
- Black
- DisplayPort v1.0
- DP Latching Male to Male
- 26 AWG
- PVC cable jacket, ABS connector shell
- Shield: Al-Mylar foil with Braid
- Protocols: MST, GTC
- Lifetime Warranty
Product Overview
The DISPLPORT20L 20-foot DisplayPort® Cable supports a maximum bandwidth of 10.8 Gbps, and is capable of providing higher performance than either HDMI® or dual link DVI, while supporting next generation multimedia applications with a maximum resolution capability of up to WQXGA (2560Ã-1600).The cable features latching connectors, with support for two-way display connectivity and optional audio support.
Featuring 26 gauge (AWG) pure copper wire, the cable includes Aluminum and Mylar shielding to help eliminate EMI and RFI interference and maintain signal integrity without any degradation of quality.
This 20-foot DisplayPort cable is both HDCP and DPCP capable, ensuring that digitally protected content is displayed properly on the connected display.
More from the Manufacturer
General Information
- Manufacturer: StarTech.com
- Manufacturer Part Number: DISPLPORT20L
- Brand Name: StarTech.com
- Product Name: 20 ft DisplayPort Cable with Latches - M/M
- Packaged Quantity: 1 Each
- Product Type: Video Cable
Technical Information
- Cable Type: DisplayPort
- Cable Length: 20 ft
- Connector Type on First End: DisplayPort Digital Audio/Video - Male
- Connector Gender on First End: Male
- Connector on First End Details: 1 x DisplayPort Digital Audio/Video - Male
- Connector Type on Second End: DisplayPort Digital Audio/Video - Male
- Connector Gender on Second End: Male
- Connector on Second End Details: 1 x DisplayPort Digital Audio/Video - Male
- Connector Plating: Gold
- Shielding: Yes
- Jacket Type: CMG
- Device Supported:
- Audio/Video Device
- Workstation
- Monitor
- Projector
- Graphics Card
- Notebook
- American Wire Gauge: 26 AWG
- Data Transfer Rate: 21.6 Gbit/s
- Supported Resolution: 4096 x 2160
- Features:
- Molded
- HDCP
- DPCP
- EMI/RF Protection
- Latching Connector
- Strain Relief
- Multi-Stream Transport (MST) Support
- EMI Protection
- Fray Resistant
- Damage Resistant
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Product Material: Copper
- Jacket Material: Polyvinyl Chloride (PVC)
- Weight (Approximate): 0.99 lb
Miscellaneous
- Compatibility:
AMD Graphic Cards
- FirePro S9000
- 7000
- W8100
- 7100
- 5100
- R5000
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
- Country of Origin: China
Warranty
- Limited Warranty: Lifetime
