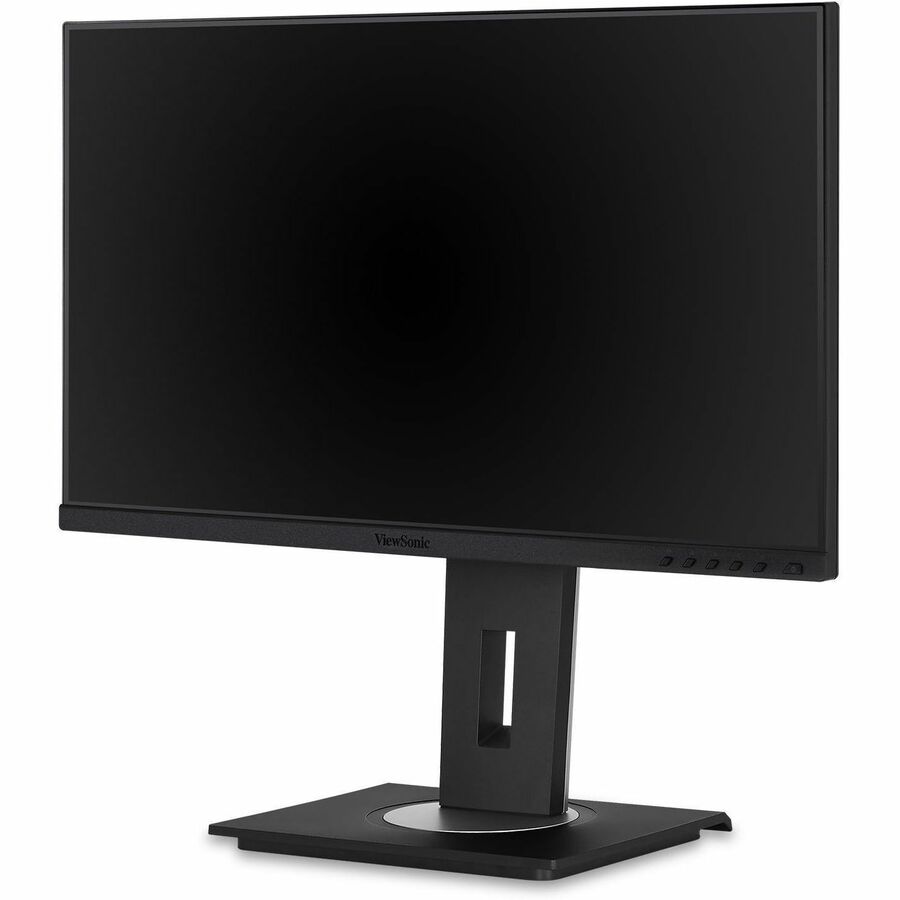

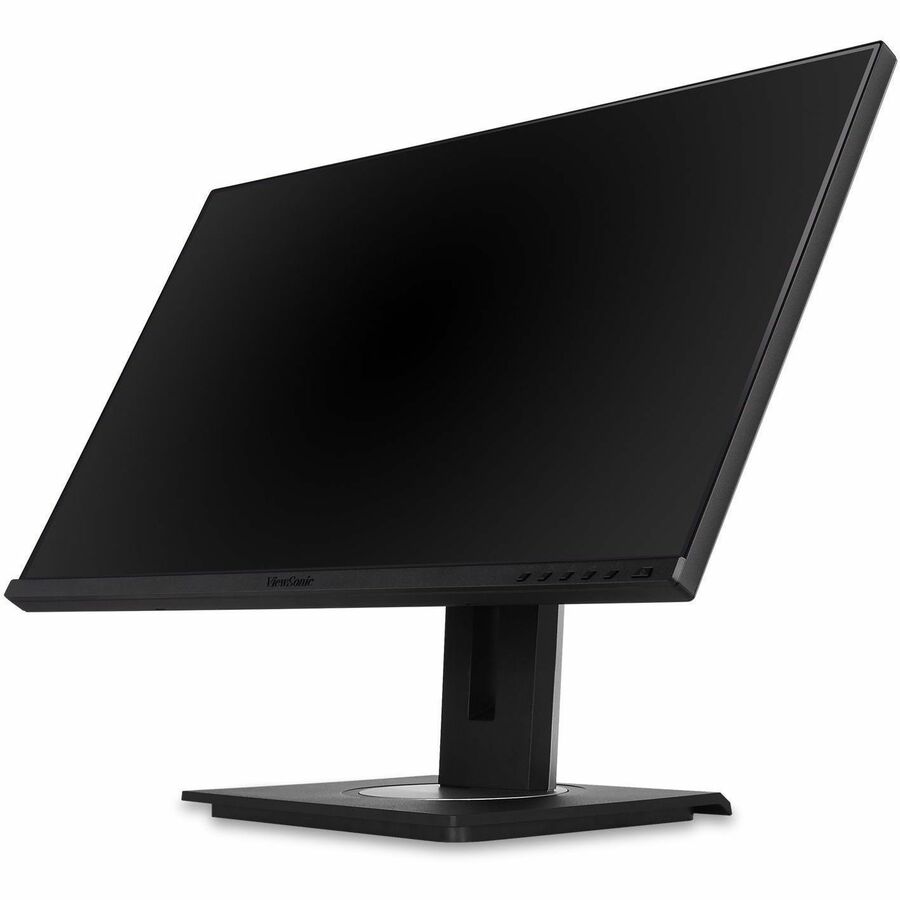

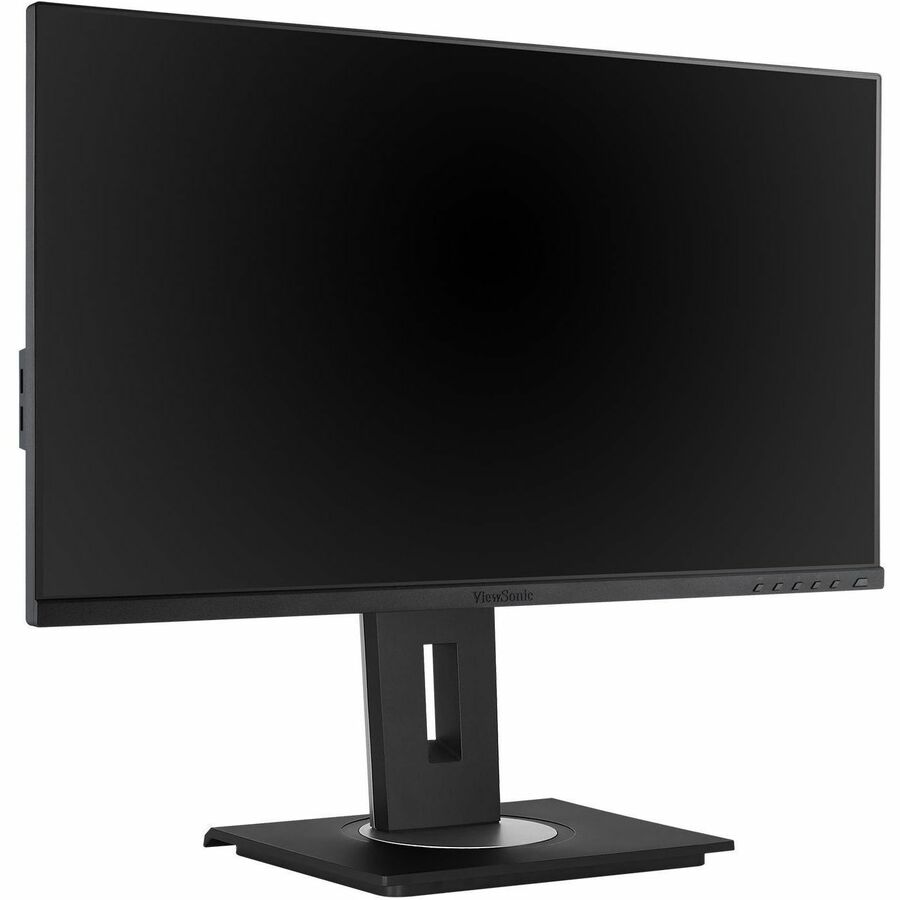

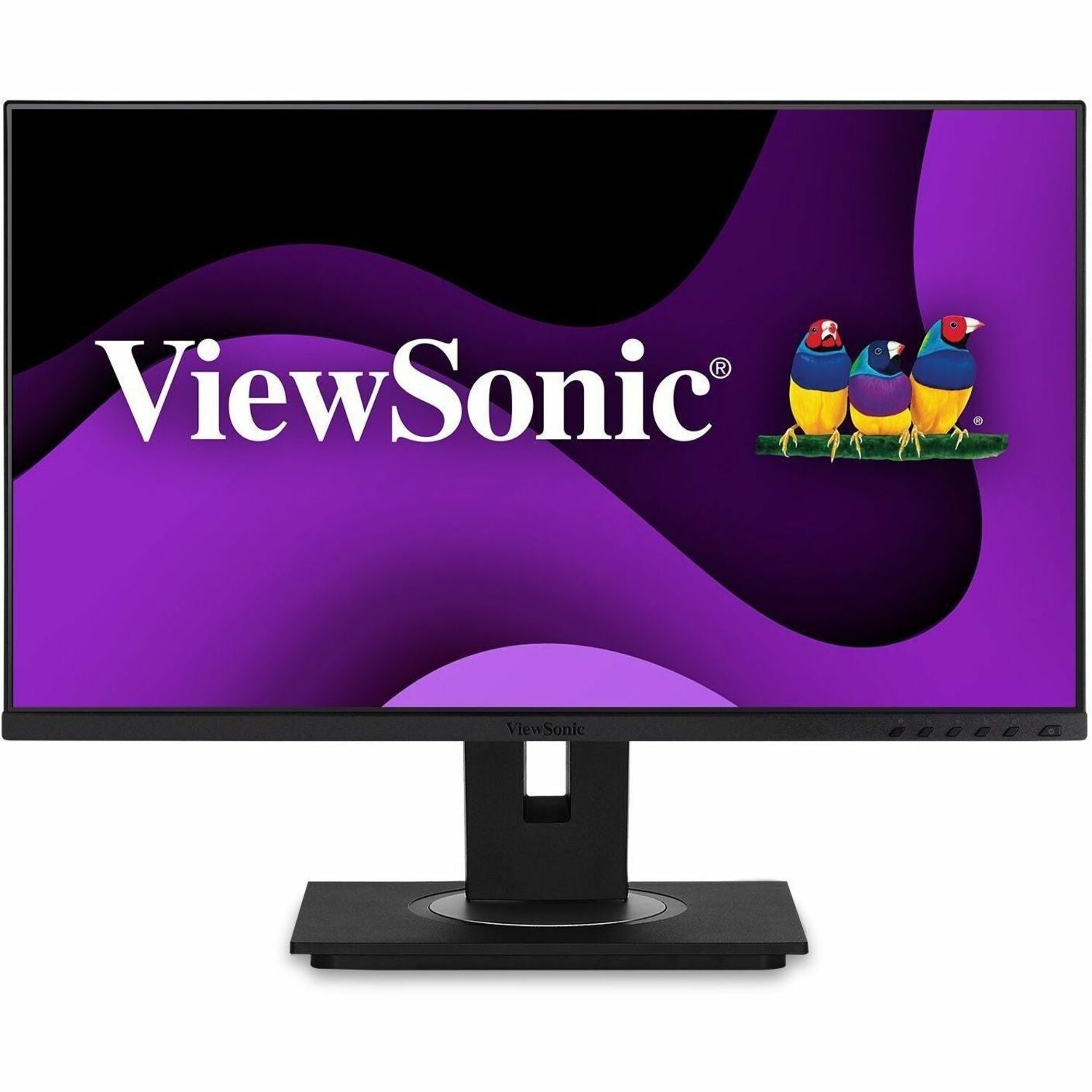

24" Ergonomic IPS Designed for Surface Monitor with USB-C - VG245
Key Features
- ERGONOMIC STAND: Advanced ergonomics (tilt, swivel, rotate and height) for all-day comfort
- FLEXIBLE CONNECTIVITY: The VG245 supports PCs, laptops, and more with USB, HDMI, DisplayPort, and VGA inputs
- LESS CABLE CLUTTER: In addition to fast data, audio and video transfer, USB-C also provides quick 60W charging over a single cable
- OPTIMIZED VIEW SETTINGS: Offers "Game," "Movie," "Web," "Text," and "Mono" presets
- VERSATILE MONITOR: 24 Inch HD (1920x1080p) IPS Design for Surface monitor with thin bezels and 100 Hz refresh rate
Product Overview
Designed for Surface (DfS) products must meet the rigorous standards of Microsoft to ensure optimal compatibility with Microsoft Surface products. The ViewSonic® VG245 monitor is compatible with all USB-C Surface devices and is ideal for office and home use. USB-C connectivity offers convenient charging power, video and audio over a single cable, and will charge your Surface device without the need for an additional power cable. Along with USB-C, additional connectivity options include HDMI, DisplayPort, VGA, and a USB hub.

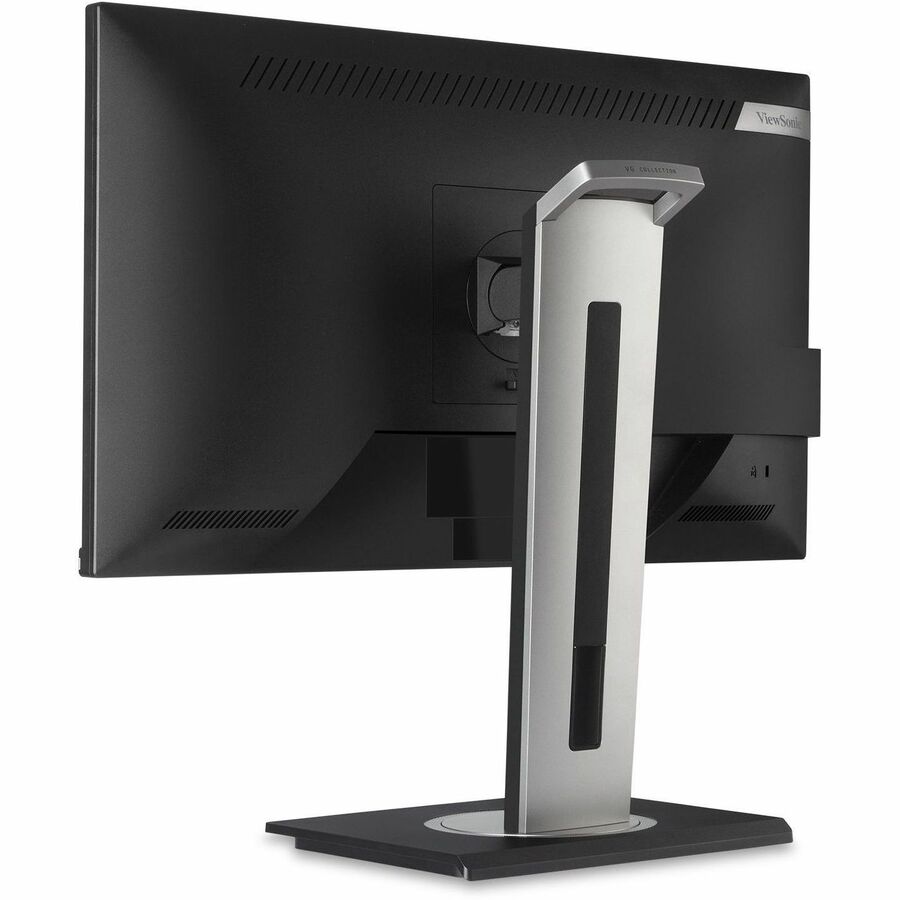

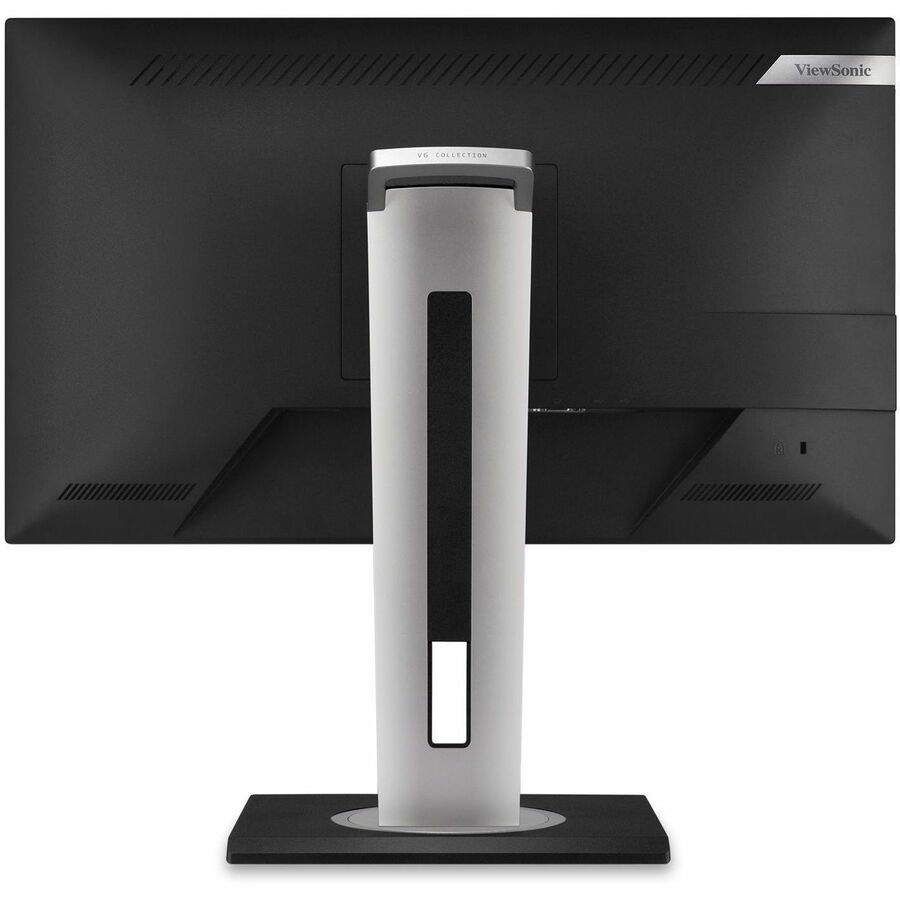

This 24" monitor also includes an advanced ergonomic design that features height adjustment, pivot, swivel and tilt for maximum comfort and enhanced productivity. This monitor is shipped in eco-friendly bio-degradable packaging, along with an easy-to-install quick release stand that makes for simple out-of-the box setup. The quick release stand also includes an integrated client mount and cable management features.
General Information
- Manufacturer: ViewSonic Corporation
- Manufacturer Part Number: VG245
- Brand Name: ViewSonic
- Product Model: VG245
- Product Name: 24" Ergonomic IPS Designed for Surface Monitor with USB-C
- Packaged Quantity: 1
- Product Type: LED Monitor
Technical Information
- Number of Screens: 1
- Screen Size Class: 24"
- Viewable Screen Size: 23.8"
- Screen Mode: Full HD
- Panel Technology: In-plane Switching (IPS) Technology
- Response Time: 5 ms
- Response Time Details: 5 ms GTG
- Aspect Ratio: 16:9
- Horizontal Viewing Angle: 178°
- Vertical Viewing Angle: 178°
- Backlight Technology: LED
- Mount Type: Arm-mountable
- Features:
- Anti-glare
- On-screen Display (OSD)
- Cable Lock Slot
- Ergonomic Design
- Cable Management
- Frameless Bezel
- Wide Viewing Angle
- vDisplay Manager
- Horizontal Frequency:
- 24 kHz to 82 kHz - VGA
- 15 kHz to 82 kHz - HDMI 1.4
- 15 kHz to 82 kHz - DisplayPort
- 15 kHz to 82 kHz - USB Type C
- Vertical Frequency:
- 24 Hz to 75 Hz - DisplayPort
- 24 Hz to 75 Hz - HDMI 1.4
- 24 Hz to 75 Hz - USB Type C
- 50 Hz to 75 Hz - VGA

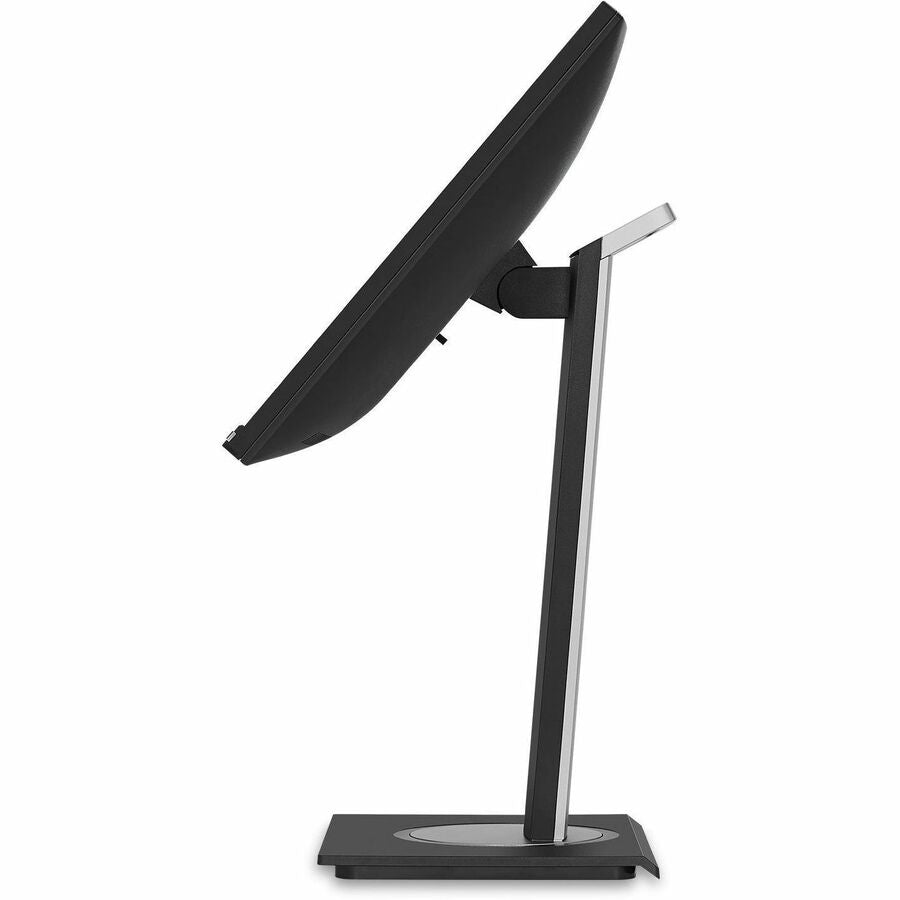

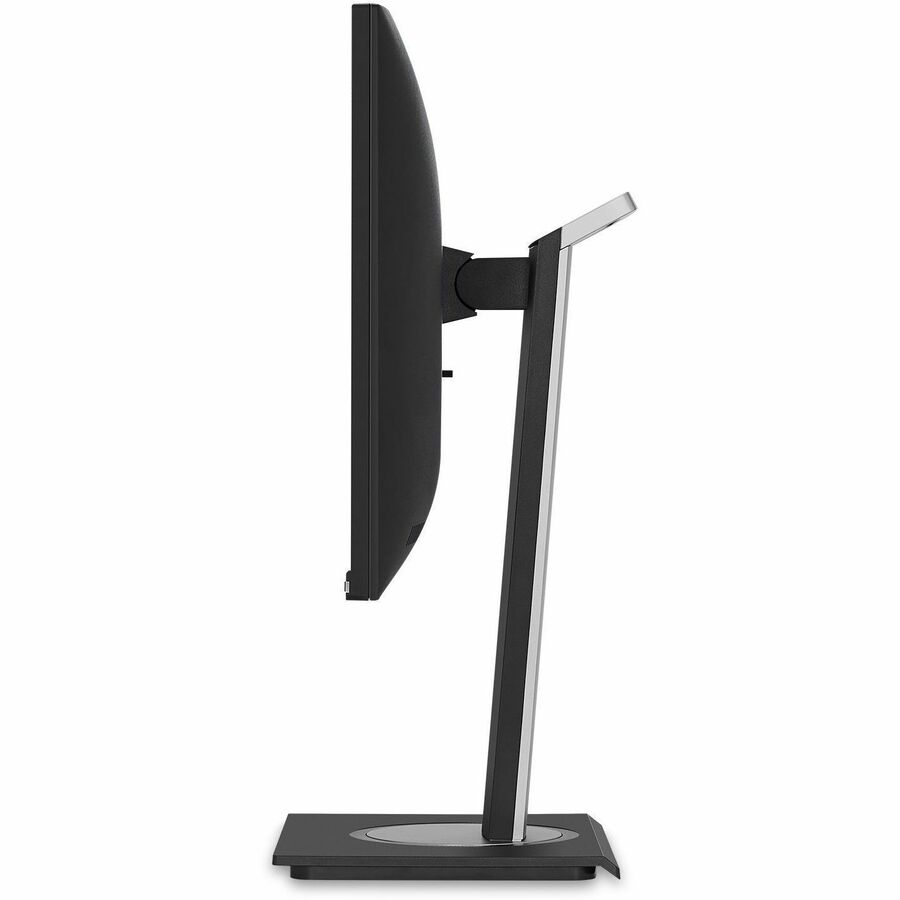

- Stand Adjustments:
- Swivel
- Height

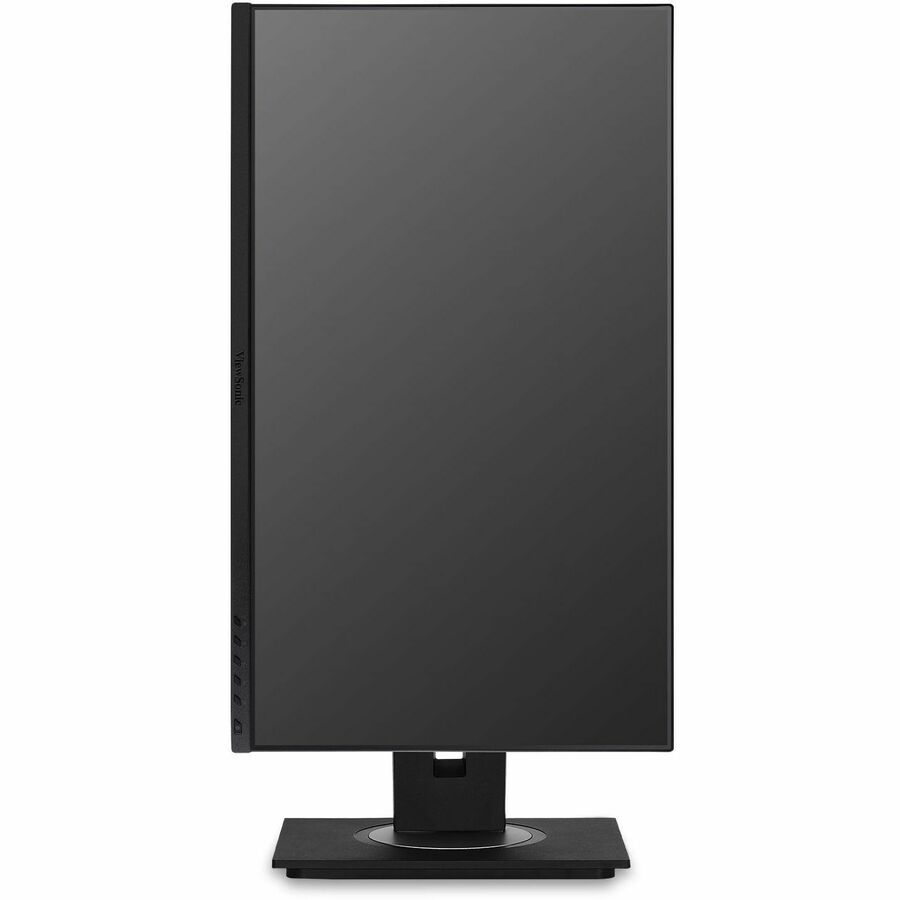

- Pivot
- Tilt
- Glass Hardness: 3H
Video
- Maximum Resolution: 1920 x 1080
- Standard Refresh Rate: 100 Hz
- Color Supported: 16.7 Million Colors
- Native Contrast Ratio: 1,000:1
- Dynamic Contrast Ratio: 50,000,000:1
- Brightness: 250 Nit
- Native Resolution: 1920 x 1080
Audio
- Number of Speakers: 2
- Speakers: Yes

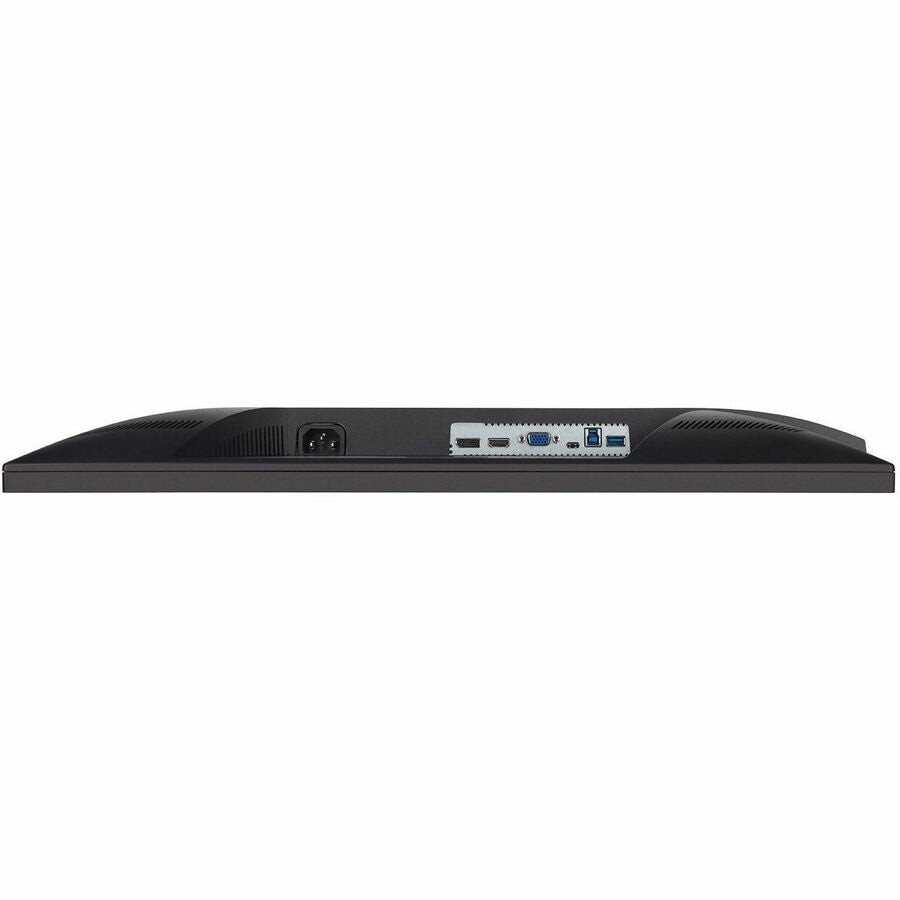

Interfaces/Ports
- HDMI: Yes
- USB: Yes
- VGA: Yes
- DisplayPort: Yes
- USB Type-C: Yes
- Total Number of HDMI Ports: 1
- Number of DisplayPorts: 1
- Number of USB Ports: 5
- Total Number of USB Type-C Ports: 1
Built-in Devices
- Built-in Devices: USB Hub
Environmental Conditions
- Operating Temperature Range: 32°F (0°C) to 104°F (40°C)
- Operating Humidity Range: 20% to 90% (Non-condensing)
Power Description
- Operating Power Consumption: 45.10 W
- Standby Power Consumption: 300 mW
- Maximum Power Consumption: 45.10 W
Physical Characteristics
- VESA Mount Compatible: Yes
- Height: 12.6"
- Width: 21.2"
- Depth: 2"
- Height with Stand: 20.15"
- Width with Stand: 21.22"
- Depth with Stand: 7.95"
- Weight (Approximate): 8.82 lb
- Weight with Stand (Approximate): 13.67 lb
- Compressed Height with Stand: 15.99"
- Extended Height with Stand: 20.15"
Miscellaneous
- Package Contents:
- 24" Ergonomic IPS Designed for Surface Monitor with USB-C
- Power Cable
- HDMI to HDMI Cable
- USB Type C cable
- USB Type A/B Cable
- Quick Start Guide
- Energy Star: Yes
- Country of Origin: China
- Environmentally Friendly: Yes
- Environmental Certification: Electronic Product Environmental Assessment Tool Gold (EPEAT Gold)
- Energy Efficiency Certification: ENERGY STAR 8.0
Warranty
- Limited Warranty: 3 Year
