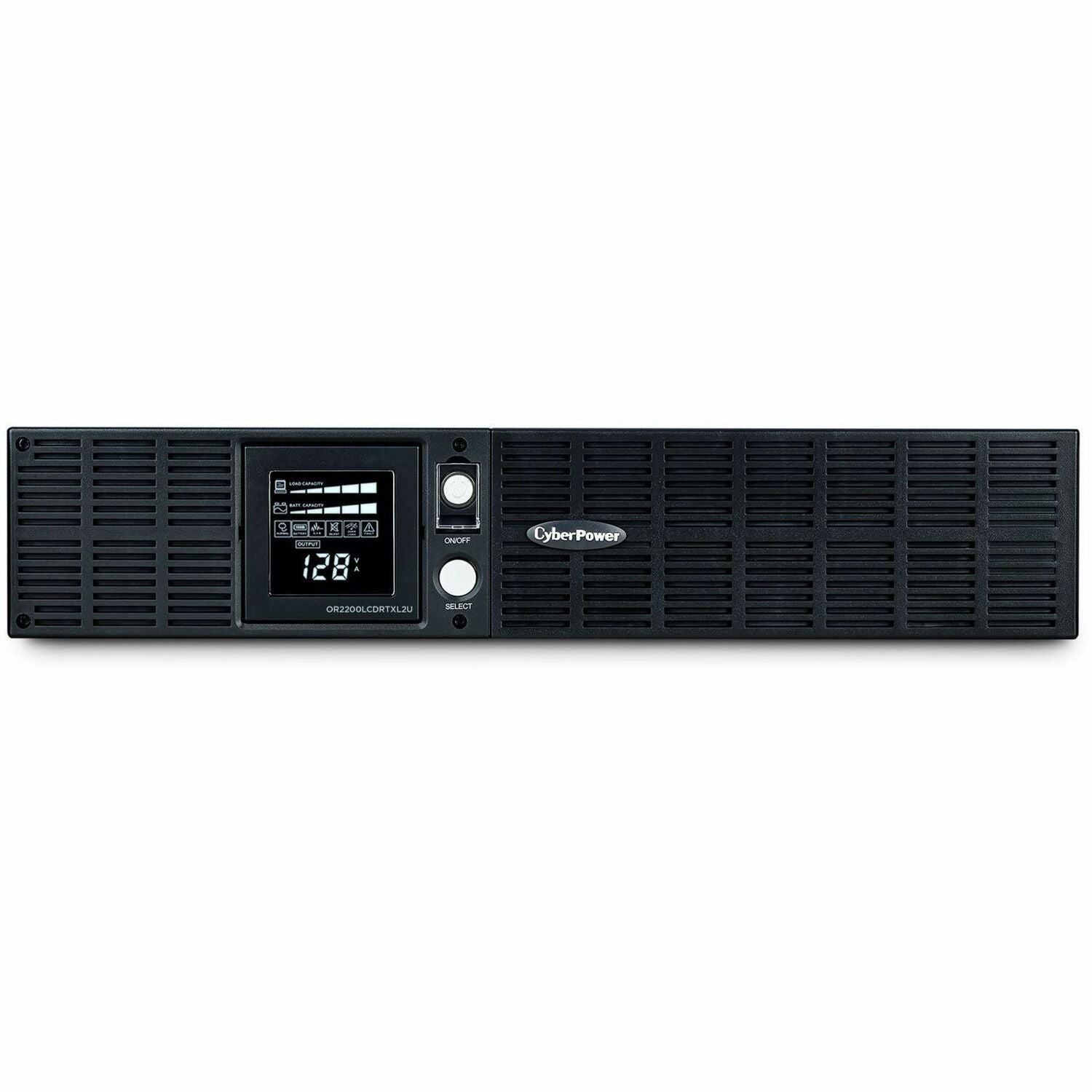

CyberPower OR2200LCDRTXL2U Smart App LCD UPS Systems - OR2200LCDRTXL2U
Key Features
- $300,000
- 120 VAC ± 5%
- 2100 VA / 1650 W
- 3 year
- 8 × NEMA 5-20R
- Capacity:
- Communication:
- Connected Equipment Guarantee:
- Line Interactive
- Management software:
- NEMA 5-20P, 10 ft. cord
- Outlet types:
- Output:
- Plug type & cord:
- PowerPanel® Business
- Remote management:
- Simulated Sine Wave
- Topology:
- USB, Serial, SNMP, EPO
- Warranty:
- Waveform:
- Yes, with optional RMCARD205
Product Overview
A rack/tower convertible UPS with line interactive topology, the CyberPower Smart LCD OR2200LCDRTXL2U provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR2200LCDRTXL2U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. This model accepts the RMCARD205 network management card for remote management and control via a standard web browser or network management system. The OR2200LCDRTXL2U comes with a three-year warranty and a ,300,000 Connected Equipment Guarantee.
General Information
- Manufacturer: CyberPower Systems, Inc
- Manufacturer Part Number: OR2200LCDRTXL2U
- Brand Name: CyberPower
- Product Series: Smart App LCD UPS
- Product Model: OR2200LCDRTXL2U
- Product Name: OR2200LCDRTXL2U Smart App LCD UPS Systems
- Product Type: Line-interactive UPS
Technical Information
- AVR: Yes
- Plug/Connector Type: NEMA 5-20P
- Receptacle Type: NEMA 5-20R

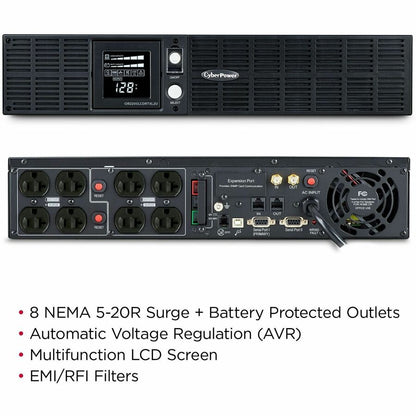

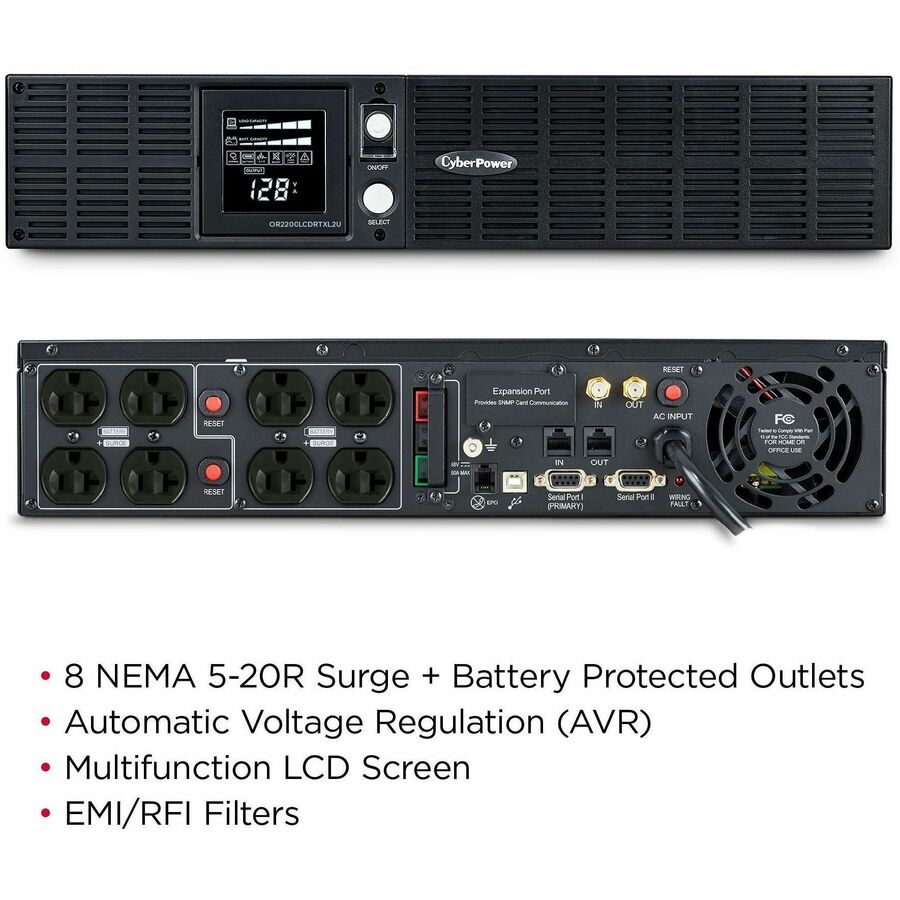

- Receptacle Detail: 8 x NEMA 5-20R
- Number of Battery & Surge Outlets: 8
- Transfer Time: 4 ms
- Dataline Protection:
- RJ-11
- RG-6
- Overload Protection: Yes
- Energy Saving: GreenPower UPS™ Bypass Technology
- Application/Usage:
- Workstation
- Server
- Network Device
- Telecommunication
Power Description
- Load Capacity (VA): 2190 VA
- Input Voltage: 120 V AC
- Output Voltage: 120 V AC
- Input Frequency: 63 Hz
- Output Frequency: 60 Hz
- Waveform Type: Simulated Sine Wave
Management
- Network Management: SNMP Manageable
- Alarm:
- Battery Mode
- Low Battery
- Overload
Controls/Indicators
- Status Indicators:
- Power On
- Wiring Fault

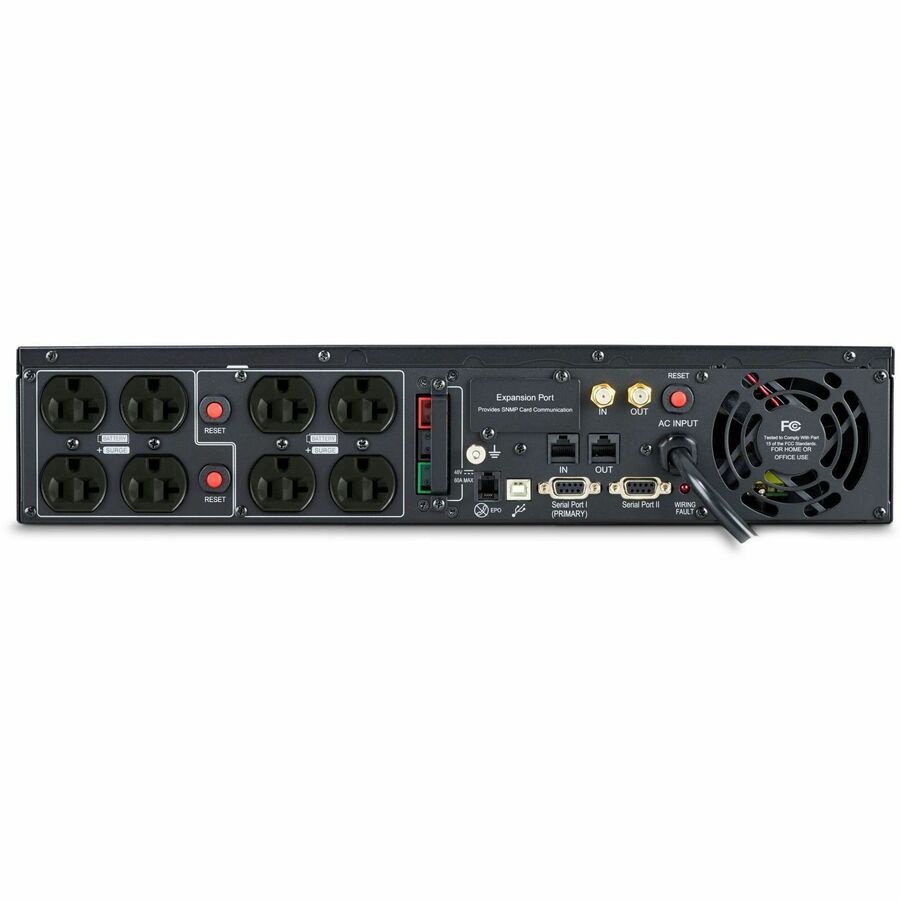

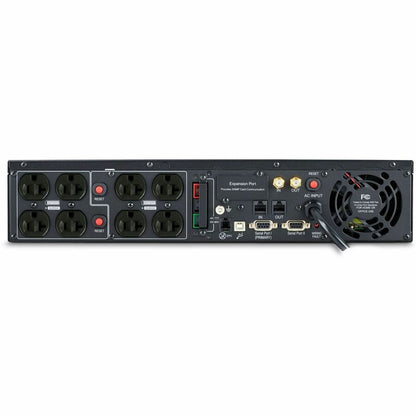

Interfaces/Ports
- Serial Port: Yes
- USB (HID Compliant) Port: Yes
- EPO Port: Yes
Battery Information
- Number of Batteries: 4
- Battery Characteristics: Maintenance-free
- Battery Chemistry: Lead Acid
- Battery Size: 12V
- Battery Capacity: 9000 mAh

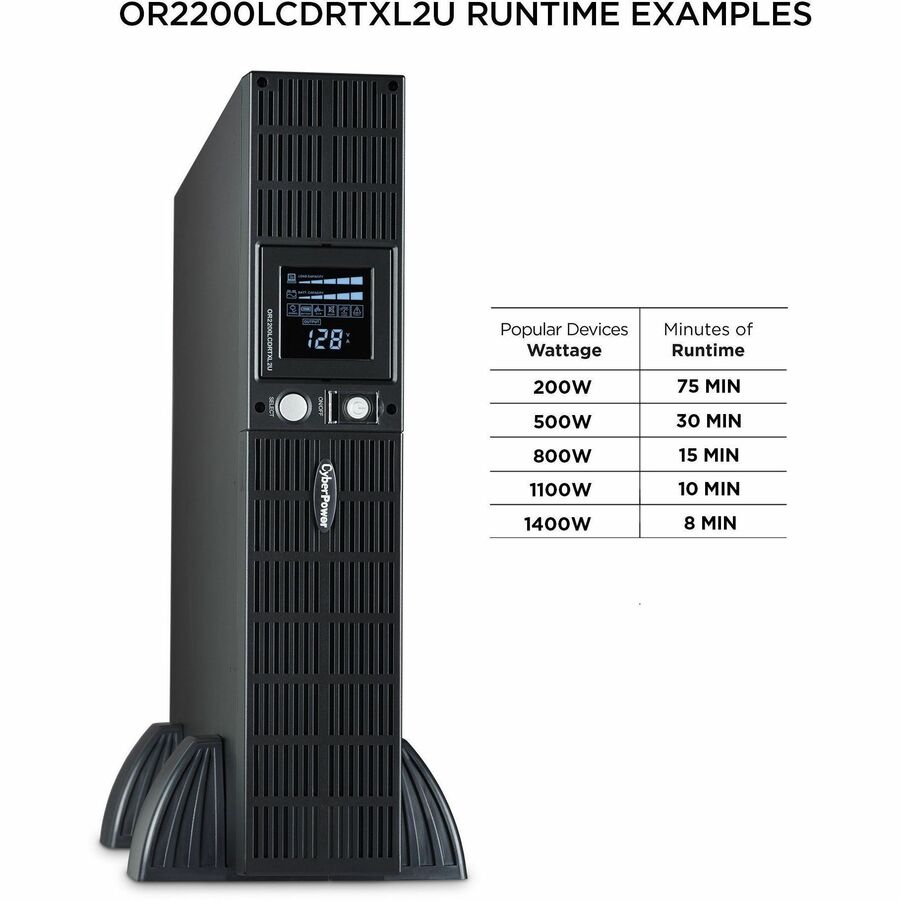

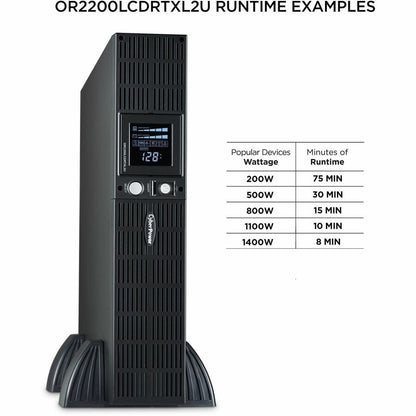

- Backup/Run Time (Full Load): 6 Minute
- Backup/Run Time (Half Load): 15 Minute
- Typical Battery Recharge Time: 8 Hour
- Replaceable Battery: Yes
Environmental Conditions
- Maximum Operating Temperature: 104°F (40°C)

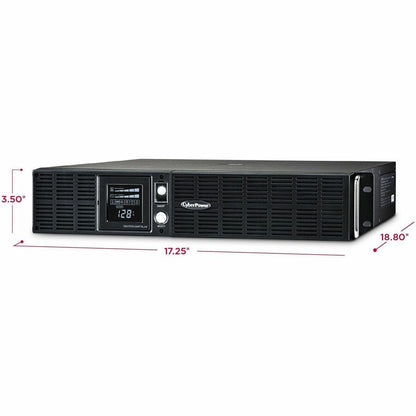

Physical Characteristics
- Product Color: Black

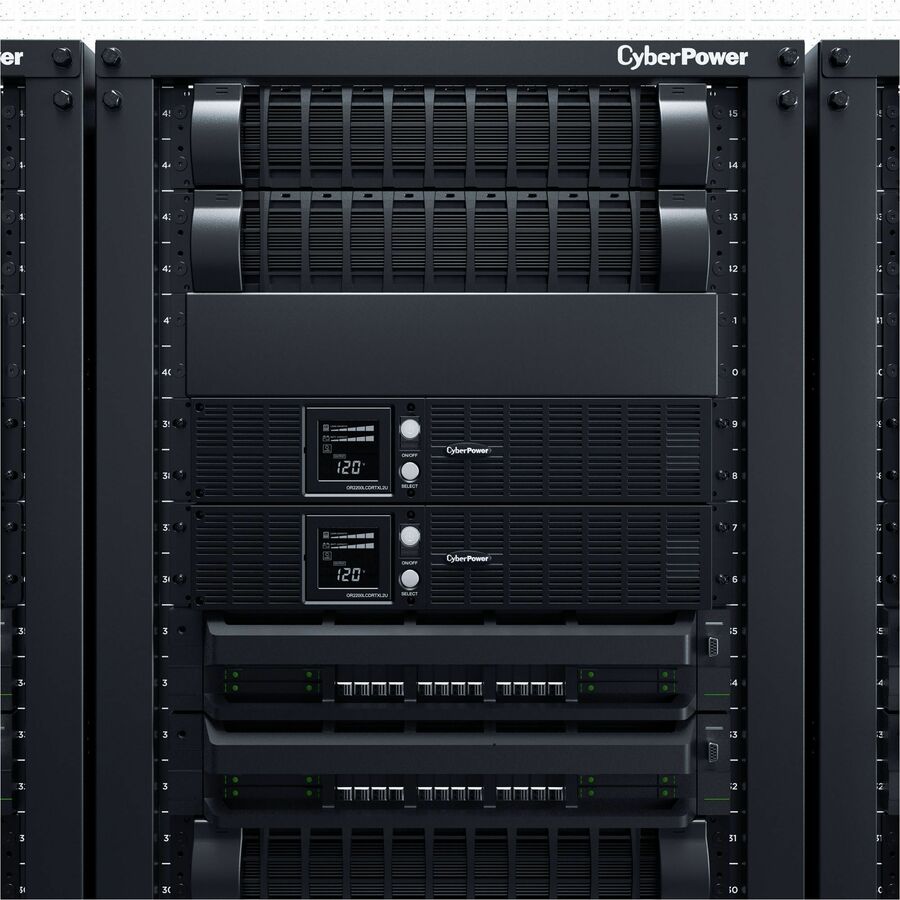

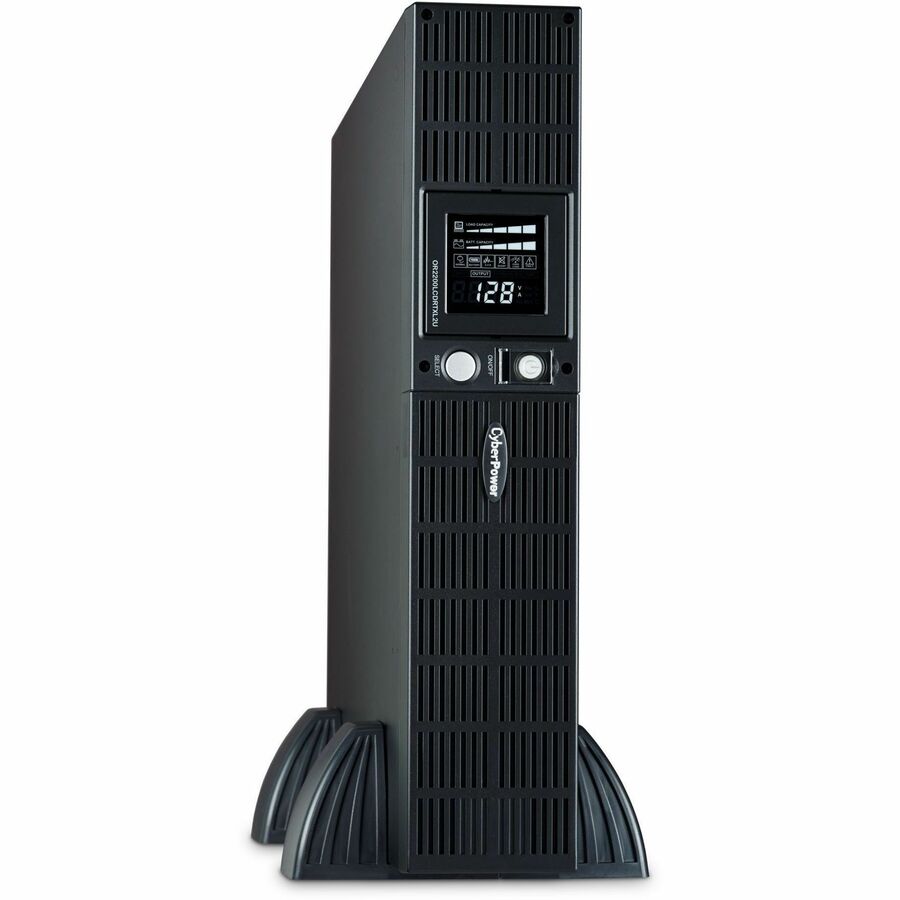

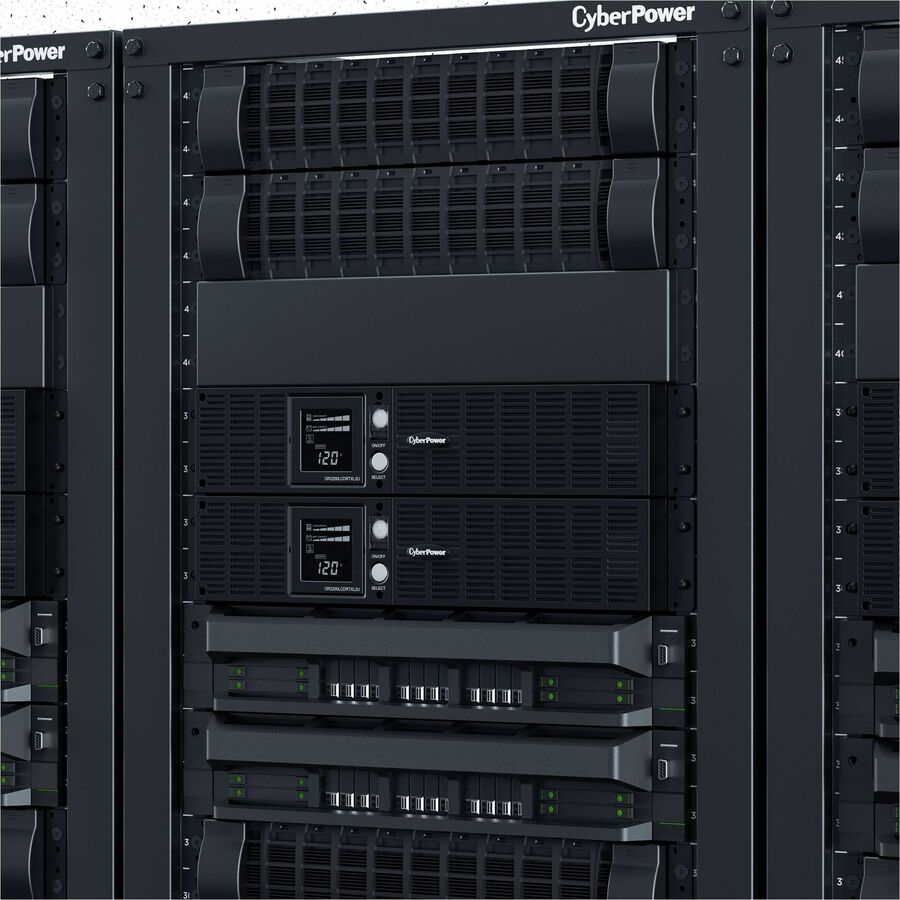

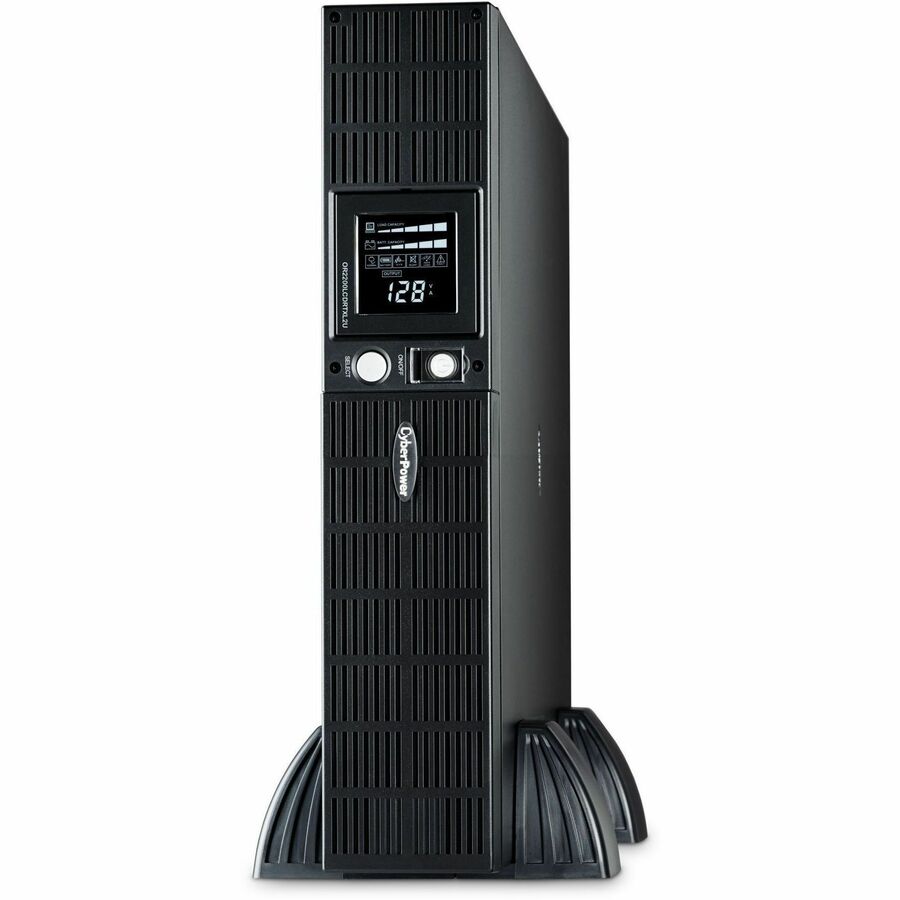

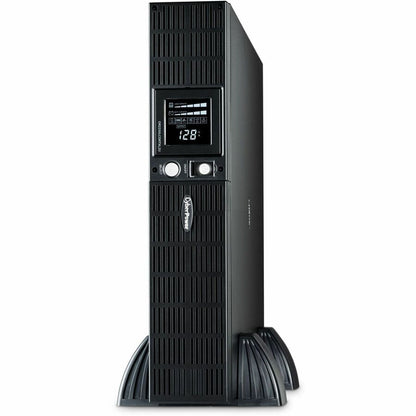

- Form Factor: Rack/Tower
- Rack Height: 2U

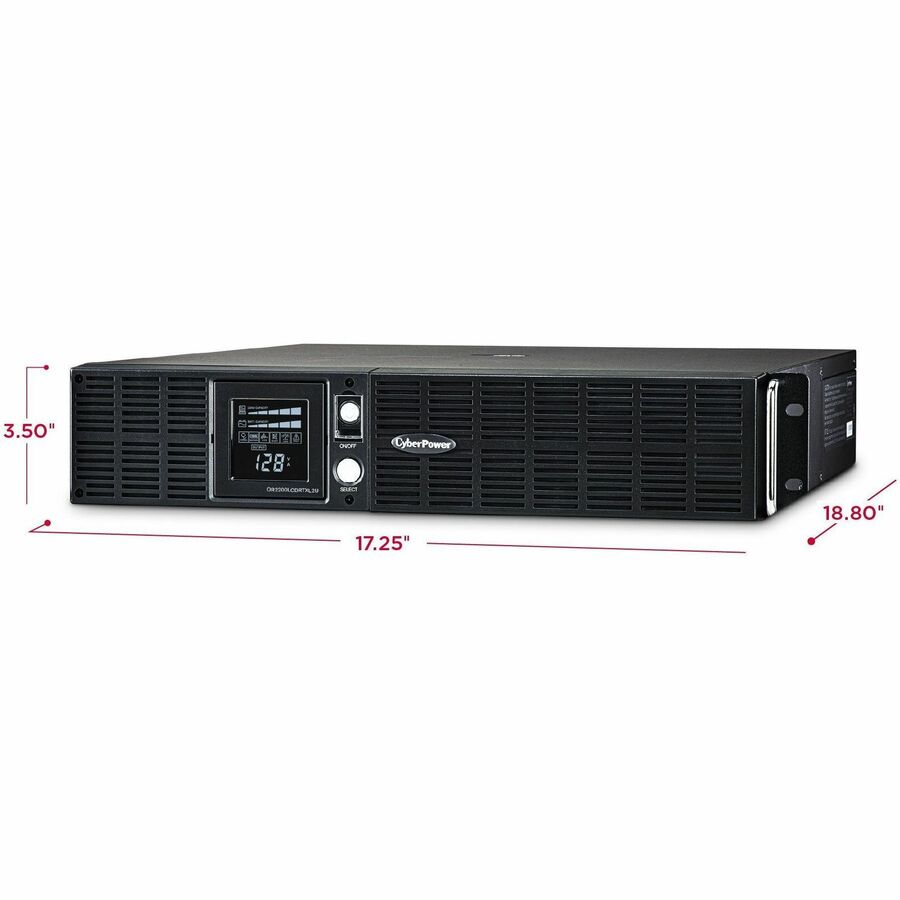

- Height: 3.5"
- Width: 17"
- Depth: 18.8"
- Weight (Approximate): 90 lb
Miscellaneous
- Package Contents:
- Smart App LCD OR2200LCDRTXL2U 2190 VA Tower/Rack-mountable UPS
- User's manual
- Rackmount brackets
- Stands, Telephone cable
- Emergency Power Off cable
- USB A+B type cable
- Software Included: PowerPanel Business Edition Software
- Energy Star: No
- Country of Origin: Philippines
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
