CyberPower PR1000RT2UCN Smart App Sinewave UPS Systems - PR1000RT2UCN
Key Features
- $400,000
- 100-125 VAC ± 5%
- 1000 VA / 1000 W
- 19.5 minutes / 7 minutes
- 3 year
- 8 surge + battery backup
- 8 × NEMA 5-15R
- Capacity:
- Communication:
- Connected Equipment Guarantee:
- ENERGY STAR® qualified:
- Line Interactive
- Management software:
- NEMA 5-15P, 10 ft. cord
- Outlet types:
- Outlets:
- Output:
- Plug type & cord:
- PowerPanel® Business Edition
- Remote management:
- Runtime (half/full):
- Sine Wave
- Topology:
- USB, Serial, SNMP, Relay, EPO, Cloud
- Warranty:
- Waveform:
- Yes
- Yes, RMCARD205 Included, and built-in cloud
Product Overview

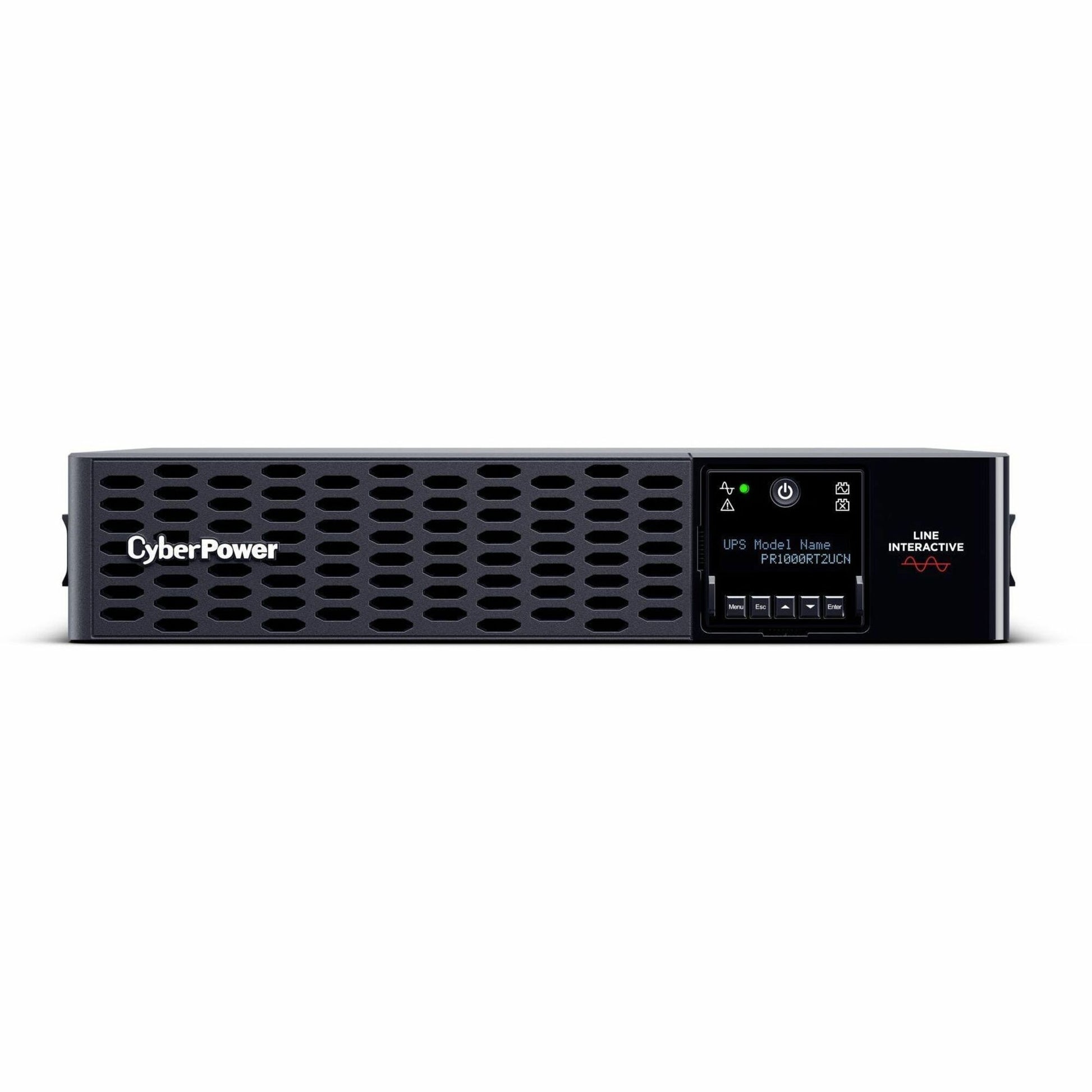

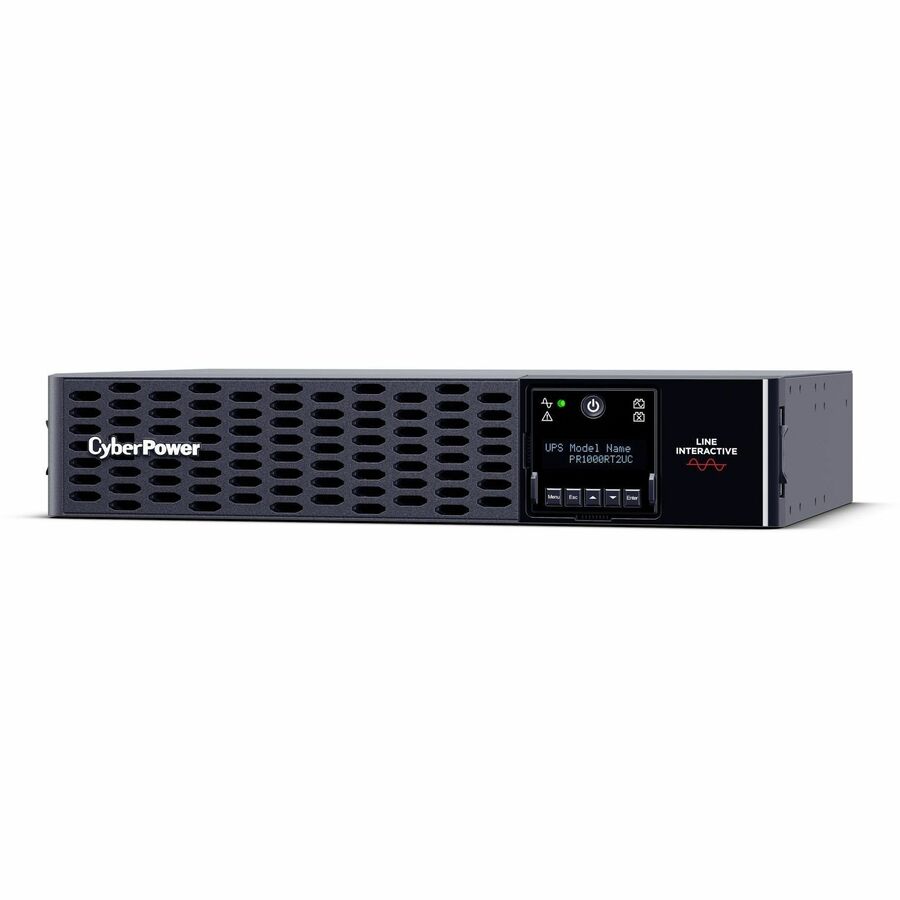

The PR1000RT2UCN is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series has sine wave output to eliminate power gaps that can be detected by sensitive equipment and cause unexpected shutdowns.

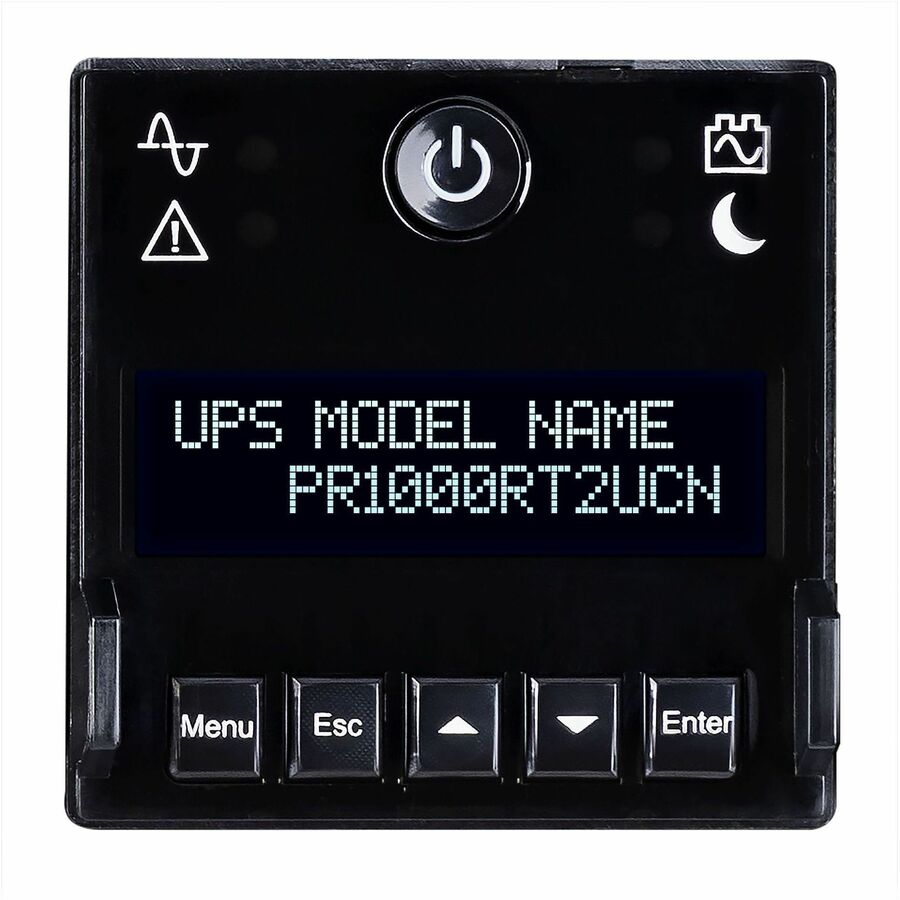

The Smart App Sinewave PR1000RT2UCN improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR1000RT2UCN also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options. This model includes pre-installed remote management card RMCARD205, which provides remote management and configuration of the UPS via a standard web browser or network management system, and built-in cloud monitoring.
With a ,400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of the PR1000RT2UCN.
General Information
- Manufacturer: CyberPower Systems, Inc
- Manufacturer Part Number: PR1000RT2UCN
- Brand Name: CyberPower
- Product Line: Smart App Sinewave
- Product Model: PR1000RT2UCN
- Product Name: PR1000RT2UCN Smart App Sinewave UPS Systems
- Product Type: Line-interactive UPS
Technical Information
- AVR: Yes
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15R

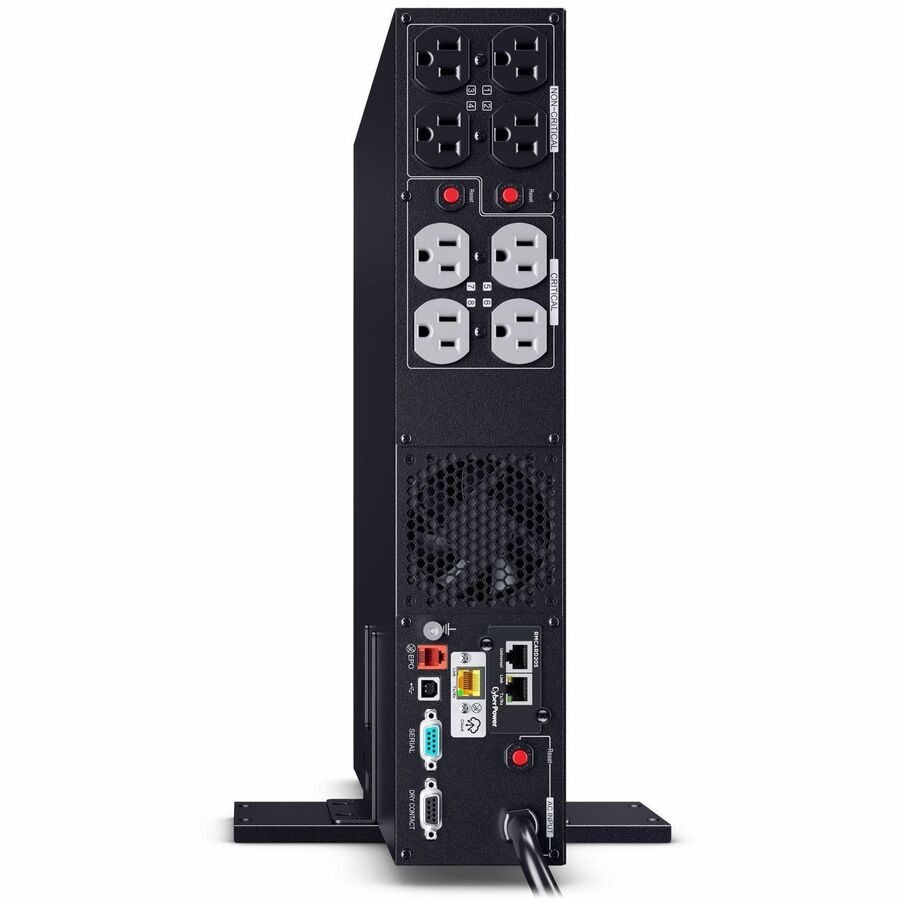

- Receptacle Detail: 8 x NEMA 5-15R
- Number of Battery & Surge Outlets: 8
- Number of Critical Load Outlets: 4
- Overload Protection: Yes
- Cord Length: 10 ft
- Transfer Time: 4 ms
- EMI/RFI Noise Filter: Yes
- Application/Usage:
- Corporate
- Network
- Server
- Telecommunication
- VoIP Phone System
- Storage Device
- Network Device
Power Description
- Load Capacity (VA): 1000 VA
- Load Capacity (Watt): 1000 W
- Input Voltage: 120 V AC
- Input Voltage Range: 70 V AC - 155 V AC
- Output Voltage:
- 100 V AC
- 110 V AC
- 120 V AC
- 125 V AC
- Input Frequency: 63 Hz
- Output Frequency: 60 Hz
- Waveform Type: Sine Wave
- Surge Energy Rating: 2430 J
- Circuit Breaker: Yes
- Output Power Factor: 1
Display & Graphics
- Display: LCD
Management
- Network Management:
- Dry Contact
- SNMP/HTTP Remote Monitoring
- Relay-MS Card
- Network Card
- Alarm:
- Battery Mode
- Low Battery
- Overload
- Over-charge
- Overheat
Controls/Indicators
- Status Indicators:
LED Indicators:
- Power On
- Line Mode
- Battery Mode
- Fault
- Night Mode
- Wiring Fault

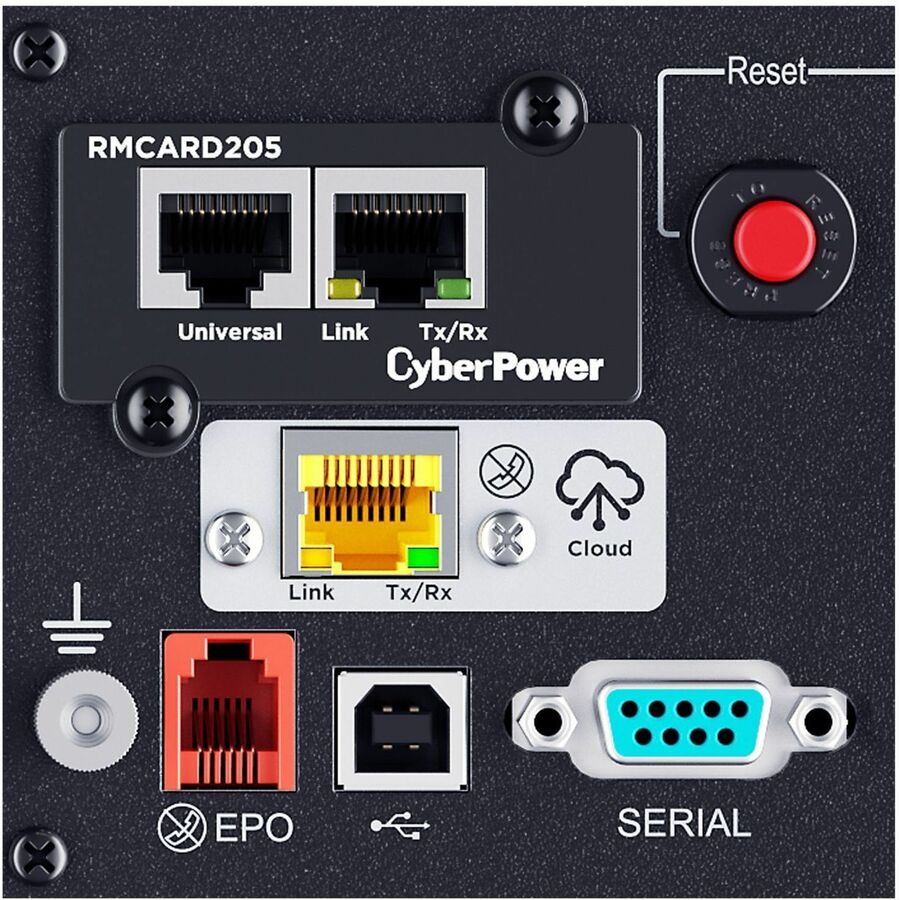

Interfaces/Ports
- Serial Port: Yes
- USB: Yes
- EPO Port: Yes
- USB (HID Compliant) Port: Yes
Battery Information
- Number of Batteries: 4
- Battery Characteristics: Sealed
- Battery Chemistry: Lead Acid
- Battery Size: 12V
- Battery Capacity: 7000 mAh
- Backup/Run Time (Full Load): 7 Minute
- Backup/Run Time (Half Load): 19.50 Minute
- Hot Swappable: Yes
- Typical Battery Recharge Time: 3 Hour
- Replaceable Battery: Yes
Environmental Conditions
- Maximum Operating Elevation: 9842.52 ft
- Maximum Storage Elevation: 49209.32 ft
- Storage Temperature: 5°F (-15°C) - 113°F (45°C)
- Operating Humidity: 95%
- Storage Relative Humidity: 95%
- Maximum Operating Temperature: 104°F (40°C)
- Thermal Dissipation: 14.24 W

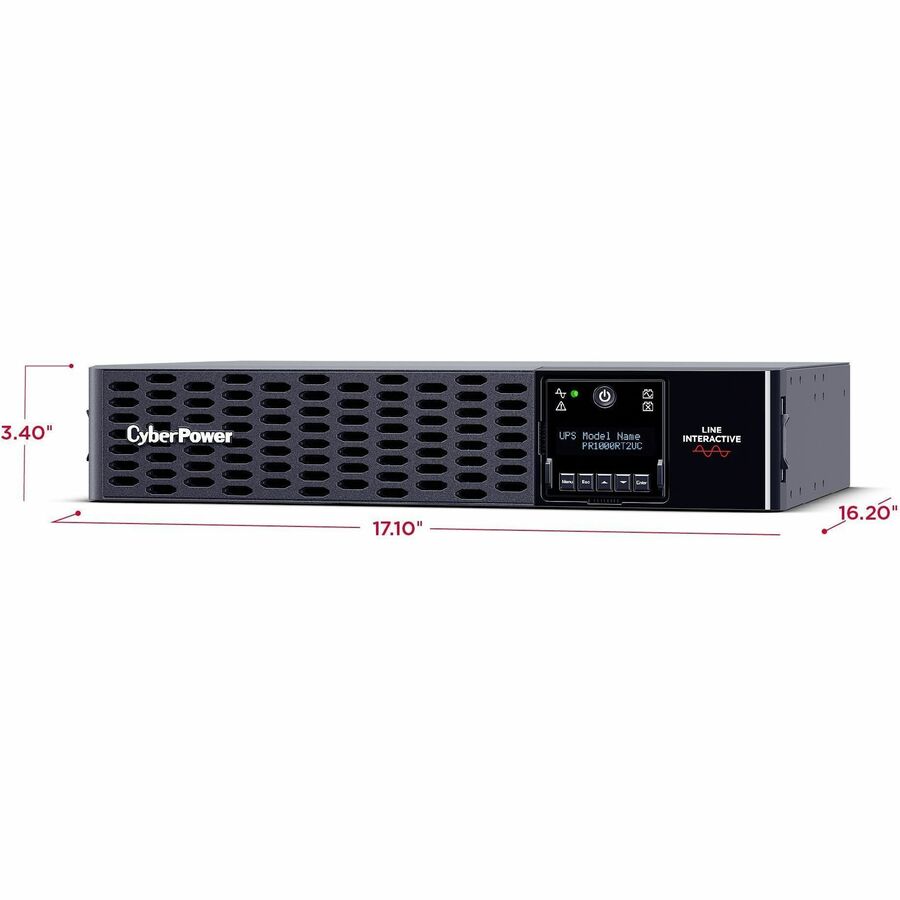

Physical Characteristics
- Product Color: Black

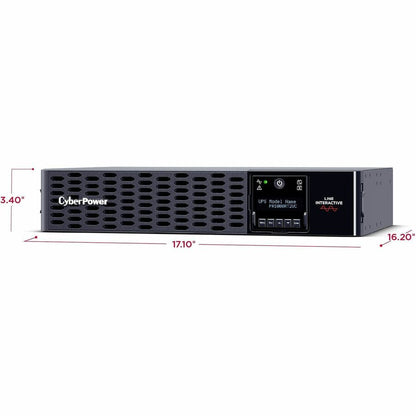

- Height: 3.4"
- Width: 17.1"
- Depth: 16.2"
- Rack Height: 2U
- Form Factor: Rack/Tower
- Weight (Approximate): 50.09 lb
Miscellaneous
- Energy Star: Yes
- Country of Origin: China
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
- Additional Warranty Information:
- Connected Equipment Guarantee: Lifetime
- Connected Equipment Guarantee:
- 400,000
