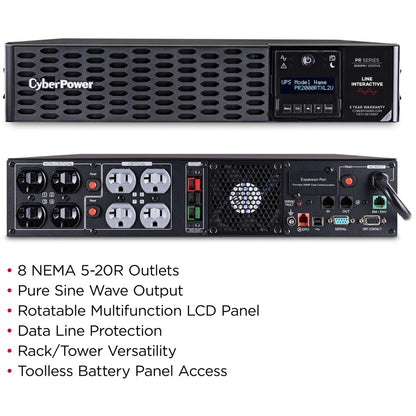

CyberPower PR2000RTXL2UTAA TAA Compliant UPS System - PR2000RTXL2UTAA

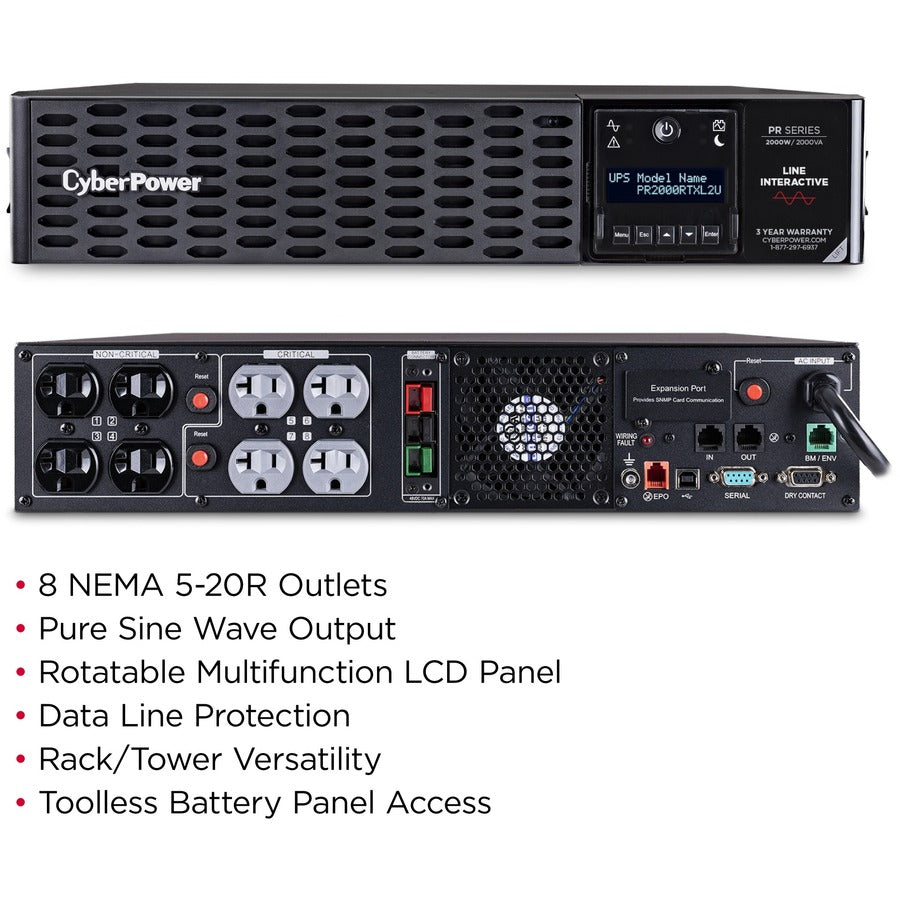

Key Features
- Capacity: 2000 VA / 2000 W
- Communication: USB, Serial, SNMP, Relay, EPO
- Management software: PowerPanel® Business
- Outlet types: 8 × NEMA 5-20R
- Output: 100-125 VAC ± 5%
- Plug type & cord: NEMA 5-20P, 10 ft. cord
- Remote management: Yes, with optional RMCARD205TAA
- Topology: Line Interactive
- Warranty: 3 year
- Waveform: Sine Wave
Product Overview

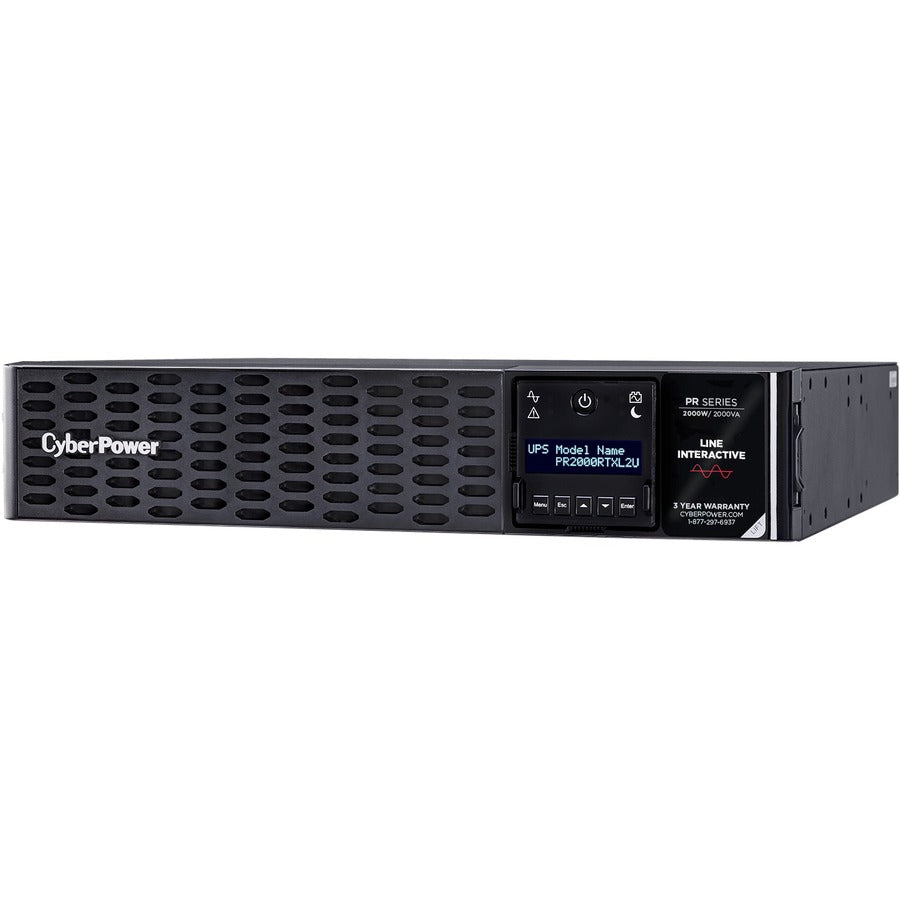

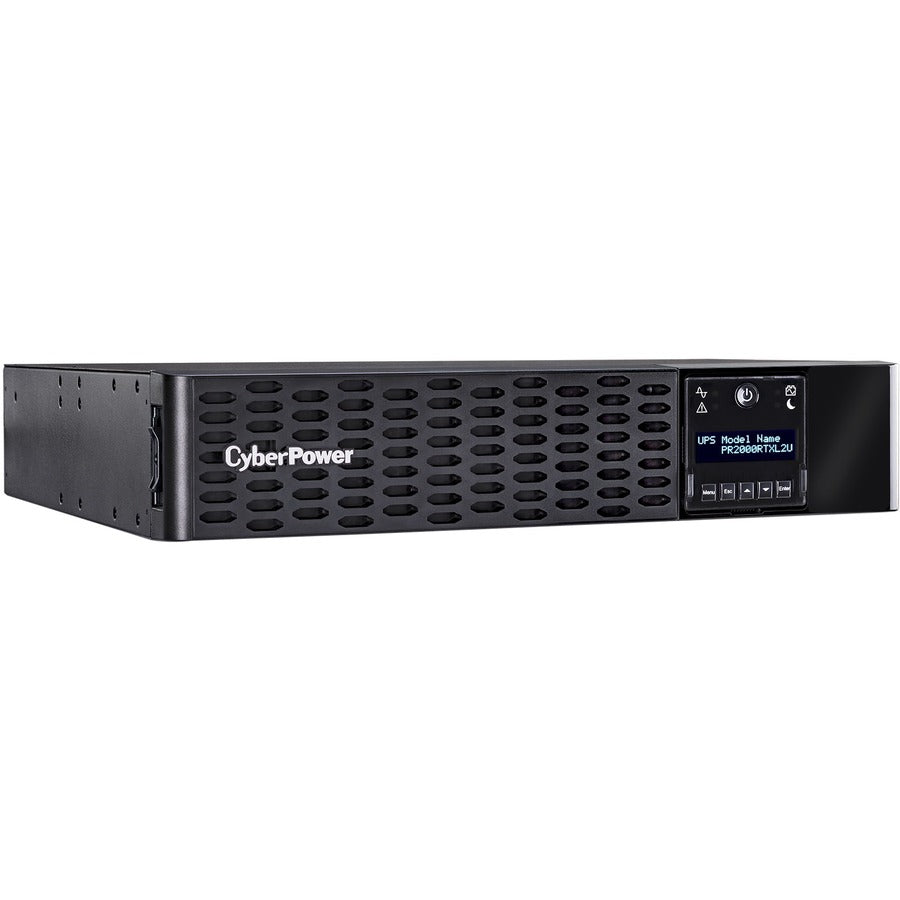

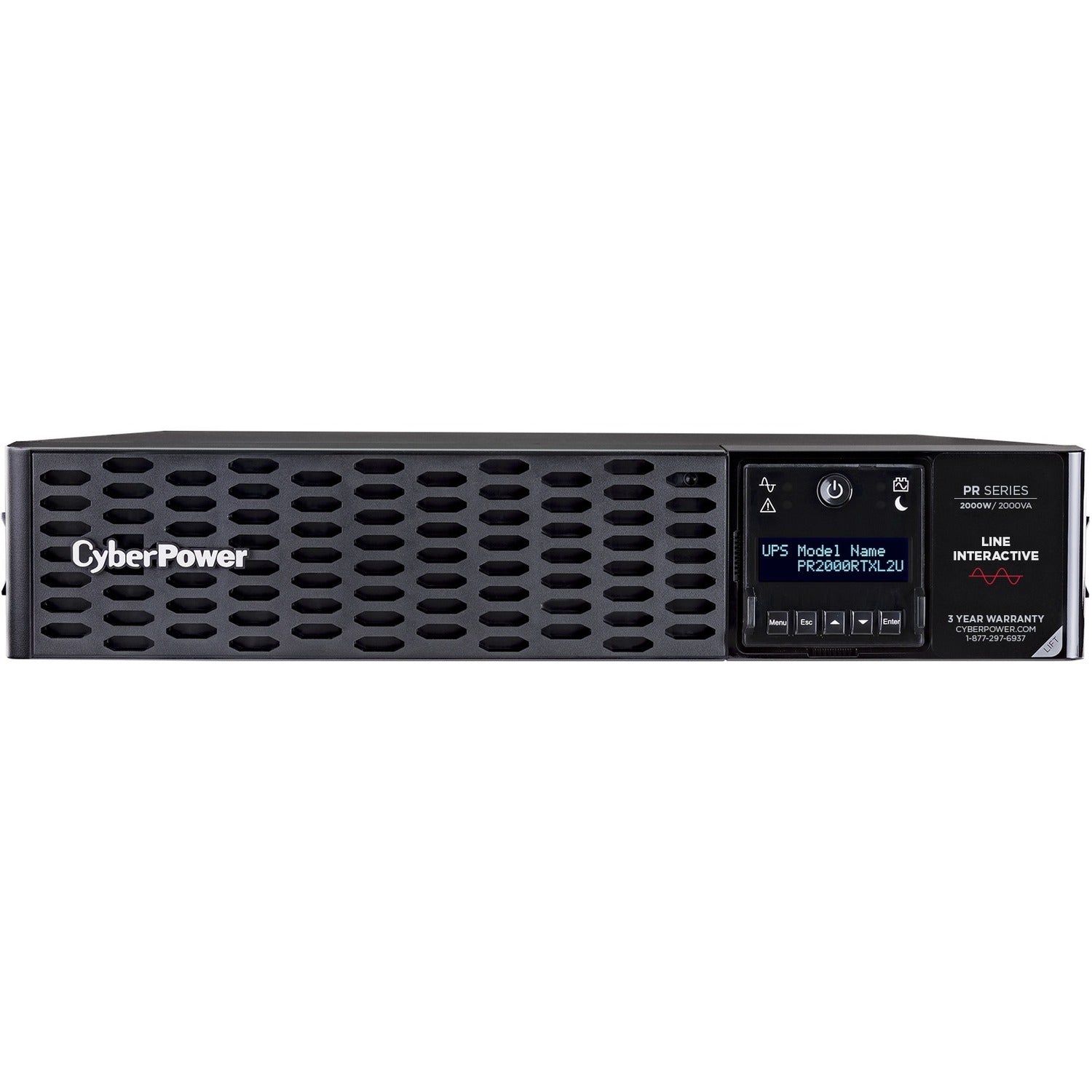

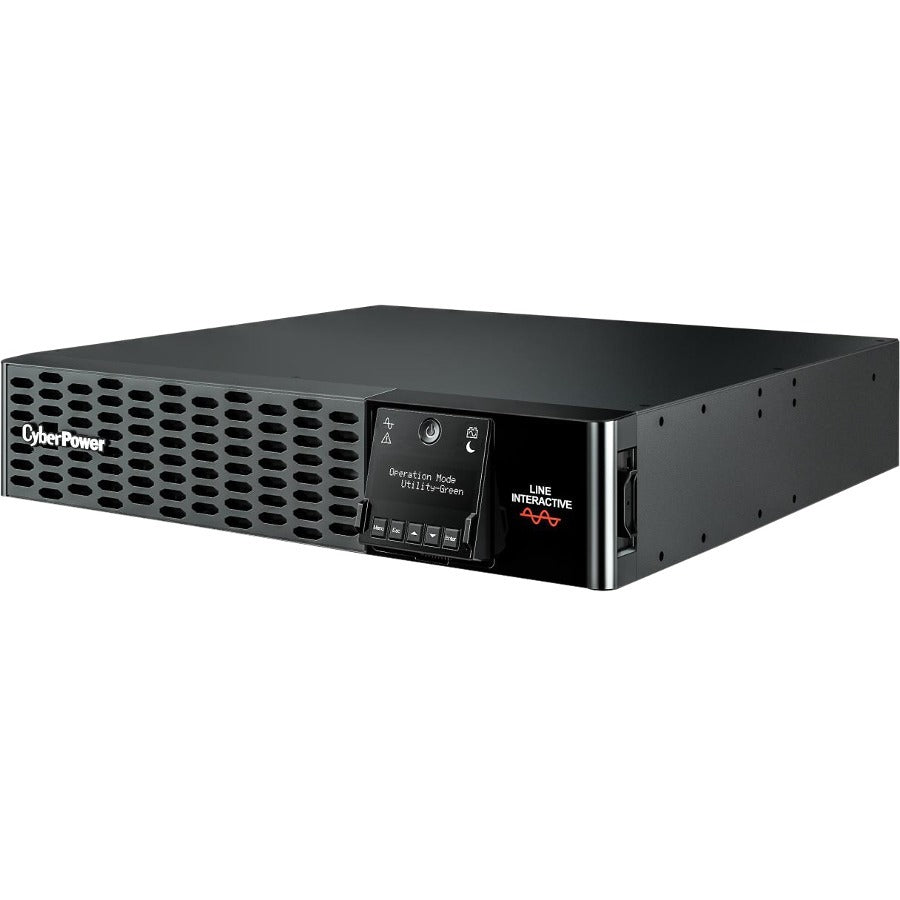

The PR2000RTXL2UTAA is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series has sine wave output to eliminate power gaps that can be detected by sensitive equipment and cause unexpected shutdowns.

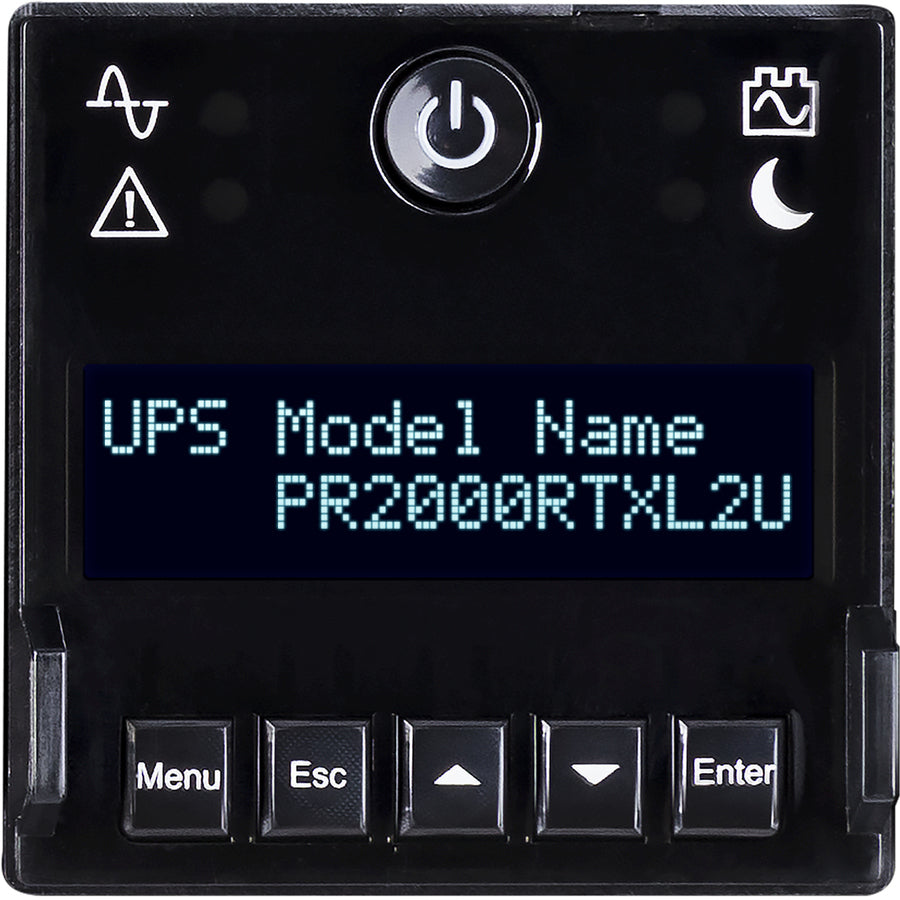

The Smart App Sinewave PR2000RTXL2UTAA improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR2000RTXL2UTAA also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.
This model accepts the BP48VP2U02TAA Extended Battery Module (EBM) for expanded runtime during power outages and the RMCARD205TAA network management card for remote management and control via a standard web browser or network management system.
With a ,400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of the PR2000RTXL2UTAA.
General Information
- Manufacturer: CyberPower Systems, Inc
- Manufacturer Part Number: PR2000RTXL2UTAA
- Brand Name: CyberPower
- Product Series: TAA Compliant UPS & Hardware
- Product Model: PR2000RTXL2UTAA
- Product Name: PR2000RTXL2UTAA Smart App Sinewave UPS
- Product Type: Line-interactive UPS
Technical Information
- AVR: Yes
- Plug/Connector Type: NEMA 5-20P
- Receptacle Type: NEMA 5-20R
- Receptacle Detail: 8 x NEMA 5-20R
- Number of Battery & Surge Outlets: 8
- Number of Critical Load Outlets: 4
- Transfer Time: 4 ms
- Dataline Protection: RJ-45
- Overload Protection: Yes
- EMI/RFI Noise Filter: Yes
- Energy Saving: GreenPower UPS™ Bypass Technology
- Application/Usage:
- Server
- Workstation
- Network Device
- Telecommunication
Power Description
- Load Capacity (VA): 2000 VA
- Input Voltage: 120 V AC
- Input Voltage Range: 75 V AC - 155 V AC
- Output Voltage:
- 110 V AC
- 120 V AC
- 125 V AC
- 100 V AC
- Input Frequency: 63 Hz
- Output Frequency: 60 Hz
- Waveform Type: Sine Wave
- Surge Energy Rating: 2430 J
Management
- Network Management: SNMP/HTTP Remote Monitoring
- Alarm:
- Overheat
- Low Battery
- Over Charge
- Overload
- Battery Mode
Controls/Indicators
- Status Indicators: Multifunction LCD Panel:
- 27 setup and control items
- 20 status updates and log menus
LED Indicators:
- Power on
- Line mode
- Battery mode
- Fault
- Night mode
- Wiring Fault

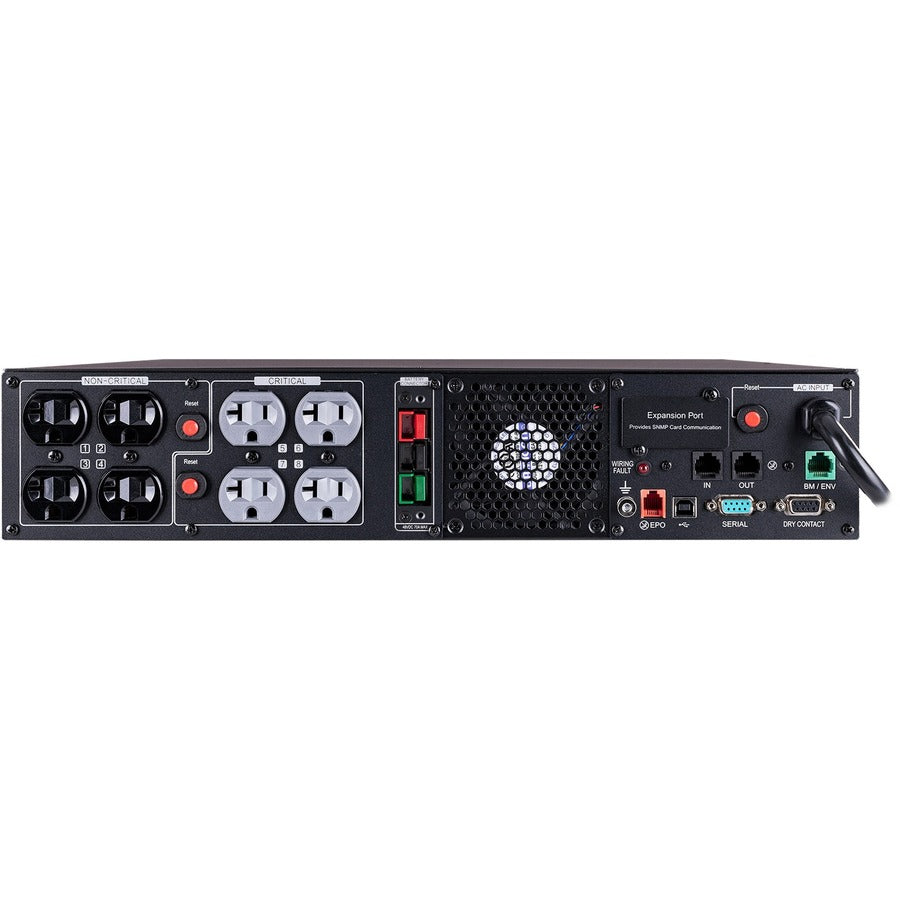

Interfaces/Ports
- Serial Port: Yes
- Network (RJ-45): Yes
- USB (HID Compliant) Port: Yes
- EPO Port: Yes
Battery Information
- Number of Batteries: 4
- Battery Characteristics: Sealed
- Battery Chemistry: Lead Acid
- Battery Size: 12V
- Battery Capacity: 9000 mAh
- Backup/Run Time (Full Load): 4.30 Minute
- Backup/Run Time (Half Load): 12.20 Minute
- Typical Battery Recharge Time: 3 Hour
- Replaceable Battery: Yes
Environmental Conditions
- Maximum Operating Temperature: 104°F (40°C)
- Maximum Operating Elevation: 9842.52 ft
- Maximum Storage Elevation: 49212.60 ft
Physical Characteristics
- Product Color: Black
- Form Factor: Rack/Tower
- Rack Height: 2U

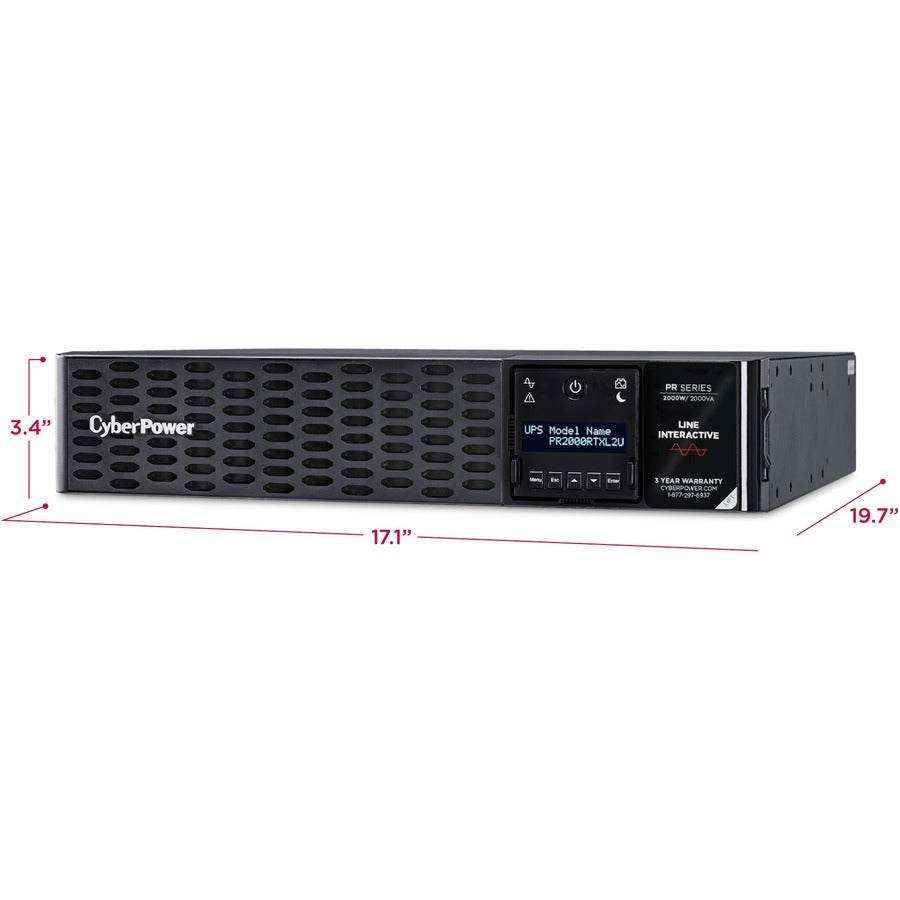

- Height: 3.4"
- Width: 17.1"
- Depth: 19.7"
- Weight (Approximate): 74.50 lb
Miscellaneous
- Software Included: PowerPanel® Business
- Energy Star: Yes
- Country of Origin: Taiwan
- TAA Compliant: Yes
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
