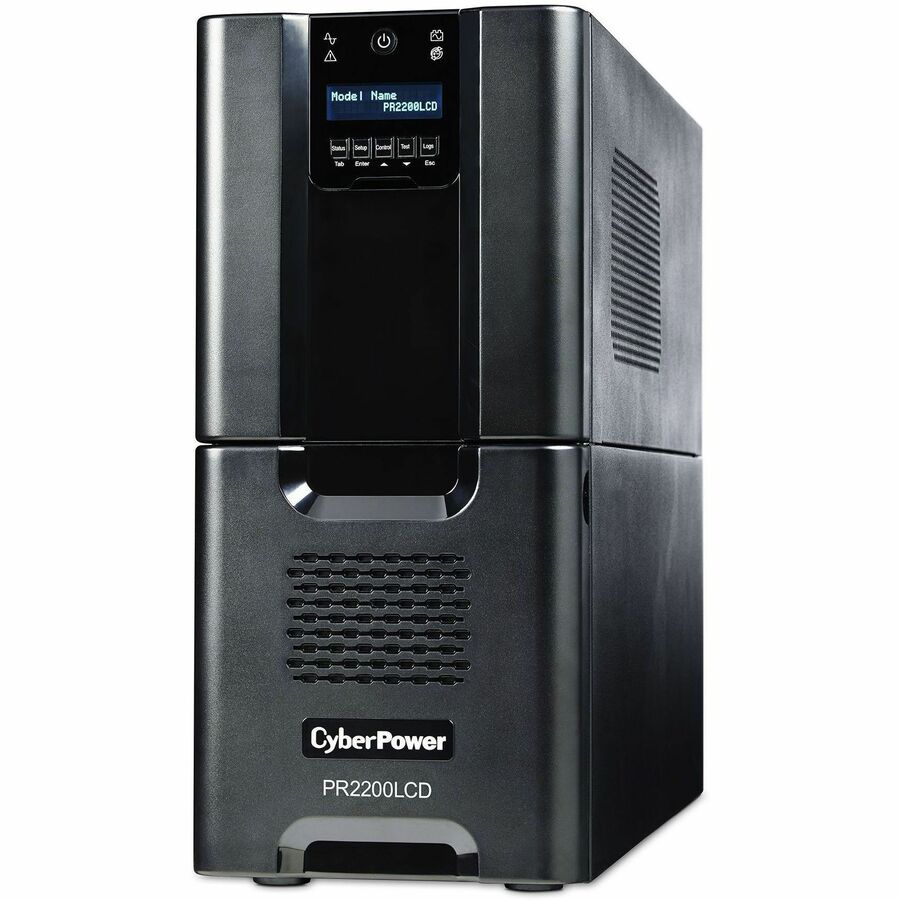

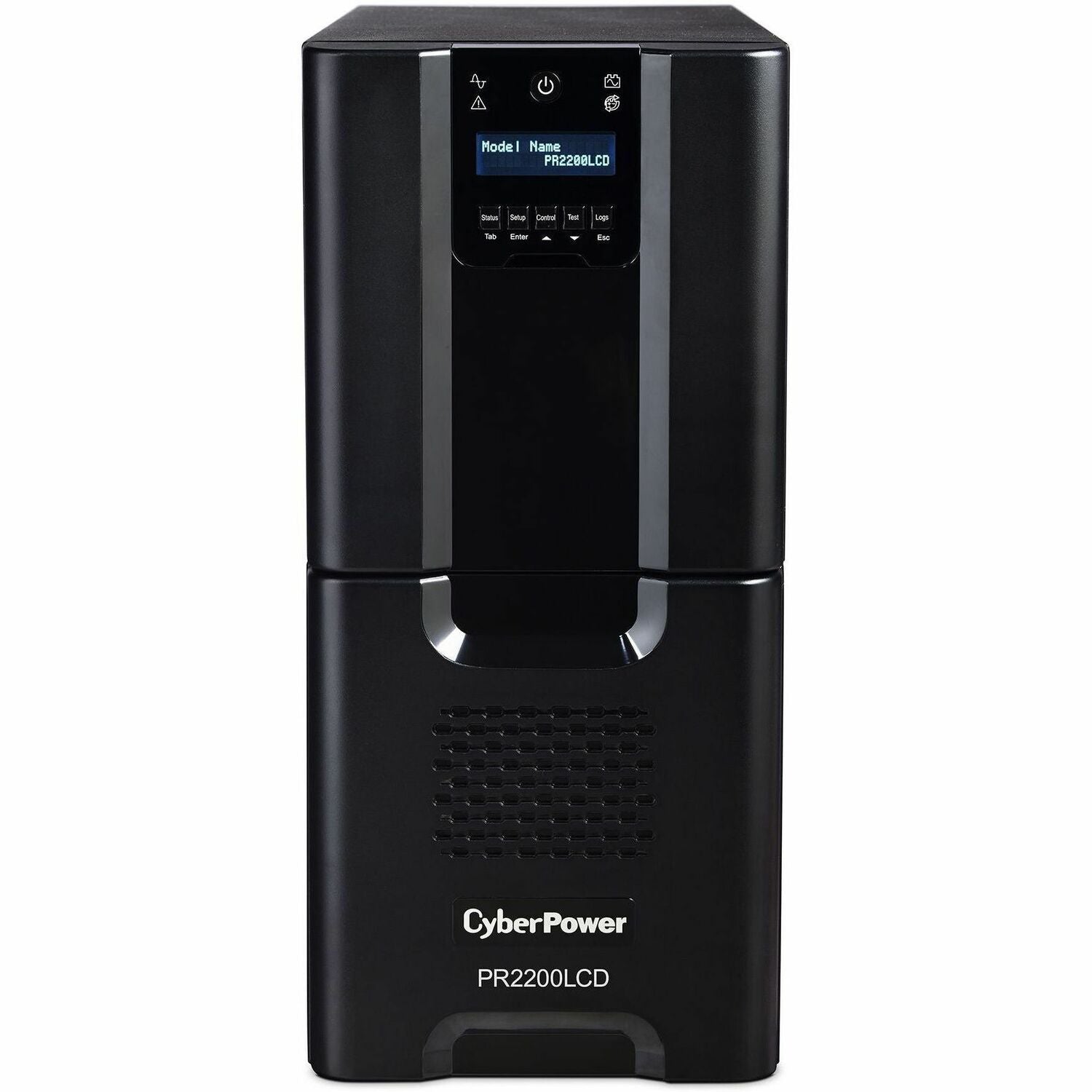

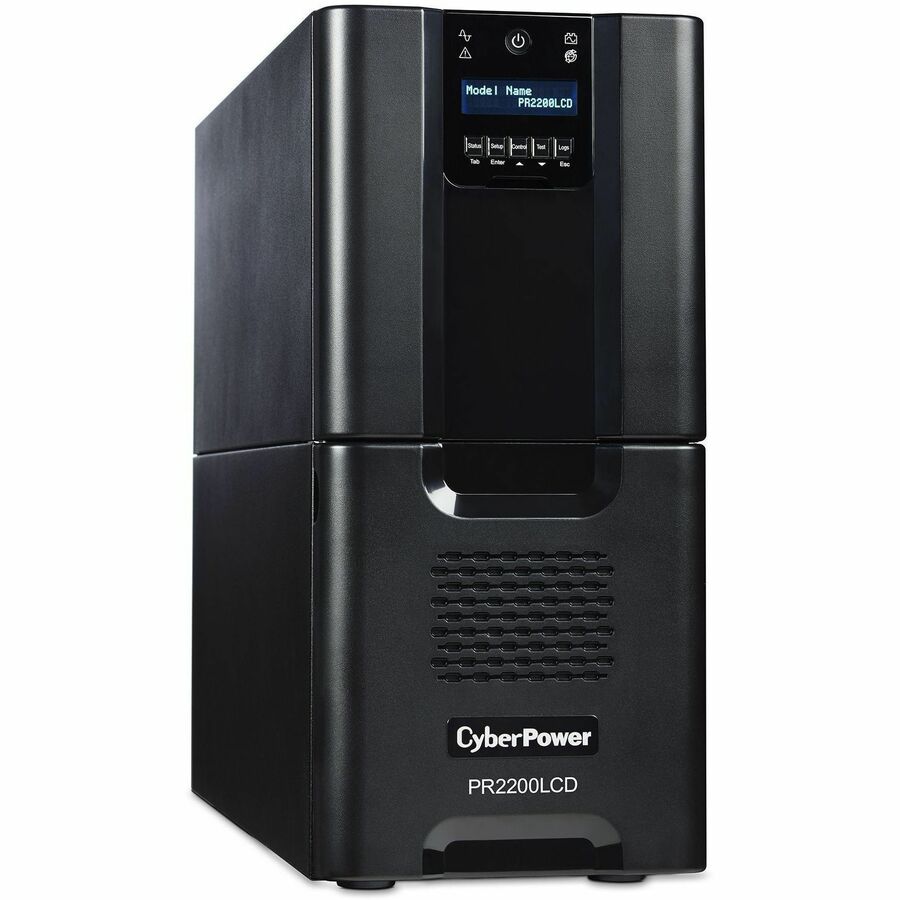

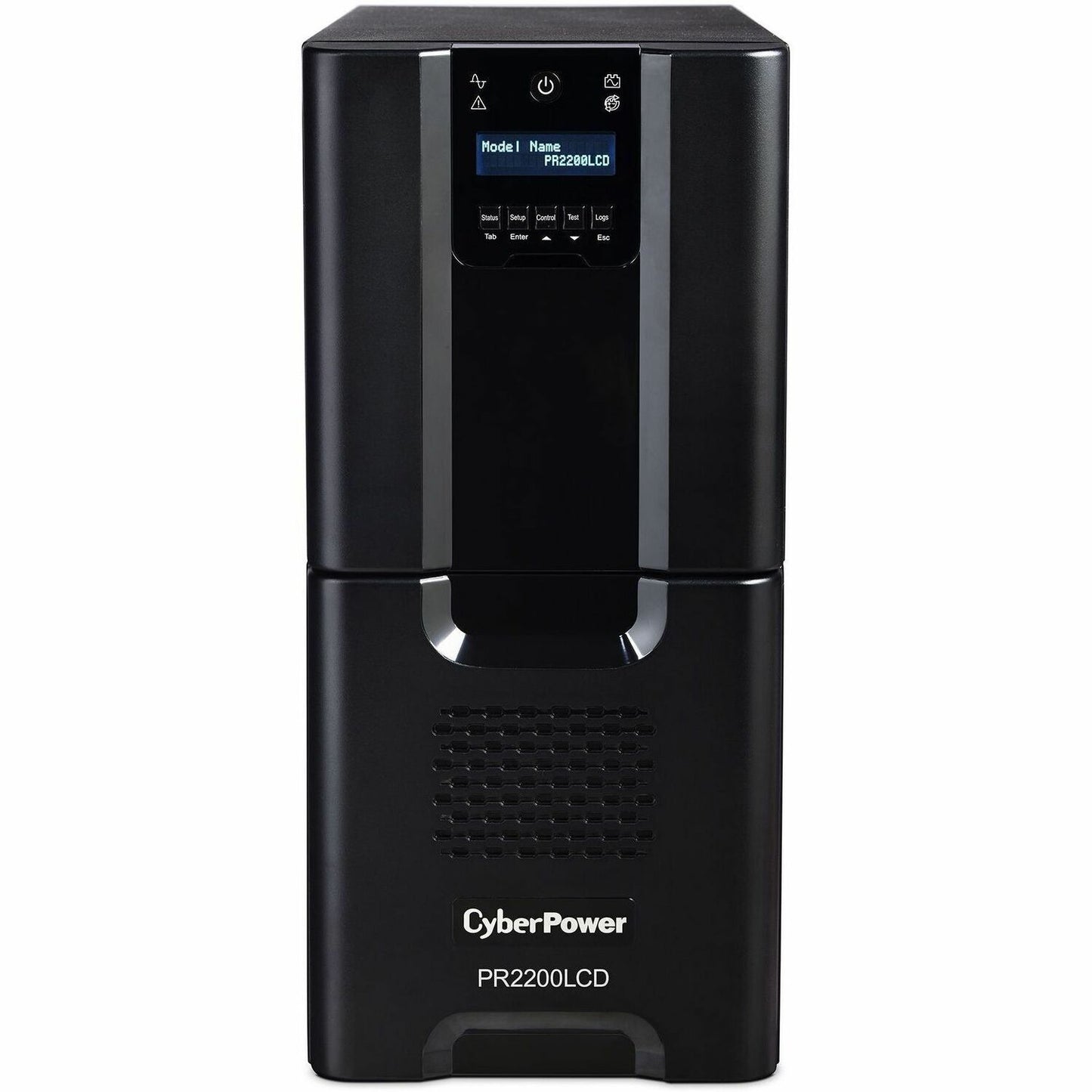

CyberPower PR2200LCD Smart App Sinewave UPS Systems - PR2200LCD
Key Features
- 120 VAC ± 5%
- 2200 VA / 1980 W
- 3 year
- 8 × NEMA 5-15R, 2 × NEMA 5-20R
- Capacity:
- Communication:
- Line Interactive
- Management software:
- NEMA L5-30P, 10 ft. cord
- Outlet types:
- Output:
- Plug type & cord:
- PowerPanel® Business Edition
- Remote management:
- Sine Wave
- Topology:
- USB, Serial, SNMP, Relay, EPO
- Warranty:
- Waveform:
- Yes
Product Overview
A tower UPS with line interactive topology, the CyberPower Smart App Sinewave PR2200LCD provides battery backup, power protection (using sine wave output), and surge protection for corporate servers, department servers, storage appliances, network devices, and telecom installations requiring Active PFC power source compatibility. The PR2200LCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The PR2200LCD comes with a three-year warranty and a ,375,000 Connected Equipment Guarantee.
General Information
- Manufacturer: CyberPower Systems, Inc
- Manufacturer Part Number: PR2200LCD
- Brand Name: CyberPower
- Product Series: Smart App Sinewave UPS
- Product Model: PR2200LCD
- Product Name: PR2200LCD Smart App Sinewave UPS Systems
- Product Type: Line-interactive UPS
Technical Information
- AVR: Yes
- Plug/Connector Type: NEMA L5-30P
- Receptacle Type:
- NEMA 5-20R
- NEMA 5-15R
- Receptacle Detail:
- 2 x NEMA 5-20R
- 8 x NEMA 5-15R
Power Description
- Load Capacity (VA): 2200 VA
- Input Voltage: 120 V AC
- Output Voltage: 120 V AC
Management
- Network Management: SNMP/HTTP Remote Monitoring
- Alarm:
- Low Battery
- On Battery
- Overload

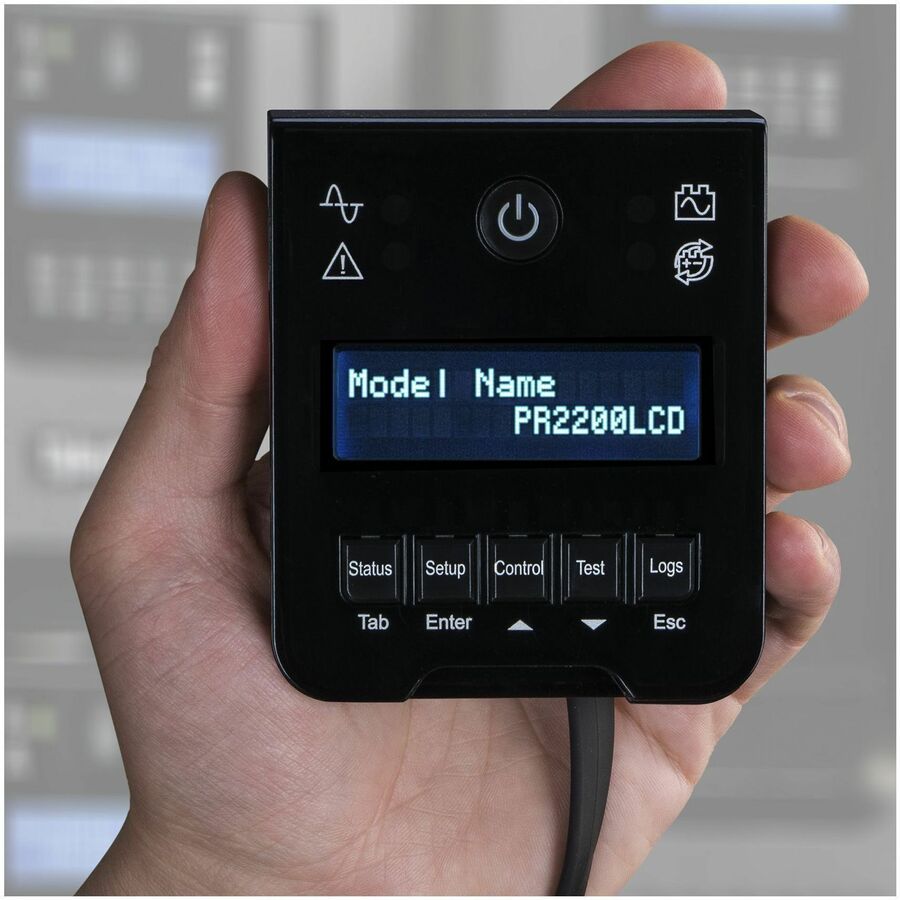

Controls/Indicators
- Status Indicators:
- Power On
- Wiring Fault
- AC Power
- Battery Power
- Replace Battery
Interfaces/Ports
- Serial Port: Yes
- USB: Yes
- USB (HID Compliant) Port: Yes
Battery Information
- Number of Batteries: 4
- Battery Characteristics: Maintenance-free
- Battery Chemistry: Lead Acid
- Backup/Run Time (Full Load): 7.80 Minute
- Backup/Run Time (Half Load): 25.80 Minute
- Typical Battery Recharge Time: 8 Hour
Physical Characteristics
- Form Factor: Tower
- Height: 17"
- Width: 7.7"
- Depth: 20.2"
- Weight (Approximate): 116 lb
Miscellaneous
- Package Contents:
- Smart App Sinewave PR2200LCD 2200VA Pure Sine Wave Tower LCD UPS
- PowerPanel Business Edition Software CD
- User Manual
- Functional Setup Guide
- USB Cable
- Serial Cable
- Emergency Power Off (EPO) Cable
- Registration Card
- Software Included: PowerPanel Business Edition Software
- Energy Star: No
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
