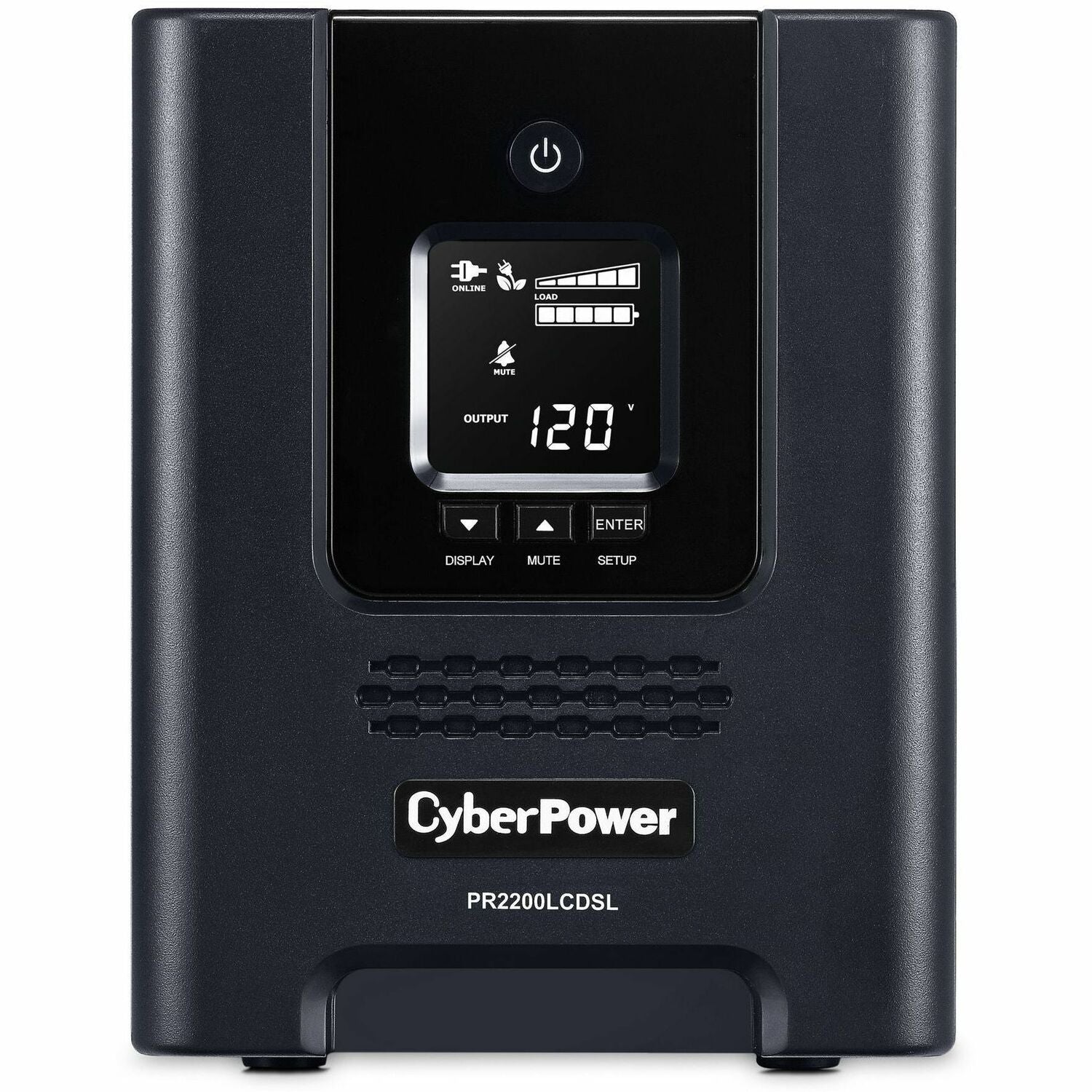

CyberPower PR2200LCDSL Smart App Sinewave UPS Systems - PR2200LCDSL
Key Features
- 120 VAC ± 5%
- 2070 VA / 1980 W
- 3 year
- 6 × NEMA 5-20R, 1 × NEMA L5-20R
- Capacity:
- Communication:
- ENERGY STAR® certified:
- Line Interactive
- Management software:
- NEMA 5-20P (straight), 10 ft.
- Outlet types:
- Output:
- Plug type & cord:
- PowerPanel® Business
- Remote management:
- Sine Wave
- Topology:
- USB, Serial, SNMP, Relay, EPO
- Warranty:
- Waveform:
- Yes
- Yes, with optional RMCARD205
Product Overview
A mini-tower UPS with line interactive topology, the CyberPower Smart App Sinewave PR2200LCDSL provides battery backup, power protection (using sine wave output), and surge protection for corporate servers, department servers, storage appliances, network devices, and telecom installations requiring Active PFC power source compatibility. The PR2200LCDSL uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently The PR2200LCDSL comes with a three-year warranty (including coverage of batteries) and a ,375,000 Connected Equipment Guarantee.
General Information
- Manufacturer: CyberPower Systems, Inc
- Manufacturer Part Number: PR2200LCDSL
- Brand Name: CyberPower
- Product Series: Smart App Sinewave UPS
- Product Model: PR2200LCDSL
- Product Name: PR2200LCDSL Smart App Sinewave UPS Systems
- Product Type: Line-interactive UPS
Technical Information
- AVR: Yes
- Plug/Connector Type: NEMA 5-20P

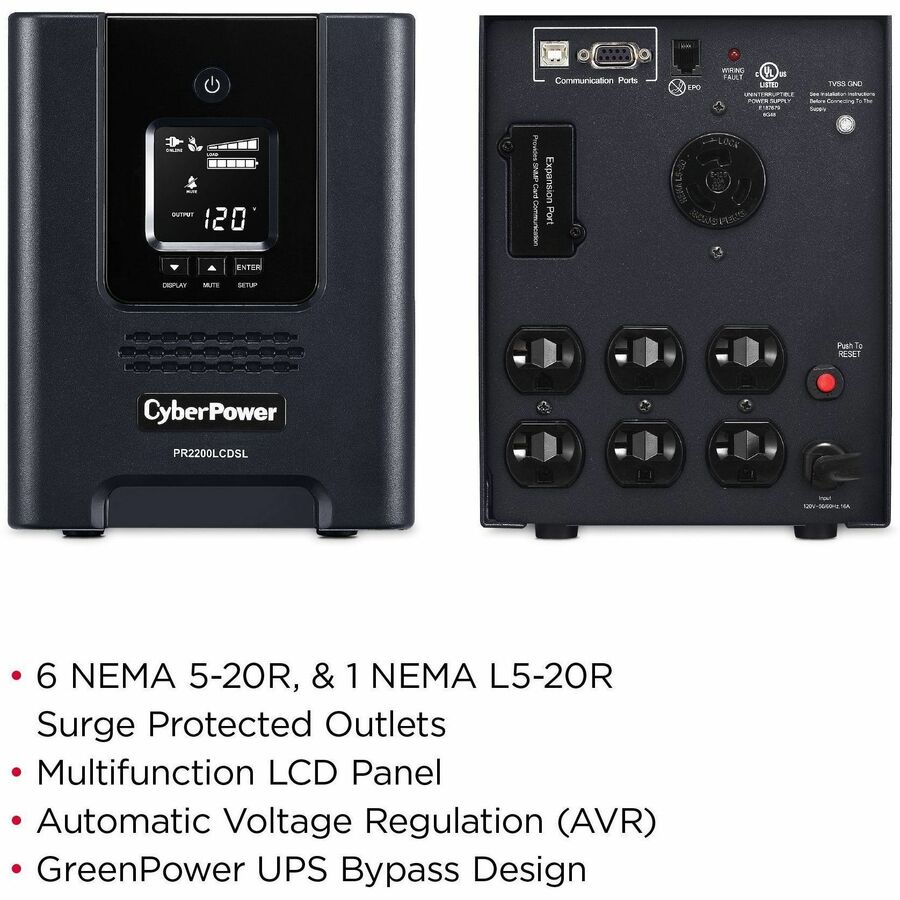

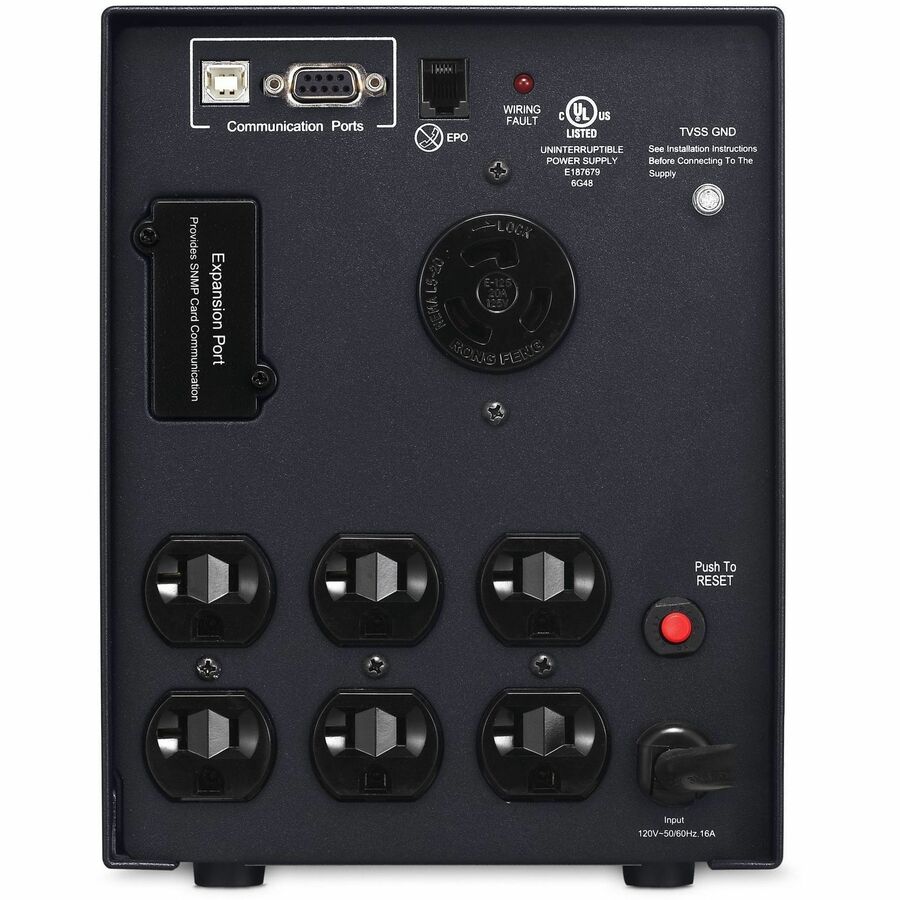

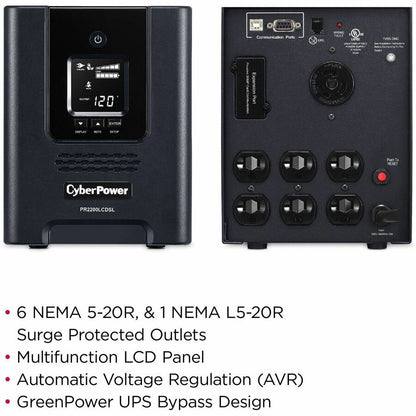

- Receptacle Type:
- NEMA 5-20R
- NEMA L5-20R
- Receptacle Detail:
- 6 x NEMA 5-20R
- 1 x NEMA L5-20R
Power Description
- Load Capacity (VA): 2070 VA
- Input Voltage: 120 V AC
- Output Voltage: 120 V AC
- Waveform Type: Sine Wave
Management
- Network Management: SNMP/HTTP Remote Monitoring
- Alarm:
- Low Battery
- On Battery
- Overload
- UPS Fault
Controls/Indicators
- Status Indicators: Power On
Interfaces/Ports
- Serial Port: Yes
- USB: Yes
Battery Information
- Number of Batteries: 4
- Battery Characteristics: Maintenance-free
- Battery Chemistry: Lead Acid
- Backup/Run Time (Full Load): 3.30 Minute
- Backup/Run Time (Half Load): 10.20 Minute
- Typical Battery Recharge Time: 8 Hour

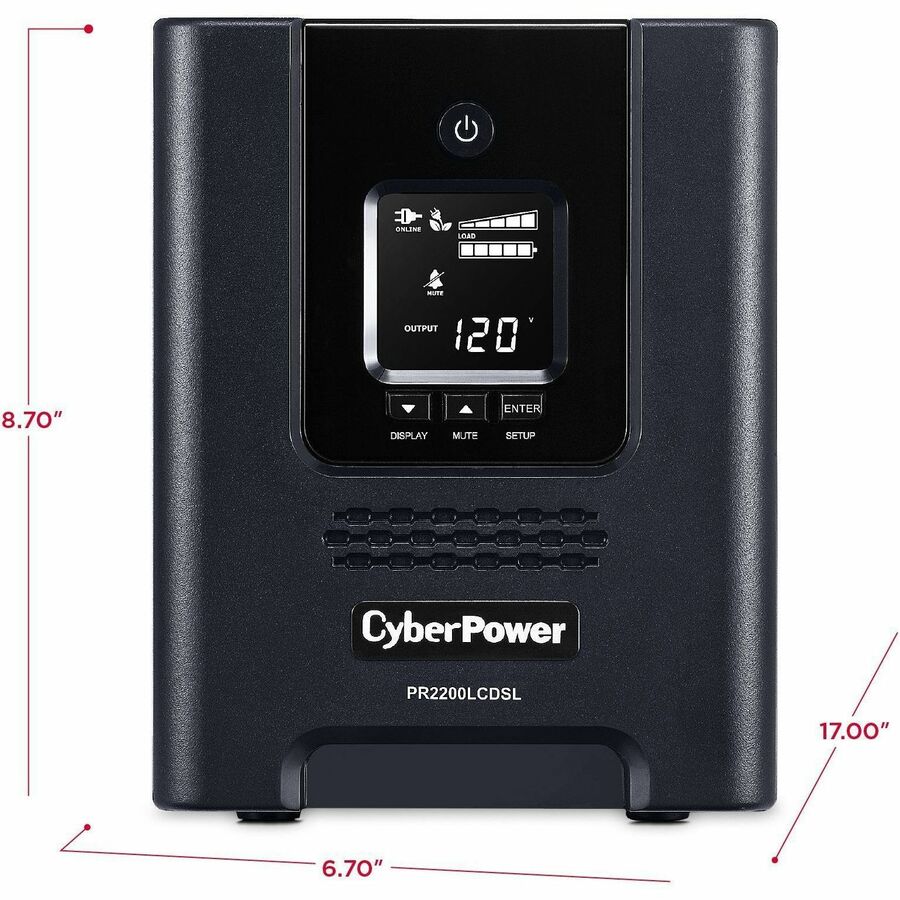

Physical Characteristics
- Form Factor: Tower
- Height: 8.7"
- Width: 6.7"
- Depth: 17"
- Weight (Approximate): 51.90 lb
Miscellaneous
- Package Contents:
- Smart App Sinewave PR2200LCDSL 2070VA Pure Sine Wave Tower LCD UPS
- PowerPanel Business Edition Software CD
- User Manual
- Functional Setup Guide
- USB Cable
- Serial Cable
- Emergency Power Off (EPO) Cable
- Registration Card
- Software Included: PowerPanel Business Edition Software
- Energy Star: Yes
- Country of Origin: Philippines
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
