CyberPower PDU20M2F8R 100 - 125 VAC 20A Metered PDU - PDU20M2F8R
Key Features
- 10 NEMA 5-20R
- 100 - 125 V
- 15
- 17.5W x 1.75H x 2.25D
- 1U Rackmount
- 20A (Derated to 16A)
- 50Hz/60Hz
- Amps:
- Cord length (ft.):
- Digital meter:
- Dimensions (in.):
- Displays Amperage
- Frequency:
- Limited lifetime
- NEMA 5-20P
- Outlets:
- Phase:
- Plug type:
- Single
- Size:
- Volts:
- Warranty:
Product Overview

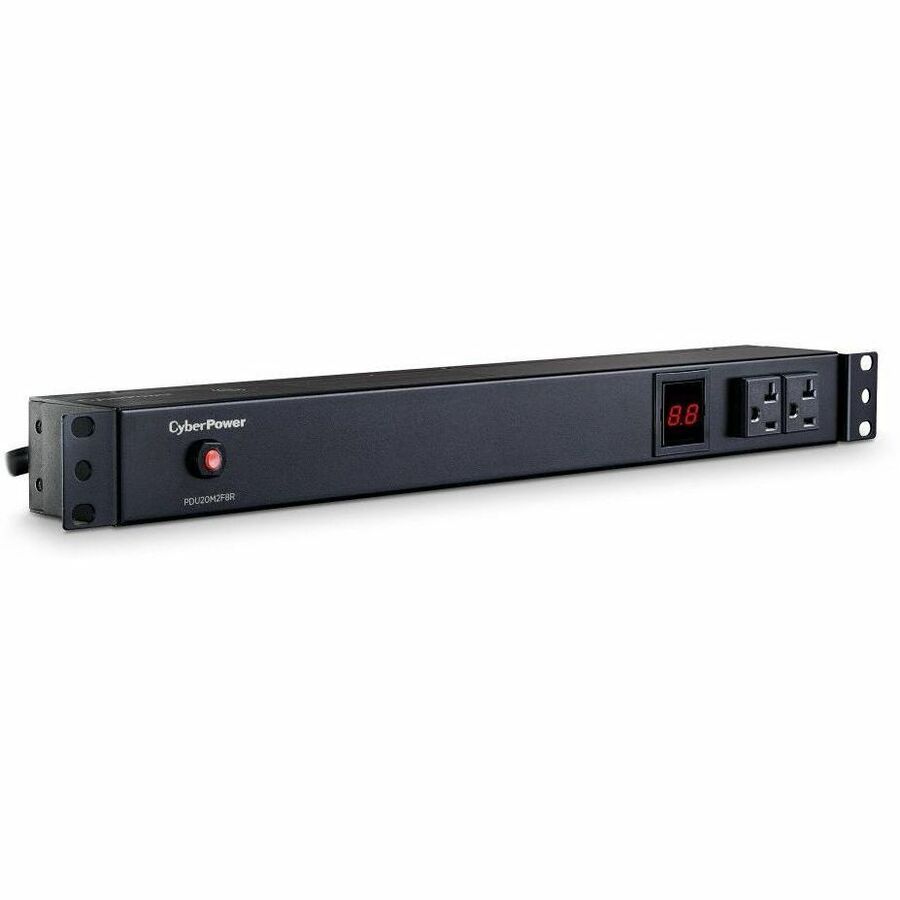

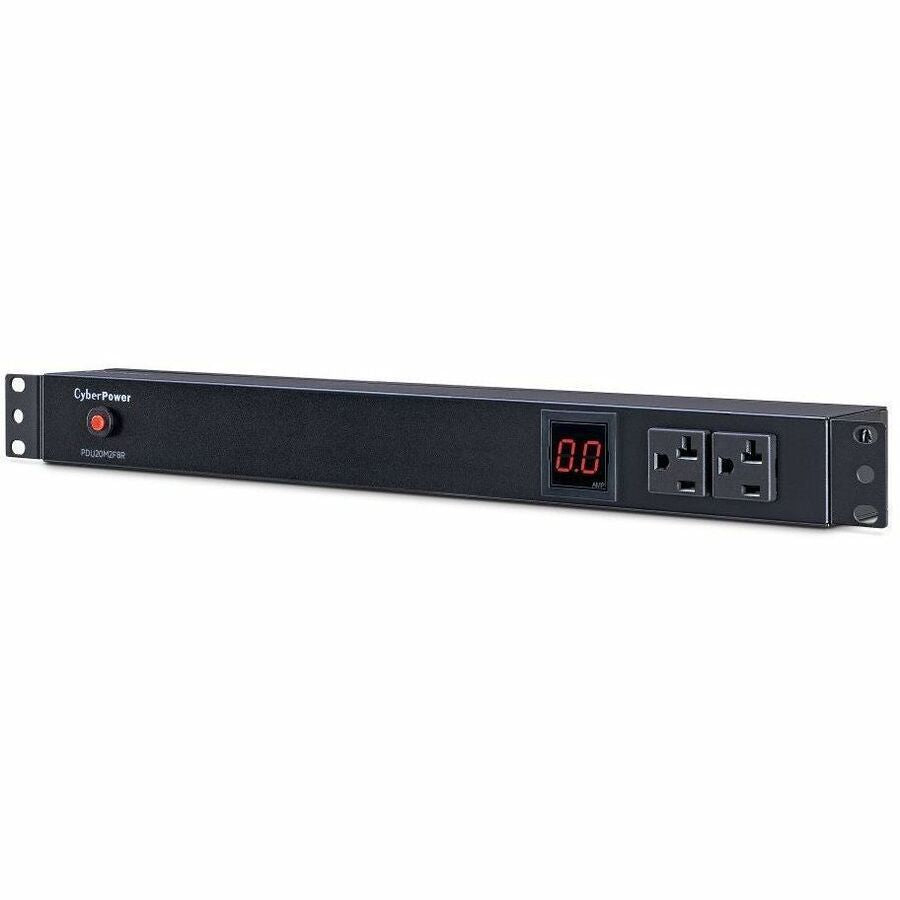

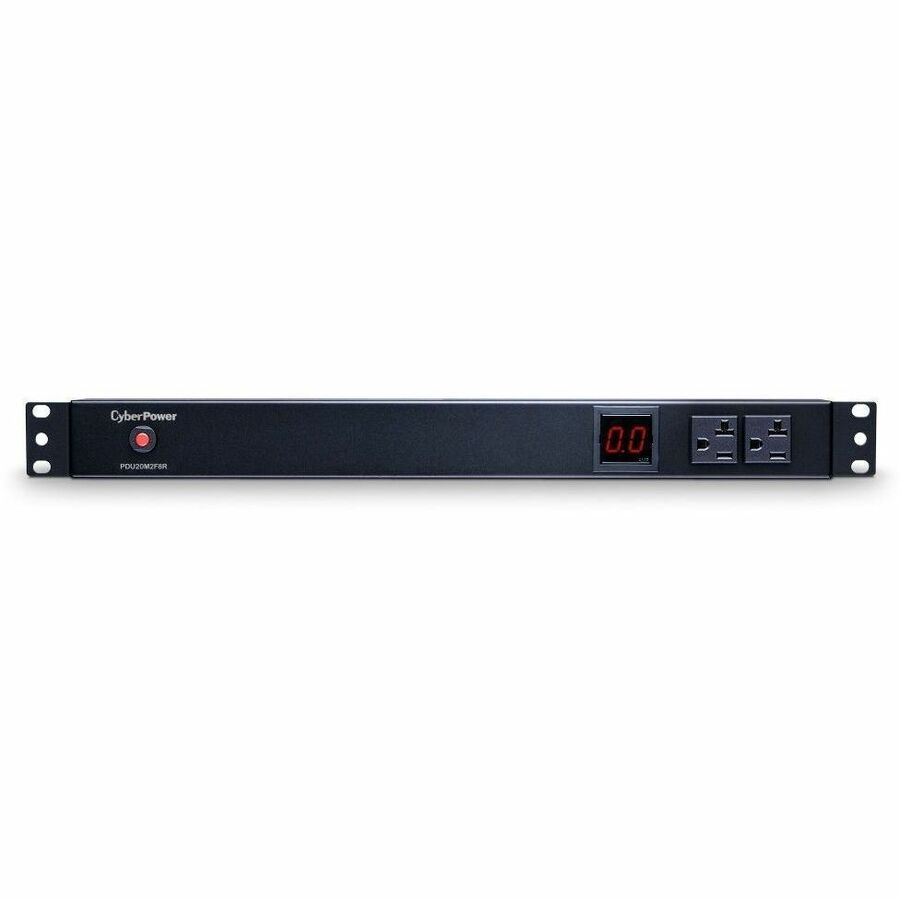

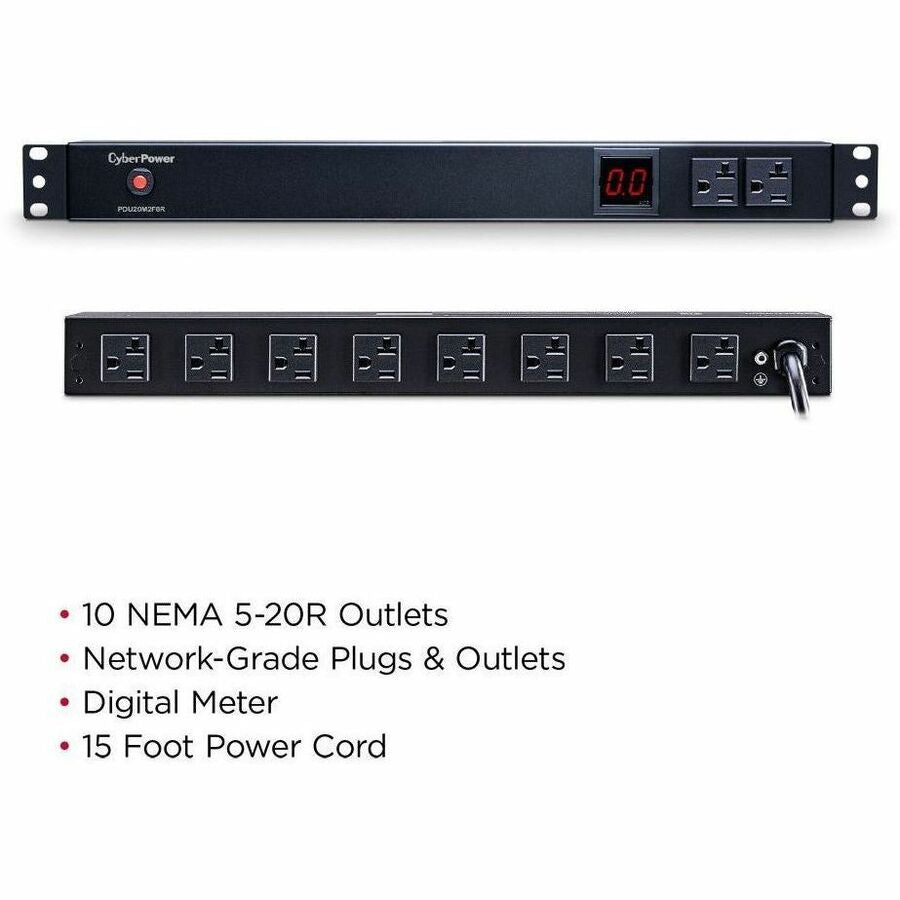

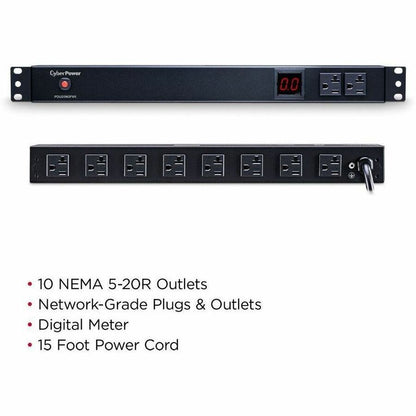

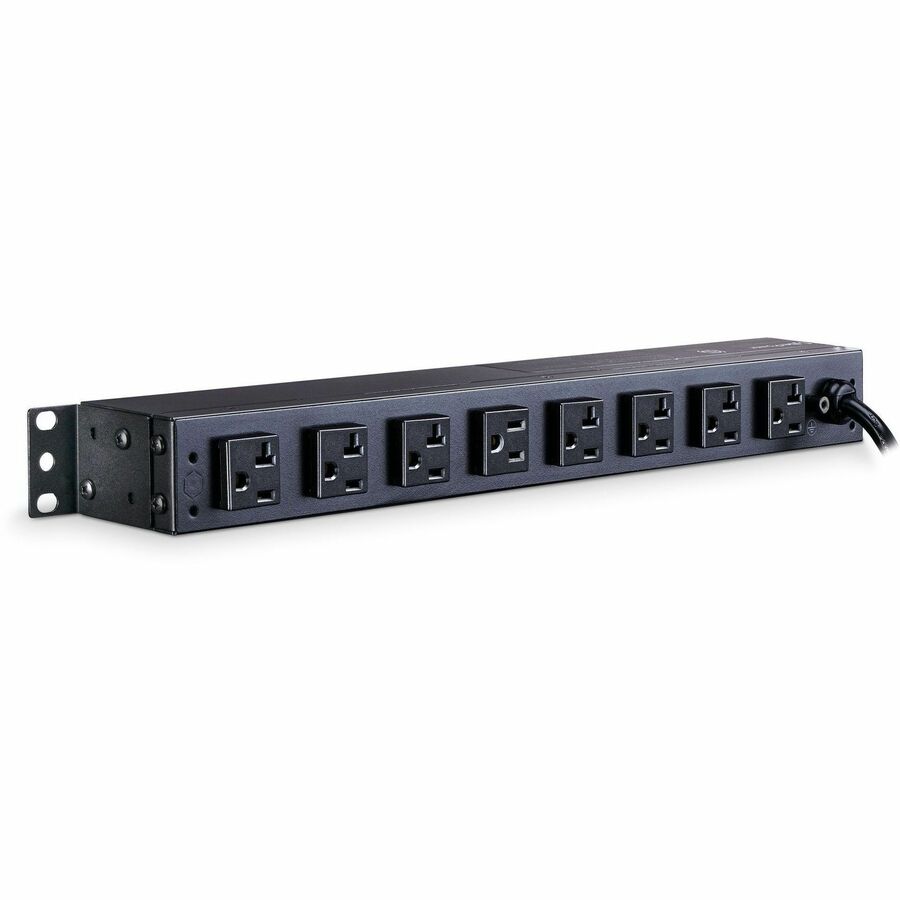

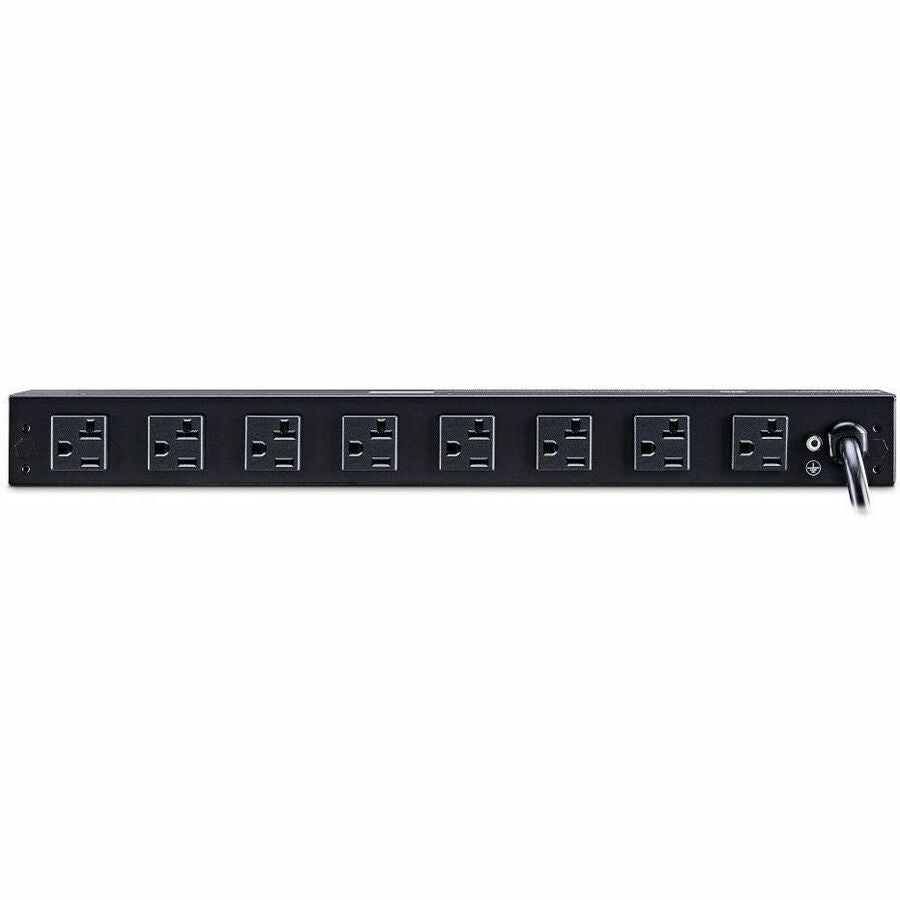

The CyberPower PDU20M2F8R, a 10-outlet (2 front, 8 rear), rackmount metered power distribution unit (PDU), provides 100 – 125 V 20A output. It distributes power to 10 NEMA 5-20R receptacles from a single NEMA 5-20P input with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front LCD for real-time load monitoring.
General Information
- Manufacturer: CyberPower Systems, Inc
- Manufacturer Part Number: PDU20M2F8R
- Brand Name: CyberPower
- Product Series: Metered PDU
- Product Model: PDU20M2F8R
- Product Name: PDU20M2F8R 100 - 125 VAC 20A Metered
- Product Type: PDU
Technical Information
- PDU Type: Metered
- Phase: Single Phase
- Plug/Connector Type: NEMA 5-20P
- Receptacle Type: NEMA 5-20R
- Receptacle Detail: 10 x NEMA 5-20R
- Protection Type: Overload Protection
Power Description
- Input Voltage: 120 V AC
- Input Voltage Range: 100 V AC - 125 V AC
- Output Voltage Range: 100 V AC - 125 V AC
- Input Current: 20 A
Physical Characteristics
- Mounting Orientation: Vertical
- Mount Type: Rack-mountable
- Rack Height: 1U
- Height: 1.8"
- Width: 17.5"
- Depth: 2.3"
- Weight (Approximate): 5 lb
Miscellaneous
- Package Contents:
- Metered PDU20M2F8R 10-Outlets PDU
- Cord Retention Tray
- User Manual
- Screw Kit
- Cord Clip Kit
- Horizontal Mounting Brackets
- Vertical Mounting Brackets
- Product Registration Card
- Energy Star: No
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: Lifetime
