Eaton Tripp Lite Series 1.4kW Single-Phase Local Metered PDU, 120V Outlets (13 5-15R), 5-15P, 100-127V Input, 15 ft. (4.57 m) Cord, 1U Rack-Mount - PDUMH15
Key Features
- 13 NEMA 5-15R outlets (1 front / 12 rear)
- 1U horizontal rackmount, Digital current meter
- Metered single phase 15A 120V PDU

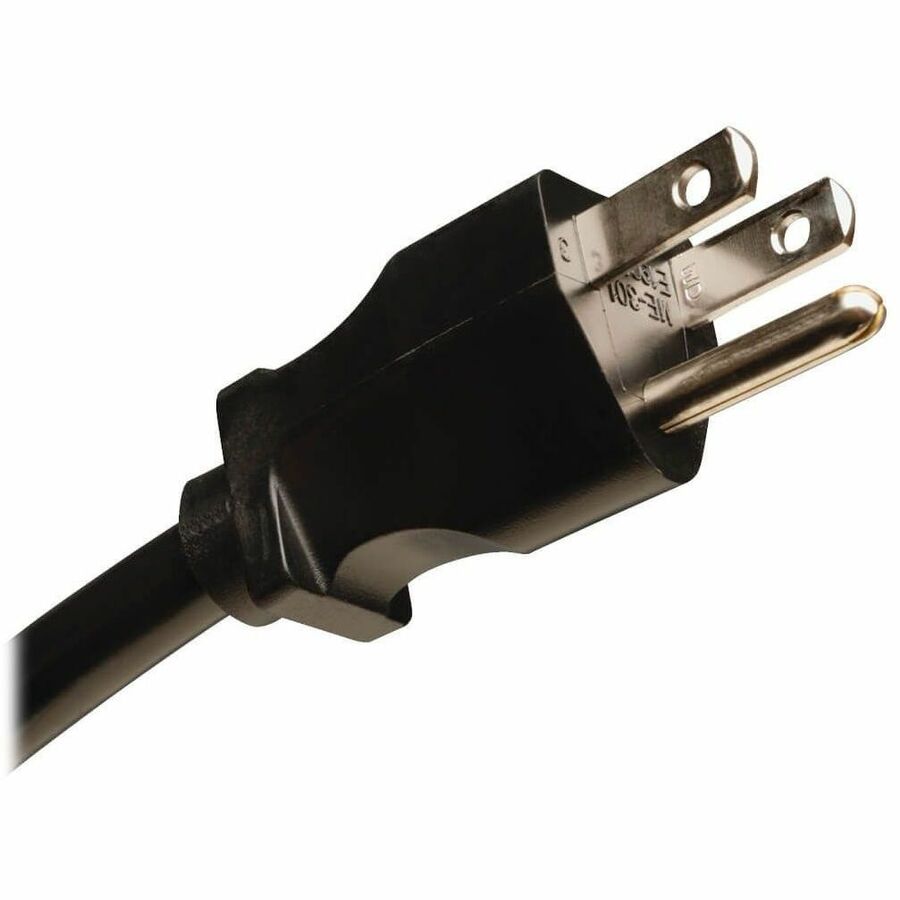

- NEMA 5-15P input with 15 ft. / 4.5m line cord
Product Overview

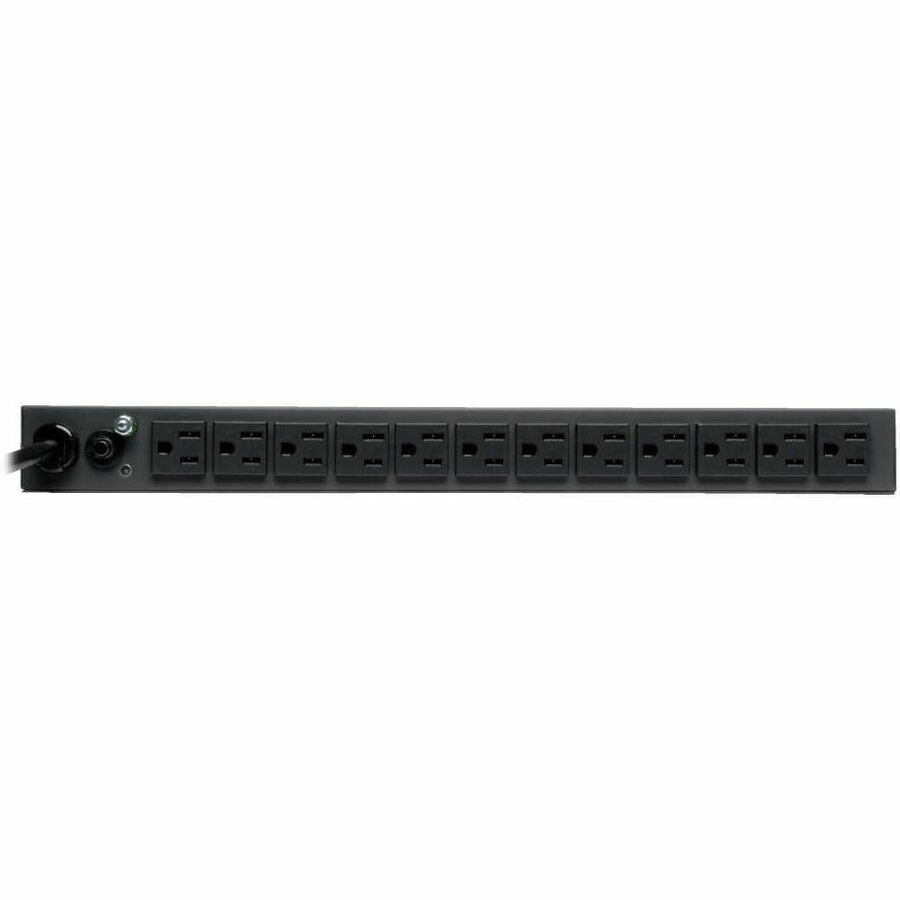

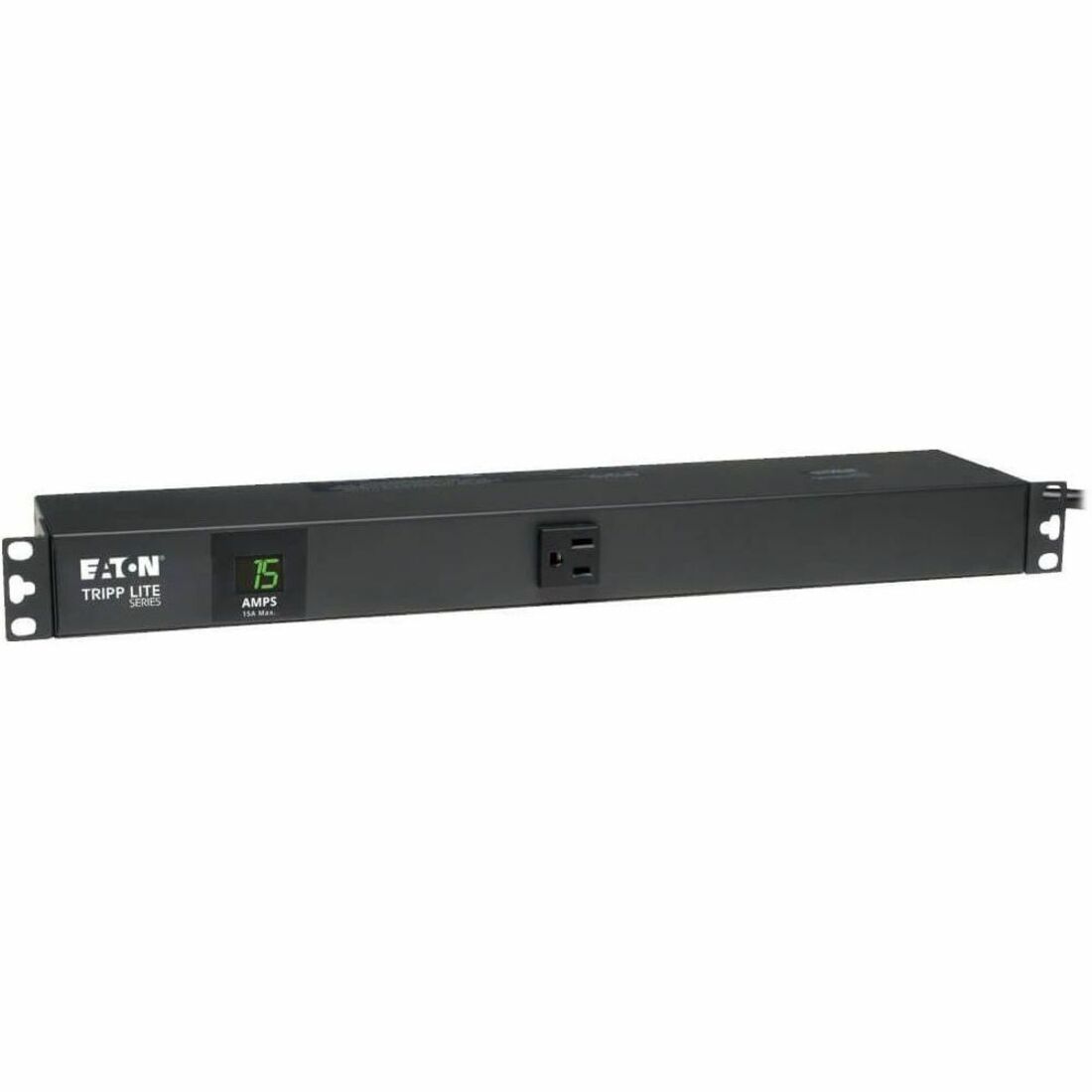

Tripp Lite's PDUMH15 AC power distribution unit offers a digital current monitor and provides 15 amps of 120 volt capacity in a versatile multi-mount cabinet. Detachable mounting flanges are configurable for wallmount, under-counter, or 1U/0U rackmount installation. Uses only 1U of rack space when installed in any 19-inch rack, with the potentional for zero U mounting in the cable management area of most rack enclosures. Built-in digital ammeter display offers continuous visual power consumption data for the entire PDU. Attractive rackmount housing with 1 front and 12 rear facing outlets measures only 4.5 inches in depth. Unfiltered electrical pass-through without a power switch makes the PDUMH15 ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets, and more. Includes 12 rear facing NEMA 5-15R and one front facing outlet, 15-ft. AC power cord, 15 amp breaker, TVSS grounding lug and rugged all metal rackmount case design.
General Information
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: PDUMH15
- Brand Name: Tripp Lite series
- Product Model: PDUMH15
- Product Name: PDUMH15 PDU Metered 120V 15A 13 Outlet
- Product Type: PDU
Technical Information
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15R
- Receptacle Detail: 13 x NEMA 5-15R
- Protection Type: Overload Protection
Power Description
- Input Voltage: 120 V AC
- Output Voltage: 120 V AC
Management
- Management:
Unfiltered electrical pass-through reliably distributes alternate waveform AC power from UPS or generator to supported equipment
Physical Characteristics
- Mounting Orientation: Vertical
- Mount Type: Rack-mountable
- Rack Height: 1U
- Height: 1.8"
- Width: 17.5"
- Depth: 4.5"
- Weight (Approximate): 4.50 lb
Miscellaneous
- Package Contents:
- PDUMH15 PDU Metered 120V 15A 13 Outlet
- PDUMH15 Metered rackmount PDU
- Owner's manual with warranty information
- Country of Origin: Vietnam
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 2 Year
