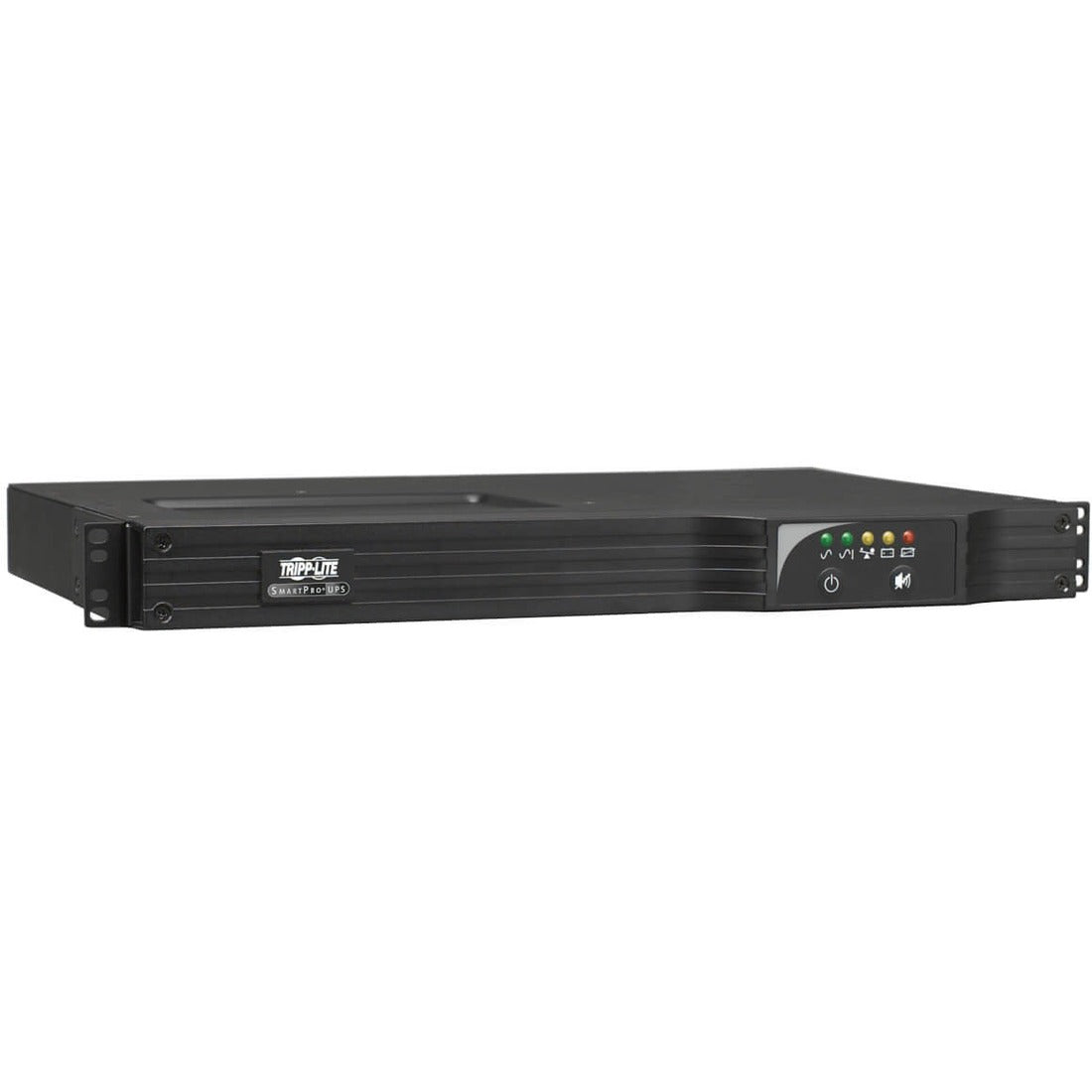

Eaton Tripp Lite Series SmartPro 120V 750VA 600W Line-Interactive Sine Wave UPS, 1U Rack/Vertical, Network Management Card Options, USB, DB9 Serial - SMART750RM1U
Key Features
- .75kVA / 750VA / 600W line interactive 1U rackmount UPS, Sine wave output
- 0.8 Power Factor, Front panel status LEDs
- 120V NEMA 5-15P input, 6 NEMA 5-15R outlets
- 120V output, Corrects brownouts and overvoltages from 83V to 147V
- 98% line-mode efficiency, 2 switched load banks
- Mounting brackets support 2 and 4 post installation

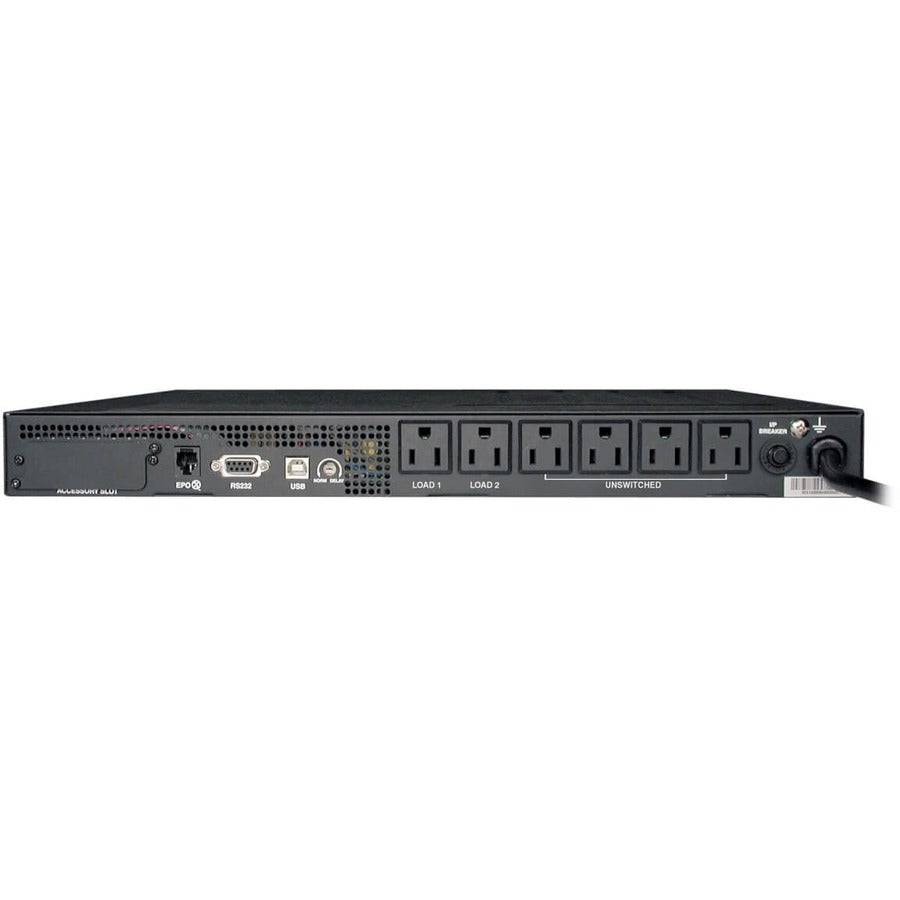

- USB, RS232, EPO and slot for SNMPWEBCARD option
Product Overview
Tripp Lite SMART750RM1U 750VA / .75kVA / 600 watt line interactive, sine wave UPS system offers complete power protection for critical network applications in a highly efficient 1U total rack/tower configuration. Simultaneous-use network management interfaces include USB, RS-232 and optional SNMP/Web accessory card. Line interactive voltage regulation, network-grade surge suppression and long-lasting sine wave AC output during blackouts make this UPS ideal for advanced networking applications in datacenters, computer rooms and network closets.
General Information
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: SMART750RM1U
- Brand Name: Tripp Lite series
- Product Line: SmartPro
- Product Name: SmartPro 750RM1U UPS
- Product Type: Line-interactive UPS
Technical Information
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15R
- Receptacle Detail: 6 x NEMA 5-15R
- Cord Length: 10 ft
Power Description
- Load Capacity (VA): 750 VA
- Load Capacity (Watt): 600 W
- Input Voltage: 120 V AC
- Output Voltage: 120 V AC
- Waveform Type: Sine Wave
Management
- Network Management: SNMP Manageable
- Alarm:
- On Battery
- Overload
- Low Battery
Controls/Indicators

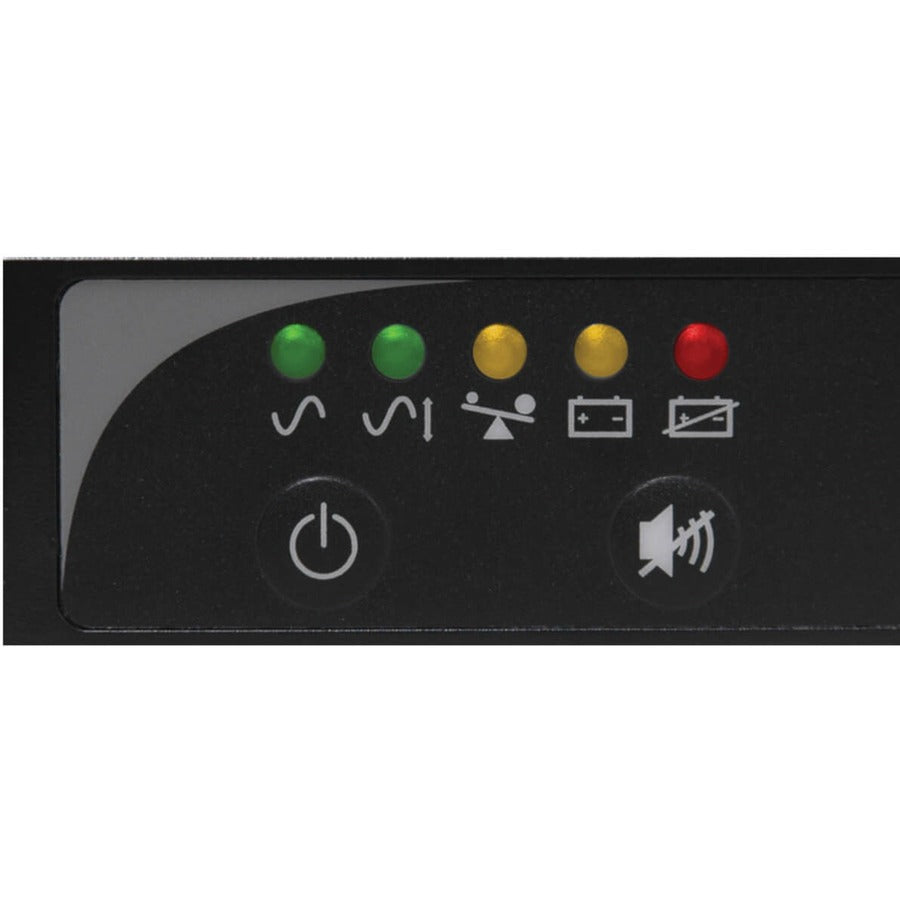

- Status Indicators: 5 front panel LEDs - Green POWER LED, 3 color BATTERY CHARGE LED, 3 color OUTPUT LOAD LEVEL LED, red BATTERY WARNING LED.
Interfaces/Ports
- USB: Yes
Battery Information
- Battery Chemistry: Lead Acid
- Backup/Run Time (Full Load): 4.90 Minute
- Backup/Run Time (Half Load): 13.20 Minute
- Battery Life: 6 Year
- Hot Swappable: Yes
- Typical Battery Recharge Time: 4 Hour
Environmental Conditions
- Maximum Operating Temperature: 104°F (40°C)
Physical Characteristics
- Height: 1.8"
- Width: 17.5"
- Depth: 16.8"
- Rack Height: 1U
- Weight (Approximate): 30 lb
Miscellaneous
- Package Contents:
- SMART750RM1U UPS System
- Mounting hardware
- Cabling for USB & DB9 monitoring and EPO switching
- PowerAlert unattended shutdown and UPS/Power monitoring software
- Warranty information and instruction manual
- Country of Origin: Taiwan
- TAA Compliant: Yes
Warranty
- Limited Warranty: 3 Year
