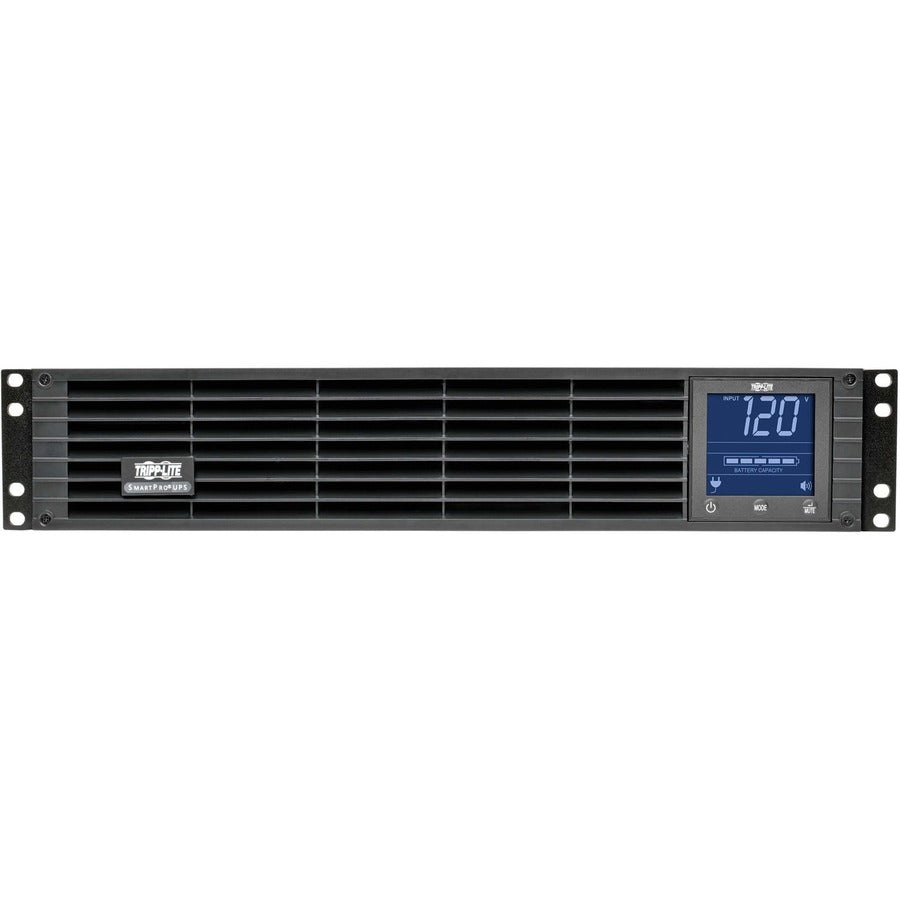

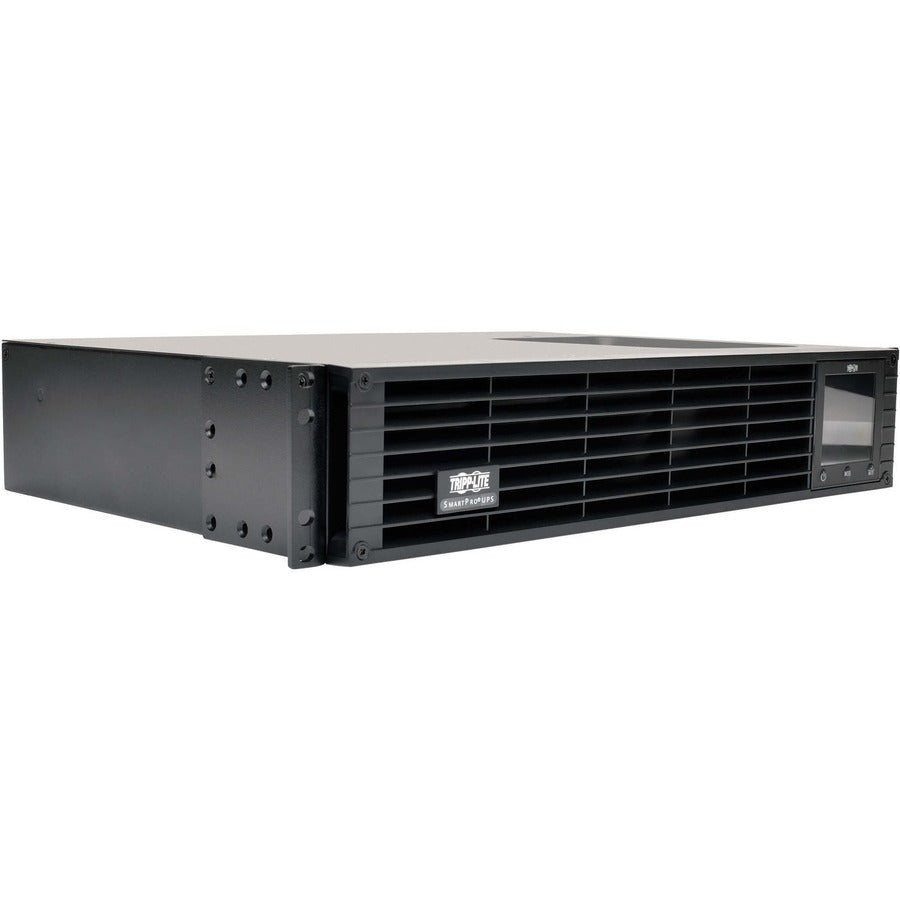

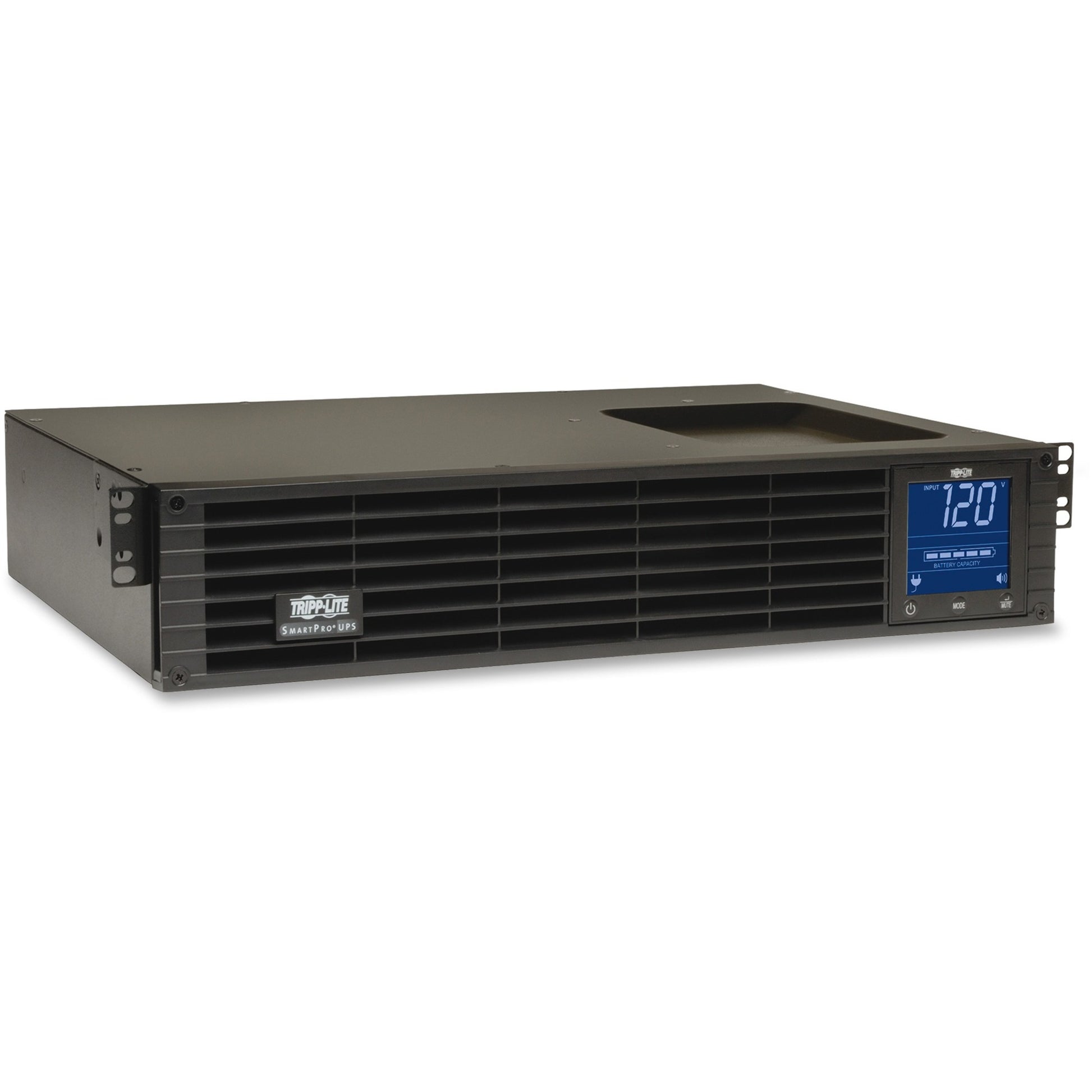

Eaton Tripp Lite Series SmartPro 120V 1kVA 700W Line-Interactive Sine Wave UPS, 2U Rack/Tower, LCD, USB, DB9, 6 Outlets - SMC10002URM
Key Features
- 15.6 min. runtime at half load; 6.4 min. at full load
- 6 NEMA 5-15R outlets
- Corrects under- and overvoltages from 83V to 147V
- Interactive LCD monitoring screen
- Monitoring of power conditions via POWERALERT12
Product Overview
Line-interactive, uninterruptible power supply (UPS) with enhanced LCD interface offers network-grade power protection for your critical server, network and telecommunications equipment. UPS with built-in, auto-voltage regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of a power failure. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption. 95 percent line-mode efficiency offers reduced heat emissions and operating costs. USB and RS-232 ports work with PowerAlert software to communicate detailed UPS status and site power conditions. Communication ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions.General Information
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: SMC10002URM
- Brand Name: Tripp Lite series
- Product Line: SmartPro
- Product Model: SMC10002URM
- Product Name: Line-interactive UPS Power Supply
- Packaged Quantity: 1 Each
- Product Type: Line-interactive UPS
Technical Information

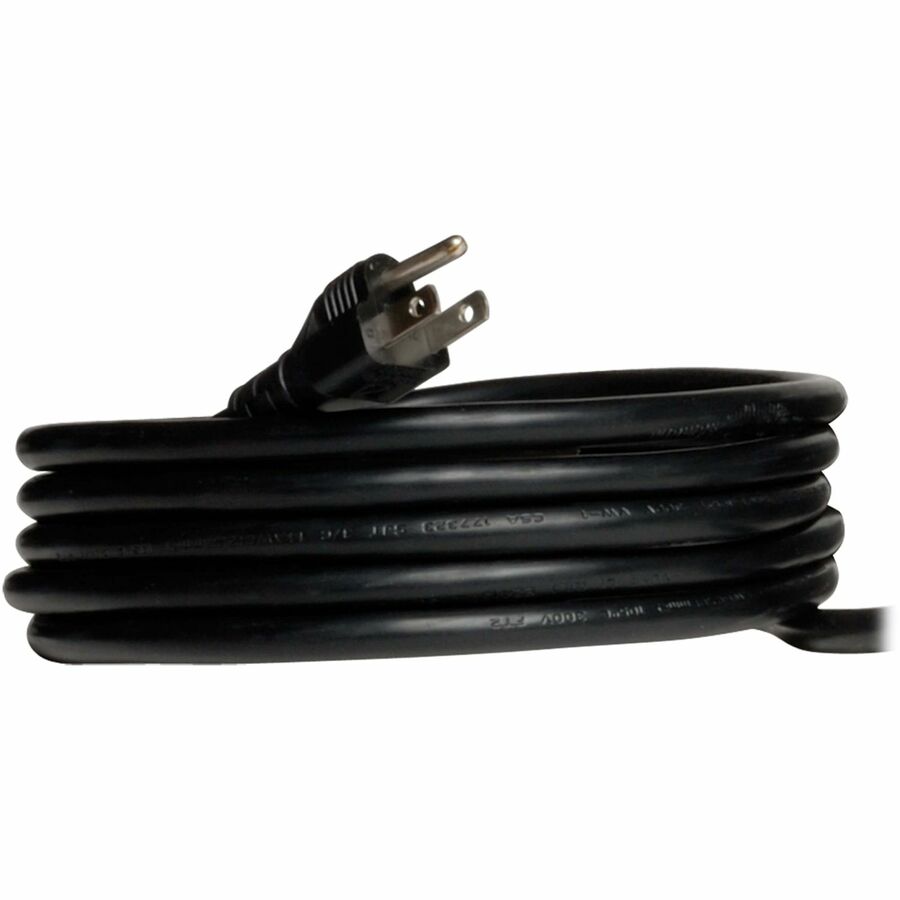

- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15R

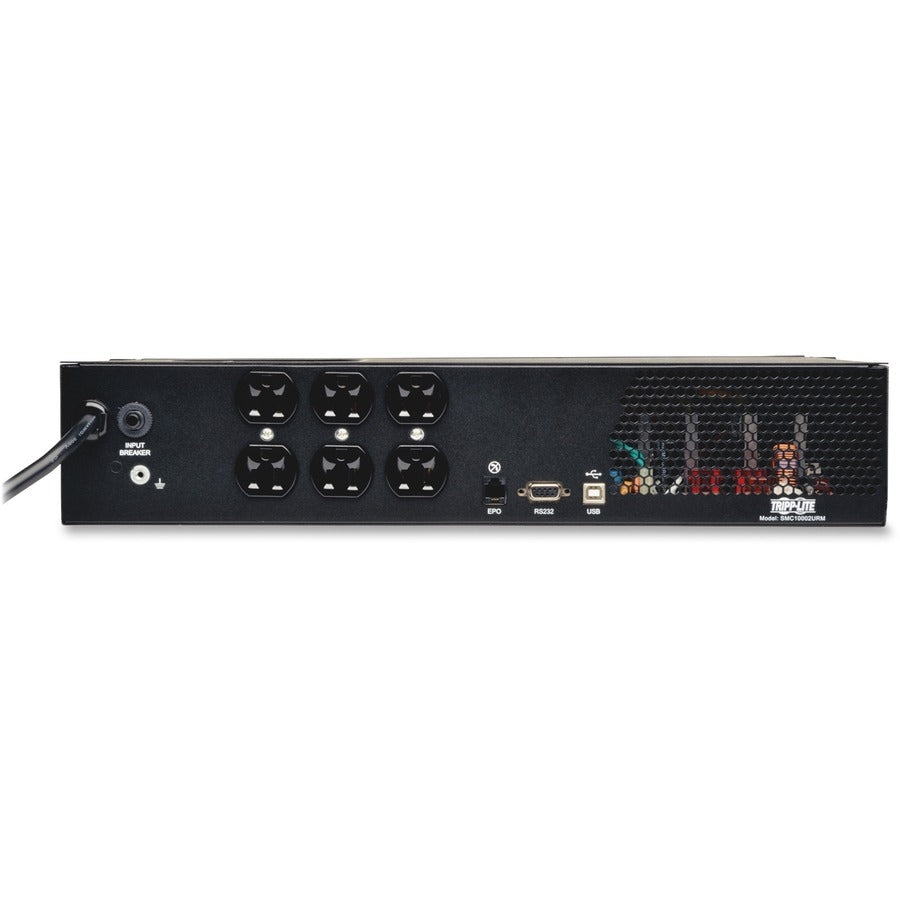

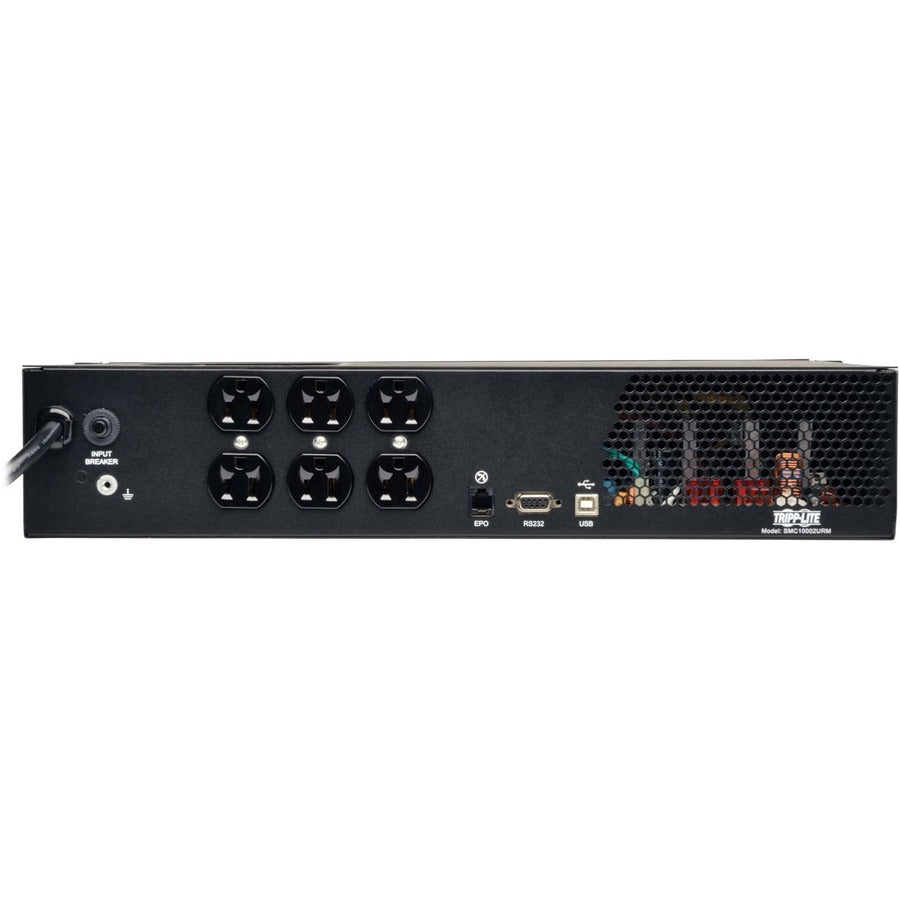

- Receptacle Detail: 6 x NEMA 5-15R
- Cord Length: 9.84 ft
Power Description
- Load Capacity (VA): 1000 VA
- Load Capacity (Watt): 700 W
- Input Voltage: 120 V AC
- Input Current: 9.20 A
- Output Voltage: 120 V AC
- Waveform Type:
- Sine Wave
- Pure Sine Wave
- Surge Energy Rating: 570 J
- Circuit Breaker: Yes
Management
- Alarm:
- UPS StartUp
- Power Failure
- Low Battery
- Overload
- UPS Fault
- Remote Shutdown
Controls/Indicators
- Status Indicators: LEDs
Interfaces/Ports
- Serial Port: Yes
- USB: Yes
Battery Information
- Backup/Run Time (Full Load): 6.40 Minute
- Backup/Run Time (Half Load): 15.60 Minute
- Hot Swappable: Yes
Environmental Conditions
- Maximum Operating Temperature: 104°F (40°C)
- Sound Emission: 45 dB
- Thermal Dissipation: 35.75 W
Physical Characteristics
- Height: 3.5"
- Width: 17.4"
- Depth: 12.5"
- Rack Height: 2U
- Form Factor: Rack/Tower
- Weight (Approximate): 35.40 lb
Miscellaneous

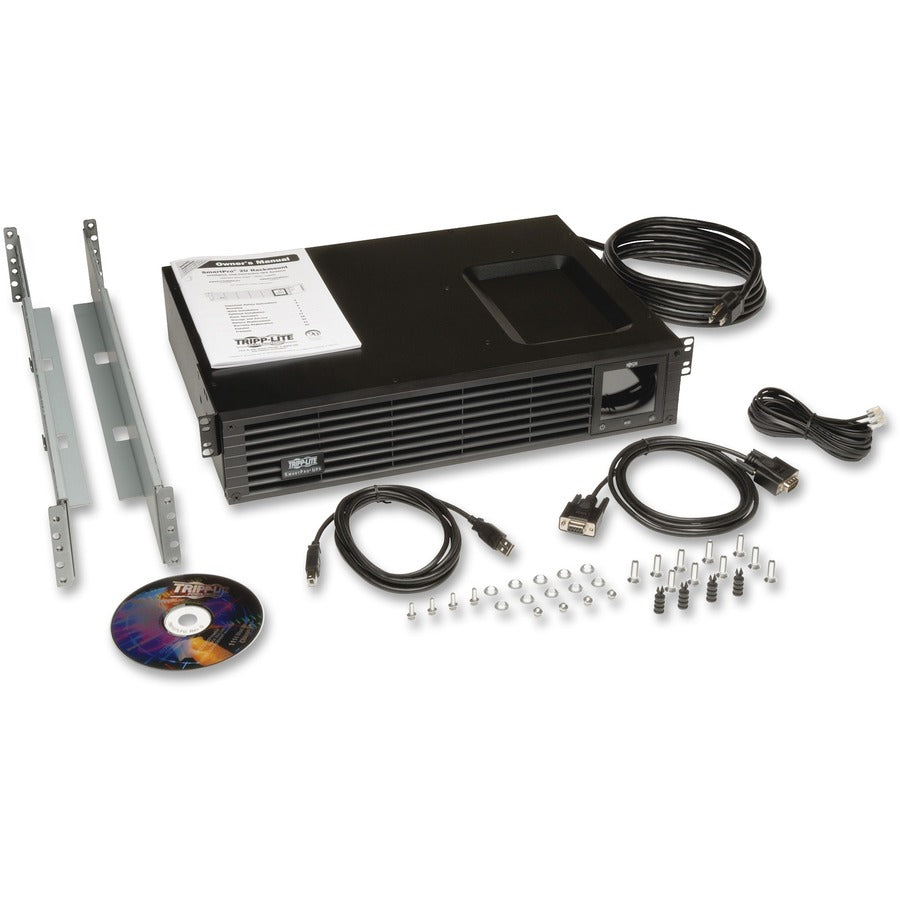

- Package Contents:
- SMC10002URM UPS System
- USB Cable
- 2 & 4 Post Rackmount Installation Hardware
- Instruction Manual
- Country of Origin: China
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 2 Year
