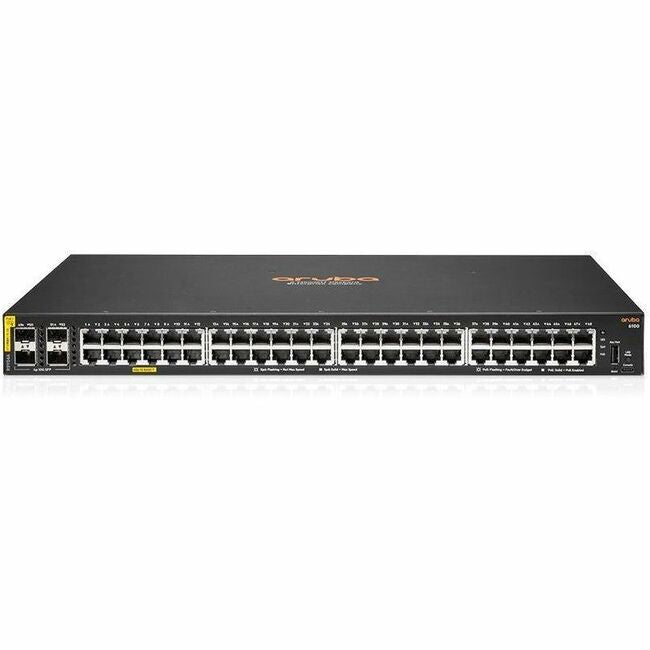

HPE CX 6100 Ethernet Switch - R9Y04A#ABA
Key Features
- Comes in gray color to better suit the theme of the area
- Conveniently lets you connect two standard Ethernet ports to ensure maximum efficiency
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 48 ports
- Ethernet Switch provides reliable, efficient connectivity to ensure maximum feasibility
- Management capability allows maximum efficiency and with unrestricted control
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- Rack-mountable form factor for your convenience and simplicity of usage
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
Product Overview
The Aruba CX 6100 Switch Series is a modern family of entry level access switches ideal for branch offices, mid-market enterprise, and SMB networks. Designed for reliable, simple, and secure access, the Aruba CX 6100 switches provide a convenient wired access solution for enterprise networks supporting IoT, mobile, and cloud applications.
Prepare your network for tomorrow's unpredictable demands with a powerful Aruba ASIC architecture and programmable AOS-CX operating system used across the Aruba CX portfolio to deliver a more consistent, more efficient operator experience. This layer 2 switch series has convenient built-in high speed uplinks with up to 740W of IEEE 802.3at Class 4 PoE to support IoT devices such as security cameras and wireless APs. A compact and fanless 12 port model is ideal for use in quiet work spaces. With robust QoS, support for static routing, and IPv6, the Aruba CX 6100 also simplifies ownership with no switch software licensing requirements.
General Information
- Manufacturer: Hewlett Packard Enterprise
- Manufacturer Part Number: R9Y04AABA
- Brand Name: HPE
- Product Series: CX 6100
- Product Name: CX 6100 Ethernet Switch
- Product Type: Ethernet Switch
Technical Information
- Features: Fanless
Interfaces/Ports
- Total Number of Network Ports: 48
- Network (RJ-45): Yes
- Uplink Port: Yes
- Modular: Yes
- Port/Expansion Slot Details:
- 48 x Gigabit Ethernet Network
- 4 x 10 Gigabit Ethernet Expansion Slot
Media & Performance
- Media Type Supported:
- Twisted Pair
- Optical Fiber
- Ethernet Technology:
- Gigabit Ethernet
- 10 Gigabit Ethernet
- Network Technology: 10/100/1000Base-T
I/O Expansions
- Total Number of Expansion Slots: 4.0
- Expansion Slot Type: SFP+
- Number of SFP+ Slots: 4
Network & Communication
- Layer Supported: 2
- Networking Standards:
- IEEE 802.3af
- IEEE 802.3at
Management & Protocols
- Manageable: Yes
Power Description
- PoE (RJ-45) Port: Yes
- PoE Budget: 740 W
- Input Voltage:
- 120 V AC
- 230 V AC
- Power Source: Power Supply
- Power Consumption: 49.70 W
Physical Characteristics
- Product Color: Gray
- Compatible Rack Unit: 1U
- Form Factor:
- Rack-mountable
- Compact
Miscellaneous
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: Lifetime
