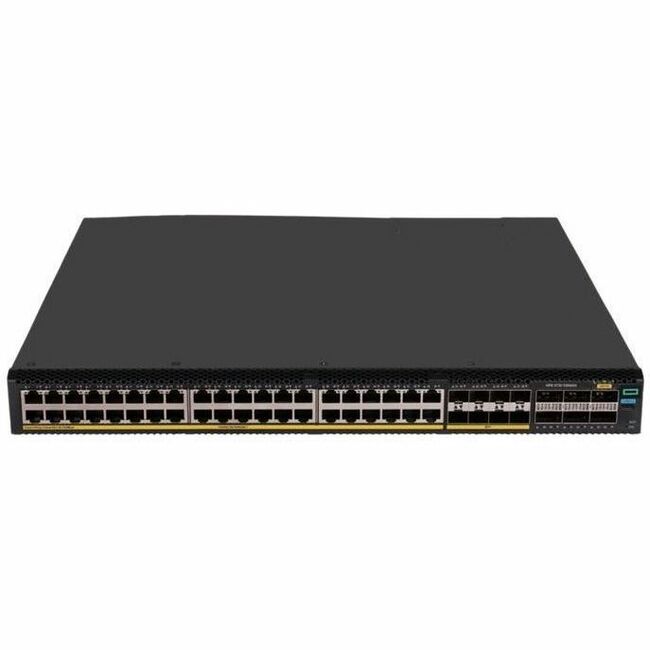

HPE Networking Comware Data Center Switch 40p 10GBASE-T 8p SFP+ 1G/10G 6p QSFP28 100G 5720 - S2N60A
Key Features
- Ethernet Switch provides dependable and powerful connectivity for maximum usability
- Lets you conveniently connect to the 10 gigabit ethernet Ethernet technology to offer maximum productivity
- Management capability provides control over setup and configuration of your network
- Provides efficient communication with other ethernet switch in the stack to ensure maximum productivity
- Quickly and easily set up a wired network with 40 networking ports
- Supports layer 3 switching for enhanced performance and usability
- Twisted Pair media support for a dependable and productive connectivity
Product Overview
HPE Networking Comware Switch Series 5720 is designed to cater to diverse customer needs. This cost-effective access switch offers hybrid SFP+ and 10GBASE-T options, along with multigigabit support on 10GBASE-T ports, allowing scalability from 10GbE SFP+ to 100G QSFP28.
These data center leaf / access layer switches come with MACsec support and 10GBASE-T additional modules. Features such as distributed resilient network interconnect (DRNI) and HPE Intelligent Resilient Fabric (IRF) enhance network resiliency while redundant pluggable power supplies provide a dynamic and highly available network.
Moreover, these switches support HPE Intelligent Management Center (IMC), which delivers a consistent network manageability experience. Streamline network management processes for greater efficiency through centralized configuration, compliance, policy management, monitoring, and troubleshooting.
Features | Maximize your HPE Networking Comware Switch Series 5720 | What's New
- Cost-effective access switch with hybrid SFP+ and 10GBASE-T with multigigabit options on 10GBASE-T port-5G, 2.5G, 1G.
- DRNI combines multiple physical switches into one virtual distributed-relay (DR) system for doubling aggregate bandwidth, faster forwarding, resiliency, and high availability.
- Virtual Extensible LAN (VXLAN) with lite Ethernet VPN (EVPN) allows greater flexibility, better performance with wirespeed, enhanced security, and better scalability.
- Hardware-based MACsec enable end-to-end encrypted security.
- The Intelligent Resilient Fabric (IRF) technology enabling greater resilience and scalability with IRF stacking.
- VXLAN and EVPN enable isolation and greater scalability of L2/L3 overlay services and multicast.
General Information
- Manufacturer: Hewlett Packard Enterprise
- Manufacturer Part Number: S2N60A
- Brand Name: HPE
- Product Line: Comware
- Product Series: 5720
- Product Name: Networking Comware Data Center Switch 40p 10GBASE-T 8p SFP+ 1G/10G 6p QSFP28 100G 5720
- Product Type: Ethernet Switch
Technical Information
- Features:
- Virtual Extensible LAN (VXLAN)
- Hot-swappable
- In-Service Software Upgrade (ISSU)
- Access Control List
Interfaces/Ports
- Total Number of Network Ports: 40
- Network (RJ-45): Yes
- Stack Port: Yes
- Port/Expansion Slot Details:
- 40 x 10BASE-T Gigabit Ethernet RJ-45 Network Port
- 8 x 1/10 Gigabit Ethernet SFP+ Expansion Slot
- 6 x 100 Gigabit Ethernet QSFP28 Expansion Slot
Media & Performance
- Media Type Supported:
- Twisted Pair
- Optical Fiber
- Ethernet Technology:
- 10 Gigabit Ethernet
- Gigabit Ethernet
- 100 Gigabit Ethernet
- 2.5 Gigabit Ethernet
- 5 Gigabit Ethernet
- Network Technology:
- 10GBase-T
- 1000Base-X
- 10GBase-X
- 100GBase-X
- 1000Base-T
- 2.5GBase-T
- 5GBase-T
- Maximum Data Transfer Rate: 12.50 GB/s
I/O Expansions
- Total Number of Expansion Slots: 14
- Expansion Slot Type:
- SFP+
- QSFP28
- Number of SFP+ Slots: 8
Network & Communication
- Layer Supported: 3
- Networking Standards: IEEE 802.1x
Management & Protocols
- Manageable: Yes
Power Description
- Input Voltage:
- 120 V AC
- 230 V AC
- -48 V DC
- -60 V DC
- Power Source:
- Power Supply
- AC/DC
- Redundant Power Supply Supported: Yes
- Power Consumption: 99 W
Warranty
- Limited Warranty: 1 Year
