StarTech.com 4 Port USB DisplayPort KVM Switch with Audio - SV431DPUA
Key Features
- 7.1 Channel High Definition Audio support plus dual channel Analog Stereo and Microphone
- Full plug-and-play support with USB keyboards, mice, and connected peripherals
- Hotkey and push-button switching
- Integrated 2 port USB 2.0 hub
- Native DisplayPort resolution of 2560x1600 @60Hz; beyond 1080p
- OS independent - No driver or software required
- Supports a maximum resolution of 3840x2400 at lower refresh rates
- Supports DDC2B for monitor detection
- Supports hot-plug, un-plug and link status-failure detection
- User-defined scan time intervals
Product Overview

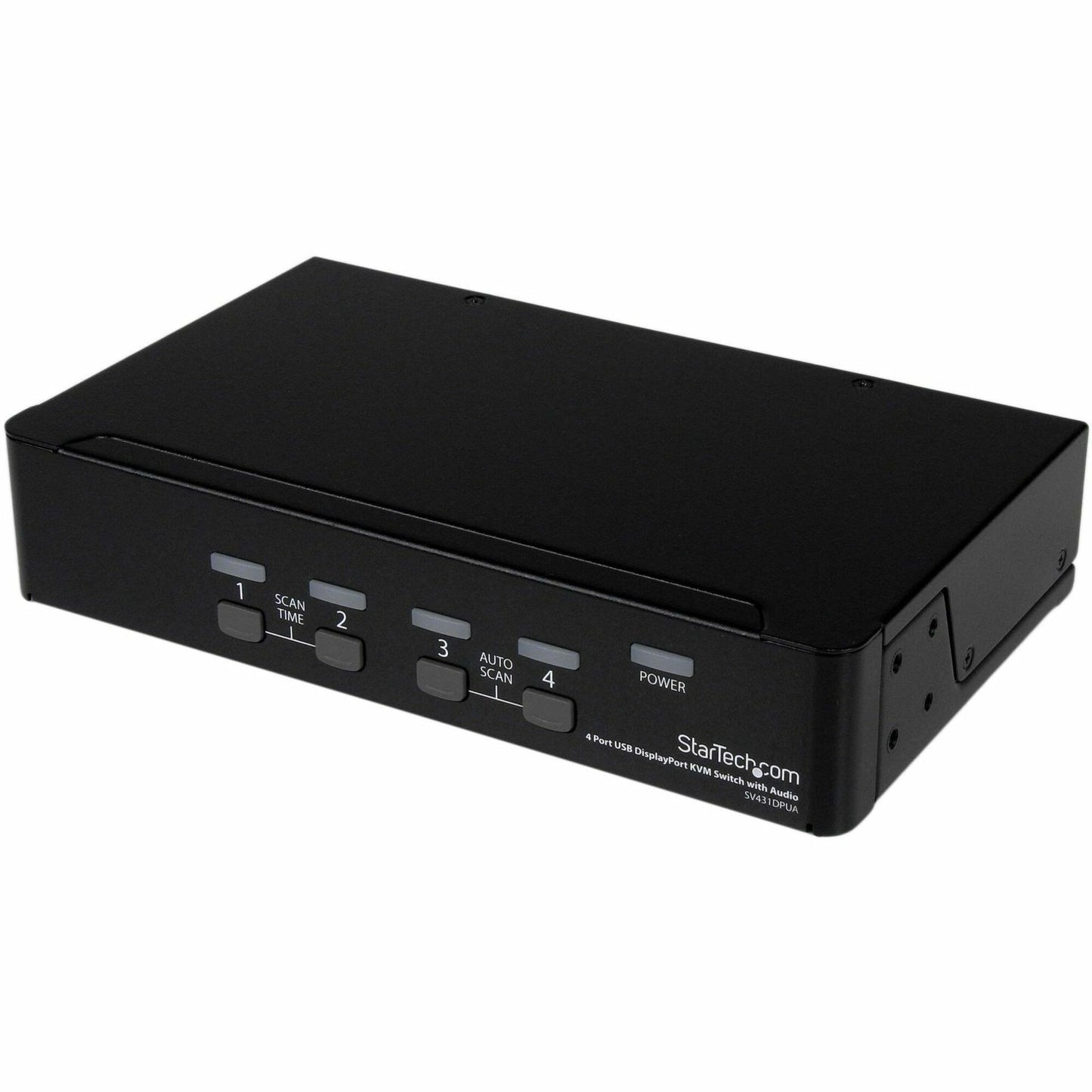

The SV431DPUA 4 Port USB DisplayPort KVM Switch with Audio combines next generation display standards with seamless KVM control of up to 4 connected PC or Mac computers.
Featuring DisplayPort resolutions of 2560x1600 @60Hz, as well as offering both 7.1 HD digital audio (with supporting displays and sources) and separate 3.5mm stereo audio support. An integrated USB 2.0 hub allows you to share 2 additional peripherals among attached computers as if they were directly connected.
Suitable for high quality static imaging applications such as health care (MRI, X-ray diagnostics, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.
A simple yet comprehensive solution, the 4-port KVM features both front-panel push-button and hotkey switching, and offers a small form factor with rear connection ports, to minimize workspace disruptions.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
Rackmount your KVM switch
If you'd like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket(sold separately) that turns this KVM into a rackmountable KVM.
More from the Manufacturer
General Information
- Manufacturer: StarTech.com
- Manufacturer Part Number: SV431DPUA
- Brand Name: StarTech.com
- Product Name: 4 Port USB DisplayPort KVM Switch with Audio
- Packaged Quantity: 1 Each
- Product Type: KVM Switchbox
Technical Information
- Number of Computers Supported: 4
- Number of Local Users Supported: 1
Video
- Graphic Mode: WQXGA
- Maximum Video Resolution: 3840 x 2400
Interfaces/Ports
- USB: Yes
- DisplayPort: Yes
- Number of USB Ports: 8
- Number of DisplayPorts: 5
Power Description
- Input Voltage Range: 100V AC to 240V AC
Physical Characteristics
- Form Factor:
- Rack-mountable
- Desktop
- Height: 1.7"
- Width: 8.7"
- Depth: 5.1"
- Weight (Approximate): 2.20 lb
Miscellaneous

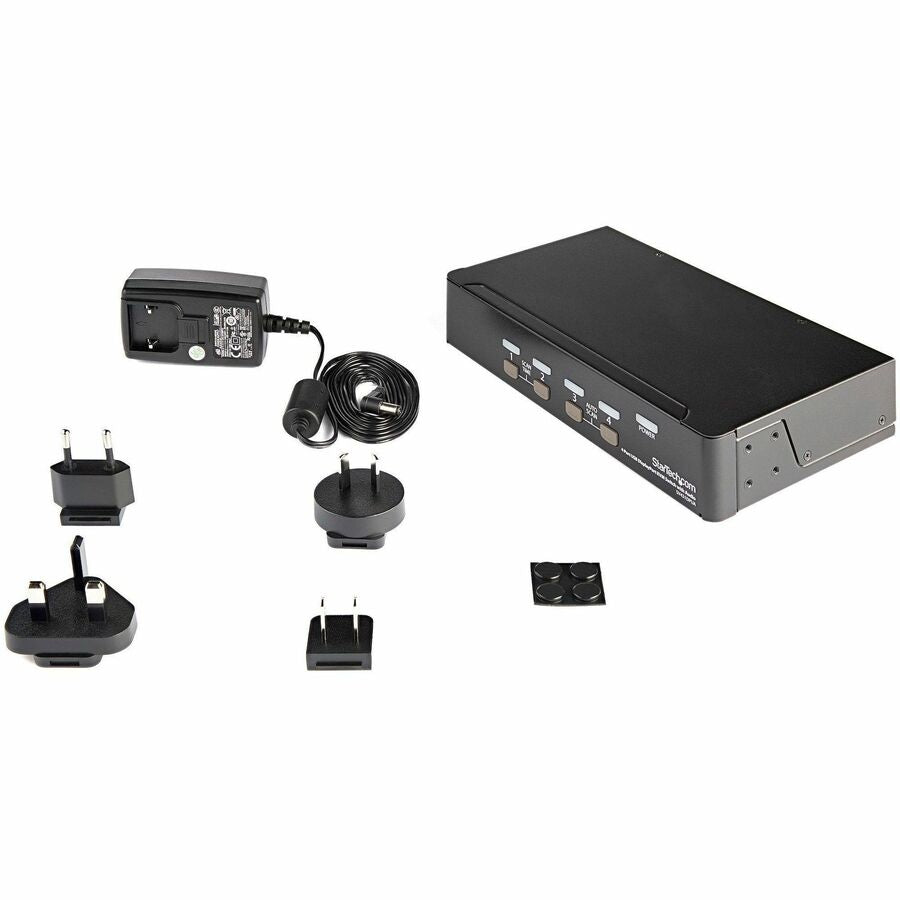

- Package Contents:
- 4 Port USB DisplayPort KVM Switch with Audio
- 4 x Foot Pads
- 1 x Universal power adapter (NA/UK/EU/AU)
- 1 x Instruction manual
- Environmentally Friendly: Yes
- Country of Origin: Taiwan
- TAA Compliant: Yes
Warranty
- Limited Warranty: 3 Year
