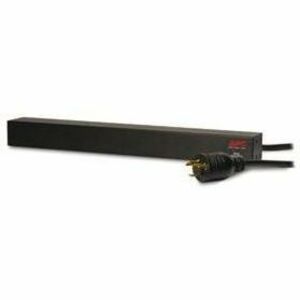

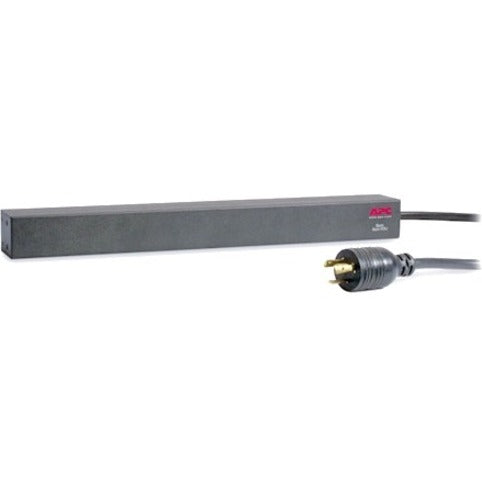

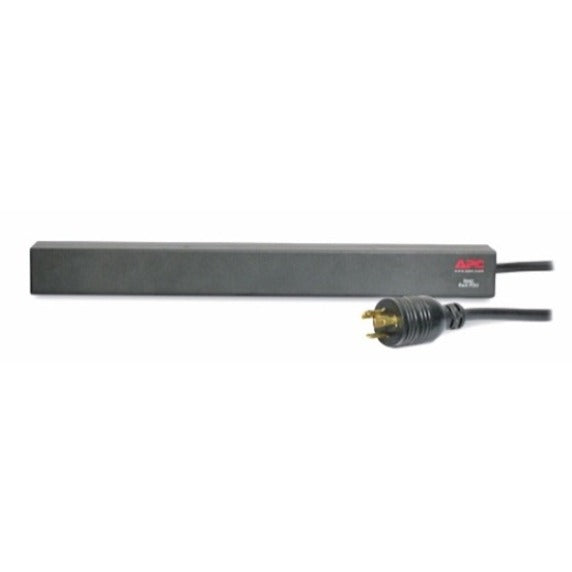

APC NetShelter Basic Rack PDU, 1U, 16A, 208V, 12 C13 outlets - AP9566
Key Features
- Features 12 C13 outlets for extensive power distribution
- Horizontal mounting to fit various rack configurations
- Includes toolless mounting kit for quick setup
- Supports up to 16A, 208V power distribution
Product Overview
It is a basic rack PDU with a 1U horizontal mounting design. It supports a maximum input current of 20A and operates at 208V. The PDU features 12 IEC 60320 C13 outlets, providing ample connections for IT equipment. It includes a 12-foot power cord with a NEMA L6-20P plug. The unit is designed for reliable power distribution and includes an installation guide and rack mounting brackets.
General Information
- Manufacturer: Schneider Electric SA
- Manufacturer Part Number: AP9566
- Brand Name: APC by Schneider Electric
- Product Line: Basic Rack
- Product Name: Basic Rack 3.328kVA PDU
- Packaged Quantity: 1 Each
- Product Type: PDU
Technical Information
- PDU Type: Basic
- Plug/Connector Type: NEMA L6-20P
- Receptacle Type: IEC 60320 C13
- Receptacle Detail: 12 x IEC 60320 C13
Power Description
- Input Voltage:
- 200 V
- 208 V
- 230 V
- Output Voltage: 208 V AC
- Power Rating (VA): 3328 VA
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Mounting Orientation: Horizontal
- Mount Type: Rack-mountable
- Placement:
- Front
- Rear
- Rack Height: 1U
- Cord Length: 11.98 ft
- Height: 1.7"
- Width: 17.6"
- Depth: 2.2"
- Weight (Approximate): 5.51 lb
Miscellaneous
- Package Contents:
- Basic Rack 3.328kVA PDU
- Installation guide
- Rack mounting brackets
- Country of Origin: India
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 2 Year
