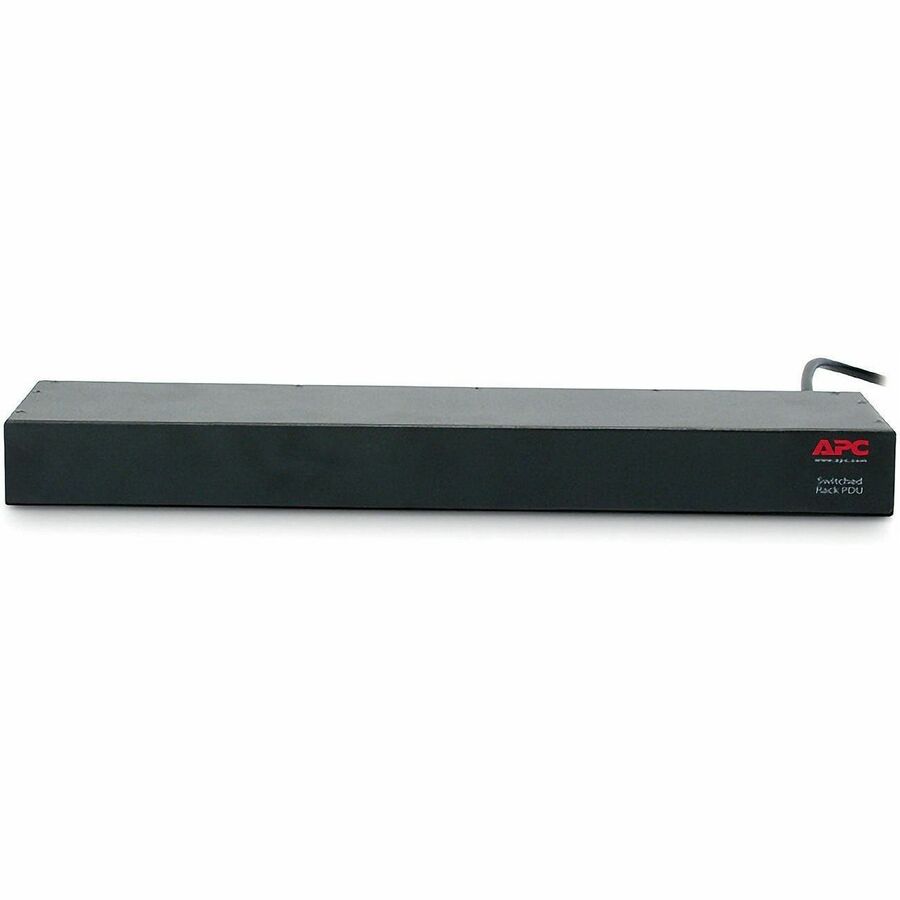

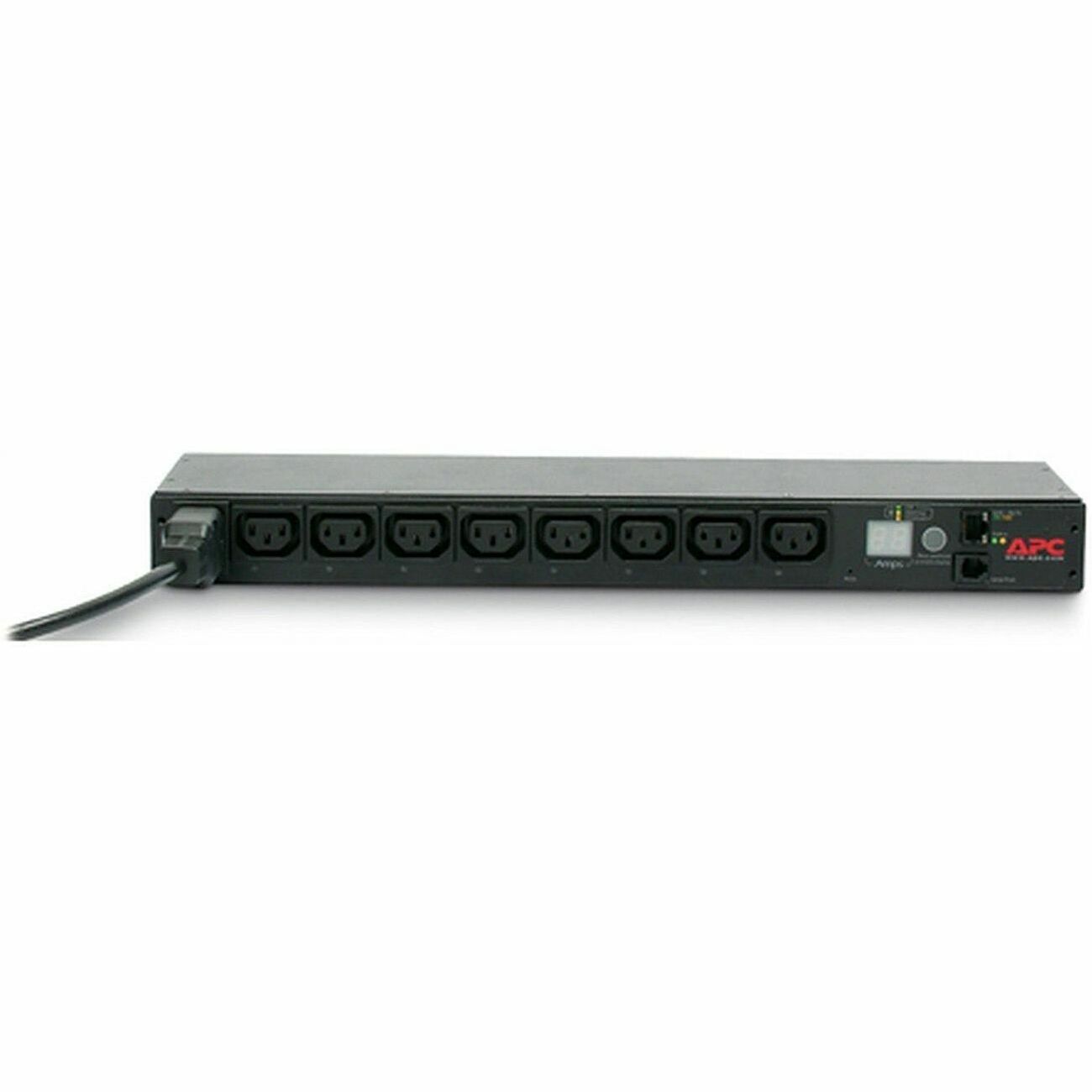

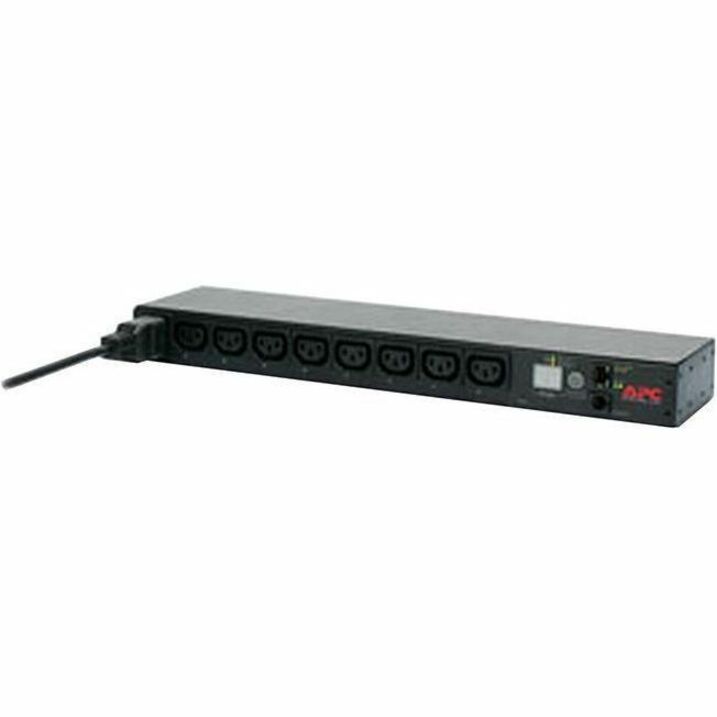

APC NetShelter Switched Rack PDU, 1U, 1PH, 3.7kW 230V 16A or 3.3kW 208V 16A, 8 C13 outlets, C20 cord - AP7921B
Key Features
- 1-Year Secure Network Management Card subscription included
- Easily monitor, control and manage through EcoStruxure IT & other platforms
- Enables improved energy efficiency and scope 1 and 3 emissions tracking
- Ideal for colocation, large data center, or remote edge computing
- On/off outlet switching enable users to reboot connected equipment remotely
- Plan capacity & balance loads with +/- 5% metering accuracy (amps)
Product Overview
This APC Switched Rack PDU power distribution unit has a wide range of standardized PDU features that increase network efficiency, manageability and functionality. The output and input connections are (8)C13. Network management capabilities allow you to configure and manage rack PDUs from remote locations. It has has a local current monitoring display that gives a visible warning in case of an overload. The remote individual outlet control provides real-time monitoring of connected loads. It has a multi-tier user access that enables you to restrict unauthorized use of outlets. This rack has a single input power source making it easy to install.
General Information
- Manufacturer: Schneider Electric SA
- Manufacturer Part Number: AP7921B
- Brand Name: APC
- Product Name: Rack PDU, Switched, 1U, 16A, 208/230V, (8)C13
- Product Type: PDU
Technical Information
- PDU Type: Switched
- Plug/Connector Type: IEC 60320 C20
Power Description
- Input Voltage:
- 200 V
- 208 V
- 230 V
- Output Voltage:
- 208 V AC
- 230 V AC
- Input Current: 20 A
Physical Characteristics
- Mounting Orientation: Horizontal
- Mount Type: Rack-mountable
- Placement:
- Front
- Rear
- Rack Height: 1U
- Cord Length: 8.17 ft
- Height: 1.7"
- Width: 17.5"
- Depth: 4.3"
- Weight (Approximate): 5 lb
Miscellaneous
- Package Contents:
- Rack PDU, Switched, 1U, 16A, 208/230V, (8)C13
- Installation guide
- Rack mounting brackets
- User manual
- Country of Origin: India
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 2 Year
