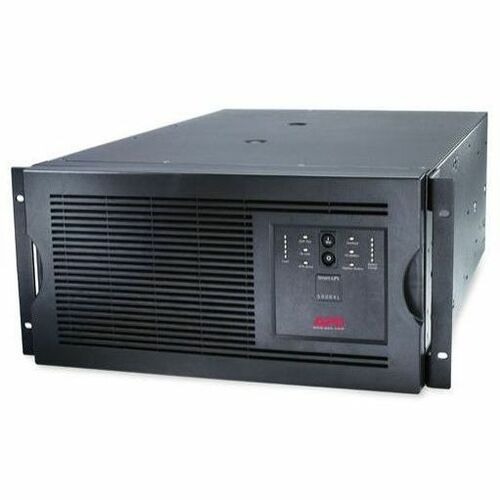

APC Smart-UPS 5000VA 208V Rackmount/Tower - SUA5000RMT5U
Key Features
- "Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices."
- "Intelligent and efficient network power protection from entry level to scalable runtime. "
- "LED status indicators Quickly understand unit and power status with visual indicators"
- "Provides remote management of the UPS over the network."
Product Overview
The APC Smart-UPS is a rackmount or tower UPS with a power rating of 5000VA and 4000 watts. It supports 208V input and output, and includes multiple output connections such as 2 NEMA L6-20R and 2 NEMA L6-30R. The UPS uses lead-acid batteries and features a SmartSlot for additional management options.
General Information
- Manufacturer: Schneider Electric SA
- Manufacturer Part Number: SUA5000RMT5U
- Brand Name: APC by Schneider Electric
- Product Line: Smart-UPS
- Product Name: Smart-UPS 5000VA Tower/Rack-mountable UPS
- Packaged Quantity: 1 Each
- Product Type: Line-interactive UPS
Technical Information

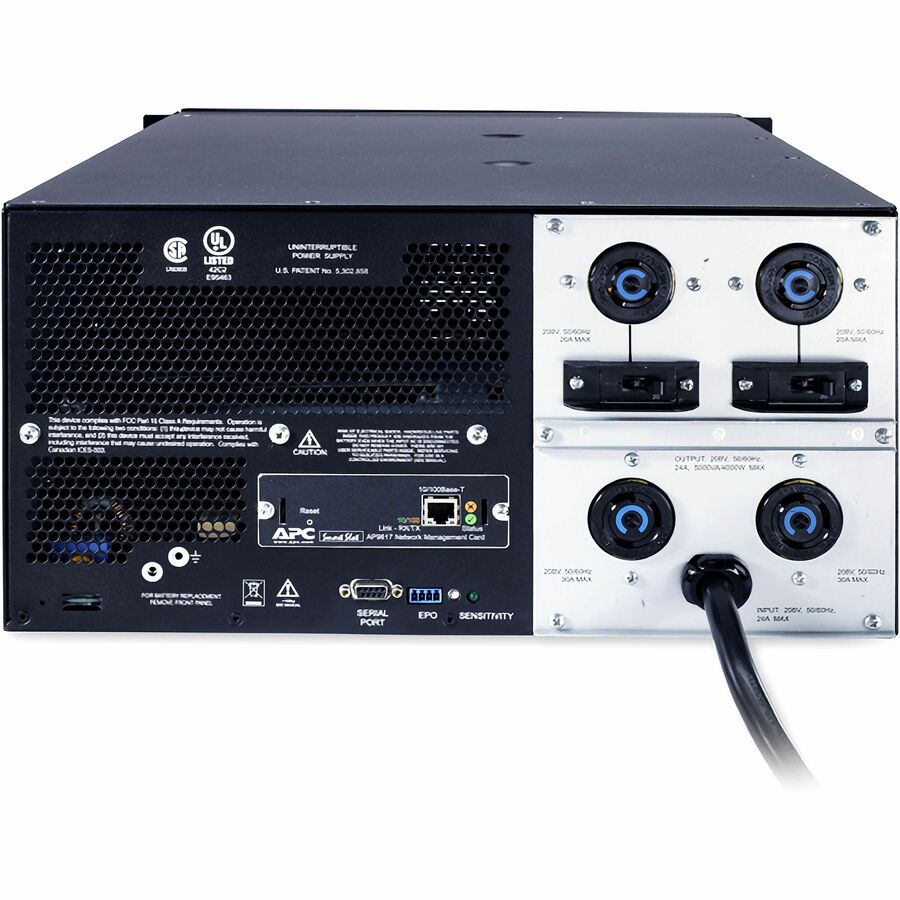

- Plug/Connector Type: NEMA L6-30P
- Receptacle Type: NEMA L6-30P
- Receptacle Detail:
- 2 x NEMA L6-20R
- 2 x NEMA L6-30R
- Number of Battery & Surge Outlets: 4
- Cord Length: 8 ft
- Phase: Single Phase
Power Description
- Load Capacity (VA): 5000 VA
- Load Capacity (Watt): 4000 W
- Input Voltage:
- 208 V AC
- 220 V AC
- Output Voltage: 208 V AC
- Waveform Type: Sine Wave
- Surge Energy Rating: 480 J
Management
- Network Management: SNMP Manageable
Battery Information
- Battery Characteristics: Spill-proof, Maintenance-free
- Battery Chemistry: Lead Acid
- Hot Swappable: Yes
- Typical Battery Recharge Time: 3 Hour
Physical Characteristics
- Product Color: Black
- Height: 8.7"
- Width: 19"
- Depth: 26"
- Rack Height: 5U
- Form Factor: Rack-mountable
- Weight (Approximate): 215.46 lb
Miscellaneous
- Package Contents:
- Smart-UPS 5000VA Tower/Rack-mountable UPS
- CD with software
- Rack mounting support rails
- Smart UPS signalling RS-232 cable
- User manual
- Web/SNMP management card
- Country of Origin: Philippines
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 2 Year
