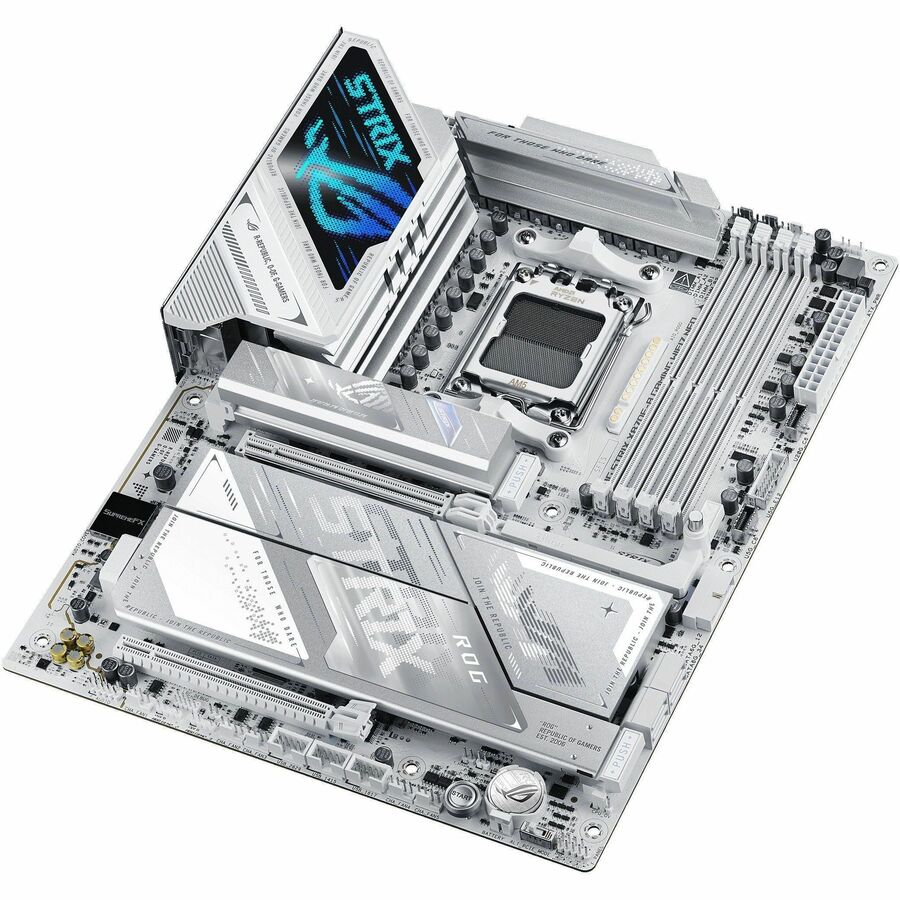

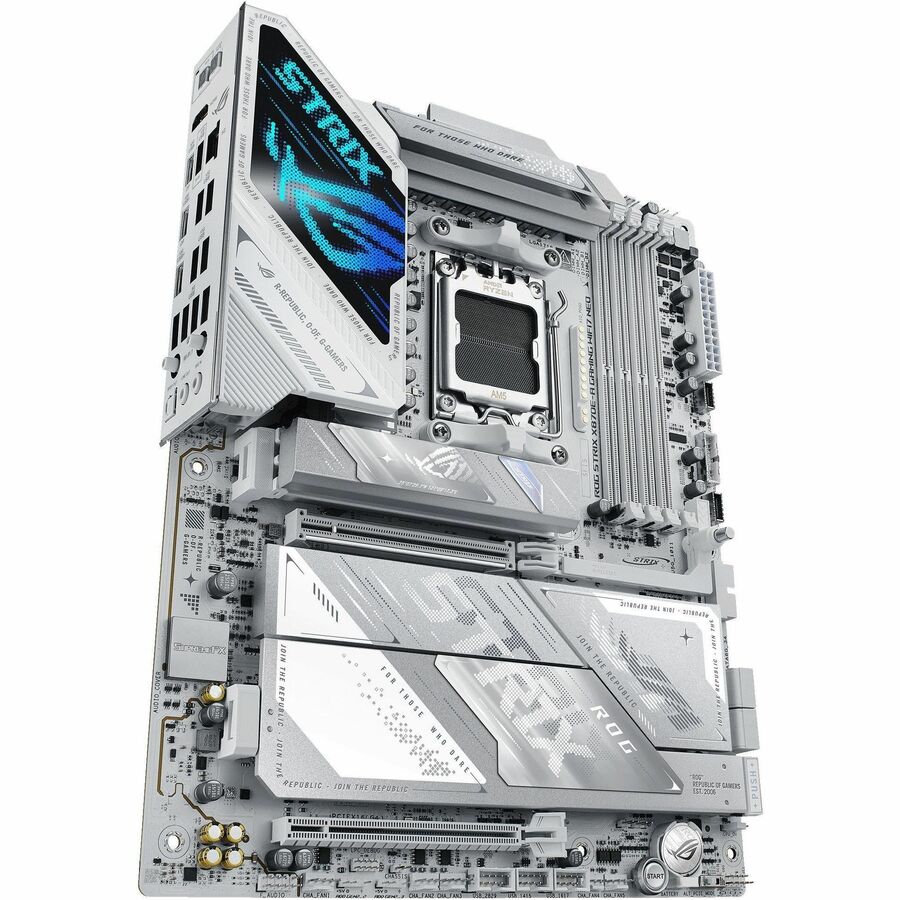

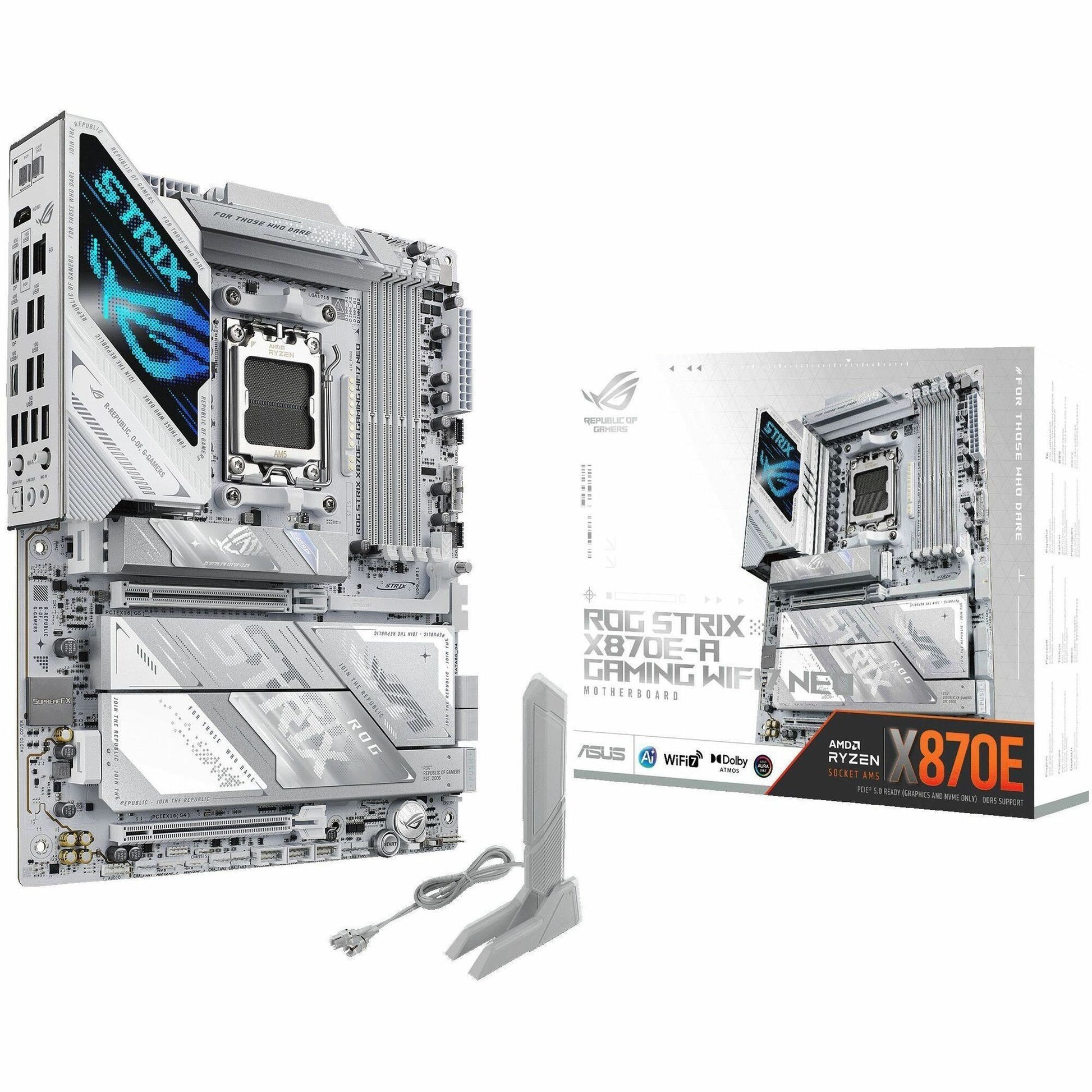

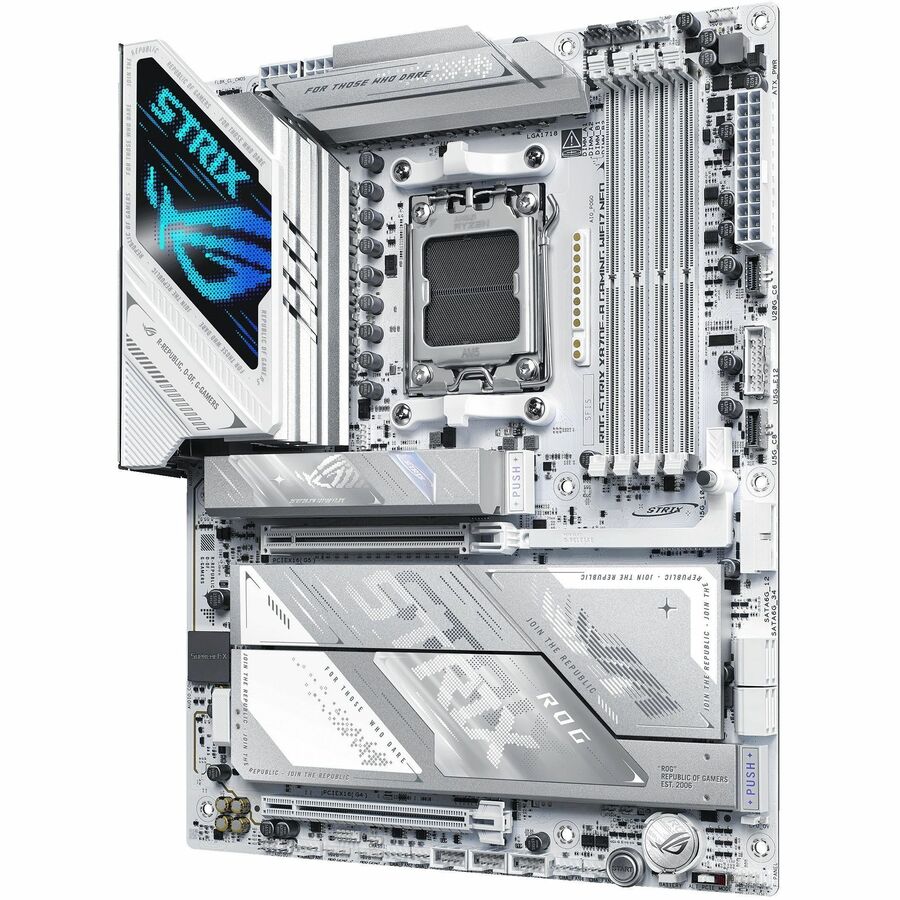

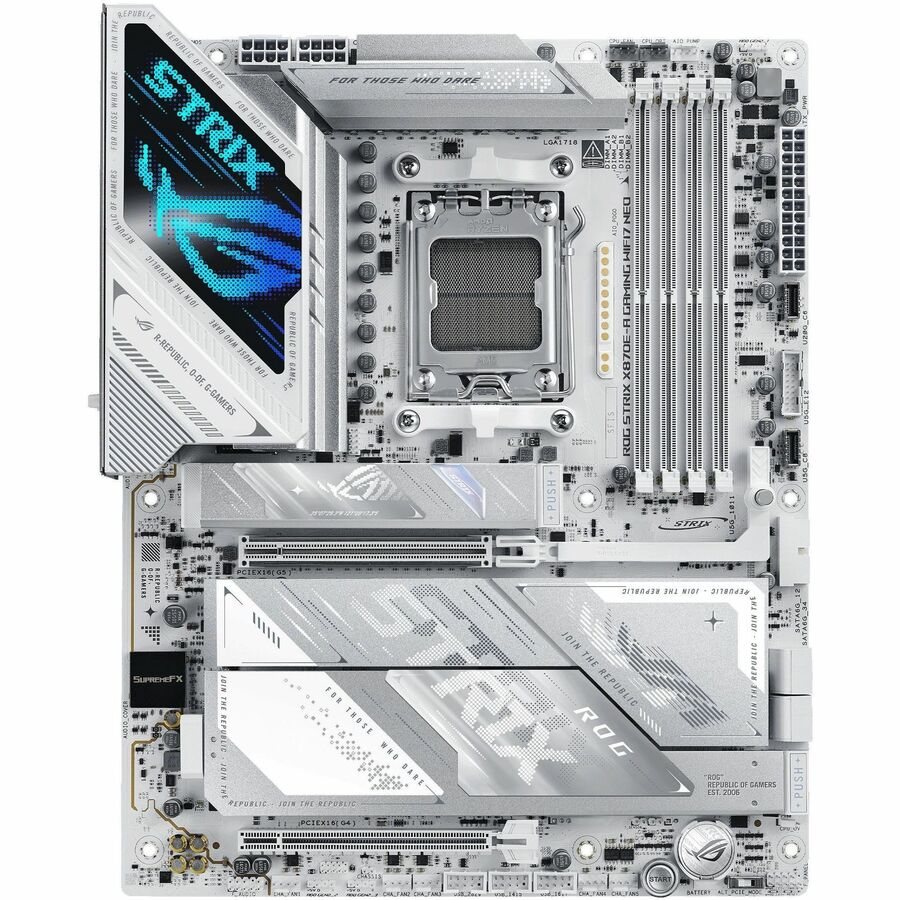

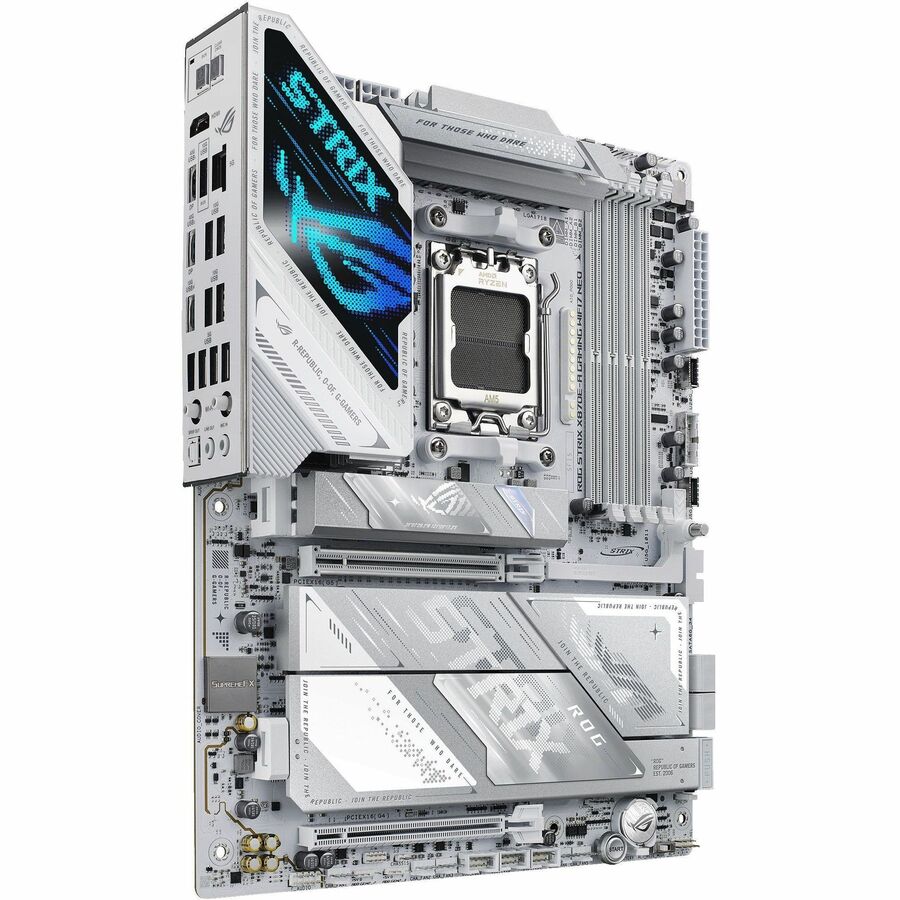

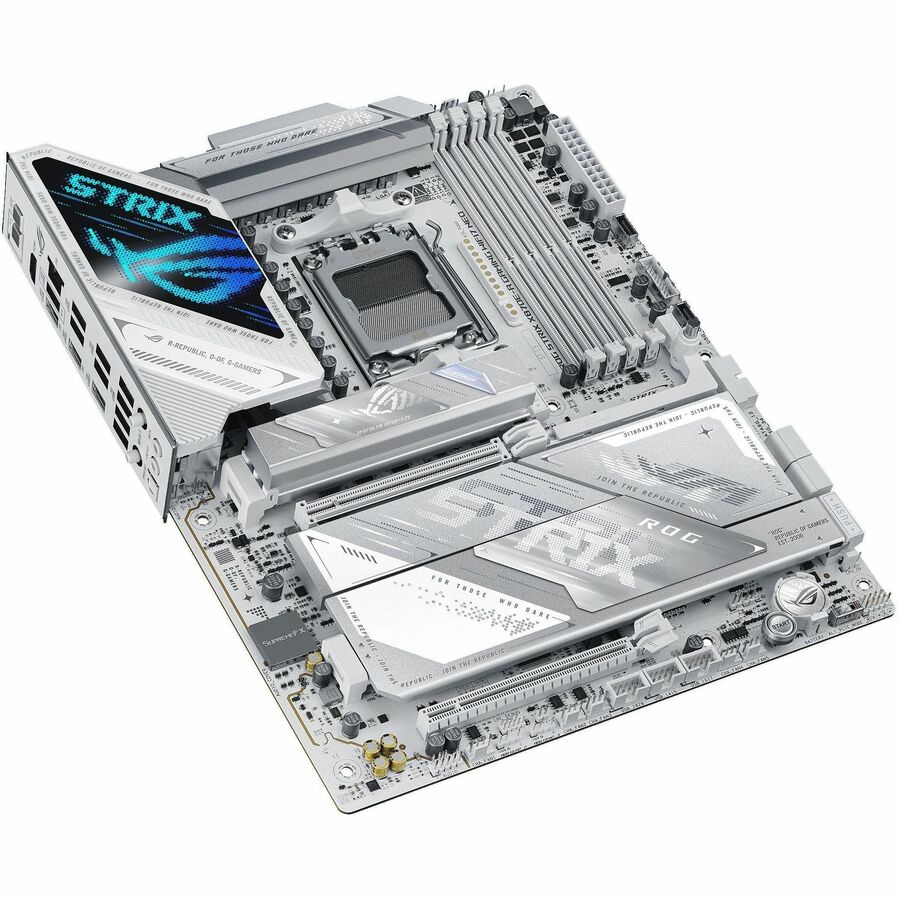

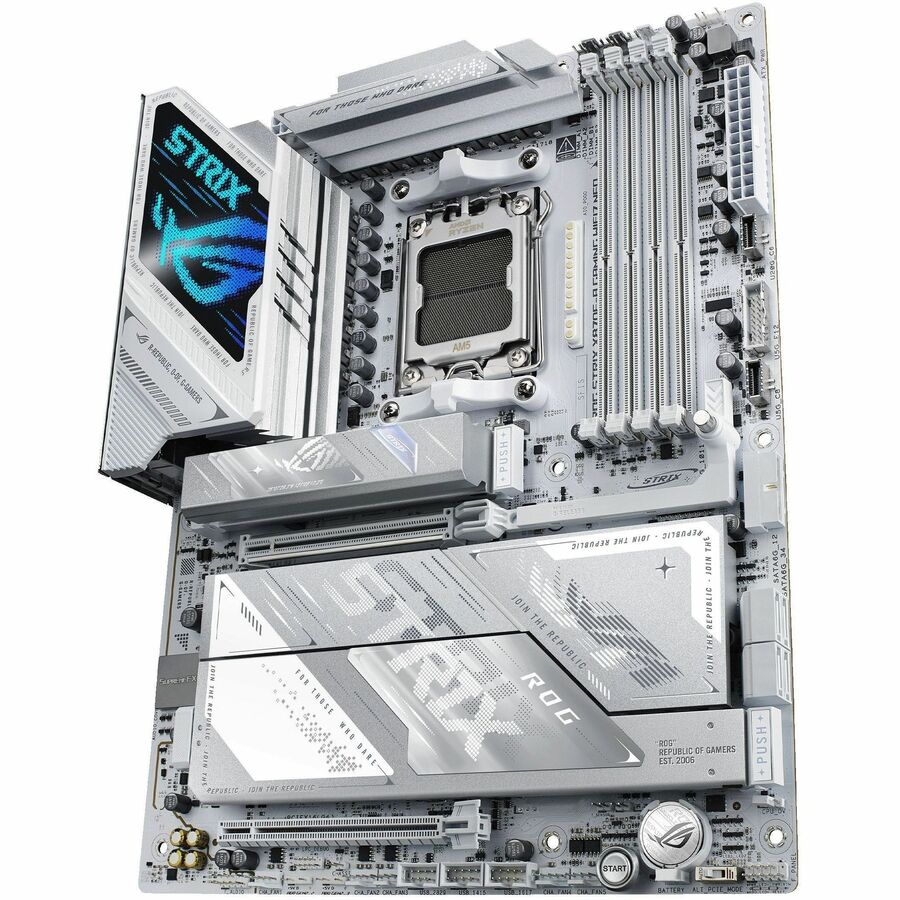

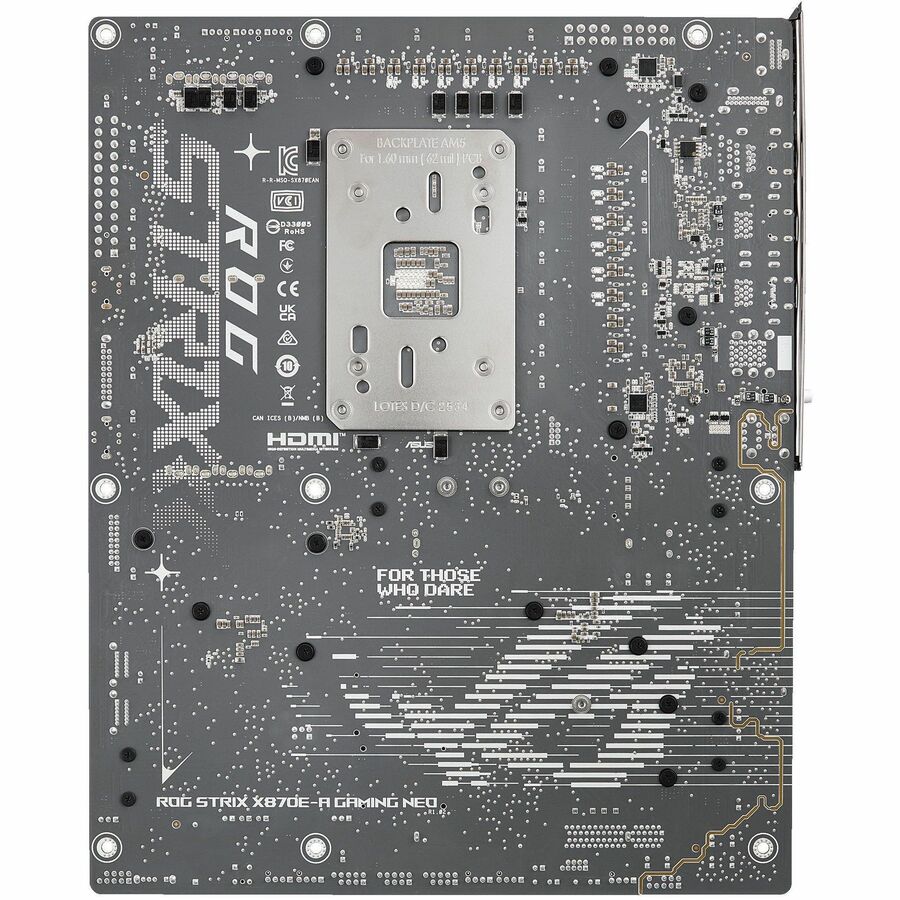

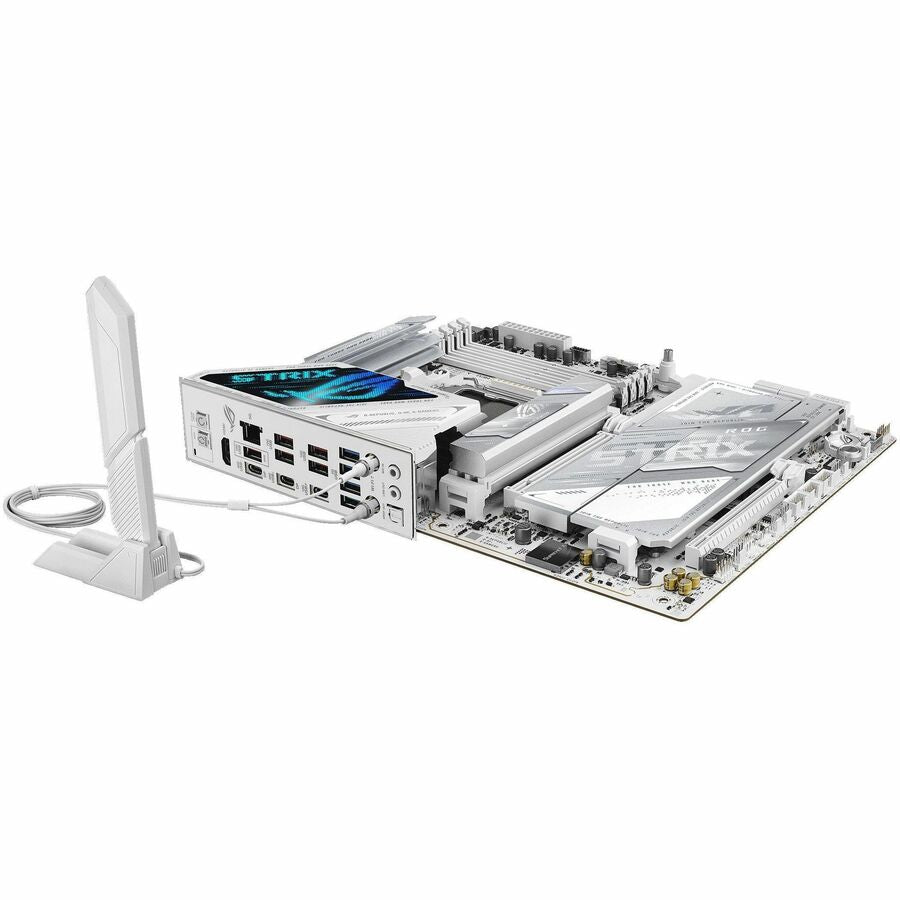

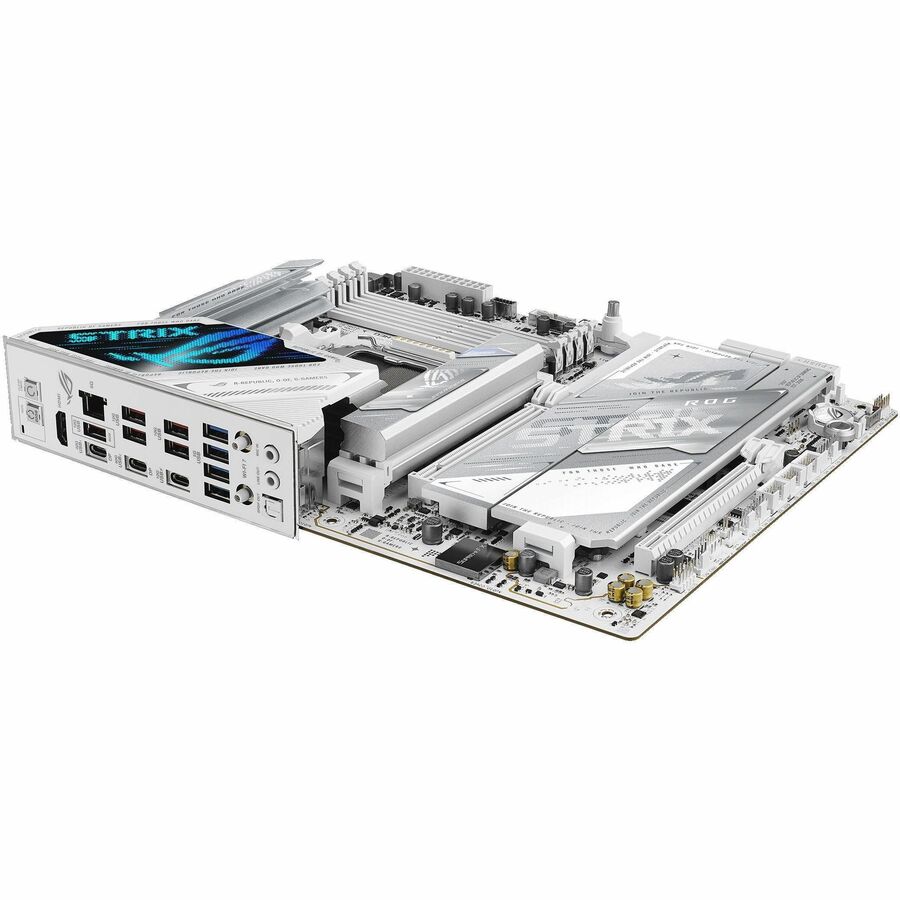

Asus ROG Strix X870E-A GAMING WIFI7 NEO Gaming Desktop Motherboard - AMD X870E Chipset - Socket AM5 - ATX - ROGSTRIXX870EAGAMINGWIFI7
Key Features
- ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- HDMI interface connects variety of HD devices including Gaming Controllers, Blu-ray players, laptops, PCs, digital cameras and many others for you to experience the ultimate HD display
- IEEE 802.11be wireless standard support lets you connect to the internet and have instant access to social media, music, movies, and online games
- RAID supported levels provide data reliability and fault tolerance
- Ryzen 7 processors supported for enhanced, dependable system performance with maximum usability
- The DDR5 SDRAM efficiently move data across electric components and provide smooth PC performance
Product Overview
ROG STRIX X870E-A gaming wifi7 Neo
Elevate your build with the ROG Strix X870E-A Gaming WiFi7 Neo, featuring a sleek white aesthetic and a design that maximizes the performance of AMD Ryzen™ 9000 Series processors. PCIe® 5.0, ASUS AI features including AI Cache Boost and ASUS AI Advisor-and exclusive memory technologies such as NitroPath DRAM Technology, DIMM Fit Pro, and AEMP-simplify setup and deliver optimized DDR5 performance. High-speed connectivity is boosted by dual USB4® Type-C ports, WiFi 7, and Realtek® 5G Ethernet, while enhanced M.2 cooling helps ensure stability for demanding workloads. It is the ultimate blend of style and performance.
AI CACHE BOOST
Supercharge your large language model (LLM) workflows with AI Cache Boost. Exclusive to ASUS AMD 800 and 600 series motherboards that use Ryzen™ 9000 Series CPUs, this BIOS setting optimizes CPU cache and memory pathways to deliver up to 29% faster local LLM performance with high-speed memory tuning.
ASUS AI ADVISOR
Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.
AI OVERCLOCKING
ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits.
General Information
- Manufacturer: ASUS Computer International
- Manufacturer Part Number: ROGSTRIXX870EAGAMINGWIFI7
- Brand Name: Asus ROG
- Product Line: Strix
- Product Model: X870E-A GAMING WIFI7 NEO
- Product Name: Strix X870E-A GAMING WIFI7 NEO Gaming Desktop Motherboard
- Product Type: Gaming Desktop Motherboard
Technical Information
- AI-powered: Yes
Processor & Chipset
- Chipset Manufacturer: AMD
- Chipset Model: X870E
- Total Processor Supported: 1
- Processor Socket: Socket AM5
- Processor Supported:
- Ryzen 7
- Ryzen 9
Memory
- Number of Memory Slots: 4
- Memory Form Factor:
- DIMM
- UDIMM
- Maximum Memory Supported: 256 GB
- Memory Speed Supported:
- 9600 MHz
- 9000 MHz
- 8600 MHz
- 8200 MHz
- 8000 MHz
- Memory Technology: DDR5 SDRAM
- Error Checking: ECC
I/O Controller
- Controller Type: Serial ATA/600
- RAID Supported: Yes
- RAID Levels:
- 0
- 1
- 5
- 10
Video
- Onboard Video: CPU Dependent Video
Audio
- Audio Channels: 7.1
Network & Communication
- Bluetooth: Yes
- Bluetooth Standard: Bluetooth 5.4
- Gigabit Ethernet: Yes
- Wireless LAN: Yes
- Wireless LAN Standard: IEEE 802.11be
I/O Expansions
- Total Number of Expansion Slots: 4
- Total Number of PCI Express Slots: 4
- Number of PCI Express x16 Slots: 4
- PCI Express Standard:
- PCI Express 4.0
- PCI Express 5.0
Interfaces/Ports
- Total Number of USB Ports: 12
- S/PDIF: Yes
- HDMI: Yes
- DisplayPort: Yes
- Number of Network (RJ-45) Ports: 1
Onboard Interfaces
- Number of SATA Interfaces: 4
- Number of M.2 Interfaces: 4
- Total Number of Onboard USB Ports: 12
- Number of Onboard USB 2.0 Ports: 6
Physical Characteristics
- Form Factor: ATX
- Width: 12"
- Depth: 9.6"
- Weight (Approximate): 4.19 lb
Miscellaneous
- Package Contents:
- Strix X870E-A GAMING WIFI7 NEO Gaming Desktop Motherboard
- 2 x SATA 6Gb/s cables
- 1 x DDR5 fan holder
- 1 x Screw package for cooling kit
- 1 x ROG assistant fan (60mm)
- 1 x ASUS WiFi Q-Antenna
- 1 x M.2 Q-Latch package
- 1 x M.2 Q-Slide package
- 1 x ROG key chain
- 1 x ROG Strix stickers
- 4 x M.2 rubbers
- 1 x Quick start guide
- Compatibility:
- Processor: AMD Socket AM5 (Ryzen 9000/8000/7000 Series).
- Memory: 4x DIMM, DDR5 (Supports NitroPath DRAM Technology for higher performance).
- Expansion Slots: PCIe 5.0 x16 SafeSlots.
- Storage: Multiple M.2 slots (including PCIe 5.0) with optimized cooling.
- Networking: WiFi 7 (802.11be), 5 Gb Ethernet.
- USB: Dual USB4® Type-C ports.
- Form Factor: ATX.
- Environmental Compliance:
- China Restriction of Hazardous Substances (China RoHS)
- Restriction of Hazardous Substances (RoHS)
- Taiwan Restriction of Hazardous Substances (Taiwan RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
- Limited Warranty: 3 Year
