General Information

• Manufacturer: Black Box Corporation

• Manufacturer Part Number: LGC212AR2

• Brand Name: Black Box

• Product Line: Pure Networking

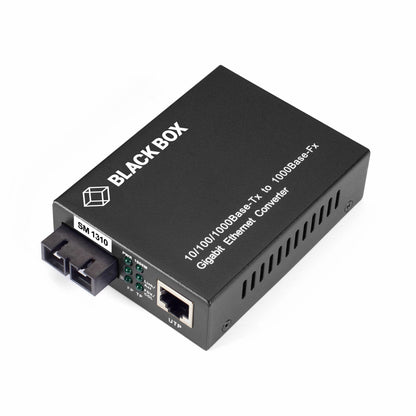

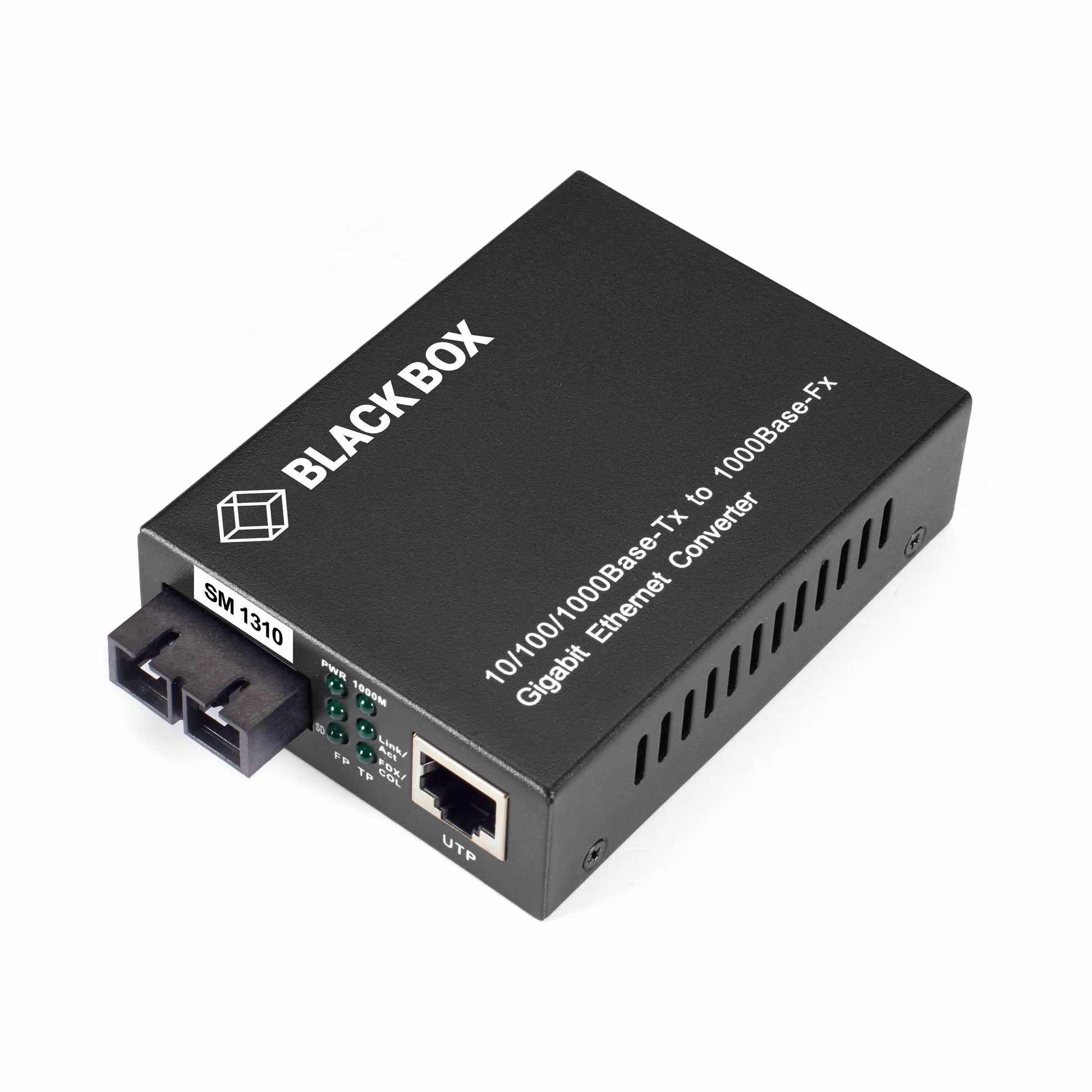

• Product Name: Pure Networking Transceiver/Media Converter

• Packaged Quantity: 1

• Product Type: Transceiver/Media Converter


Interfaces/Ports

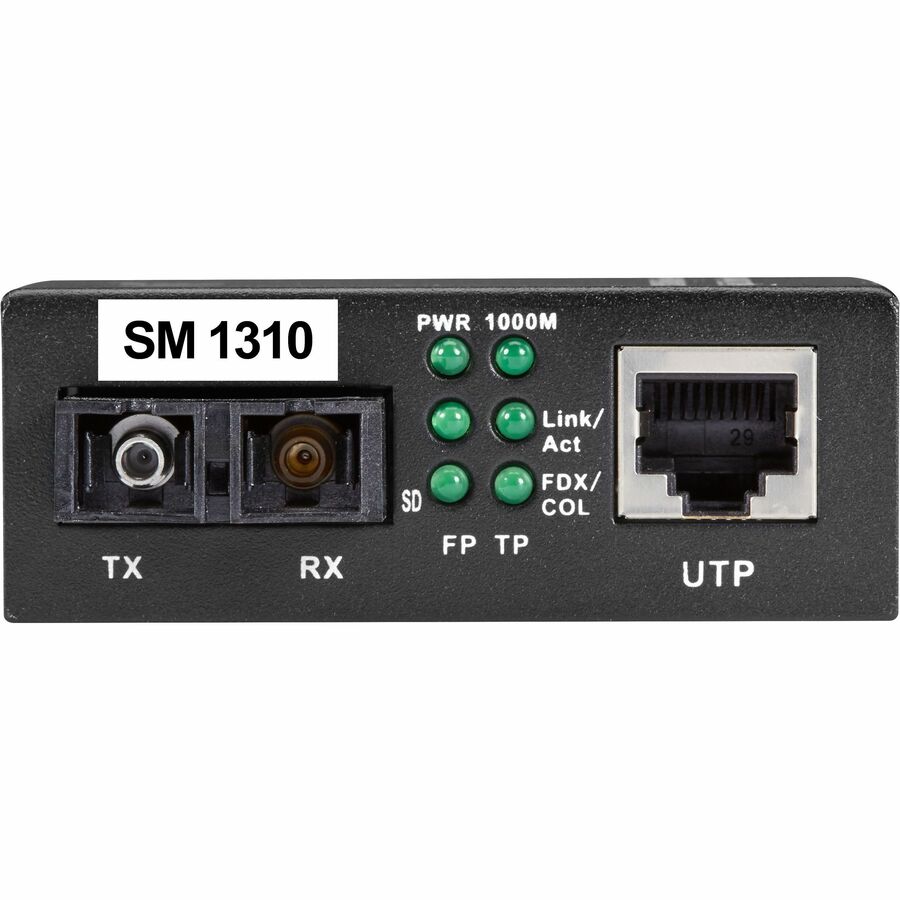

• Total Number of Ports: 2

• Network (RJ-45): Yes

• Number of Network (RJ-45) Ports: 1

• Number of SC Ports: 1


Media & Performance

• Media Type Supported:
  • Optical Fiber
  • Twisted Pair


• Fiber Mode Supported: Single-mode

• Fiber Optic Cable Wavelength: 1310 nm

• Maximum Distance Supported: 10 km

• Fiber Optic Cable Core/Cladding Specification:
  • 9/125 µm
  • 8.3/125 µm
  • 10/125 µm



Network & Communication

• Ethernet Technology: Gigabit Ethernet

• Network Technology:
  • 10/100/1000Base-TX
  • 1000Base-LX



Power Description

• Power Source: Power Adapter

• Plug/Connector Type: Barrel


Physical Characteristics

• Form Factor:
  • Standalone
  • Rack-mountable


• Height: 1"

• Width: 3.7"

• Depth: 2.7"

• Weight (Approximate): 11.20 oz


Miscellaneous

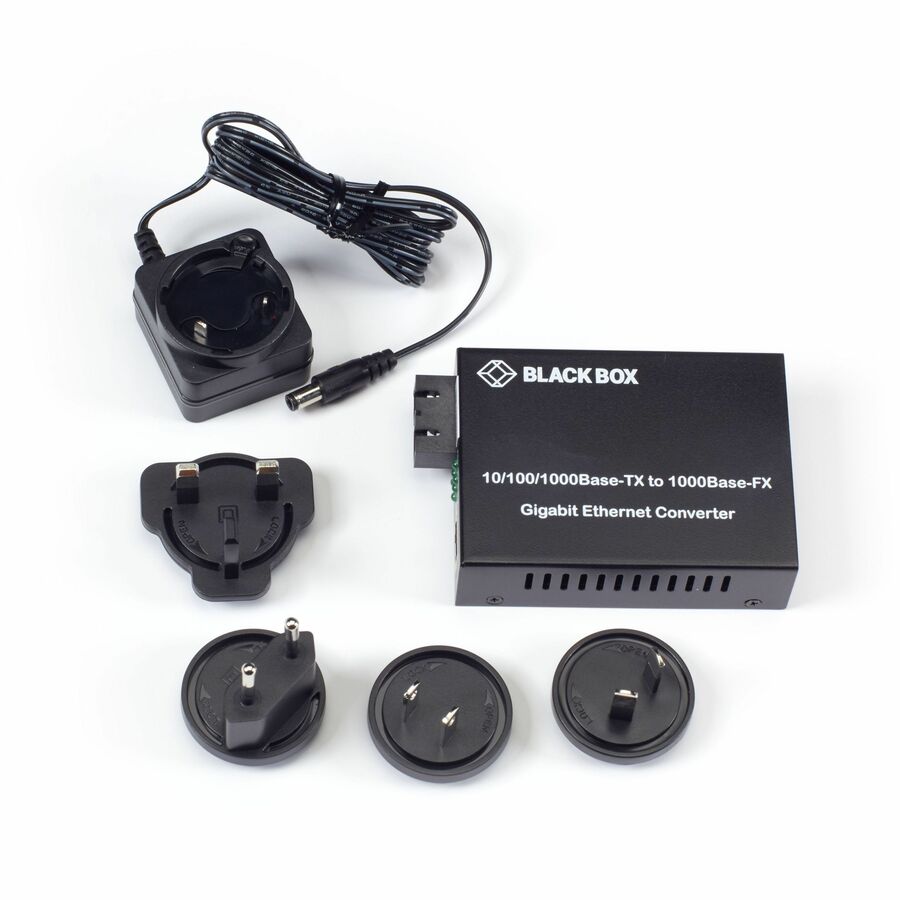

• Package Contents:
  • Pure Networking Transceiver/Media Converter
  • 1 x 5-VDC Power Adapter with (US, EU, UK and AU Power Clips)


• Environmentally Friendly: Yes

• Environmental Compliance:
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)



Warranty

• Limited Warranty: 3 Year

• Additional Warranty Information:

  Double Diamond Warranty (Standard)
