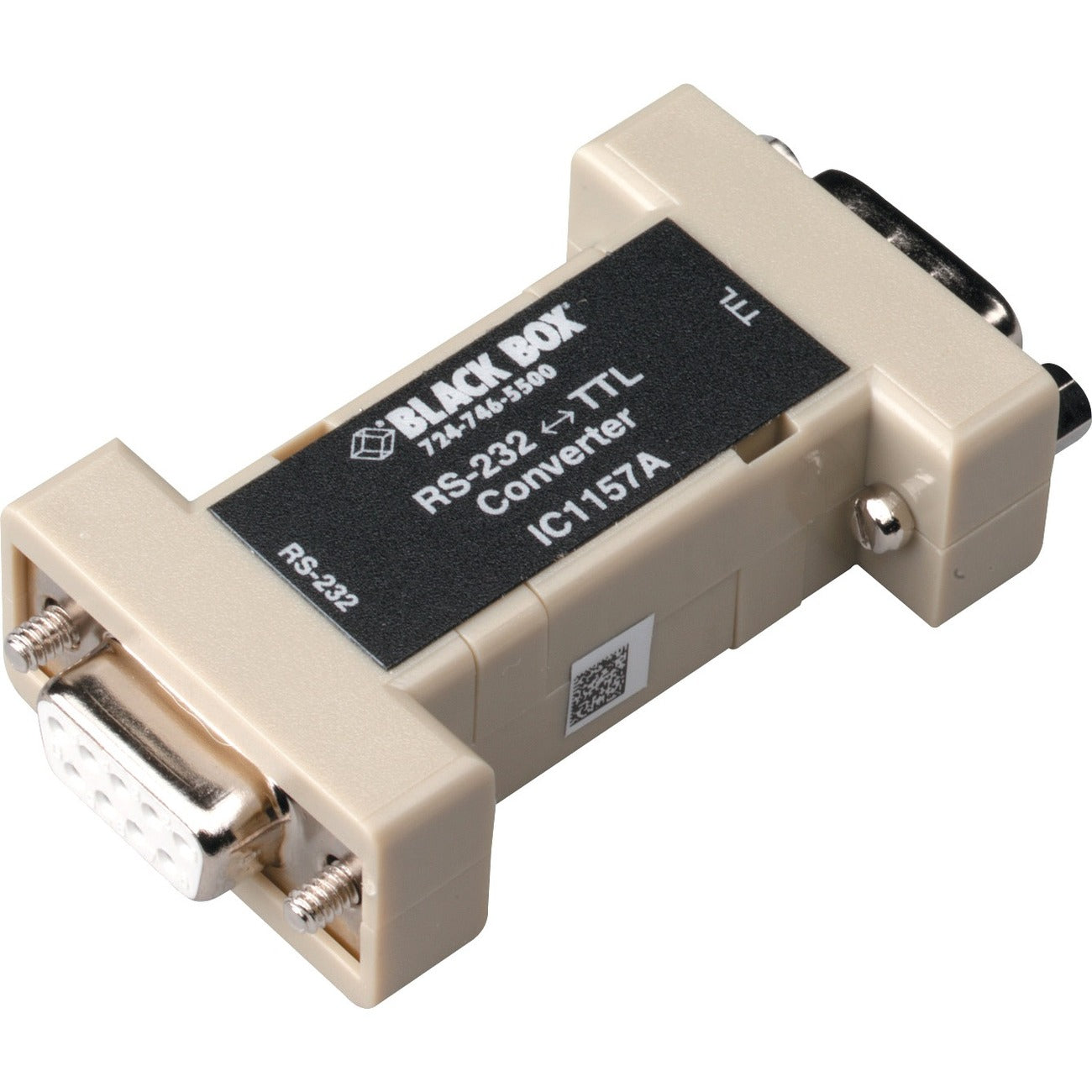

Black Box RS-232 to TTL Bidirectional Converter, DB9 - IC1157A
Key Features
- Bidirectional conversion of RS-232 to Transistor Transistor Logic (TTL) levels.
- Converts two channels (TX and RX) in each direction.
- Perfect for field service applications.
- RS232 port powered.
- Simply and reliably converts 5-V TTL devices to RS232.
- Supports speeds of up to 115 kbps.
Product Overview
Convert 5-V TTL to RS232 to enable easy connection of many commercial and industrial machines still using TTL as a means of communication.
The RS-232 to TTL Converter enables you to control TTL devices. The converter is fast, too - it supports serial data rates of up to 115 kbps!
Just plug it in and you're ready to go. This tiny converter takes almost no space at all, and you can use it with virtually any microcontroller or programmable logic controller that supports TTL.
It also converts two channels (TX and RX) in each direction from RS-232 to TTL.
General Information
- Manufacturer: Black Box Corporation
- Manufacturer Part Number: IC1157A
- Brand Name: Black Box
- Product Name: RS-232 to TTL Bidirectional Converter, DB9
- Packaged Quantity: 1
- Product Type: Data Transfer Adapter
Technical Information
- Adapter Type: Serial
- Connector Type on First End: DB-9 RS-232 Serial - Female
- Connector on First End Details: 1 x 9-pin DB-9 RS-232 Serial Female
- Connector Type on Second End: DB-9 RS-232 Serial - Male
- Connector on Second End Details: 1 x 9-pin DB-9 RS-232 Serial Male
Physical Characteristics
- Height: 2.2"
- Width: 2.2"
- Depth: 0.6"
Miscellaneous
- Country of Origin: United States
- TAA Compliant: Yes
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 1 Year
