C2G USB C Docking Station - Dual Monitor Docking Station with 4K HDMI, USB, Ethernet, and AUX - Power Delivery up to 60W - C2G54488
Key Features
- 2x HDMI / Ethernet / USB-A / 3.5mm Audio
- 60W USB-C Power Supply / Power Delivery up to 100W
- C2G 5 Year Warranty
- C2G USB-C Dual Display Laptop Docking Station
- Supports resolutions up to (3840x2160) 4K 30Hz or Dual Monitors at 1080p
- TAA Compliant
- USB-A 3.0 / USB A 2.0 Ports
- USB-C / Thunderbolt 3 (TB3) Dock
Product Overview
The USB-C 9-in-1 Dual Display Docking Station with HDMI, Ethernet, USB, 3.5mm Audio and Power Delivery connects to USB-C or Thunderbolt 3 enabled laptops. It is perfect for contributing to a desktop solution, making it ideal for those extra connectivity demands that inside reps have for multitasking and increasing productivity while in the office or when working from home.This USB-C Dual Display Docking Station supports connected devices, such as keyboards, mice, portable hard drives, and other peripherals, all while supporting up to 60W of power delivery to keep the laptop battery charged.
This USB-C Dual Display Docking Station has two video display outputs, simultaneously splitting content into two displays while supporting resolutions up to 1080p. Connect a single display and support resolutions up to 4K (3840 x 2160) at 30Hz. Three USB-A ports support SuperSpeed USB 5Gbps data transfers, and two USB-A ports support 480Mbps data transfers. The USB-C port supports power delivery, allowing 60W to power and charge the connected laptop. Optimize performance by connecting displays designed for 4K signals and USB-A devices designed for 5Gbps transfer speeds.
Maximum Supported Resolutions
2 HDMI Ports to 2 Displays: 1080p at 60Hz
1 HDMI Port to 1 Display: 4K (3840 x 2160) at 30Hz

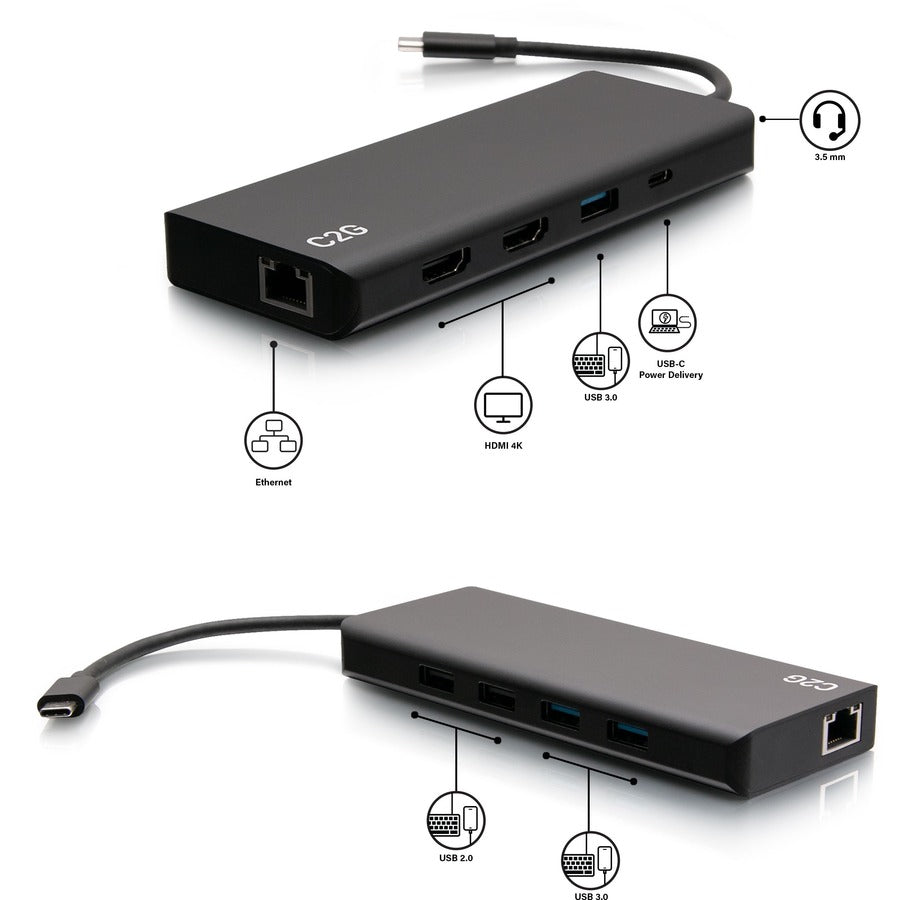

PORTS
2x 4K HDMI: Connect to two displays via the HDMI ports.
1x USB-C Power Delivery: Power a laptop or tablet with up to 60W power delivery.
5x USB-A: Connect storage devices and transfer data up to 5Gbps through the USB-A ports.
Gigabit Ethernet: Connect to local network for network and internet access.
3.5mm Jack: Connect a headphone/microphone for audio output.
General Information
- Manufacturer: Legrand Group
- Manufacturer Part Number: C2G54488
- Brand Name: C2G
- Product Name: USB C Dual Monitor Docking Station - HDMI, Ethernet, USB, 3.5mm - 60W
- Product Type: Docking Station
Technical Information
- Connectivity Technology: Wired
- Number of Displays Supported: 2
- Supported Resolutions:
- 3840 x 2160
- 1920 x 1080
- Screen Mode Supported: 4K
- Device Supported:
- Monitor
- Tablet
- Notebook
Network & Communication
- Ethernet Technology: Ethernet
Interfaces/Ports
- Host Interface: USB Type C
- Audio Line Out: Yes
- Number of USB 2.0 Ports: 2
- Number of USB 3.0 Ports: 3
- Number of USB Type-C Ports: 1
- USB Type-C: Yes
- USB Type-C Detail: 1x USB-C Power Delivery: Power a laptop or tablet with up to 60W power delivery
- Number of USB Type-A Ports: 5
- USB Type-A: Yes
- Number of RJ-45 Ports: 1
- Network (RJ-45): Yes
- Headphone/Microphone Combo Port: Yes
- Number of HDMI Ports: 2
- HDMI: Yes
- Thunderbolt: Yes
Software
- Operating System Supported:
- Windows
- macOS
Power Description
- Maximum Power Supply Wattage: 60 W
Physical Characteristics
- Product Color: Black
- Weight (Approximate): 9.60 oz
Miscellaneous
- Environmentally Friendly: Yes
- TAA Compliant: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS) 2
- Country of Origin: Taiwan
Warranty
- Limited Warranty: 5 Year
