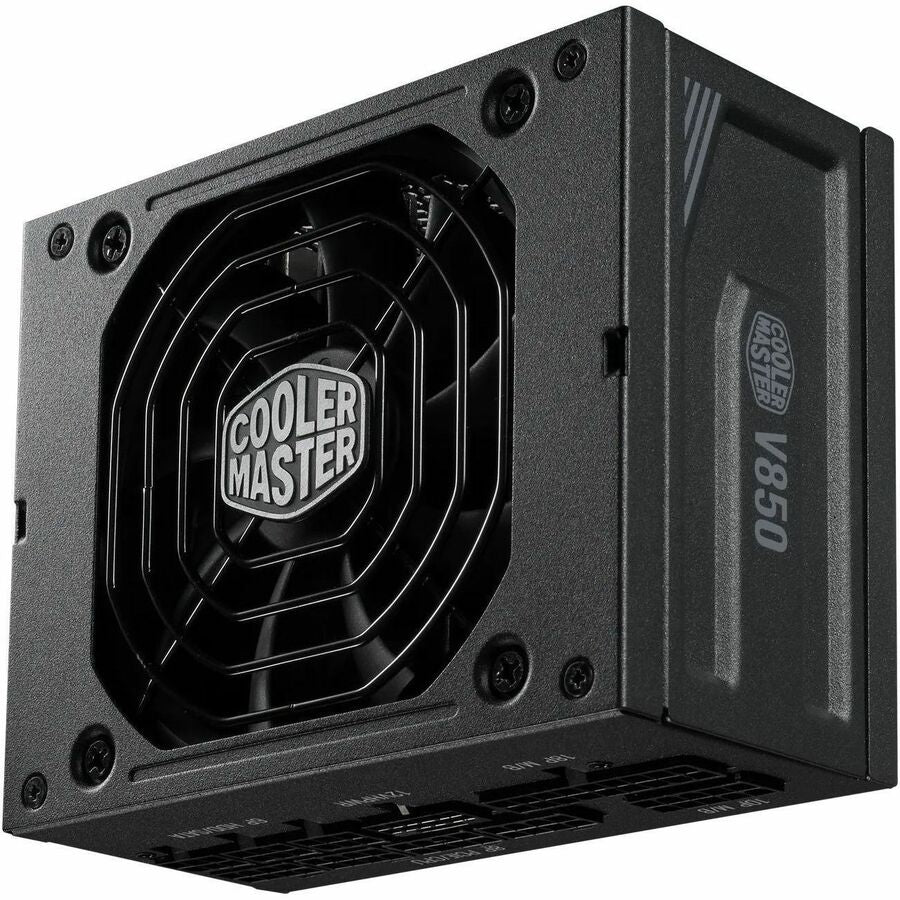

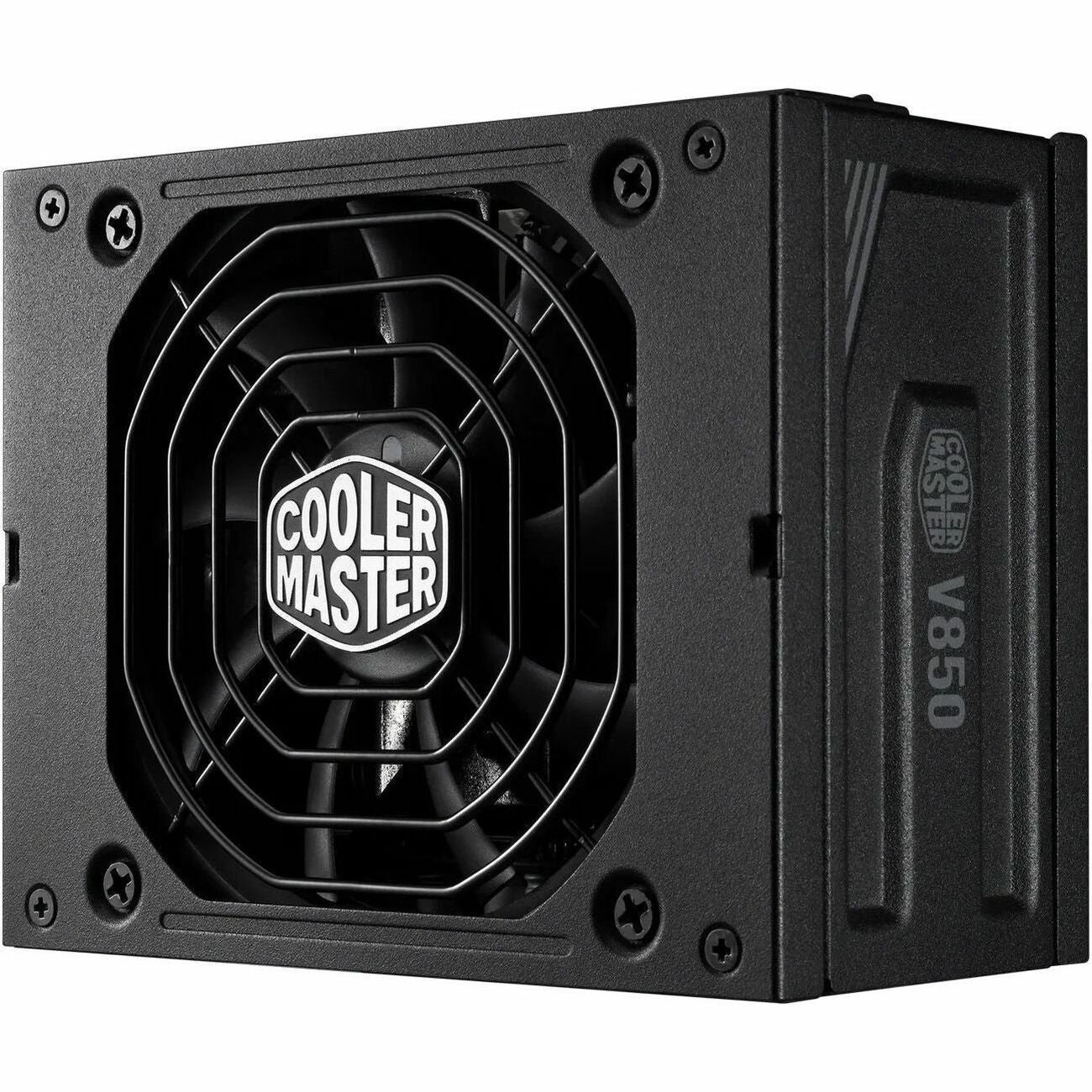

Cooler Master V850 850W Power Supply - MPY-8501-SFHAGV-3U1
Key Features
- 10-year Warranty
- 80 PLUS Gold certified
- ATX 3.0 support & a 90-degree 12VHPWR cable
- Flexible compatibility
- Fully modular cabling
- High-quality Japanese capacitors
Product Overview
SMALL BUT MIGHTY
As the leading SFX power supply design, the V SFX Gold offers a highly powerful unit in a space-saving, mini form factor.
FLEXIBLE COMPATIBILITY
With the included SFX-to-ATX bracket, the V SFX Gold ATX 3.0 can be used to power systems ranging from as small as a mini-ITX all the way up to E-ATX motherboards.
80 PLUS GOLD CERTIFIED
The V SFX Gold is certified to achieve more than 90% efficiency at typical loads.
ATX 3.0 SUPPORT & A DURABLE 90-DEGREE 12VHPWR CABLE
Includes ATX 3.0 support and a 90-degree 12+4pin (12VHPWR) PCIe 5.0 connector featuring higher electrical durability, lower temperatures, and improved safety.
HIGH-QUALITY JAPANESE CAPACITORS
Large, high-quality Japanese capacitors feature inmproved efficiency and reduced ripple noise.
FULLY MODULAR CABLING
Modular cabling reduces clutter, increases airflow, and improves overall thermal performance.
General Information
- Manufacturer: Cooler Master Co., Ltd
- Manufacturer Part Number: MPY-8501-SFHAGV-3U1
- Brand Name: Cooler Master
- Product Model: MPY-8501-SFHAGV-3XX
- Product Name: V850 850W Power Supply
- Product Type: Power Supply
Technical Information
- Specification Compliance:
- SFX
- ATX 3.0
- SFX12V v3.42
- Efficiency: 90%
- Power Factor Correction (PFC): Active
- Number of Fans: 1
- Fan Diameter: 92 mm
- Protection Type:
- Over Voltage
- Over Power
- Short Circuit
- Over Current
- Under Voltage
- Over Temperature
- Surge
- Inrush Current
- Modular: Yes
- Features: Compact
Reliability
- MTBF: 100000 Hour
Power Description
- Input Voltage:
- 120 V AC
- 230 V AC
- Output Voltage:
- 3.3 V DC
- 5 V DC
- 12 V DC
- -12 V DC
- Output Voltage Detail:
- 3.3 V DC @ 20 A
- 5 V DC @ 20 A
- 12 V DC @ 70.8 A
- -12 V DC @ 0.3 A
- Output Current:
- 20 A
- 70.80 A
- 300 mA
- Output Power: 850 W
Interfaces/Ports
- Number of SATA Power Connectors: 8
- Number of (6+2 pin) PCI Express Power Connectors: 4
- Number of (4+4 pin) CPU Power Connectors: 1
- Number of 4-pin Molex Power Connectors: 4
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Form Factor: Internal
- Height: 2.5"
- Width: 4.9"
- Weight (Approximate): 3.96 lb
Miscellaneous
- Compatibility: Desktop Computer
- Environmentally Friendly: Yes
- Environmental Certification: ErP Lot 3
- Energy Efficiency Certification: 80 Plus Gold
Warranty
- Limited Warranty: 10 Year
