CyberPower CP685AVRLCD Intelligent LCD UPS Systems - CP685AVRLCD
Key Features
- $125,000
- 120 VAC ± 5%
- 3 year
- 685 VA / 390 W
- 8 × NEMA 5-15R
- Capacity:
- Communication:
- Connected Equipment Guarantee:
- ENERGY STAR® qualified:
- Line Interactive
- Management software:
- NEMA 5-15P, 6 ft. cord
- Outlet types:
- Output:
- Plug type & cord:
- PowerPanel® Personal
- Simulated Sine Wave
- Topology:
- USB
- Warranty:
- Waveform:
- Yes
Product Overview

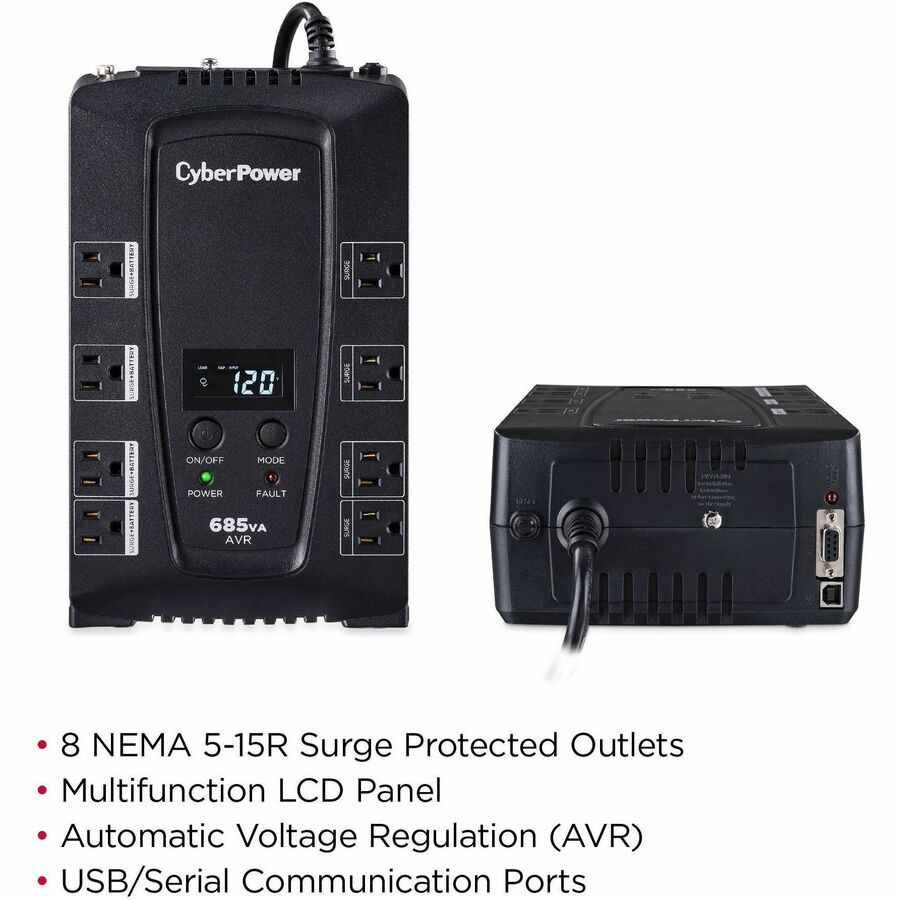

A compact UPS with line-interactive topology, the CyberPower Intelligent LCD CP685AVRLCD provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The CP685AVRLCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. Features include a multifunction LCD panel to provide visibility into power conditions and UPS vitals. The CP685AVRLCD comes with a three-year warranty (including coverage of batteries) and a ,125,000 Connected Equipment Guarantee.
General Information
- Manufacturer: CyberPower Systems, Inc
- Manufacturer Part Number: CP685AVRLCD
- Brand Name: CyberPower
- Product Series: Intelligent LCD UPS
- Product Model: CP685AVRLCD
- Product Name: CP685AVRLCD Intelligent LCD UPS Systems
- Product Type: Line-interactive UPS
Technical Information
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15R
- Receptacle Detail: 8 x NEMA 5-15R
- Dataline Protection:
- RJ-45
- RG-6
- RJ-11
- Cord Length: 6 ft
- Transfer Time: 4 ms
Power Description
- Load Capacity (VA): 685 VA
- Load Capacity (Watt): 390 W
- Input Voltage: 110 V AC
- Output Voltage: 120 V AC
Interfaces/Ports
- USB: Yes
Battery Information
- Number of Batteries: 1
- Battery Chemistry: Lead Acid
- Backup/Run Time (Full Load): 2 Minute
- Backup/Run Time (Half Load): 11 Minute
- Hot Swappable: Yes
- Typical Battery Recharge Time: 8 Hour
Physical Characteristics
- Height: 6.5"
- Width: 11"
- Depth: 3.5"
- Form Factor: Desktop
- Weight (Approximate): 14 lb
Miscellaneous
- Package Contents:
- Intelligent LCD CP685AVRLCD 685VA Desktop UPS
- User Manual
- USB A+B Type Cable
- Serial Cable
- Warranty Registration Card
- Software Included: PowerPanel Personal Edition Software
- Energy Star: Yes
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
