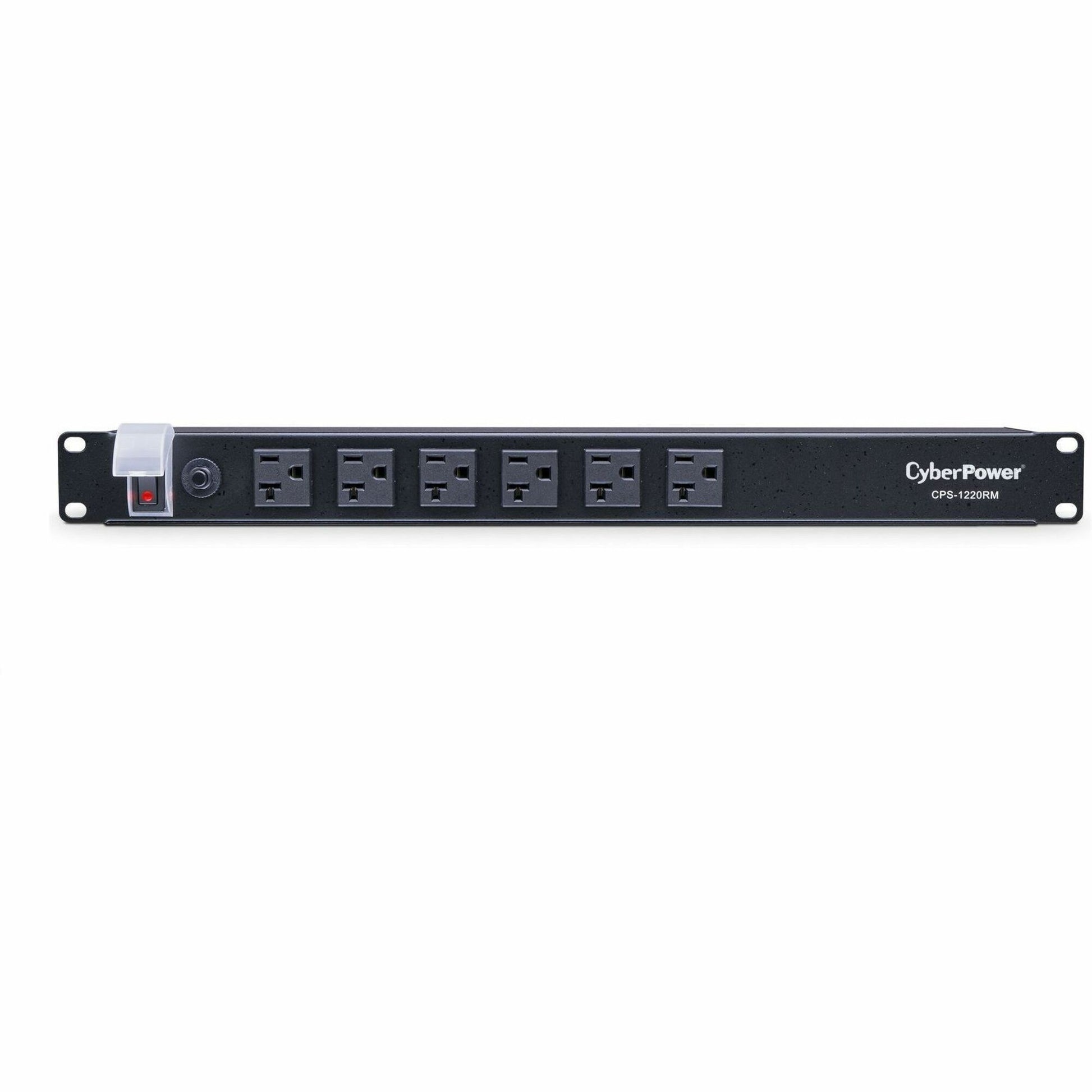

CyberPower CPS1220RM 120 - 120 VAC 20A Basic - CPS-1220RM
Key Features
- 100 - 125 V
- 12 NEMA 5-20R
- 15

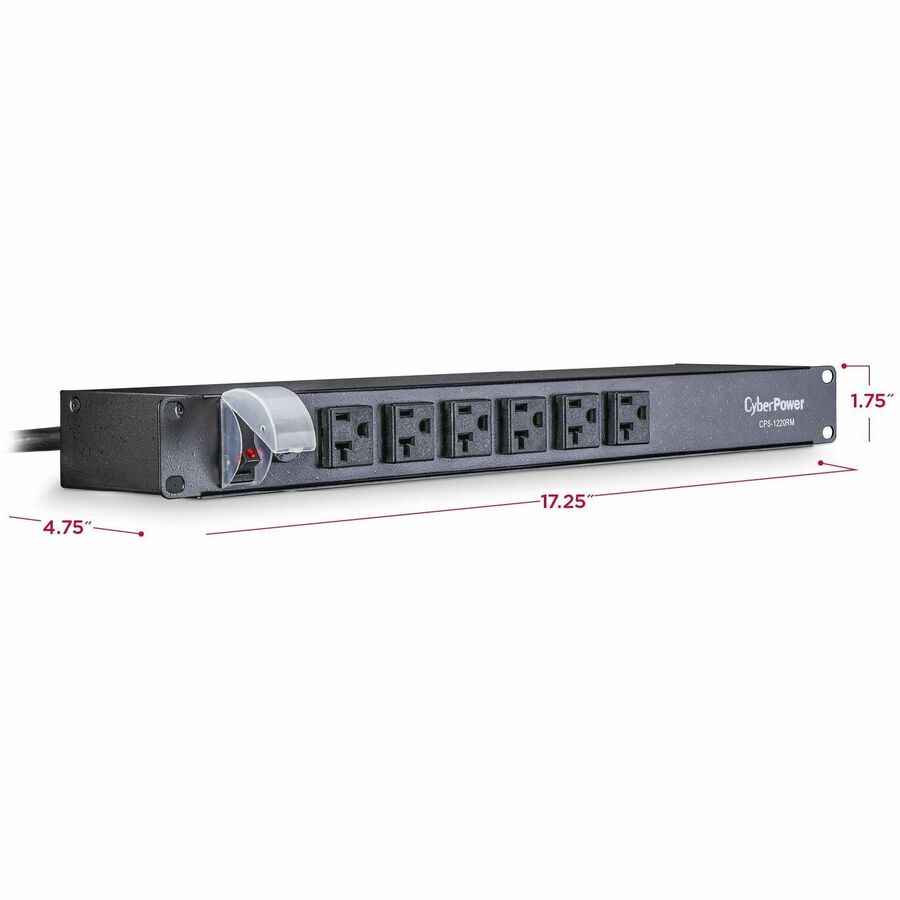

- 17.25W x 1.75H x 4.75D
- 1U Rackmount
- 3 year
- 60Hz
- Cord length (ft.):
- Dimensions (in.):
- Frequency:
- NEMA 5-20P
- Outlets:
- Phase:
- Plug type:
- Single
- Size:
- Volts:
- Warranty:
Product Overview

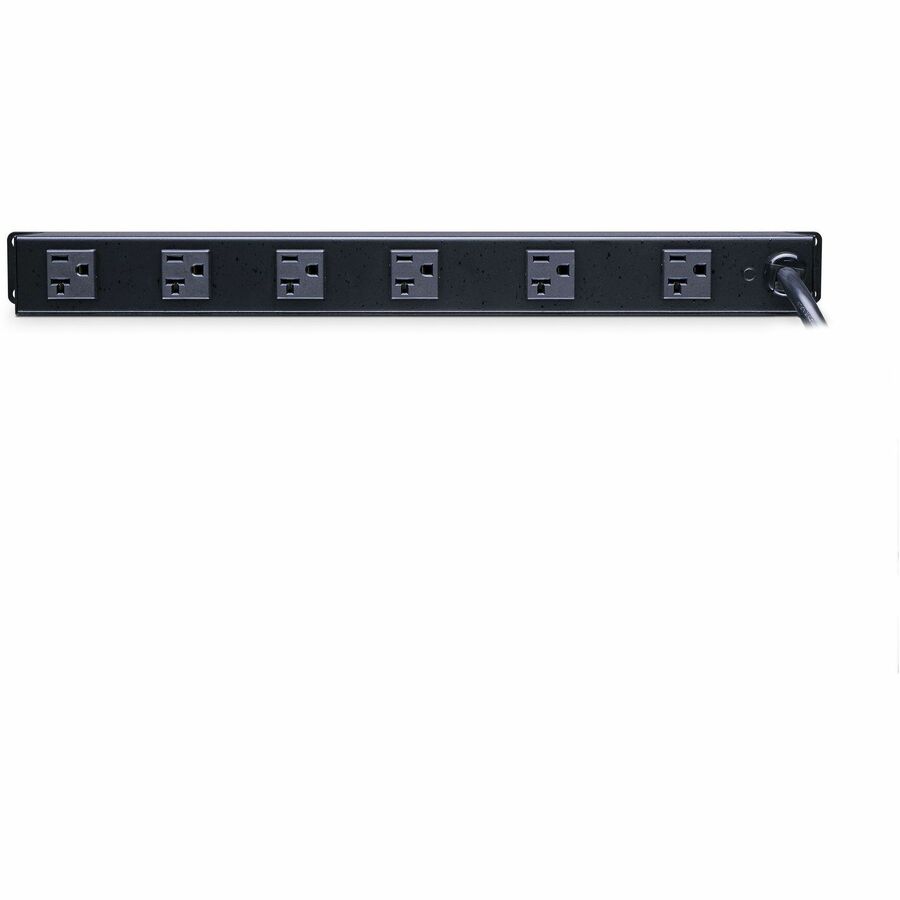

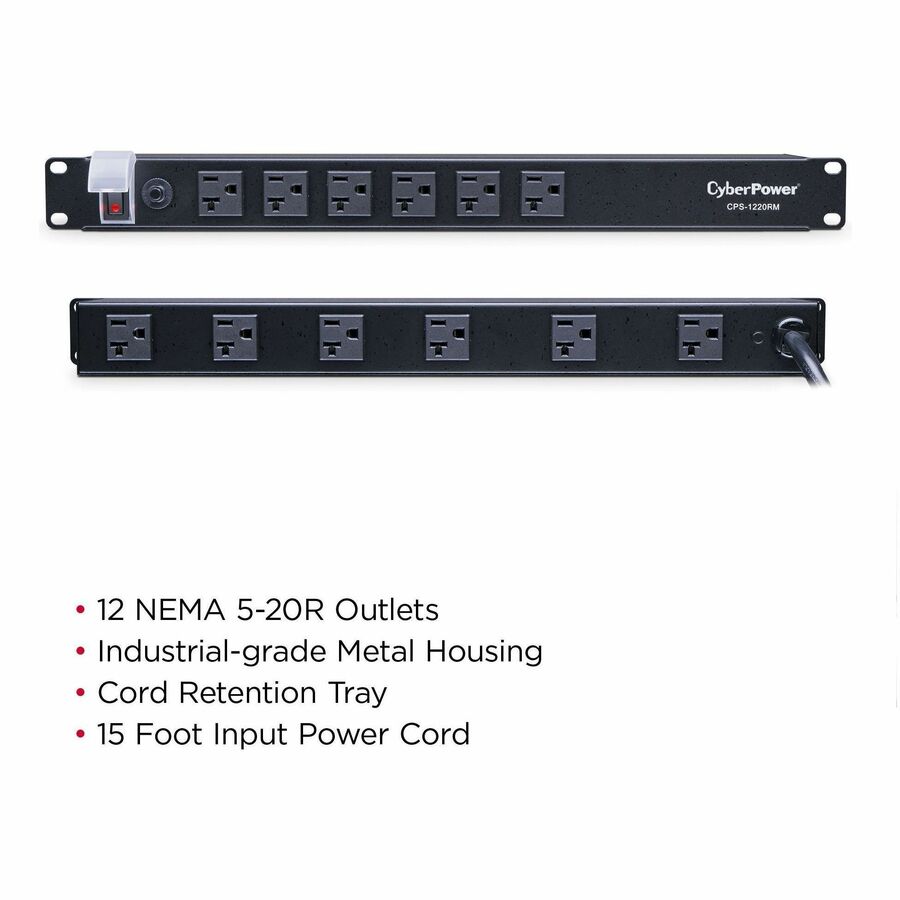

The CyberPower CPS1220RM, a 12-outlet (6 front, 6 rear) rackmount power distribution unit (PDU), provides 100 – 125 V 20A output. It distributes power to 10 NEMA 5-20R receptacles from a single NEMA 5-20P input with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the CPS1220RM has durable metal housing and a 15-foot AC power cord. It can be mounted horizontally, includes a cord retention tray, and is ETL/RoHS certified. A three-year warranty covers the CPS1220RM for three years for as long as you own the product.
General Information
- Manufacturer: CyberPower Systems, Inc
- Manufacturer Part Number: CPS-1220RM
- Brand Name: CyberPower
- Product Model: CPS-1220RM
- Product Name: CPS1220RM 120 - 120 VAC 20A Basic
- Product Type: PDU
Technical Information
- PDU Type: Basic
- Phase: Single Phase
- Plug/Connector Type: NEMA 5-20P
- Receptacle Type: NEMA 5-20R
- Receptacle Detail: 12 x NEMA 5-20R
- Protection Type:

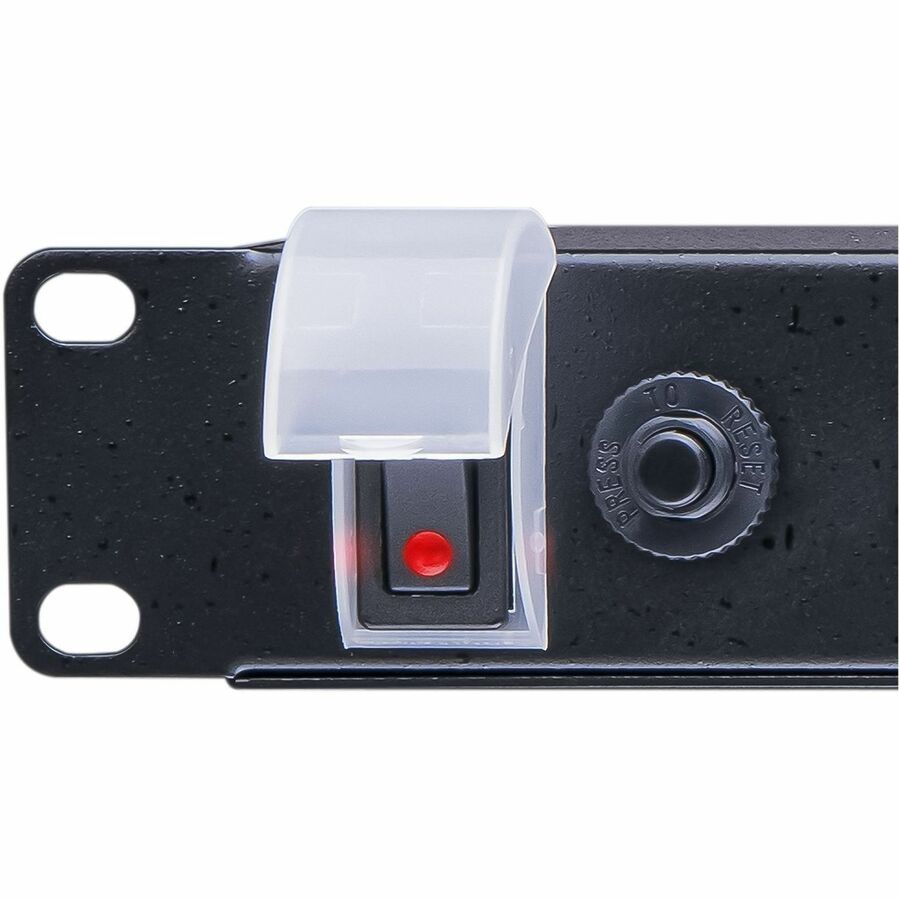

- Overload Protection
- Short Circuit Protection
- Locking Receptacles: Cord Retention Tray
Power Description
- Input Voltage: 120 V AC
- Input Voltage Range: 100 V AC - 125 V AC
- Output Voltage: 120 V AC
- Power Rating (VA): 1800 VA
- Input Current: 20 A
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Mounting Orientation: Horizontal
- Mount Type: Rack-mountable
- Form Factor: Rack
- Rack Height: 1U
- Cord Length: 15 ft
- Height: 1.8"
- Width: 17.3"
- Depth: 4.8"
- Weight (Approximate): 6 lb
Environmental Conditions
- Minimum Operating Temperature: 32°F (0°C)
- Maximum Operating Temperature: 104°F (40°C)
- Minimum Storage Temperature: 5°F (-15°C)
- Maximum Storage Temperature: 113°F (45°C)
Miscellaneous
- Package Contents:
- CPS1220RM
- Warranty Card/Manual
- Application/Usage: Data Center
- Country of Origin: China
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
- UL Listed: Yes
Warranty
- Limited Warranty: 3 Year
- Additional Warranty Information: CyberPower stands behind its products with an industry-leading 3 year warranty. CyberPower also offers a #1 rated technical support team that will assist you with product, installation, or warranty concerns --- Free of Charge.
