CyberPower CPS1500AVR Smart App LCD UPS Systems - CPS1500AVR
Key Features
- Capacity: 1500 VA / 900 W
- Communication: USB, Serial, SNMP
- Connected Equipment Guarantee: $300,000
- Data line protection: Telephone, Network, Coaxial
- Environmental sensor: Yes, with optional RMCARD205

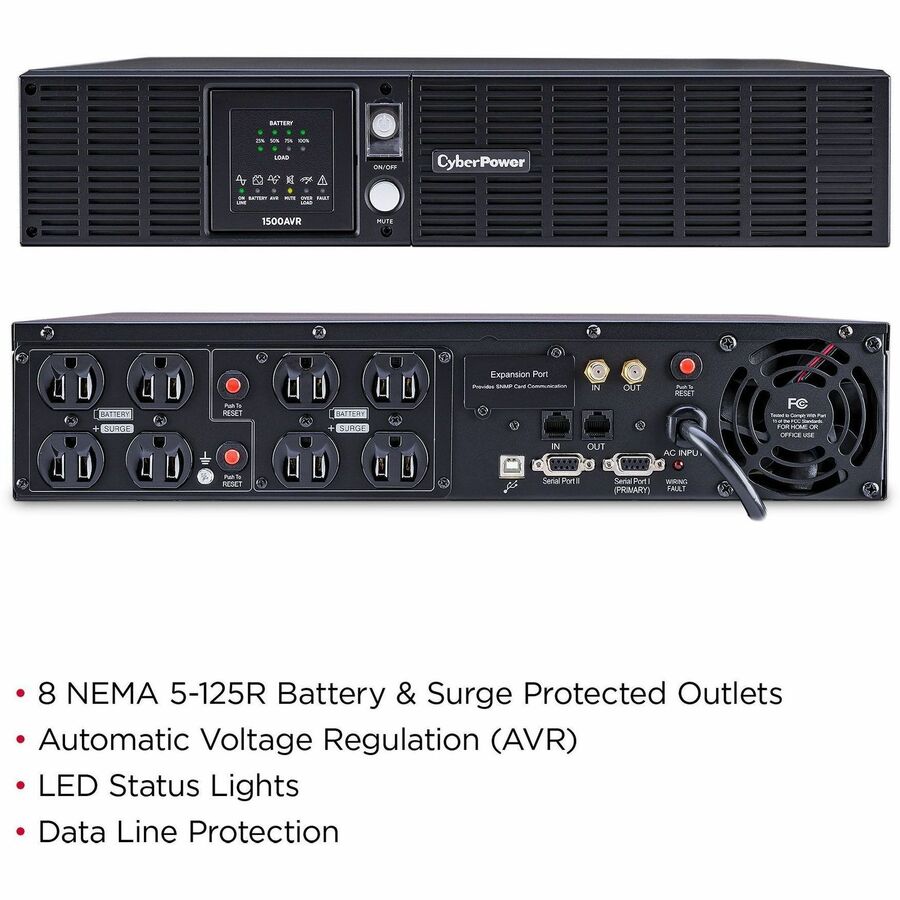

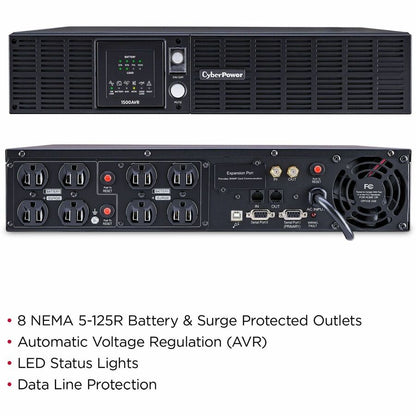

- Outlet types: 8 × NEMA 5-15R
- Outlets: 8 surge + battery backup
- Output: 120 VAC ± 10%
- Plug type & cord: NEMA 5-15P, 10 ft. cord
- Remote management: Yes
- Runtime (half/full): 18 minutes / 7 minutes
- Topology: Line Interactive
- Warranty: 3 year
- Waveform: Simulated Sine Wave
Product Overview

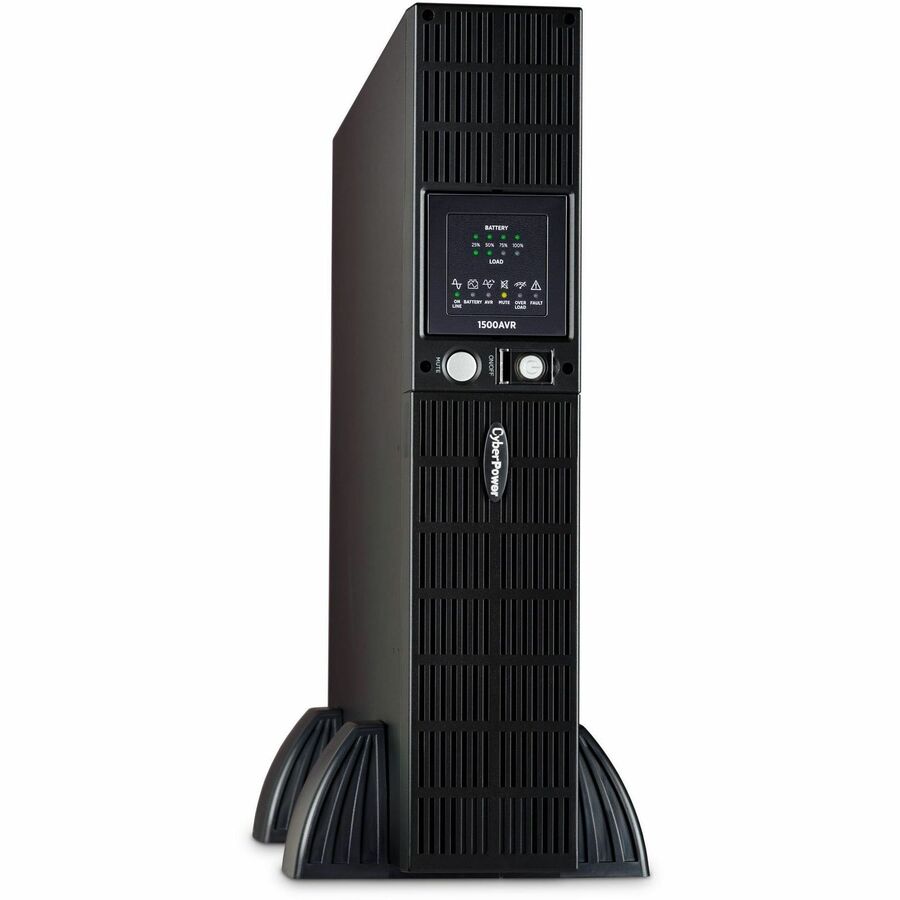

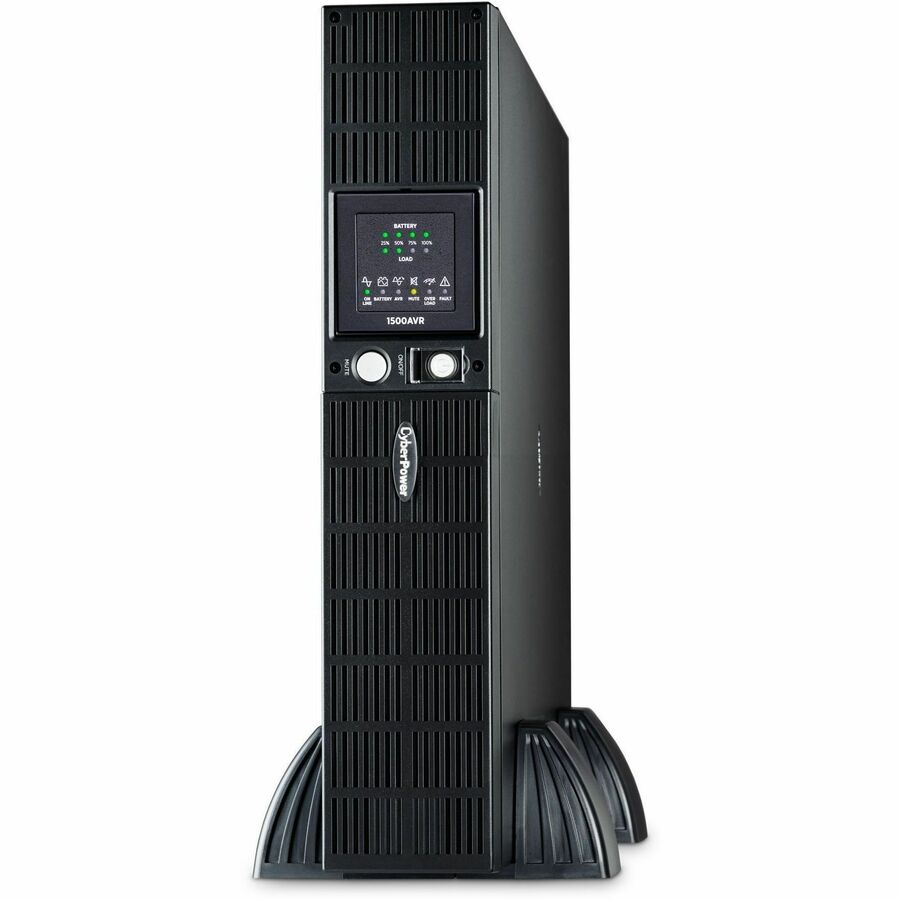

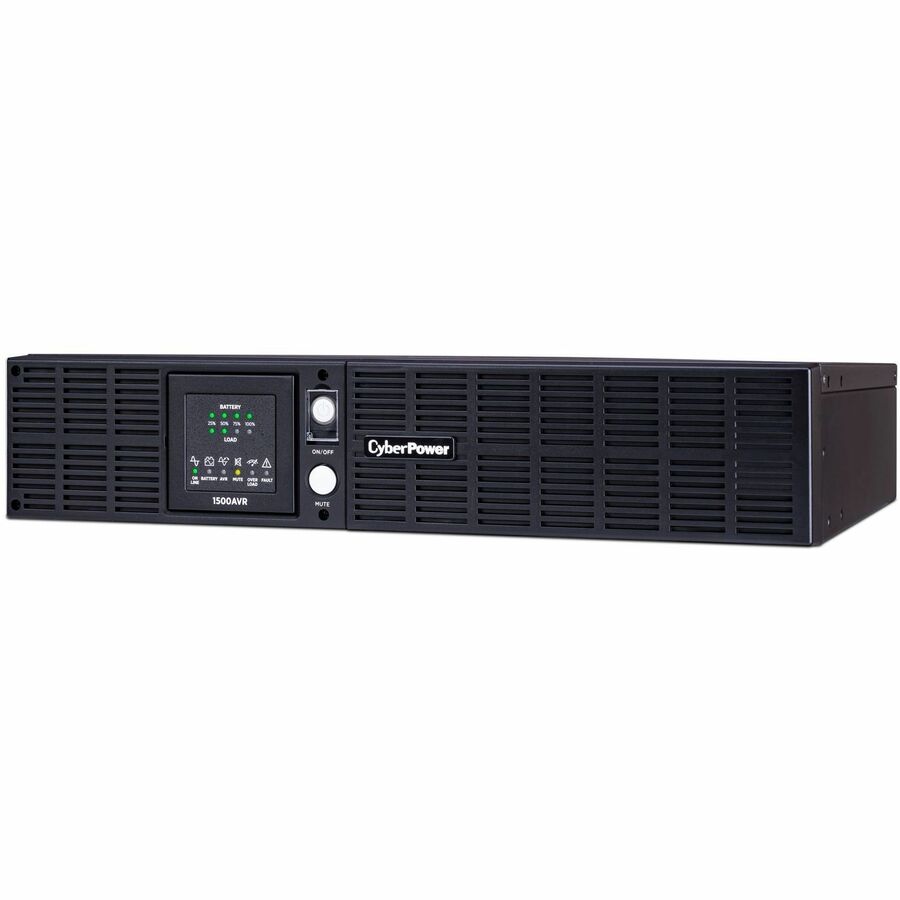

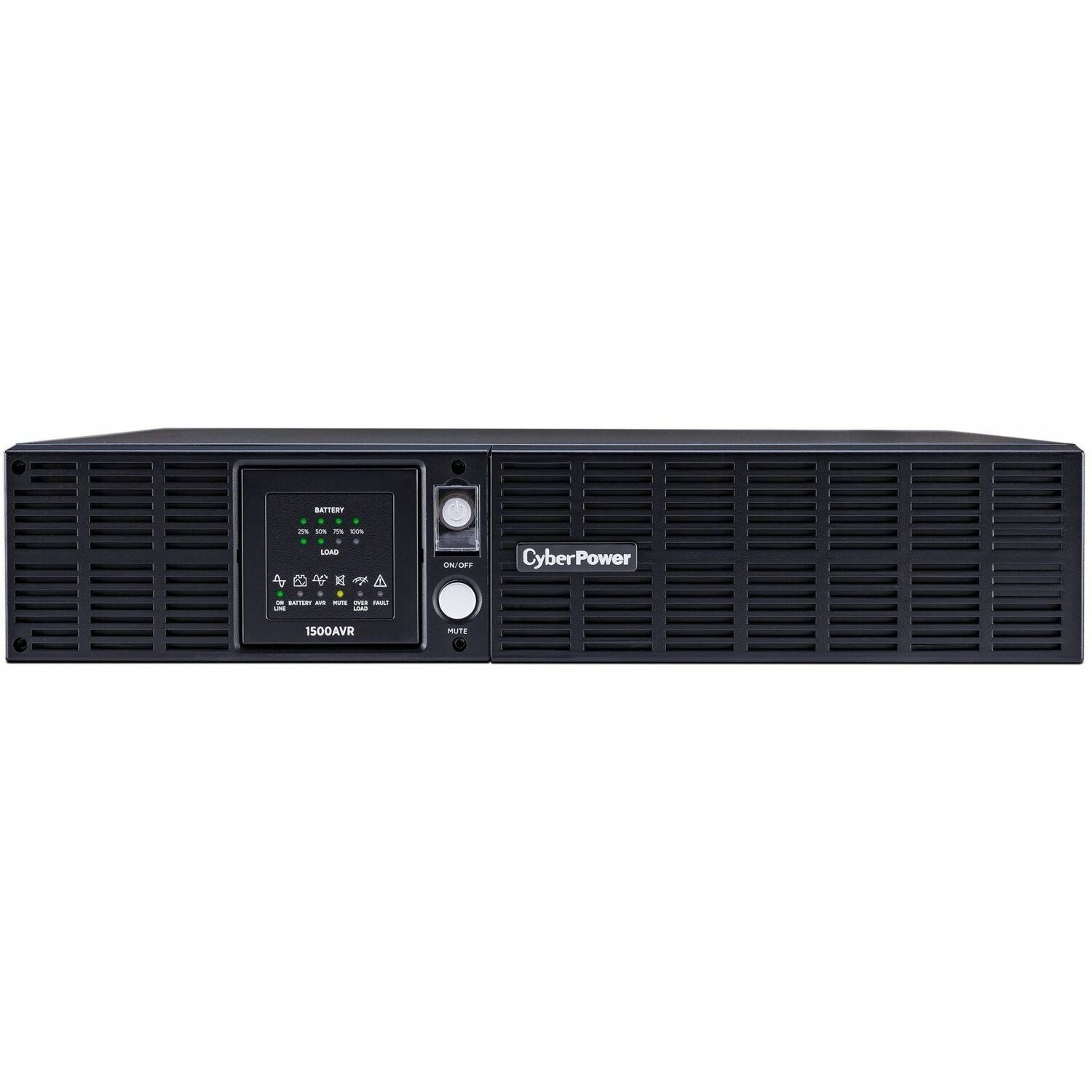

A rack/tower UPS with line interactive topology, the CyberPower Intelligent LCD CPS1500AVR provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The CPS1500AVR uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CPS1500AVR comes with a three-year warranty and a ,300,000 Connected Equipment Guarantee.
General Information
- Manufacturer: CyberPower Systems, Inc
- Manufacturer Part Number: CPS1500AVR
- Brand Name: CyberPower
- Product Series: Smart App LCD UPS
- Product Model: CPS1500AVR
- Product Name: CPS1500AVR Smart App LCD UPS Systems
- Product Type: Line-interactive UPS
Technical Information
- AVR: Yes
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15R
- Receptacle Detail: 8 x NEMA 5-15R
- Number of Battery & Surge Outlets: 8
- Transfer Time: 4 ms
- Dataline Protection:
- RJ-45
- RJ-11
- Coax
- Protection Type:
- Surge
- Spike
- Overload Protection: Yes
- EMI/RFI Noise Filter: Yes
- Energy Saving: GreenPower UPS™ Bypass Technology
- Application/Usage:
- Server
- Workstation
- Network Device
- Telecommunication
- Cord Length: 10 ft
- Circuit Breaker Current Rating: 15 A
Power Description
- Load Capacity (VA): 1500 VA
- Input Voltage: 120 V AC
- Input Voltage Range: 90 V AC - 140 V AC
- Output Voltage: 120 V AC
- Input Frequency:
- 47 Hz
- 63 Hz
- Output Frequency:
- 50 Hz
- 60 Hz
- Waveform Type: Simulated Sine Wave
- Surge Energy Rating: 1840 J
- Output Power Factor: 0.6
Management
- Network Management: SNMP/HTTP Remote Monitoring
- Alarm: Battery Mode
Controls/Indicators
- Status Indicators:
- Load Level
- Battery Level
- Power On
- Online
- Using Battery
- Replace Battery
- AVR
- Mute
- Overload
- Fault
- Wiring Fault

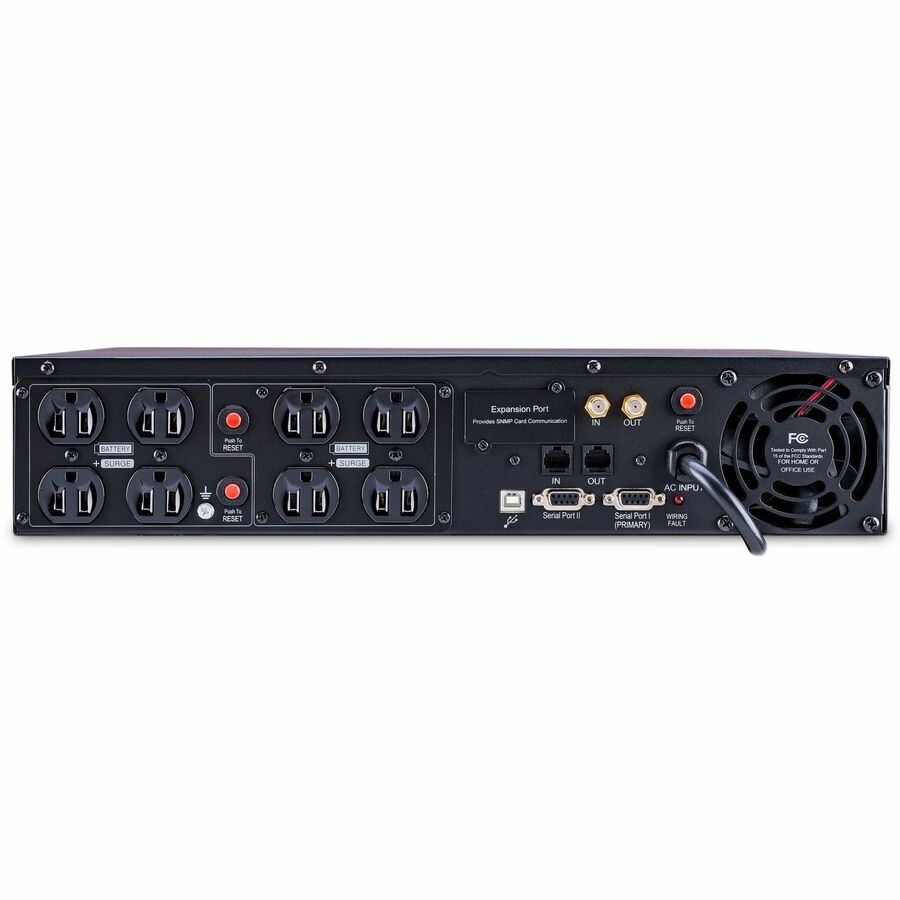

Interfaces/Ports
- Serial Port: Yes
- Network (RJ-45): Yes
- USB: Yes
- USB (HID Compliant) Port: Yes
Battery Information
- DC System Voltage: 12 V DC
- Number of Batteries: 4
- Battery Characteristics: Sealed
- Battery Chemistry: Lead Acid
- Battery Capacity: 7000 mAh
- Backup/Run Time (Full Load): 7 Minute
- Backup/Run Time (Half Load): 18 Minute
- Typical Battery Recharge Time: 8 Hour
- Replaceable Battery: Yes
Environmental Conditions
- Maximum Operating Temperature: 104°F (40°C)
- Storage Temperature: 5°F (-15°C) - 113°F (45°C)
- Maximum Operating Elevation: 10000 ft
- Maximum Storage Elevation: 50000 ft
- Storage Relative Humidity: 0% - 95%
Physical Characteristics
- Product Color: Black

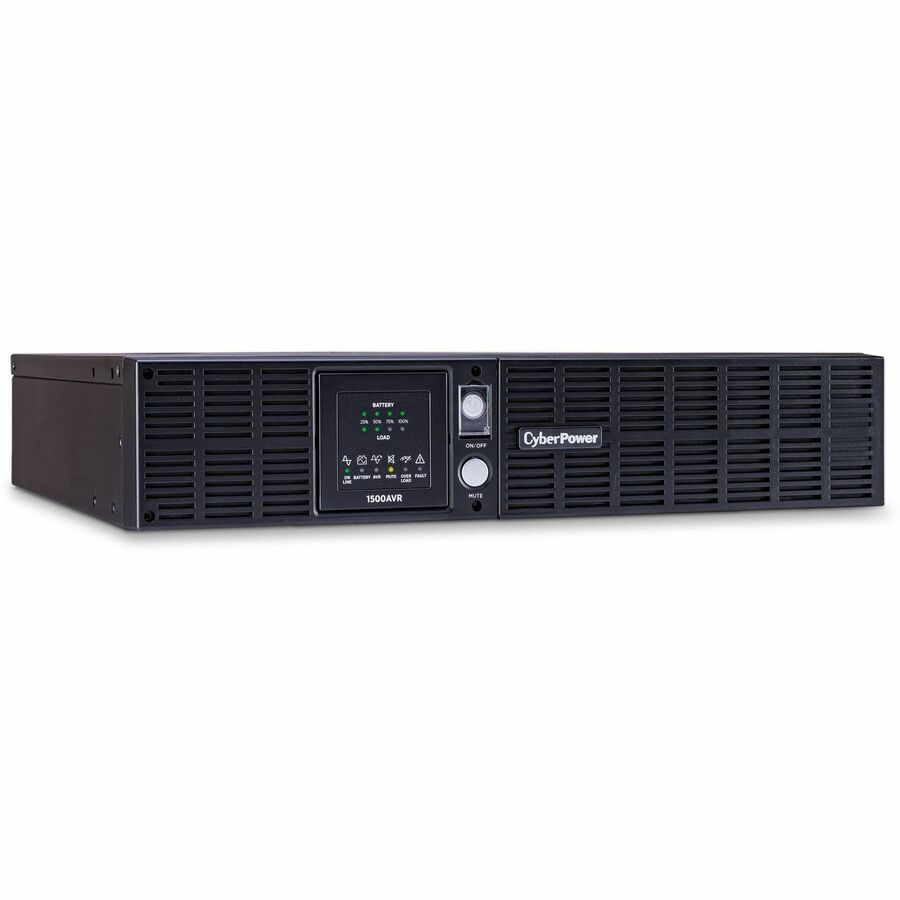

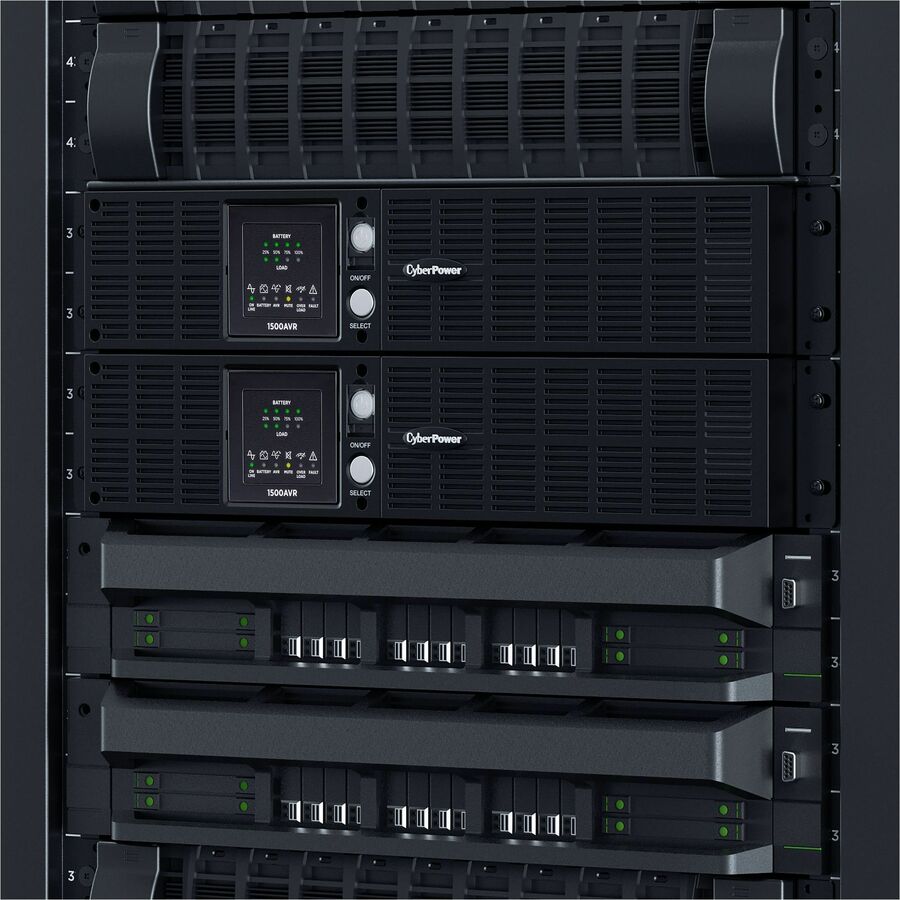

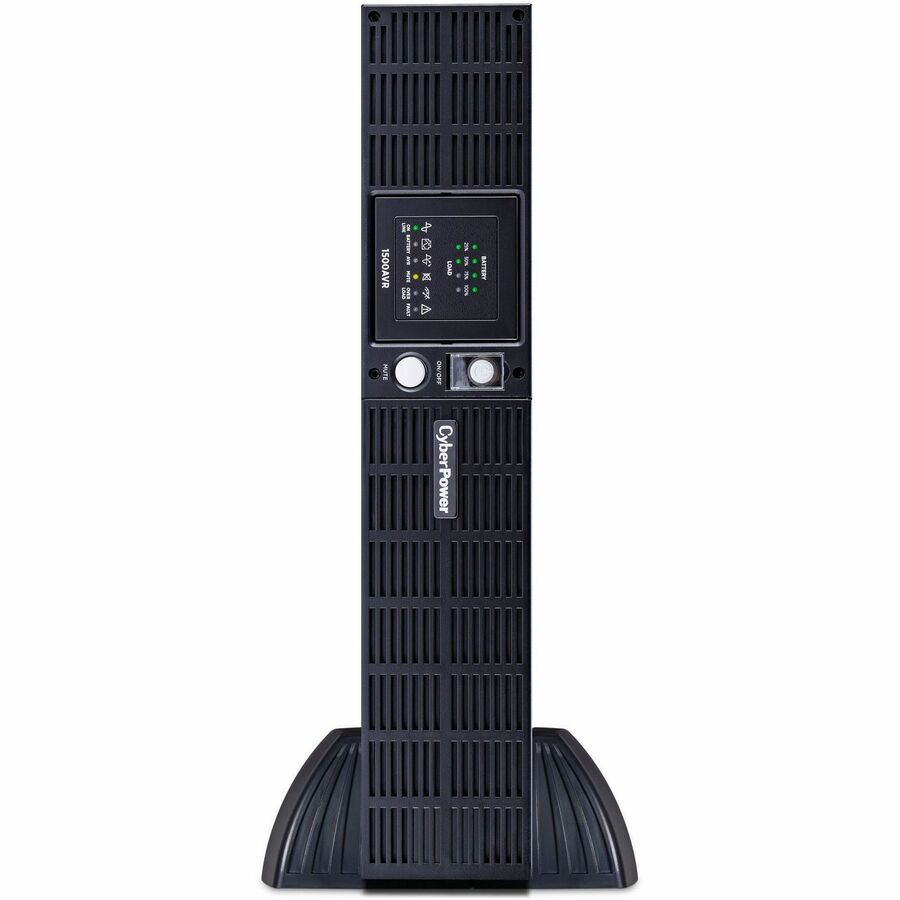

- Form Factor: Rack/Tower

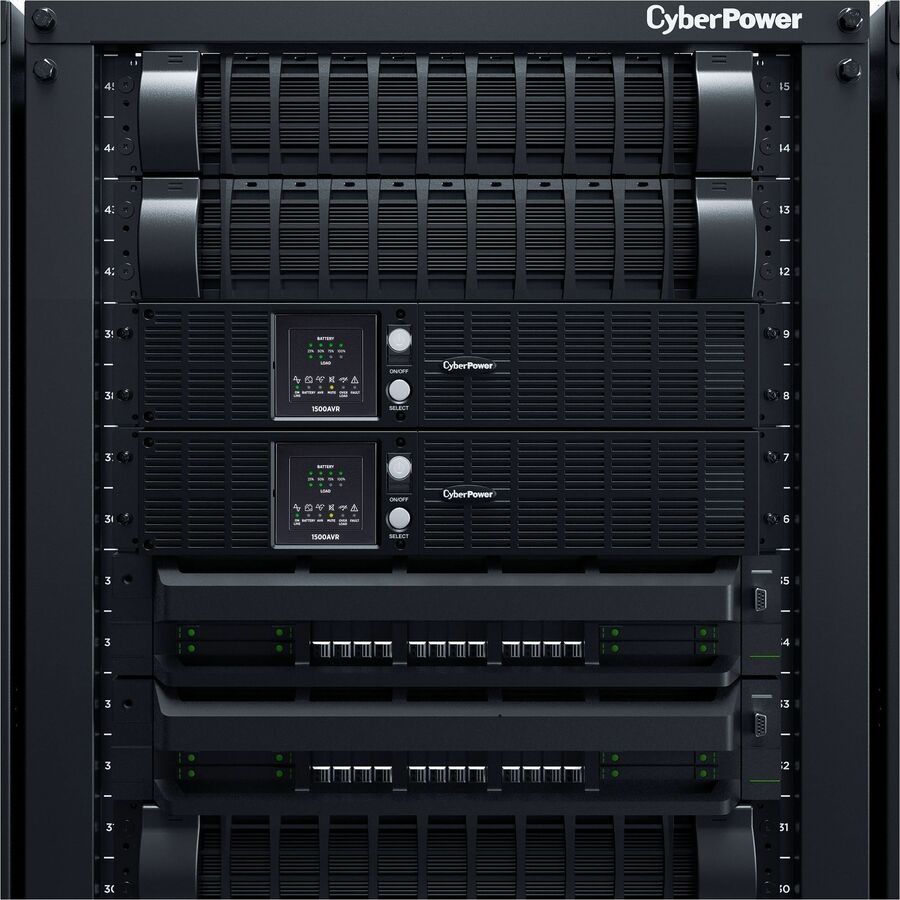

- Rack Height: 2U

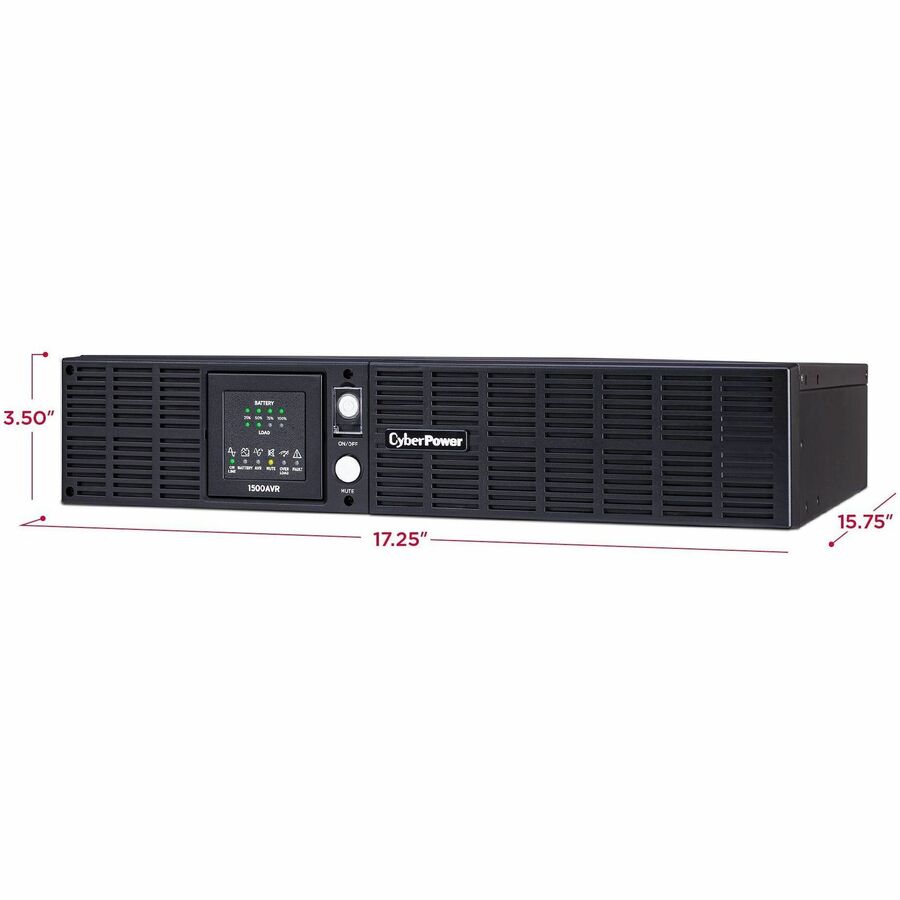

- Height: 3.5"
- Width: 17.3"
- Depth: 15.7"
- Weight (Approximate): 50.50 lb
Miscellaneous
- Package Contents:
- Smart App AVR CPS1500AVR 1500VA UPS
- Rack Mount Kit
- User Manual
- Power Management Software
- Warranty Card
- Serial Cable
- Serial-to-USB Adapter
- Software Included: PowerPanel Business Edition
- Energy Star: No
- Country of Origin: China
- Environmentally Friendly: Yes
Warranty
- Limited Warranty: 3 Year
- Additional Warranty Information:
- CyberPower stands behind its products by offering an industry leading 3-year warranty
- CyberPower also has a #1 rated technical support team that will assist you with product, installation, or warranty concerns --- Free of charge
- Connected Equipment Guarantee of
- 300,000
