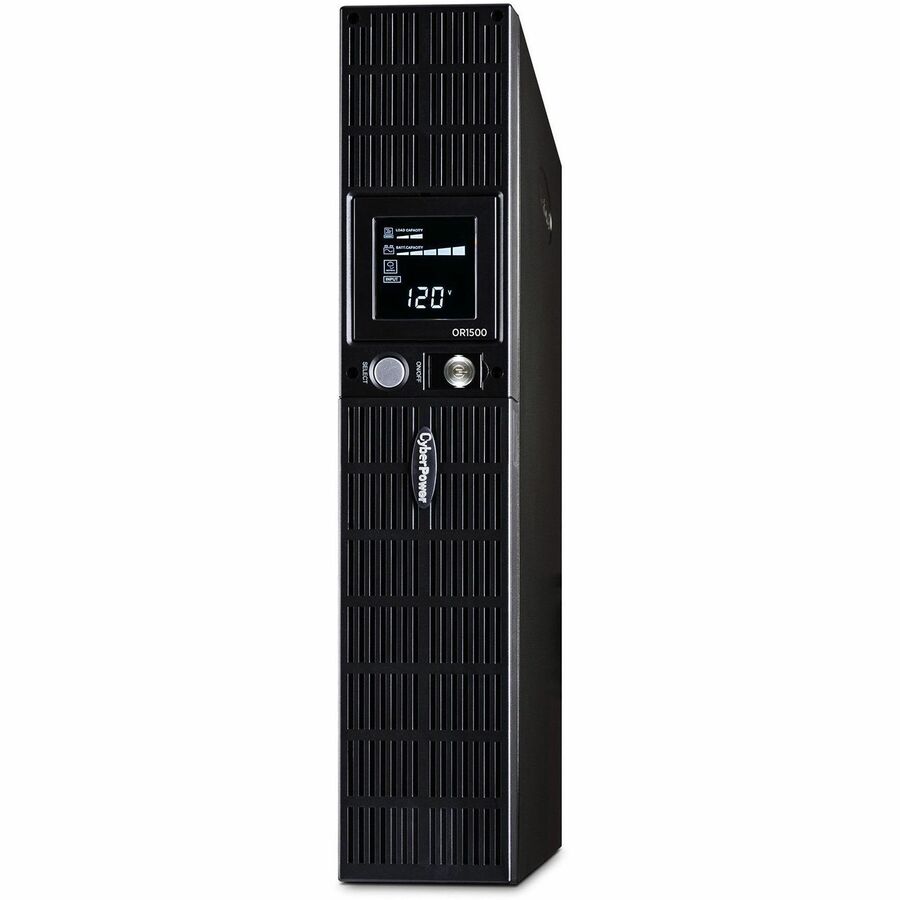

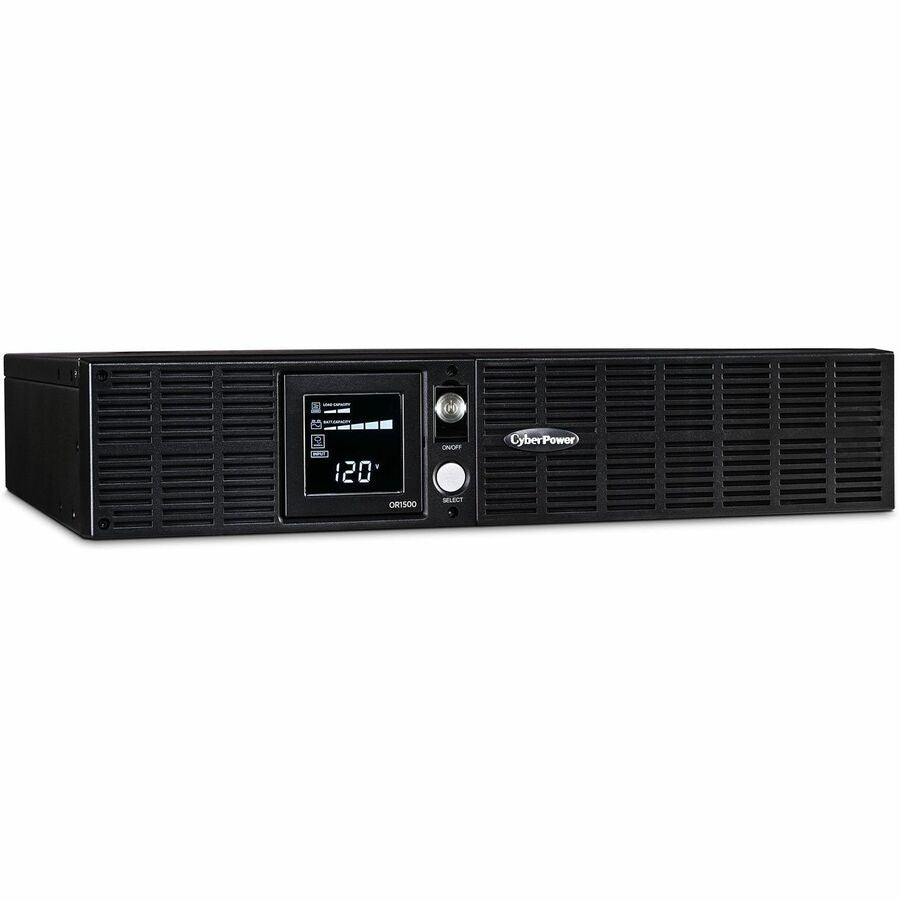

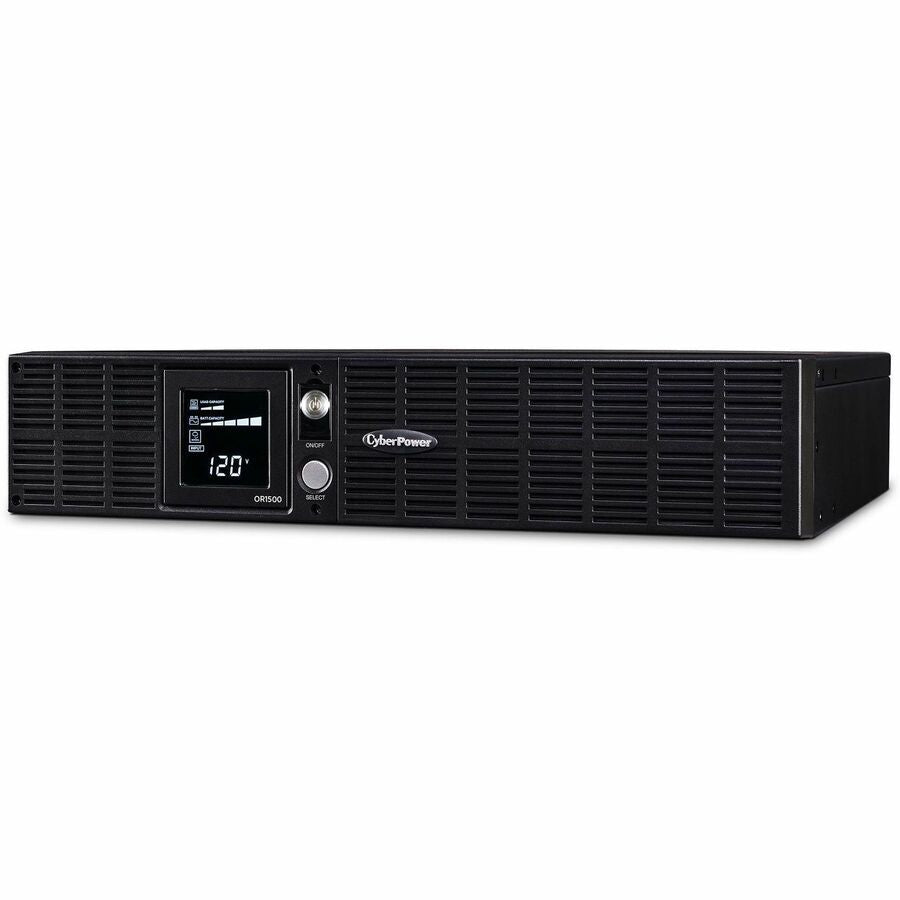

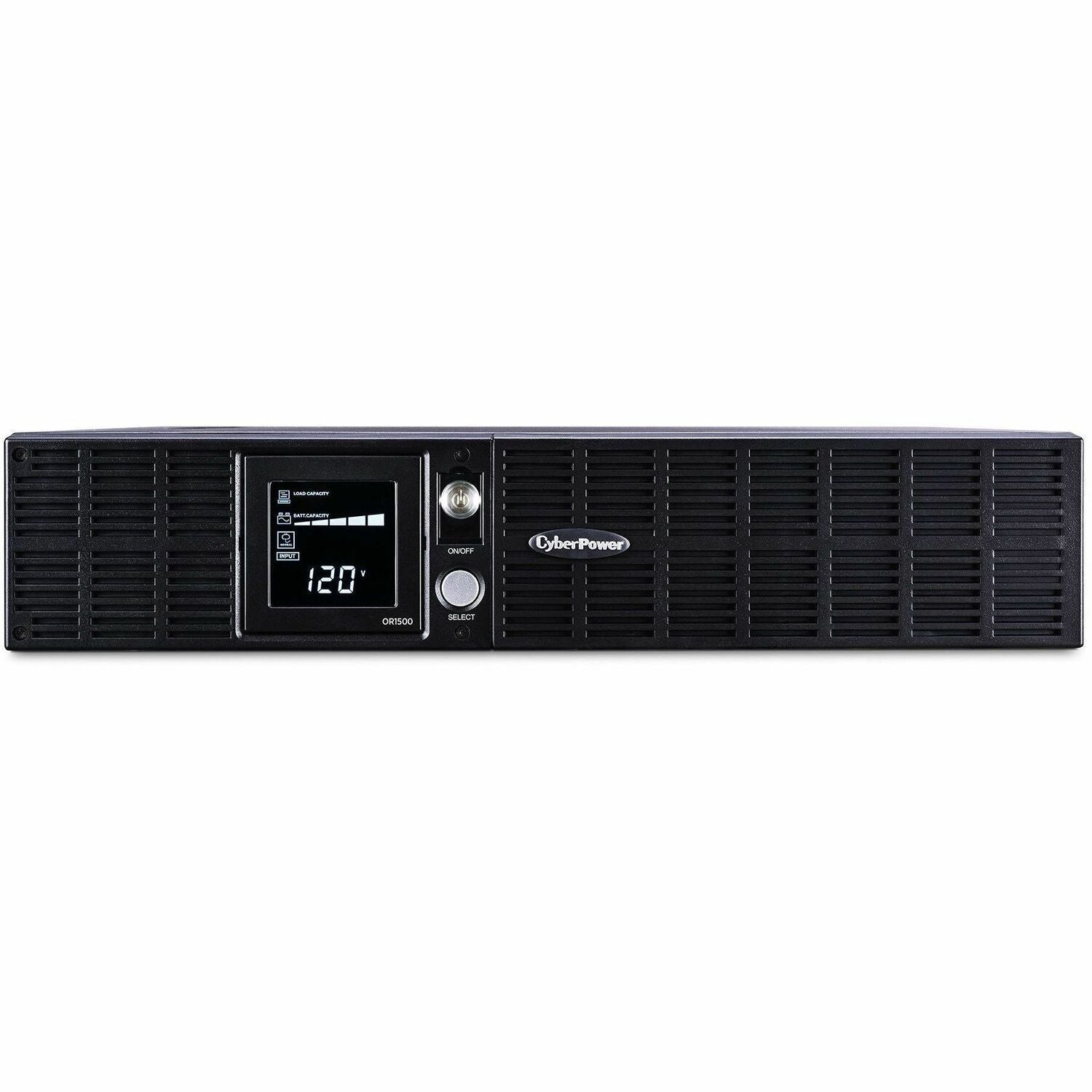

CyberPower OR1500LCDRT2U Smart App LCD UPS Systems - OR1500LCDRT2U
Key Features
- Capacity: 1500 VA / 900 W
- Communication: USB, Serial, SNMP
- ENERGY STAR® qualified: Yes
- Management software: PowerPanel® Business Edition
- Outlet types: 8 × NEMA 5-15R
- Output: 120 VAC ± 10%
- Plug type & cord: NEMA 5-15P, 10 ft. cord
- Remote management: Yes
- Topology: Line Interactive
- Warranty: 3 year
- Waveform: Simulated Sine Wave
Product Overview
A rack/tower UPS with line interactive topology, the CyberPower Smart App LCD OR1500LCDRT2U provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR1500LCDRT2U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The OR1500LCDRT2U comes with a three-year warranty and a ,300,000 Connected Equipment Guarantee.
General Information
- Manufacturer: CyberPower Systems, Inc
- Manufacturer Part Number: OR1500LCDRT2U
- Brand Name: CyberPower
- Product Series: Smart App LCD UPS
- Product Model: OR1500LCDRT2U
- Product Name: OR1500LCDRT2U Smart App LCD UPS Systems
- Product Type: Line-interactive UPS
Technical Information
- AVR: Yes
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15R
- Receptacle Detail: 8 x NEMA 5-15R
- Number of Battery & Surge Outlets: 8
- Transfer Time: 4 ms
- Dataline Protection:
- RJ-11
- RJ-45
- RG-6
- Overload Protection: Yes
- EMI/RFI Noise Filter: Yes
- Energy Saving: GreenPower UPS™ Bypass Technology
- Application/Usage:
- Server
- Workstation
- Network Device
- Telecommunication
- Cord Length: 10 ft
- Circuit Breaker Current Rating: 15 A
Power Description
- Load Capacity (VA): 1500 VA
- Load Capacity (Watt): 900 W
- Input Voltage: 120 V AC
- Output Voltage: 120 V AC
- Input Frequency:
- 47 Hz
- 63 Hz
- Output Frequency:
- 50 Hz
- 60 Hz
- Waveform Type: Simulated Sine Wave
- Surge Energy Rating: 1840 J
- Output Power Factor: 0.6
Display & Graphics
- Display: LCD
Management
- Network Management: SNMP/HTTP Remote Monitoring
- Alarm:
- Battery Mode
- Low Battery
- On Battery
- Overload
- UPS Fault
- Battery Missing
Controls/Indicators
- Status Indicators:
- Power On
- Wiring Fault

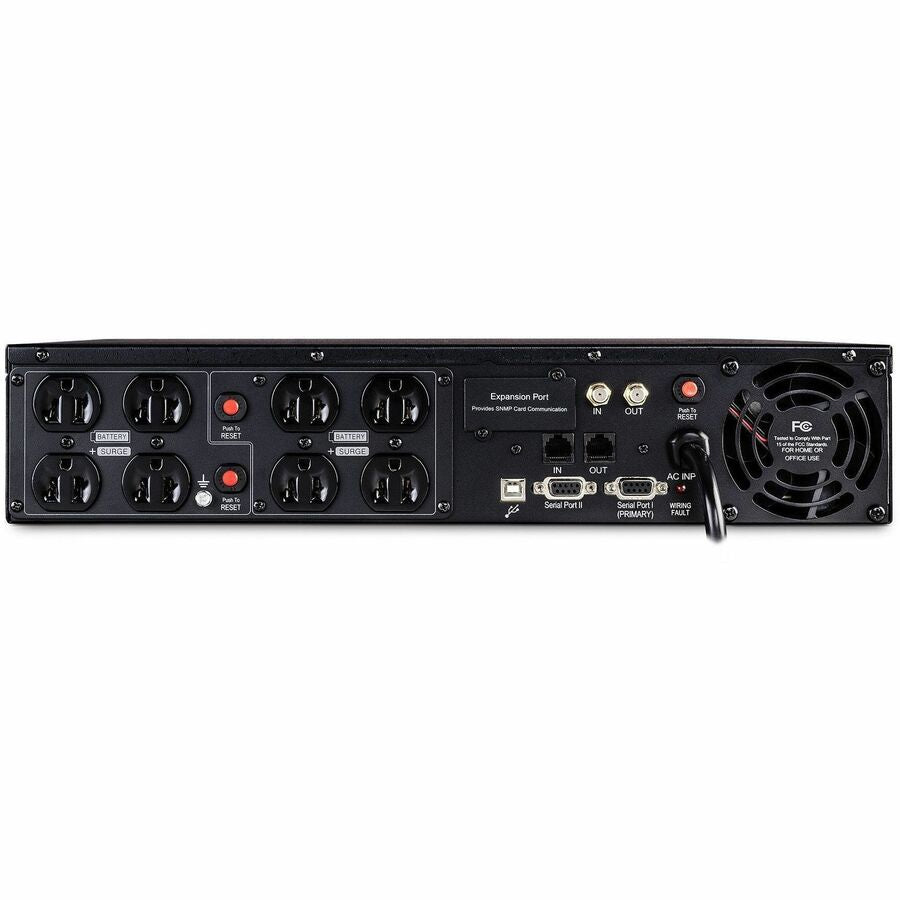

Interfaces/Ports
- Serial Port: Yes
- USB: Yes
- USB (HID Compliant) Port: Yes
Battery Information
- Number of Batteries: 4
- Battery Characteristics: Sealed
- Battery Chemistry: Lead Acid
- Battery Size: 12V
- Battery Capacity: 7000 mAh
- Backup/Run Time (Full Load): 6 Minute
- Backup/Run Time (Half Load): 18 Minute
- Typical Battery Recharge Time: 8 Hour
- Replaceable Battery: Yes
Environmental Conditions
- Maximum Operating Temperature: 95°F (35°C)
- Storage Temperature: 5°F (-15°C) - 113°F (45°C)
Physical Characteristics
- Form Factor: Rack/Tower
- Rack Height: 2U
- Height: 3.5"
- Width: 17.3"
- Depth: 15.7"
- Weight (Approximate): 48.40 lb
Miscellaneous
- Package Contents:
- Smart App Intelligent LCD OR1500LCDRT2U 1500VA UPS LCD RT
- PowerPanel Business Edition Software CD
- User Manual
- USB Cable
- Serial Cable
- Registration Card
- Software Included: PowerPanel Business Edition Software
- Energy Star: Yes
- Country of Origin: Philippines
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
