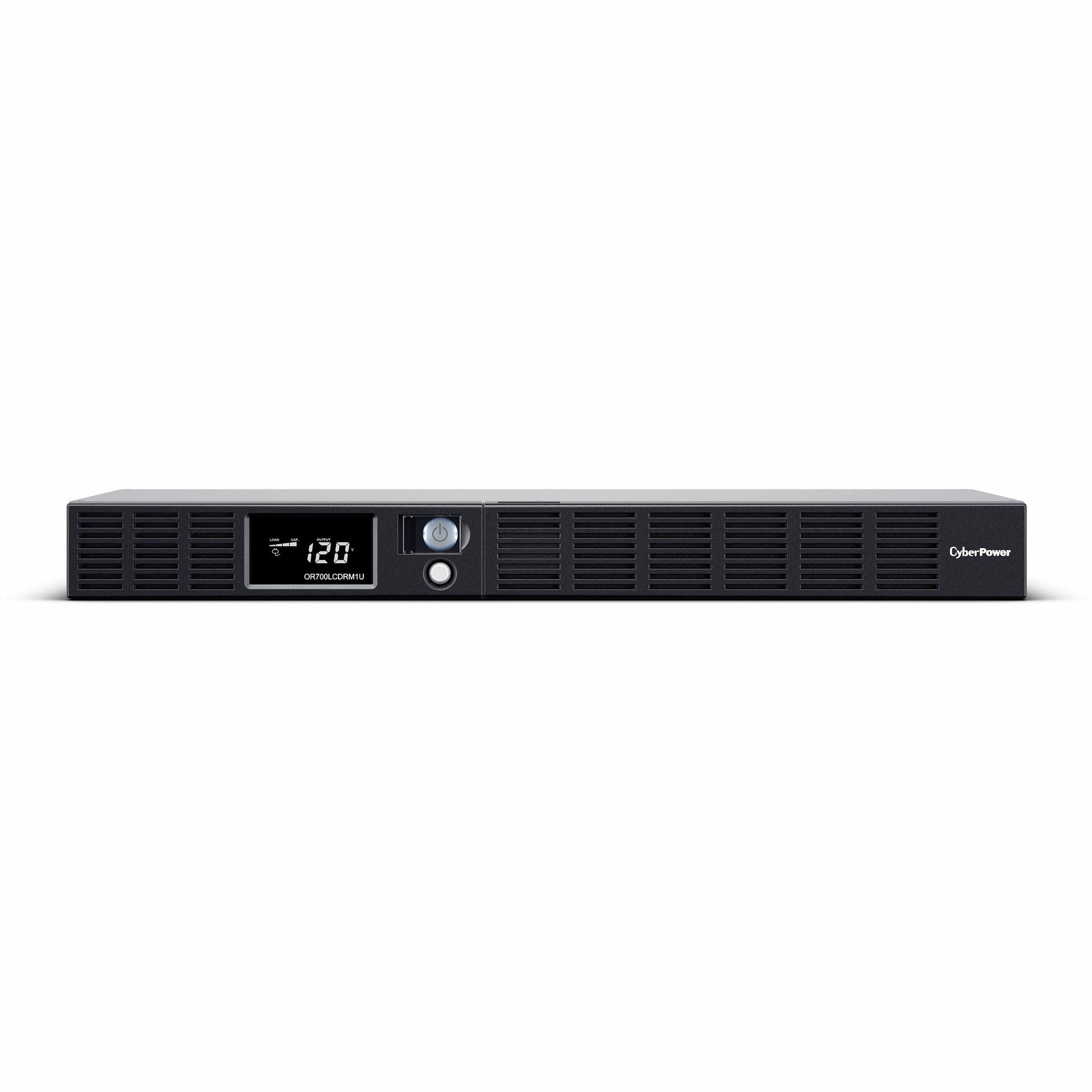

CyberPower OR700LCDRM1U Smart App LCD UPS Systems - OR700LCDRM1U
Key Features
- 120 VAC ± 10%
- 3 year
- 6 × NEMA 5-15R
- 700 VA / 400 W
- Capacity:
- Communication:
- ENERGY STAR® certified:
- Line Interactive
- Management software:
- NEMA 5-15P, 10 ft. cord
- Outlet types:
- Output:
- Plug type & cord:
- PowerPanel® Business
- Remote management:
- Simulated Sine Wave
- Topology:
- USB, Serial, SNMP
- Warranty:
- Waveform:
- Yes
- Yes, with optional RMCARD205
Product Overview

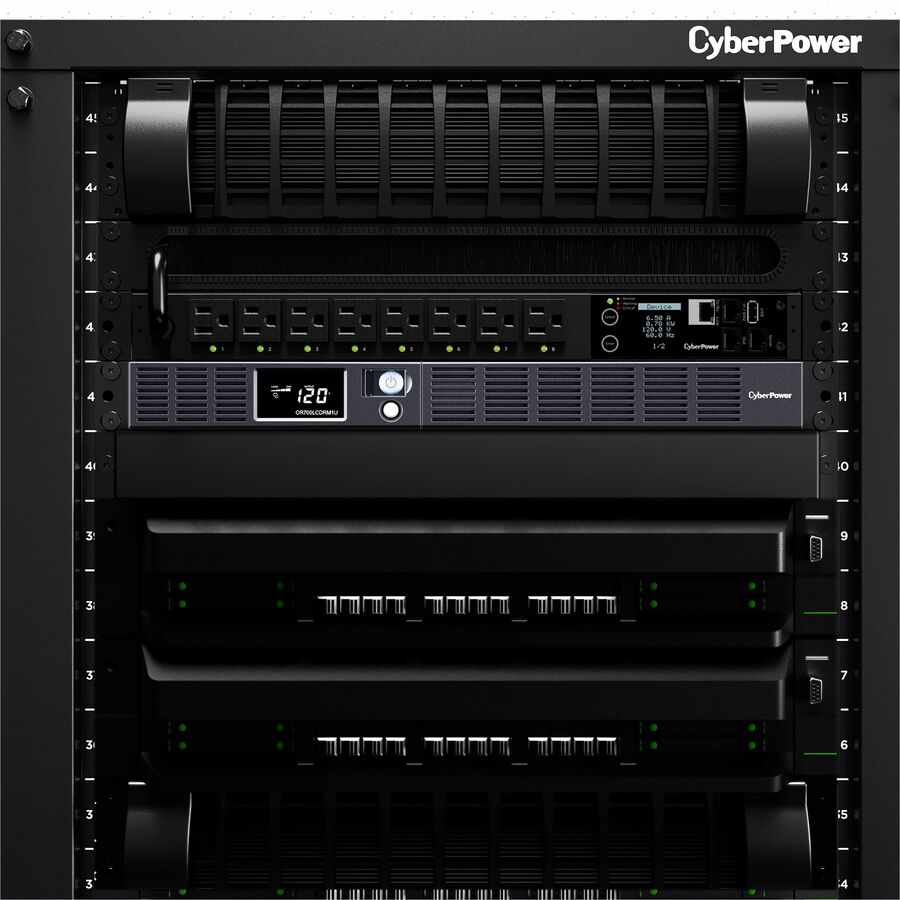

A rackmount UPS with line interactive topology, the CyberPower Smart App LCD OR700LCDRM1U provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR700LCDRM1U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The OR700LCDRM1U comes with a three-year warranty and a ,300,000 Connected Equipment Guarantee.
General Information
- Manufacturer: CyberPower Systems, Inc
- Manufacturer Part Number: OR700LCDRM1U
- Brand Name: CyberPower
- Product Series: Smart App LCD UPS
- Product Model: OR700LCDRM1U
- Product Name: OR700LCDRM1U Smart App LCD UPS Systems
- Product Type: Line-interactive UPS
Technical Information
- AVR: Yes
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15R

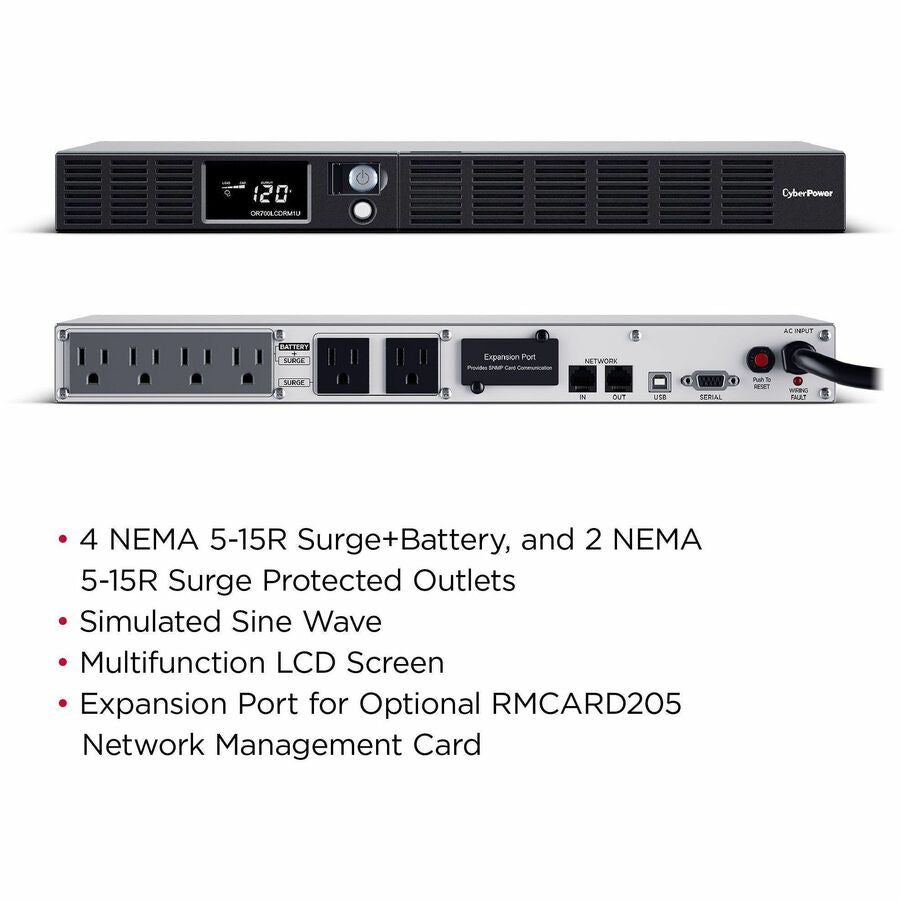

- Receptacle Detail: 6 x NEMA 5-15R
- Number of Battery & Surge Outlets: 4
- Number of Surge-only Outlets: 2
- Transfer Time: 8 ms
- Dataline Protection: RJ-45
- Overload Protection: Yes
- EMI/RFI Noise Filter: Yes
- Energy Saving: GreenPower UPS™ Bypass Technology
- Application/Usage:
- Server
- Workstation
- Network Device
- Telecommunication
Power Description
- Load Capacity (VA): 700 VA
- Input Voltage: 120 V AC
- Input Voltage Range: 90 V AC - 140 V AC
- Output Voltage: 120 V AC
- Input Frequency: 63 Hz
- Waveform Type: Simulated Sine Wave
- Surge Energy Rating: 1150 J
Management
- Alarm: Battery Mode
Controls/Indicators
- Status Indicators:
On Unit:
- Power On
- Wiring Fault
LCD Panel:
- Input Voltage
- Output Voltage
- Battery Capacity
- Load Level
- Runtime
- On Battery
- Overload
- Silent Mode

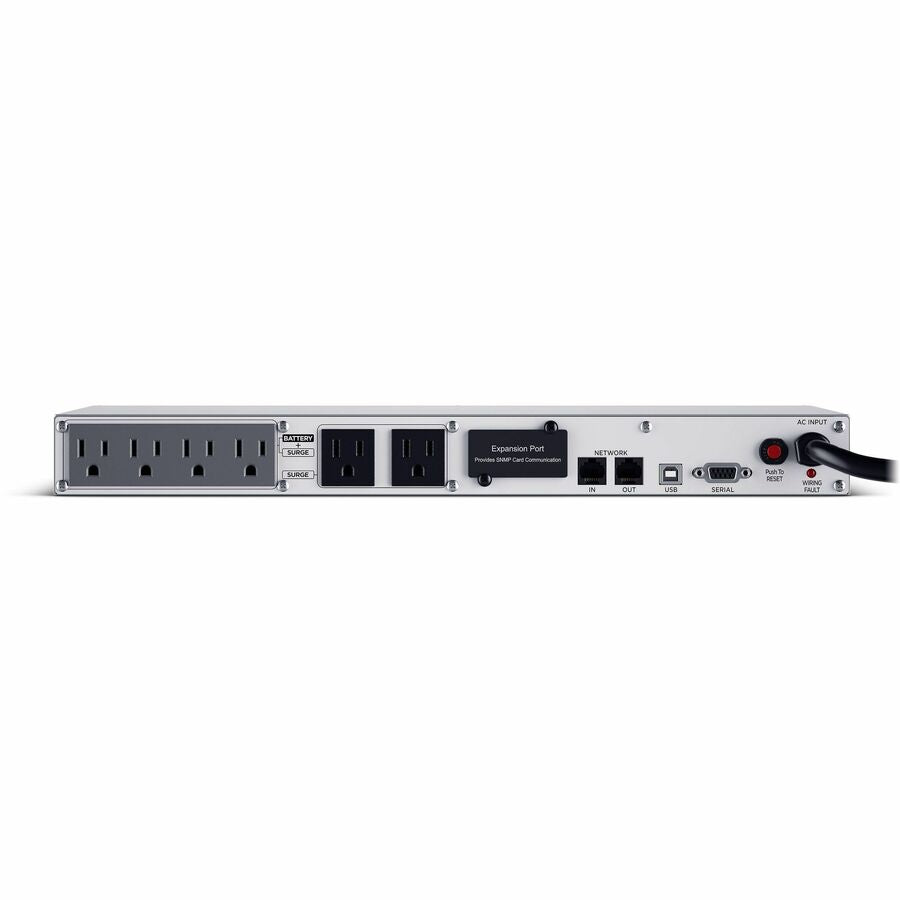

Interfaces/Ports
- Serial Port: Yes
- USB (HID Compliant) Port: Yes
Battery Information
- Number of Batteries: 2
- Battery Characteristics: Maintenance-free
- Battery Chemistry: Lead Acid
- Battery Size: 6V
- Battery Capacity: 8000 mAh

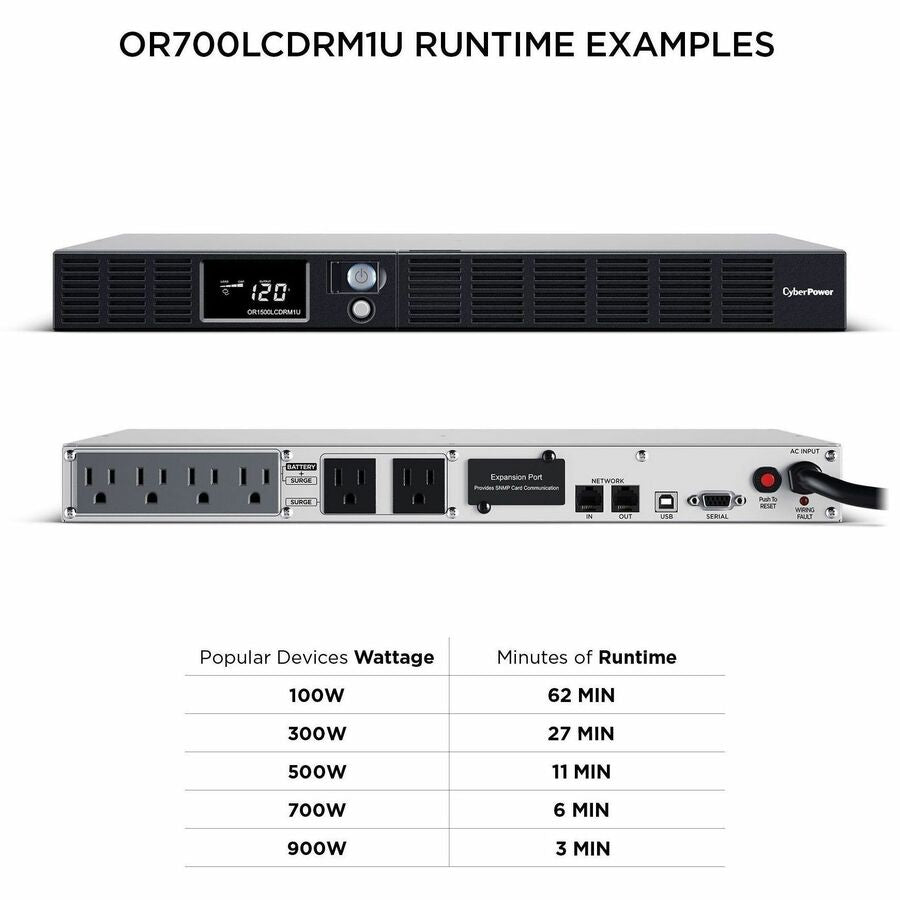

- Backup/Run Time (Full Load): 3 Minute
- Backup/Run Time (Half Load): 11 Minute
- Typical Battery Recharge Time: 8 Hour
- Replaceable Battery: Yes
Environmental Conditions
- Maximum Operating Temperature: 104°F (40°C)
- Maximum Operating Elevation: 10000 ft
- Maximum Storage Elevation: 50000 ft
- Storage Relative Humidity: 0% - 95%
Physical Characteristics
- Product Color: Black

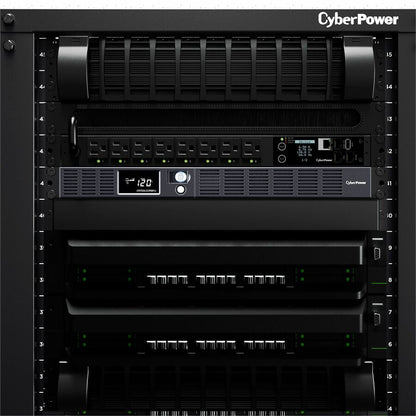

- Form Factor: Rack-mountable
- Rack Height: 1U

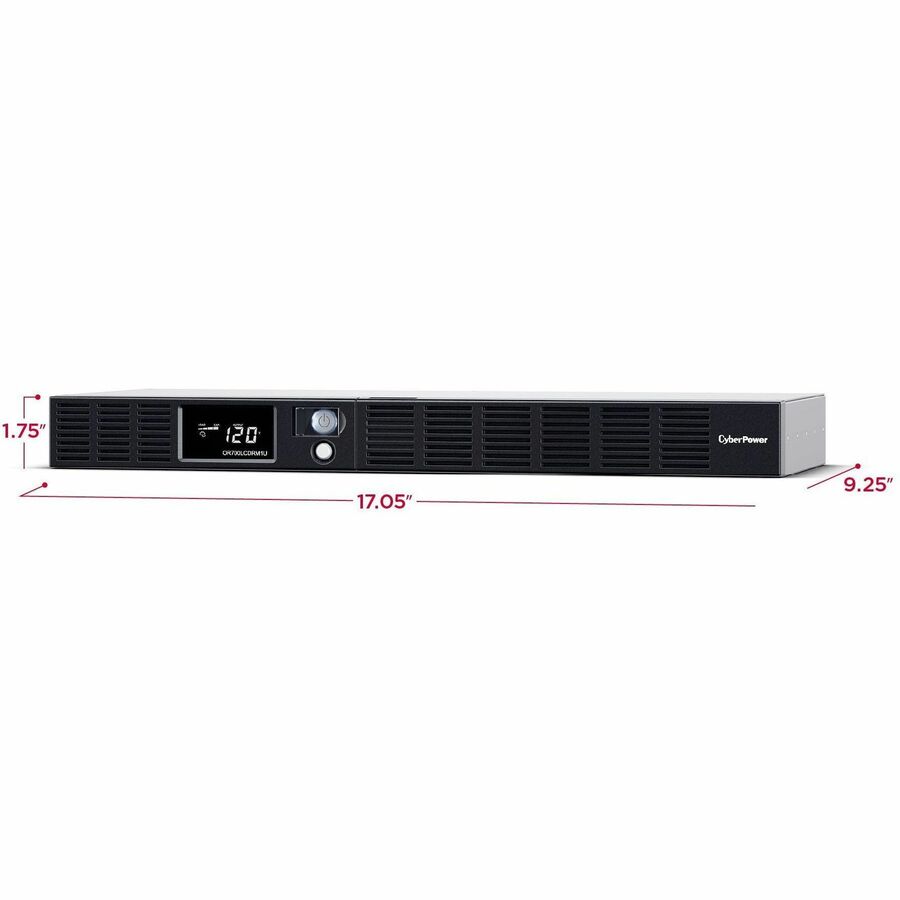

- Height: 1.8"
- Width: 17.1"
- Depth: 9.3"
- Weight (Approximate): 18.50 lb
Miscellaneous
- Package Contents:
- Smart App Intelligent LCD OR700LCDRM1U 700VA UPS
- Rack Ears (2)
- User Manual
- Power Management Software
- Warranty Card
- Serial Cable
- Phone Cable
- USB Cable
- Software Included: PowerPanel® Business
- Energy Star: Yes
- Country of Origin: China
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
- Additional Warranty Information:
CyberPower stands behind its products by offering an industry leading 3-year warranty. CyberPower also has a #1 rated technical support team that will assist you with product, installation, or warranty concerns --- Free of charge.
