CyberPower PDU41004 Single Phase 100 - 240 VAC 15A Switched PDU - PDU41004
Key Features
- Amps: 15A (Derated to 12A)
- Automated notifications: Email, SMS Text, and SNMP Trap
- Frequency: 50Hz/60Hz
- Outlets: 8 IEC-320 C13
- Phase: Single
- Plug type: IEC-320 C14
- Size: 1U Rackmount
- Volts: 100 - 240 V
- Warranty: 3 year
Product Overview

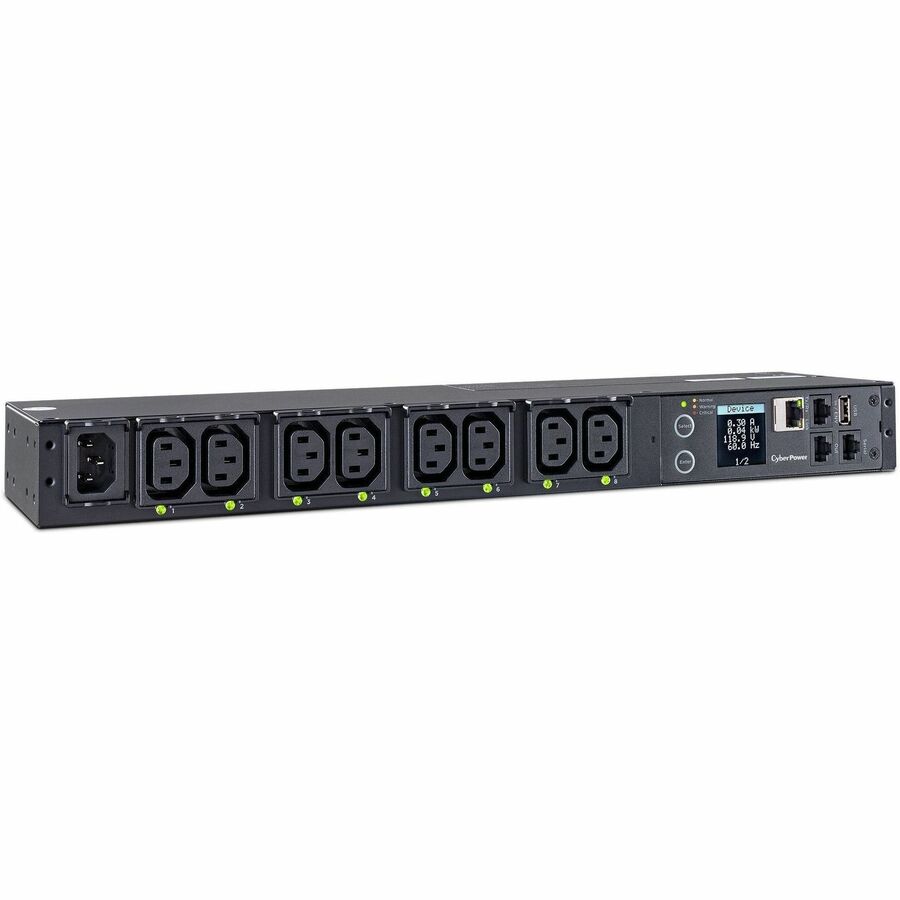

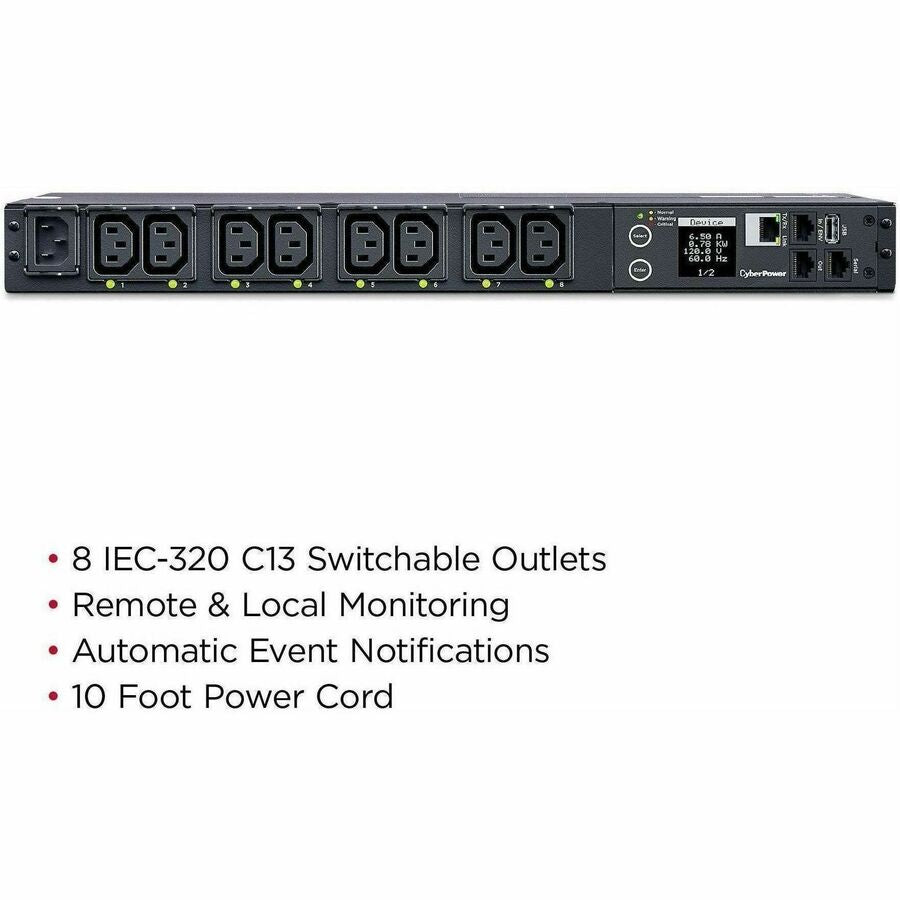

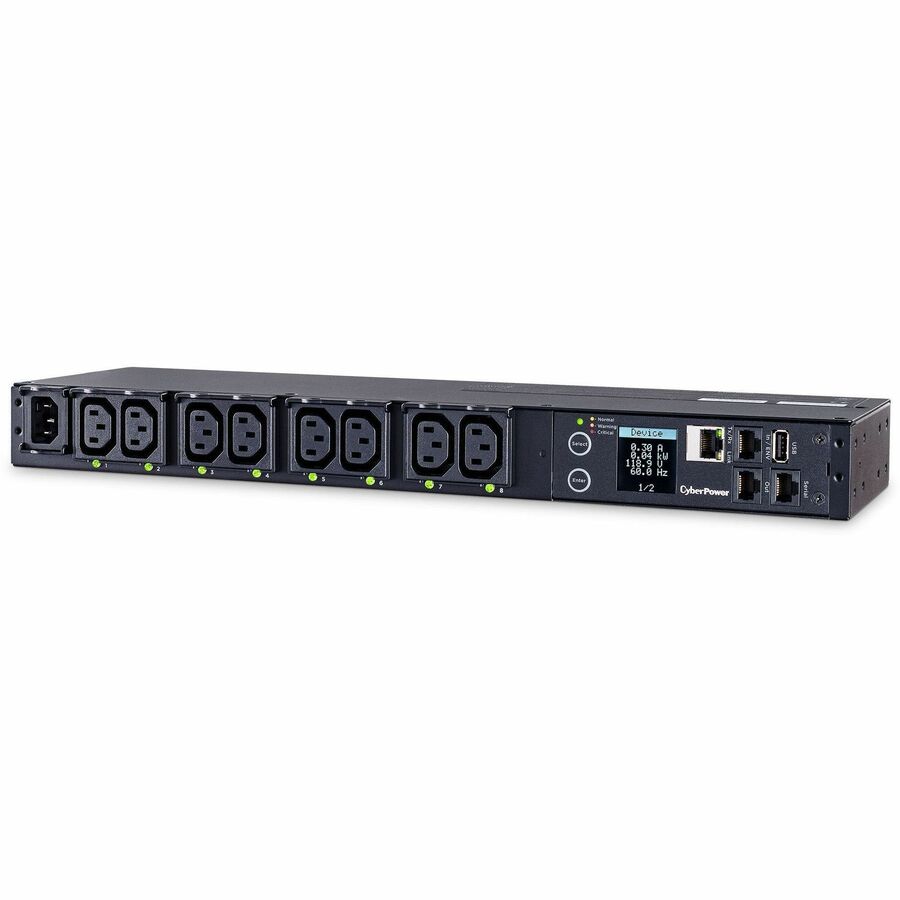

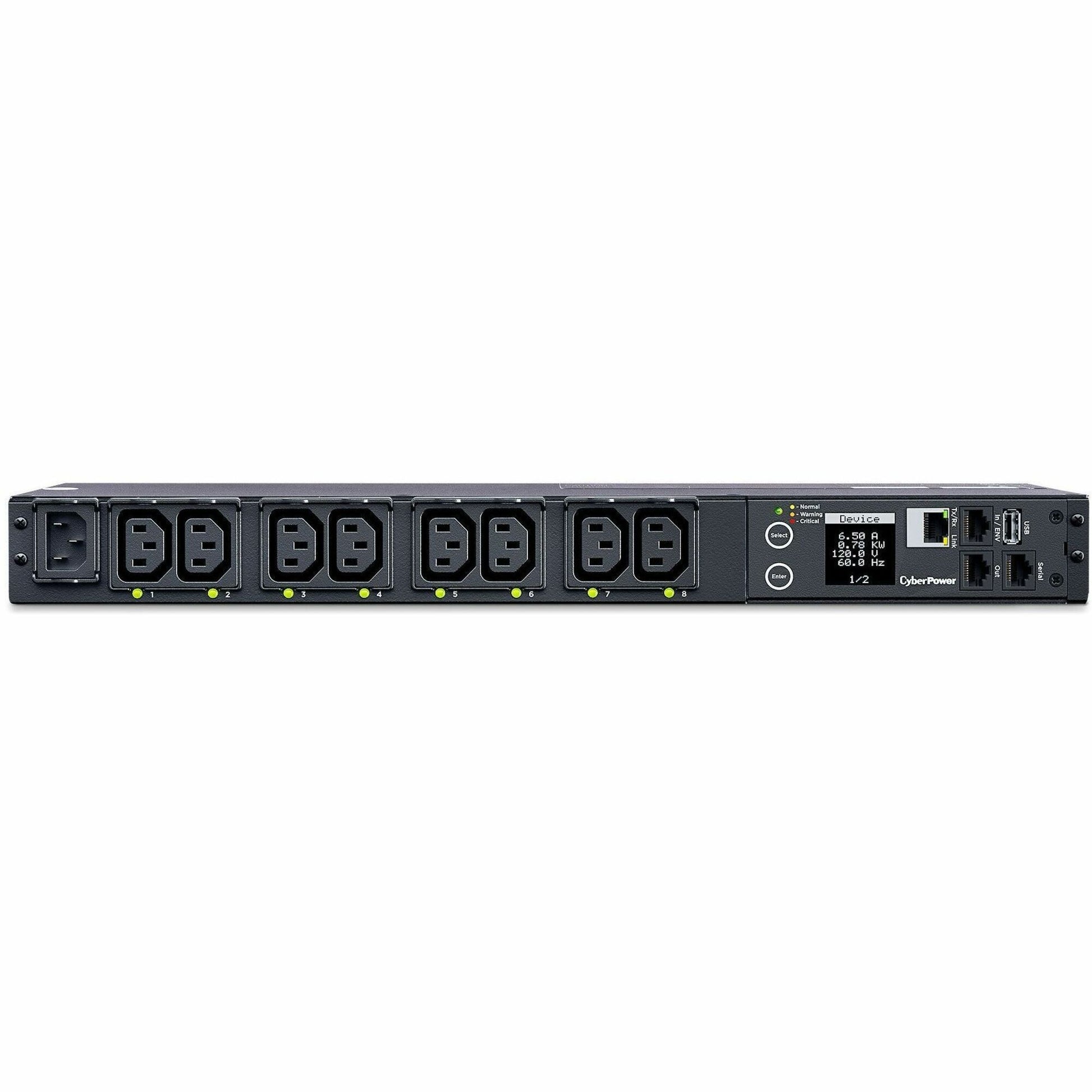

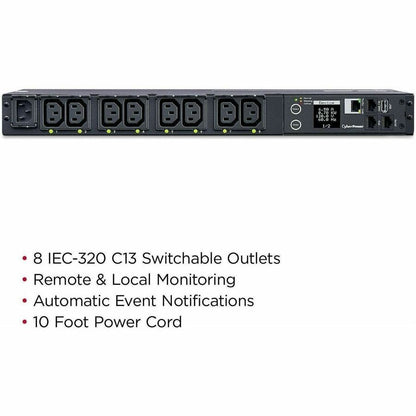

The CyberPower PDU41004, a 1U rackmount switched power distribution unit (PDU), provides 100-240V 15A output via 8 IEC-320 C13 receptacles from a single IEC-320 C14 input power plug. The switched outlet receptacles can be managed over the network by using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, or locally from the Power Control display. The PDU41004 offers outlets that can be turned on, turned off, or recycled on demand. Outlets can be programmed to address a number of needs including remote rebooting of locked equipment, load shedding, power sequencing, and locking out unauthorized loads.
With a three-year limited warranty, you can trust CyberPower's commitment to high quality.
General Information
- Manufacturer: CyberPower Systems, Inc
- Manufacturer Part Number: PDU41004
- Brand Name: CyberPower
- Product Series: Switched PDU
- Product Model: PDU41004
- Product Name: PDU41004
- Product Type: PDU
Technical Information
- PDU Type: Switched
- Phase: Single Phase
- Plug/Connector Type: IEC 60320 C14
- Plug/Connector Detail: 1 x IEC 60320 C14
- Receptacle Type: IEC 60320 C13
- Receptacle Detail: 8 x IEC 60320 C13
- Locking Receptacles: Cord Retention Tray
- Features:
- LCD Display
- LED Status Indicator
Power Description
- Input Voltage:
- 120 V AC
- 230 V AC
- Input Voltage Range: 100 V AC - 240 V AC
- Output Voltage:
- 120 V AC
- 230 V AC
- Output Voltage Range: 100 V AC - 240 V AC
- Input Current: 15 A
- Input Frequency: 60 Hz
Management
- Management:
- IPv4
- TCP/IP
- UDP
- SNMPv1
- HTTP
- NTP
- DNS
- Telnet
- DHCP
- SMTP
- FTP
- IPv6
- SNMPv3
- HTTPs
- SSH
- SSL
- TLS
- LDAP(S)
- RADIUS
- Syslog
- CLI
- Windows AD
Interfaces/Ports
- Network (RJ-45): Yes
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Product Material: Metal
- Mounting Orientation: Horizontal/Vertical
- Mount Type: Rack-mountable
- Form Factor: Rack
- Rack Height: 1U
- Cord Length: 10 ft

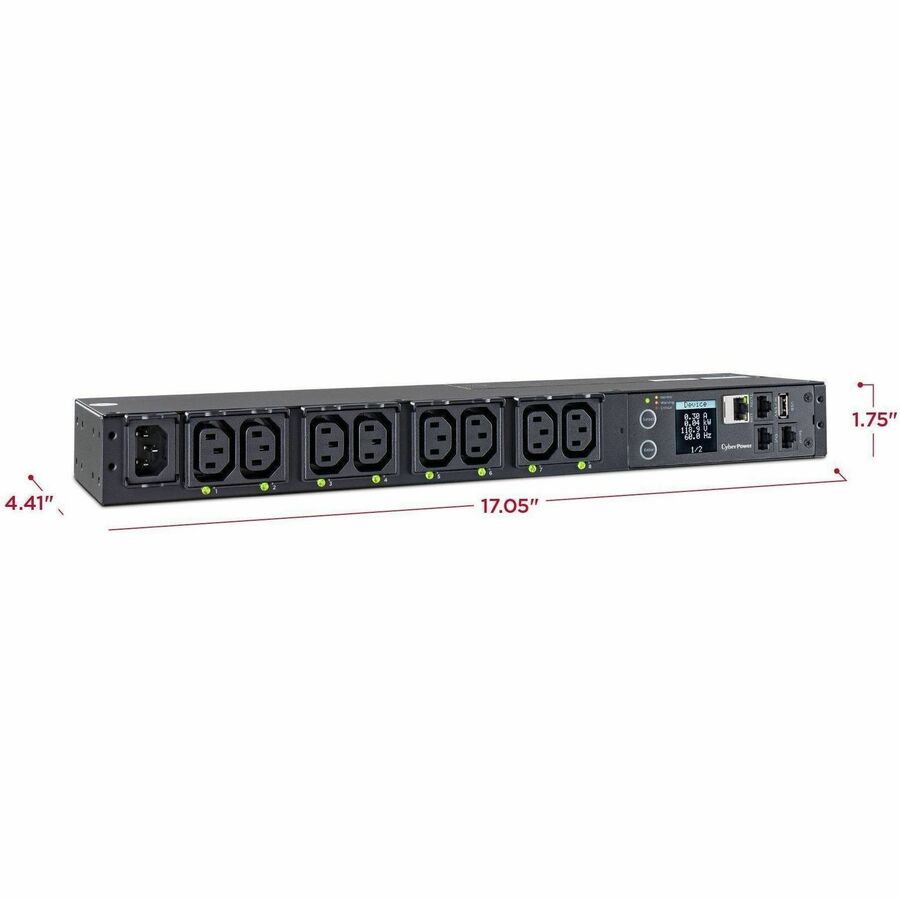

- Height: 1.8"
- Width: 4.4"
- Depth: 17.1"
- Weight (Approximate): 4.60 lb
Environmental Conditions
- Minimum Operating Temperature: 32°F (0°C)
- Maximum Operating Temperature: 140°F (60°C)
- Minimum Storage Temperature: 5°F (-15°C)
- Maximum Storage Temperature: 149°F (65°C)
Miscellaneous
- Energy Star: No
- Country of Origin: China
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
- UL Listed: Yes
Warranty
- Limited Warranty: 3 Year
