Dell Pro Dock WD25 - DELL-WD25
Key Features
- 1.25 GB/s maximum data transfer rate for convenient, quicker exchange of data and information
- 6 USB ports offers a more refined structure and safer to use connectivity
- Charging capability provides a quicker, worry-free charging experience
- Desktop PC device supported according to your requirements with maximum productivity
- HDMI effectively and conveniently transmits both audio and video signals with one single cable to ensure hassle-free connectivity
- LED Power Indicator feature for maximum usage efficiency and convenience
- Lets you conveniently connect to the 2.5 gigabit ethernet Ethernet technology to offer maximum productivity
- Power Adapter power source type for your docking station better reliance and maximum energy dependability
- USB Type C host interface Offers a more refined structure and safer to use connectivity
- Wired connectivity technology is highly feasible, offers maximum usability
Product Overview
Powerful compatibility
Power essential productivity across the AI PC workplace. The Dell Pro Dock offers enhanced compatibility and drives up to 100W of power to new mainstream Dell AI PCs and non-Dell PCs.
Upgraded for modern work
Expand your views with native support for up to four high-res displays. Keep your PC accessories connected and charged with the latest ports, while staying productive with faster USB and network speeds.
Modern manageability
The Dell Pro Dock is part of the world's most manageable commercial docking family, with flexible management capabilities, designed to uplevel IT efficiency and keep users working without disruption.

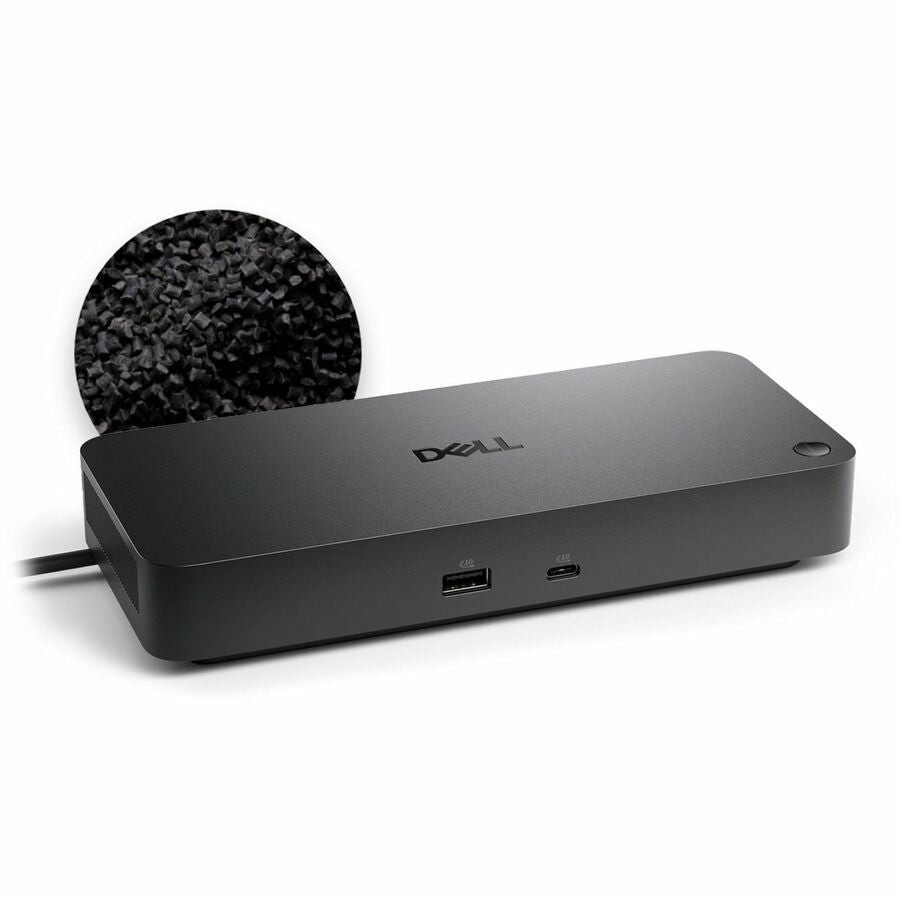

A leader in sustainable innovation
Experience up to 72% reduction in power consumption on standby mode. Built with at least 65% postconsumer recycled materials and packaged with 100% recycled or renewable packaging.
Thoughtful design
Configure your workspace with an ambidextrous USB-C cable that can be routed left or right. Features a new robust USB-C connector, designed for enhanced durability
Elevate IT efficiency | Simplify PC workspace modernization at scale | Unified IT experience
Centralize management through a single cloud-based console. When connected to a PC, the Dell Pro Dock, and other Dell peripherals, offer streamlined manageability from the Dell Device Management Console.
Simplify firmware updates
Reduce IT complexity by deploying a single firmware file across PC workspaces. Minimize end-user disruption with silent firmware updates that are executed upon dock disconnection.
Enhance compatibility
Dell Pro Docks provide more universally compatible features, such as MAC Address Pass-Through and Power Button Sync, for a better docking experience across brands.
General Information
- Manufacturer: Dell Technologies
- Manufacturer Part Number: DELL-WD25
- Brand Name: Dell
- Product Line: Pro Dock
- Product Model: WD25
- Product Name: Pro Dock WD25
- Product Type: Docking Station
Technical Information
- Connectivity Technology: Wired
- Charging Capability: Yes
- Number of Displays Supported: 4
- Supported Resolutions:
- 3440 x 1440
- 5120 x 2160
- 6144 x 3456
- 3840 x 2160
- 2560 x 1440
- 1920 x 1080
- 1280 x 1024
- Screen Mode Supported:
- 5K @ 60Hz
- 6K @ 60Hz
- 4K @ 60Hz
- QHD @ 60Hz
- SXGA
- FHD @ 60Hz
- WQHD @ 60Hz
- Management Features:
- MAC Address Pass-through
- PXE Boot
- Dock Power Button Sync
- Wake-on-LAN
- WLAN to LAN Switch
- Kernel Direct Memory Access (DMA) Protection
- Dell Command Update (DCU)
- Port Disablement
- Device Supported:
- Desktop PC
- Notebook
Network & Communication
- Ethernet Technology: 2.5 Gigabit Ethernet
Interfaces/Ports
- Host Interface: USB Type C
- Total Number of USB Ports: 6
- Number of USB 3.2 Gen 2 Type-A Ports: 4
- Number of USB Type-C Ports: 2
- USB Type-C: Yes
- USB Type-C Detail: 1 x USB-C 3.2 Gen 2 (15W), 1 x USB-C Multi-function DisplayPort (7.5W)
- Number of USB Type-A Ports: 4
- USB Type-A: Yes
- Network (RJ-45): Yes
- Number of DisplayPorts: 2
- DisplayPort: Yes
- DisplayPort Version: 1.4
- Number of HDMI Ports: 1
- HDMI: Yes
Software
- Operating System Supported:
- Windows 10
- Windows 11
- ChromeOS 137
- Ubuntu 24.04
- Red Hat Enterprise Linux 9.6
Power Description
- Maximum Power Supply Wattage: 130 W
Physical Characteristics
- Height: 8.07"
- Width: 3.54"
- Depth: 1.39"
- Weight (Approximate): 1.21 lb
Miscellaneous
- Kensington Security Slot: Yes
