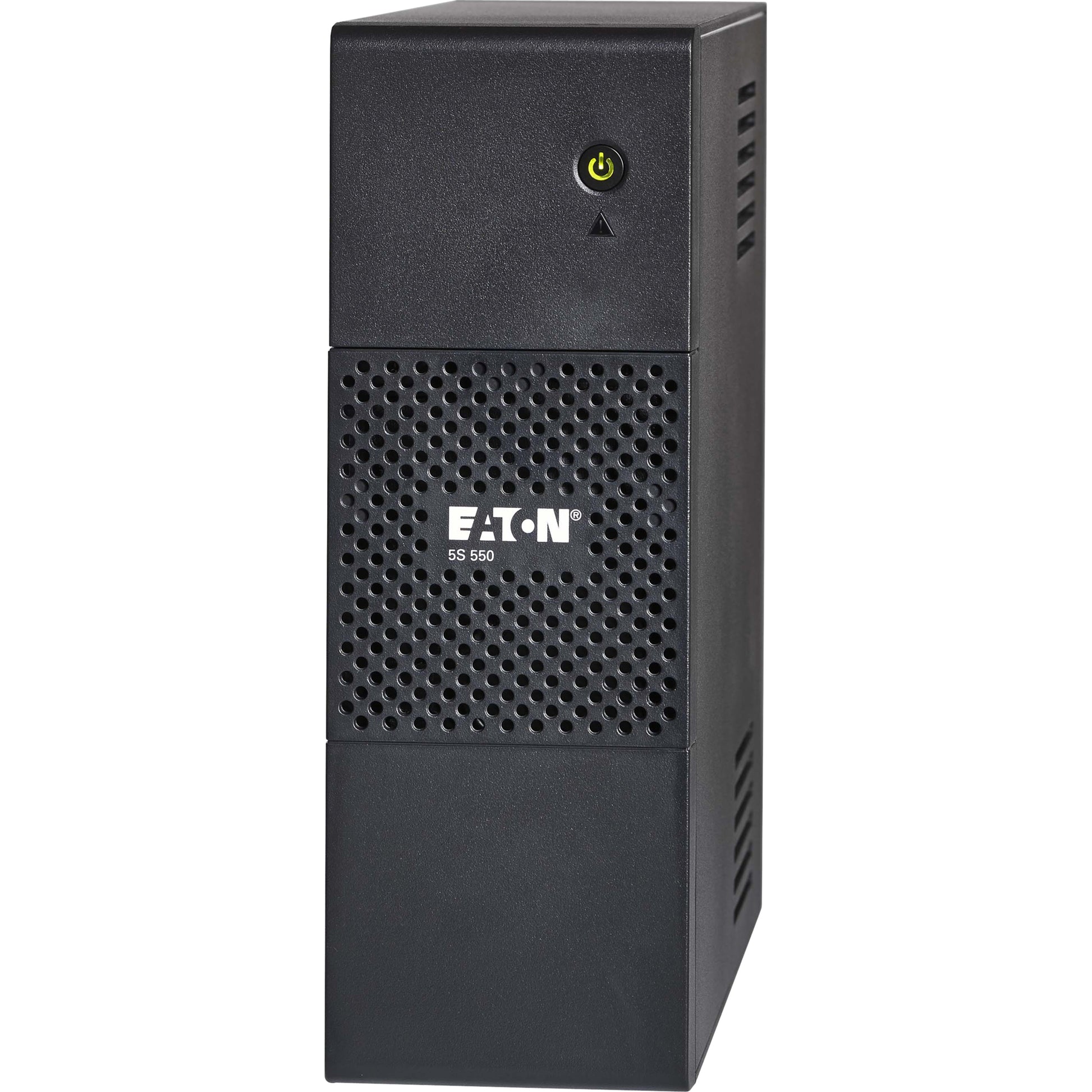

Eaton 5S UPS 550 VA 330 Watt 120V Line-Interactive Battery Backup Tower USB - 5S550
Key Features
- Convenient form factor: Fit the 5S easily into tight spaces with its slim form factor. The versatile 5S can be used as a tower or as a desktop monitor stand
- Data protection: Safeguard your work and data with the UPS Companion software by gracefully shutting down your equipment during power outages
- Eco-Control: Save up to 30 percent on energy consumption by shutting down non-essential peripherals when the computer is turned off
- Power management: Enhance your power protection capabilities and ensure safe system shutdown with the Eaton UPS Companion software. The 5S interface is auto-recognized when plugged into computers with Windows, Macintosh and Linux environments
- Surge protection: Provide surge protection for network phone lines, cable TV and satellite applications
Product Overview
The compact Eaton 5S UPS delivers backup power for desktop PCs and workstations. The Eco-Control capability enables you save up to 30 percent in energy consumption. You can also enhance your power protection and safeguard your data when you pair it with the Eaton UPS Companion software. The 5S displays critical UPS information on battery time and outage tracking through a user-friendly LCD interface.
General Information
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: 5S550
- Brand Name: Eaton
- Product Series: 5S
- Product Name: 5S UPS
- Product Type: Line-interactive UPS
Technical Information
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15R
- Receptacle Detail: 8 x NEMA 5-15R
- Dataline Protection: RJ-45
Power Description
- Load Capacity (VA): 550 VA
- Load Capacity (Watt): 330 W
- Input Voltage: 110 V AC
- Output Voltage: 115 V AC
Interfaces/Ports
- USB: Yes
- Network (RJ-45): Yes
Battery Information
- Number of Batteries: 1
- Battery Characteristics: Maintenance-free, Sealed
- Battery Chemistry: Lead Acid
- Backup/Run Time (Full Load): 1 Minute
Physical Characteristics
- Height: 9.8"
- Width: 3.4"
- Depth: 10.2"
- Form Factor: Tower
- Weight (Approximate): 12.30 lb
Miscellaneous
- Package Contents:
- 5S UPS
- USB Cable
- User Manual
- Country of Origin: Philippines
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
