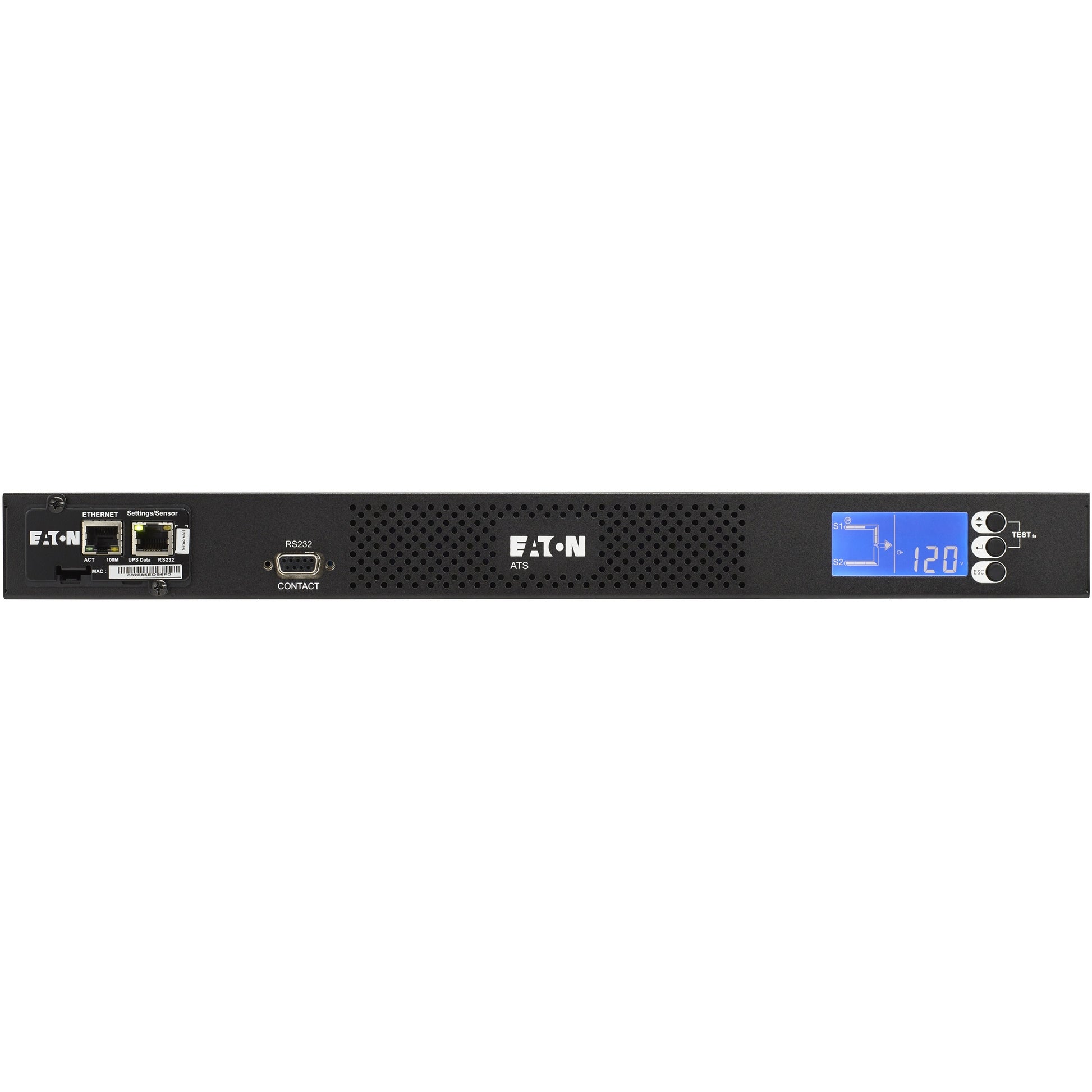

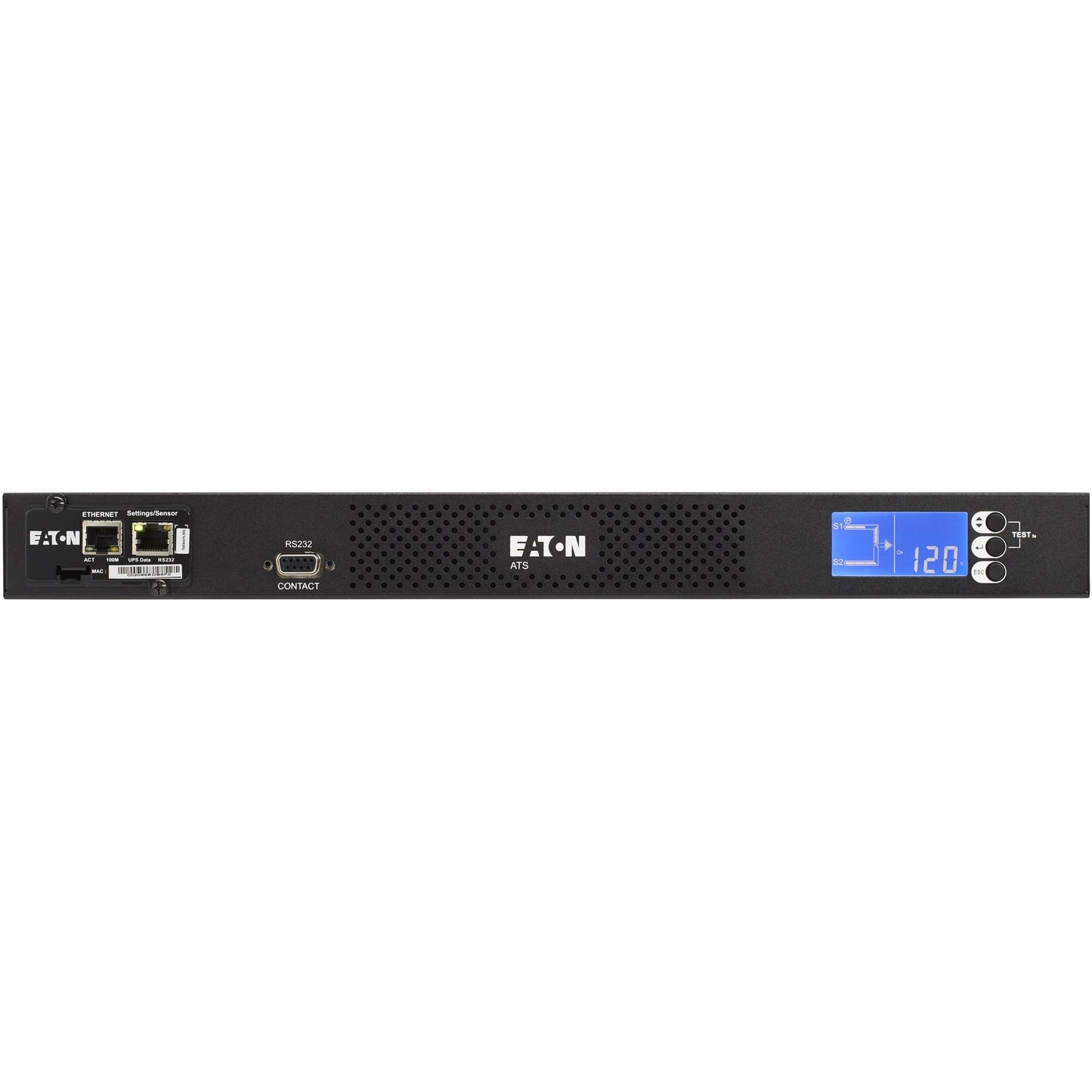

Eaton ATS Rack PDU 1U 120V 1.92 kW 2 5-20P Input and 10 5-20R Single-Phase - EATS120
Key Features
- Automatically transfers power from the primary source to a secondary source if there is an issue with the primary
- Offers remote monitoring and email alerts with included network card
- Power is transferred back to the primary source when it is automatically restored
- Provides power redundancy to equipment with 1 or 2 power supplies
- Simplifies monitoring by displaying current, voltage and power source information on intuitive, graphical LCD
Product Overview
Eaton eATS ePDUsDesigned for switching non phase synchronized AC power sources, the automatic transfer switch ePDUs intelligent circuitry monitors both inputs, providing a fast switch transfer from primary to secondary source power critical equipment without interruption. These ePDUs assure the highest level of redundancy to mission critical applications.
General Information
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: EATS120
- Brand Name: Eaton
- Product Line: eATS
- Product Name: eATS 10-Outlet PDU
- Product Type: PDU
Technical Information
- Plug/Connector Type: NEMA 5-20P
- Plug/Connector Detail: 2 x NEMA 5-20P
- Receptacle Type: NEMA 5-20R
- Receptacle Detail: 10 x NEMA 5-20R
Power Description
- Input Voltage: 120 V AC
- Power Rating (Watt): 1920 W
- Input Current: 16 A
Interfaces/Ports
- Network (RJ-45): Yes
Physical Characteristics
- Mounting Orientation: Horizontal
- Mount Type: Rack-mountable
- Rack Height: 1U
- Height: 1.7"
- Width: 17.3"
- Depth: 9.8"
- Weight (Approximate): 9.17 lb
Miscellaneous
- Country of Origin: China
Warranty
- Limited Warranty: 3 Year
