Eaton Basic Rack PDU HotSwap MBP 2.88 kW max 110-125V 24A Single-Phase PDU - EHBPL3000R-PDU1U
Key Features
- Both units offer connections to all types of equipment
- Eases installation with flexible mounting options
- HotSwap MBP provides service continuity during UPS maintenance or upgrade
- Minimal depth accommodates most space constraints
Product Overview
Eaton provides five different functions for rack power distribution solutions. Two of these functions, FlexPDU and Maintenances Bypass PDU, were created as accessories specific to some of our UPSs. Both of these units offer the flexibility of connections to meet the demanding requirements of today's data center architects.

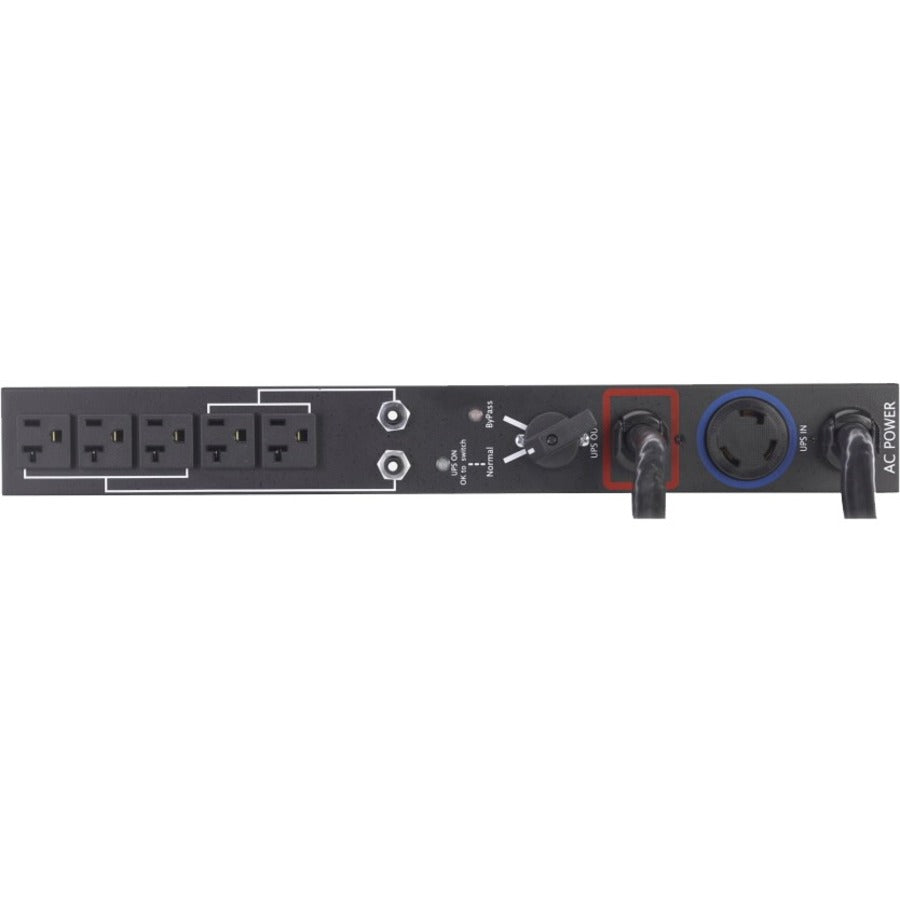

The HotSwap Maintenance Bypass (MBP) unit enables easy UPS replacement without interruption of the load. The HotSwap MBP is ideal when exchanging a unit or servicing a UPS. For added convenience, the HotSwap MBP offers two types of receptacles: 5-15R or 5-20R.
The FlexPDU is a basic function power distribution unit with a short power cord for easy, close mounting. FlexPDUs are available with 5-15R, 5-20R or L5-20R output receptacles, for connection to a wide range of equipment.

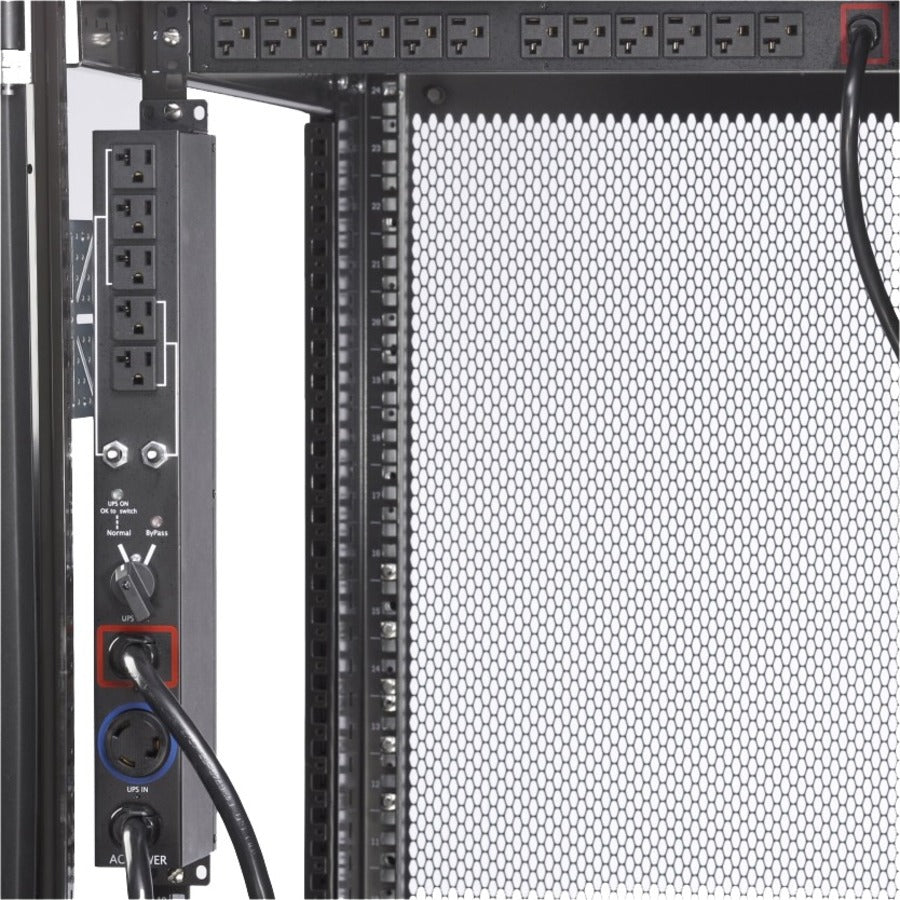

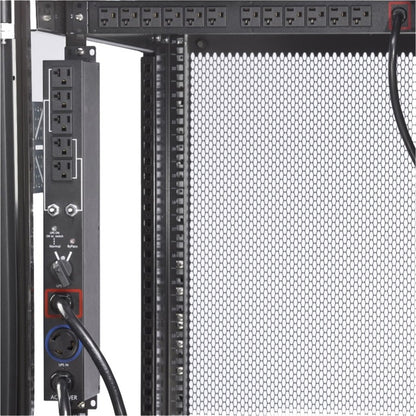

Both of these options allow for easy deployment, even in space-constrained environments. You have a variety of mounting options, including top and side mounting.
General Information
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: EHBPL3000RPDU1U
- Brand Name: Eaton
- Product Line: HotSwap MBP
- Product Model: EHBPL3000R-PDU1U
- Product Name: HotSwap MBP EHBPL3000R-PDU1U 5-Outlets PDU
- Product Type: PDU
Technical Information
- PDU Type: Basic
- Phase: Single Phase
- Plug/Connector Type: NEMA L5-30P
- Receptacle Type: NEMA 5-20R
- Receptacle Detail: 5 x NEMA 5-20R
- Protection Type: Circuit Breaker
Power Description
- Input Voltage: 120 V AC
- Input Voltage Range: 110 V AC - 125 V AC
- Power Rating (Watt): 2880 W
- Input Current: 24 A
Management
- Remote Outlet Switching: No
Physical Characteristics
- Product Color: Black
- Mounting Orientation: Horizontal
- Mount Type: Rack-mountable
- Form Factor: Hot-swappable
- Rack Height: 2U
- Height: 2.1"
- Width: 3.8"
- Depth: 17.3"
Miscellaneous
- Application/Usage: Data Center
Warranty
- Limited Warranty: 3 Year
