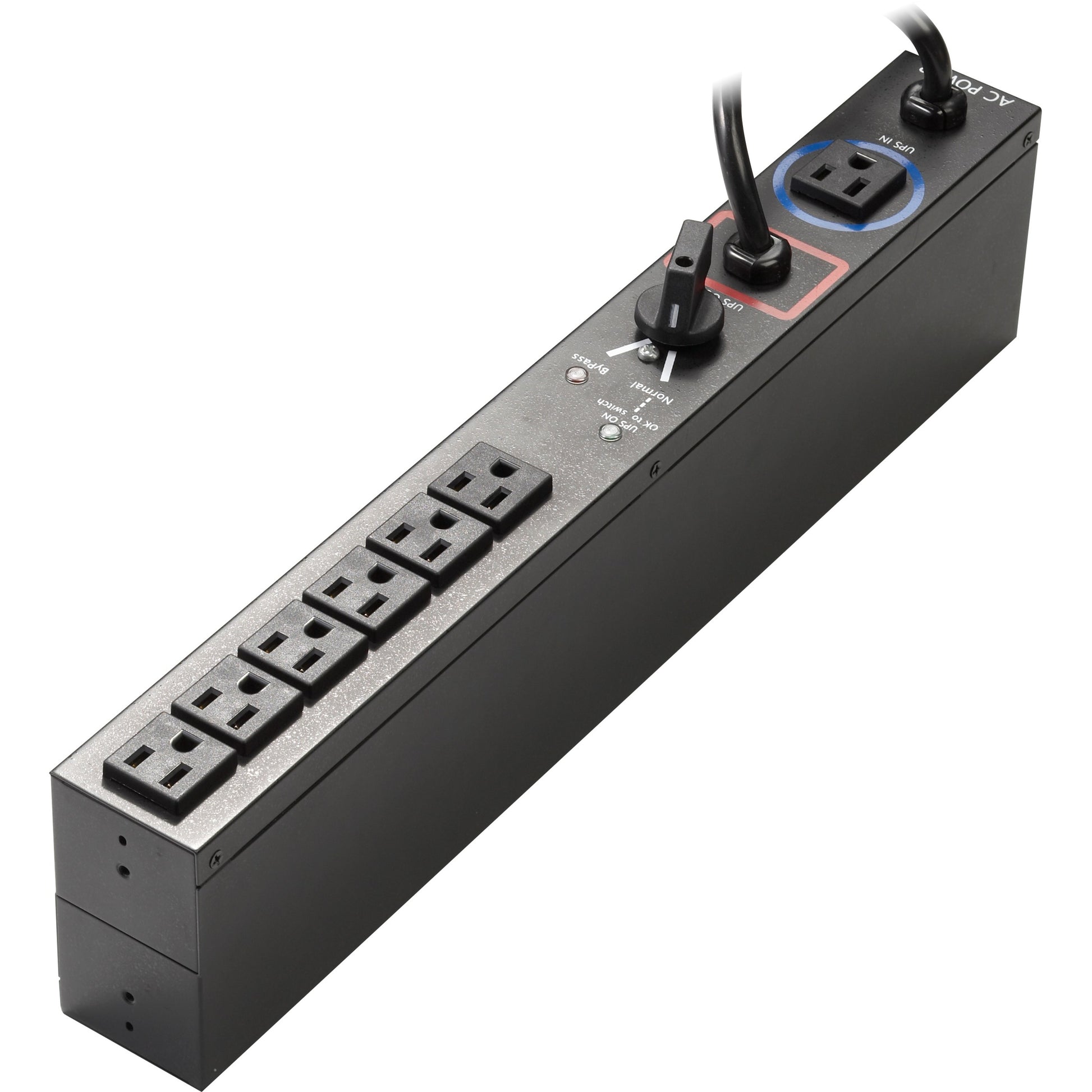

Eaton Basic Rack PDU HotSwap MBP 2U 110-125V 16A 1.92 kW 5-20P and 6 5-20R - EHBPL2000R-PDU1U
Key Features
- 120 V AC input voltage for better reliance and maximum dependability
- 125 V AC output voltage for optimal performance with maximum feasibility
- NEMA 5-20P plug/connector type for efficient connectivity and feasible power output
- NEMA 5-20R receptacle type to ensure maximum usability and reliable power output
- PDU provides power control as remote controlled relay & load monitoring
Product Overview
The Eaton FlexPDUs are designed to increase power distribution from a single UPS and provide more flexibility.The Eaton HotSwap Maintenance Bypass enhances availability by providing service continuity in all situations and facilitates hot-swappable battery replacement.
General Information
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: EHBPL2000R-PDU1U
- Brand Name: Eaton
- Product Line: ePDU
- Product Series: FlexPDU
- Product Model: EHBPL2000R-PDU1U
- Product Name: ePDU FlexPDU EHBPL2000R-PDU1U 6-Outlets PDU
- Product Type: PDU
Technical Information
- Plug/Connector Type: NEMA 5-20P
- Plug/Connector Detail: 2 x NEMA 5-20P
- Receptacle Type: NEMA 5-20R
- Receptacle Detail: 6 x NEMA 5-20R
Power Description
- Input Voltage: 120 V AC
- Output Voltage: 125 V AC
- Power Rating (Watt): 1920 W
- Input Current: 16 A
Physical Characteristics
- Mounting Orientation: Horizontal
- Mount Type: Rack-mountable
- Rack Height: 1U
- Cord Length: 8 ft
- Height: 2.1"
- Width: 17.3"
- Depth: 3.8"
