See Exactly How Much Power Each Rack Circuit Draws

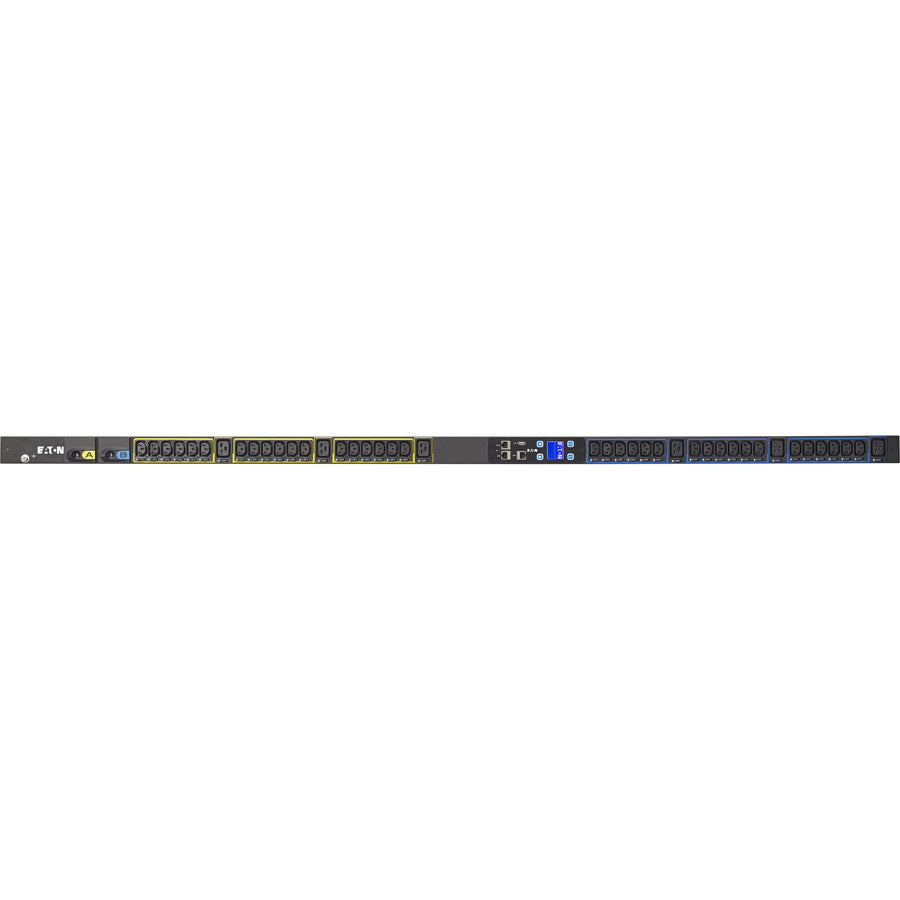

The Eaton EMI104-10 is a metered input rack PDU that measures current, voltage, power, and energy at billing-grade accuracy, then shows it on a local LCD or reports it over the network. It distributes 5.76 kW of single-phase 200-240V power across 42 IEC outlets in a 0U vertical form factor. Browse more from Eaton or other PDUs.
How It Works
- The hot-swap meter tracks input current, voltage, power, and energy to plus or minus 1 percent.
- An advanced LCD pixel display shows readings locally and handles setup like IP address and rotation.
- Daisy chain up to four ePDUs so they share a single network connection and IP address.
Highlights
- 5.76 kW single-phase power: 200-240V at 24A through a NEMA L6-30P input on a 10-foot cord.
- 42 outlets: 36 IEC C13 and 6 IEC C19 receptacles with grip plug retention.
- 0U vertical mount: saves rack U space while supporting up to 25 1U/2U servers.
- Rated to 140F (60C) for containment aisles and hot network closets.
- Ethernet monitoring, UL489 branch breakers, and a 3-year warranty.
