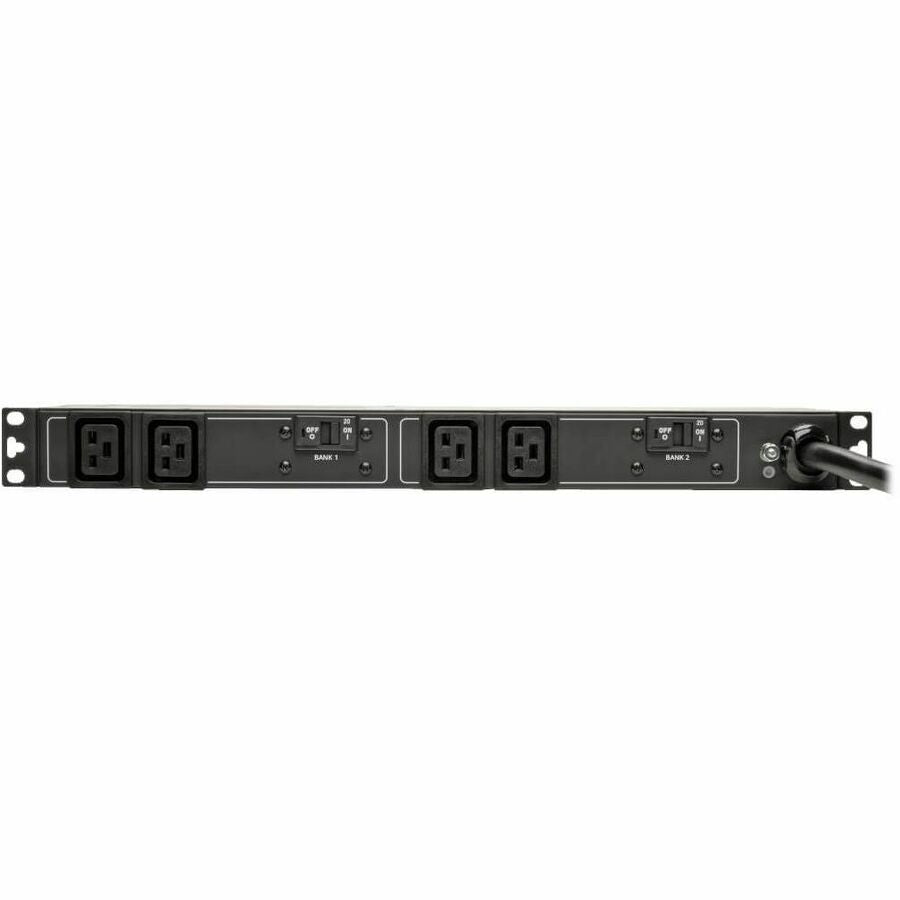

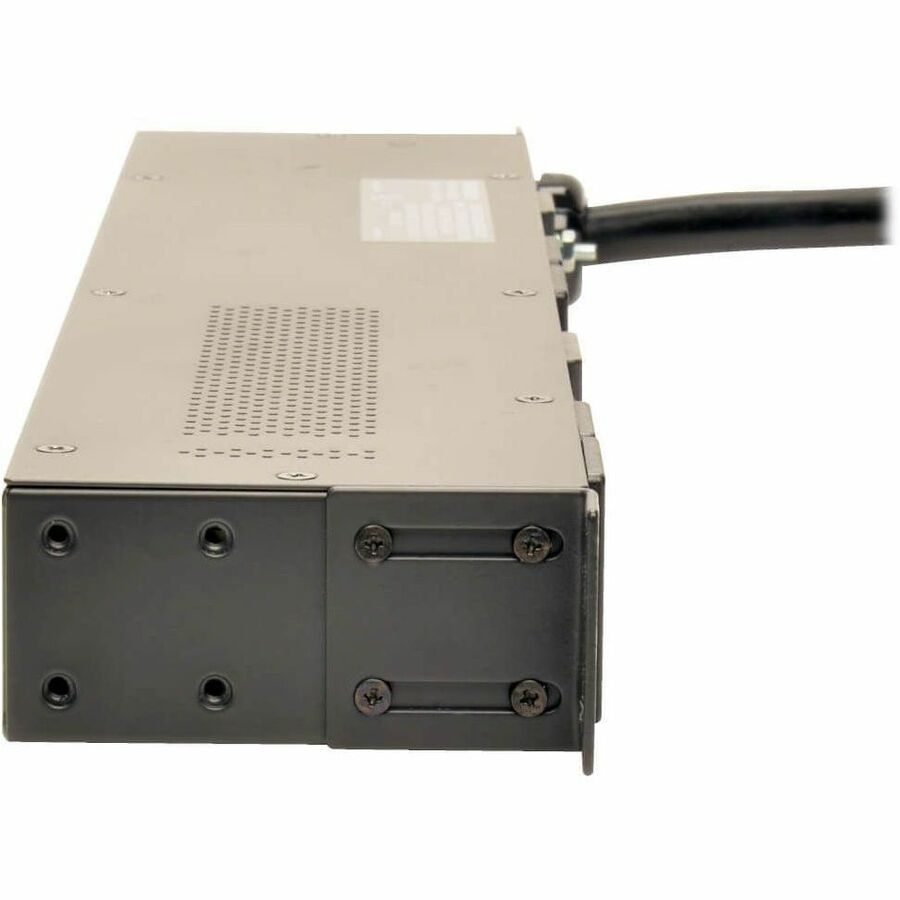

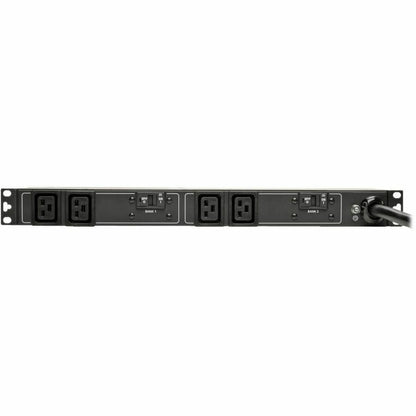

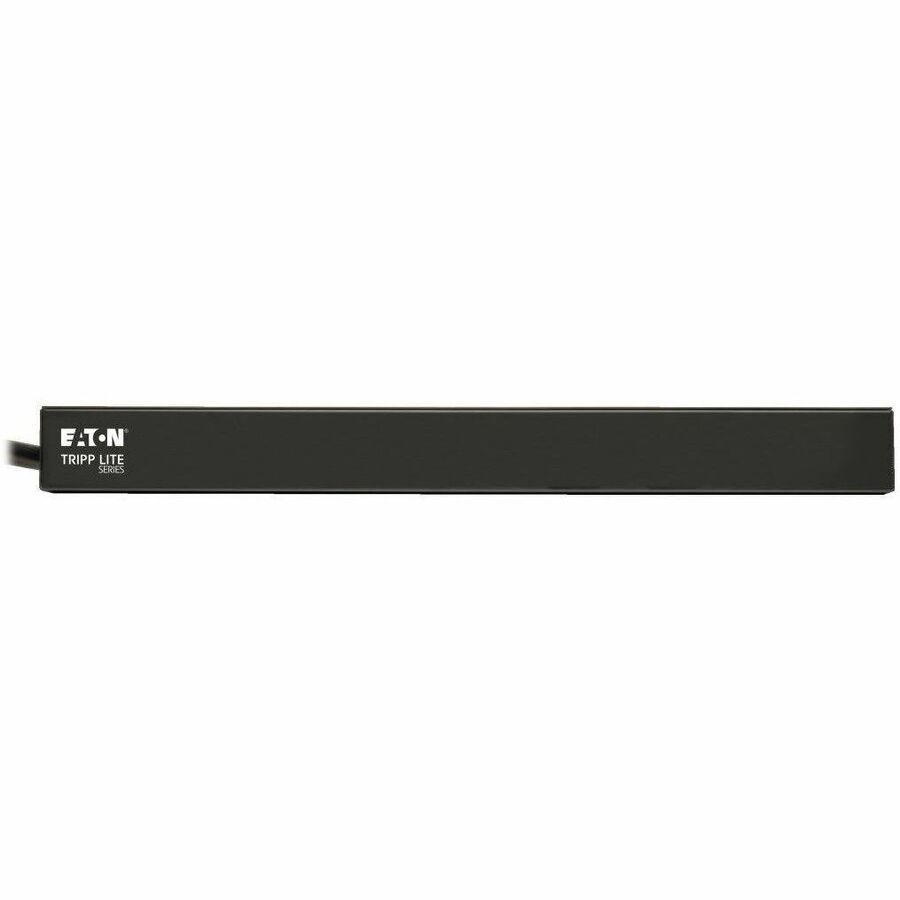

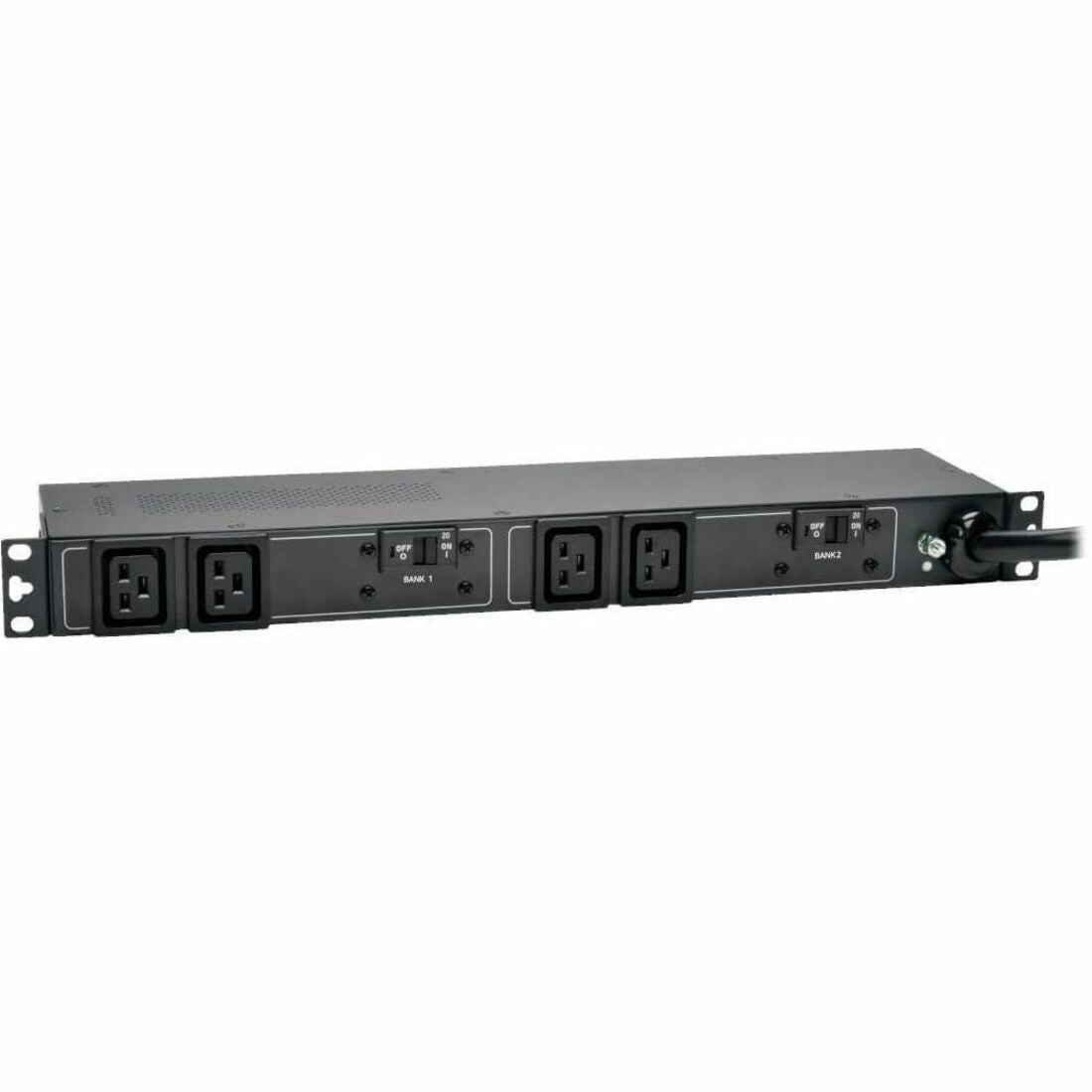

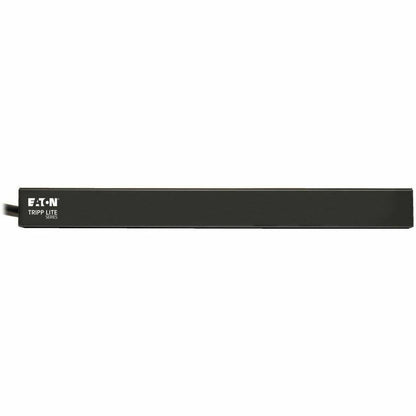

Eaton Tripp Lite Series 5.8kW Single-Phase 200-240V Basic PDU, 4 C19 Outlets, NEMA L6-30P Input, 12 ft. (3.66 m) Cord, 1U Rack-Mount - PDUH30HV19
Key Features
- 1U horizontal rackmount installation
- 4 C19 outlets
- Basic single phase 30A 208/240V PDU
- NEMA L6-30P input; 12 ft. / 3.6m line cord
Product Overview
Tripp Lite Basic Power Distribution Units / PDU systems offer reliable rackmount power distribution. Supplies equipment with continuous power from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.General Information
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: PDUH30HV19
- Brand Name: Tripp Lite series
- Product Line: Basic
- Product Model: PDUH30HV19
- Product Name: Basic PDUH30HV19 4-Outlets PDU
- Product Type: PDU
Technical Information
- PDU Type: Basic

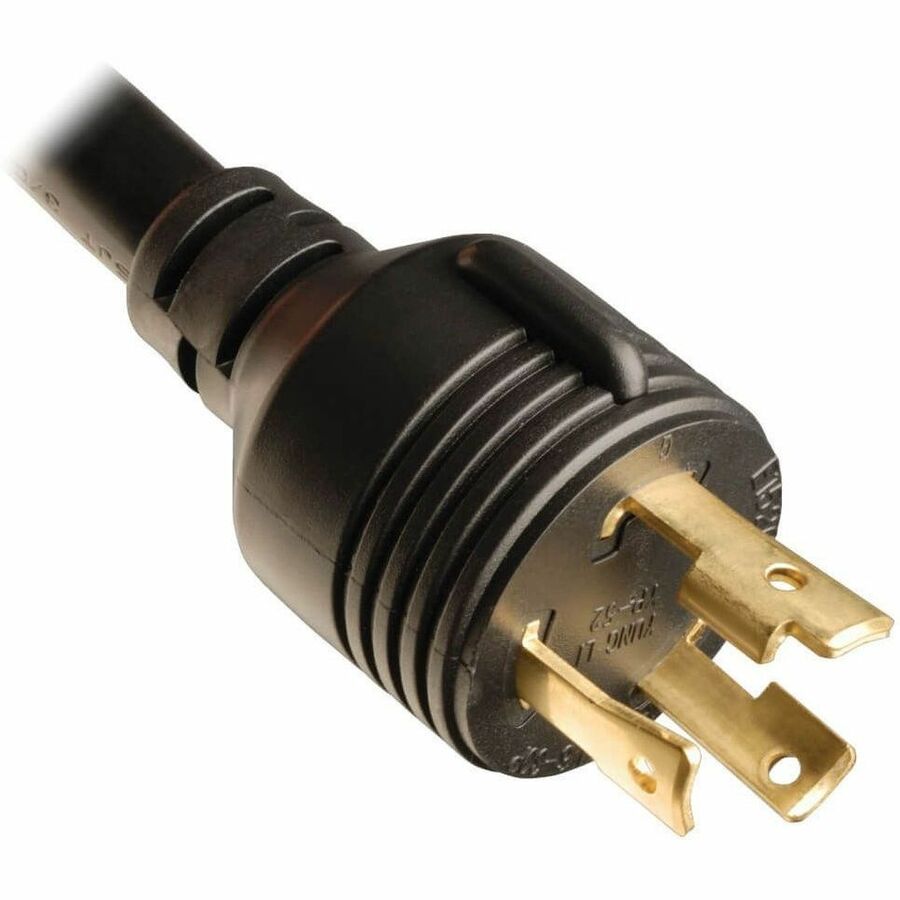

- Plug/Connector Type: NEMA L6-30P
- Receptacle Type: IEC 60320 C19
- Receptacle Detail: 4 x IEC 60320 C19
- Protection Type: Overload Protection
Power Description
- Input Voltage: 230 V AC
- Output Voltage: 230 V AC
- Power Rating (Watt): 5800 W
- Input Current: 30 A
Physical Characteristics
- Mounting Orientation: Horizontal
- Mount Type:
- Wall-mountable
- Rack-mountable
- Placement: Under-counter
- Rack Height: 1U
- Cord Length: 12 ft
- Height: 1.8"
- Width: 17.5"
- Depth: 5.2"
Miscellaneous
- Package Contents:
- Basic PDUH30HV19 4-Outlets PDU
- Mounting Accessories
- Instruction Manual
- Country of Origin: China
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 2 Year
