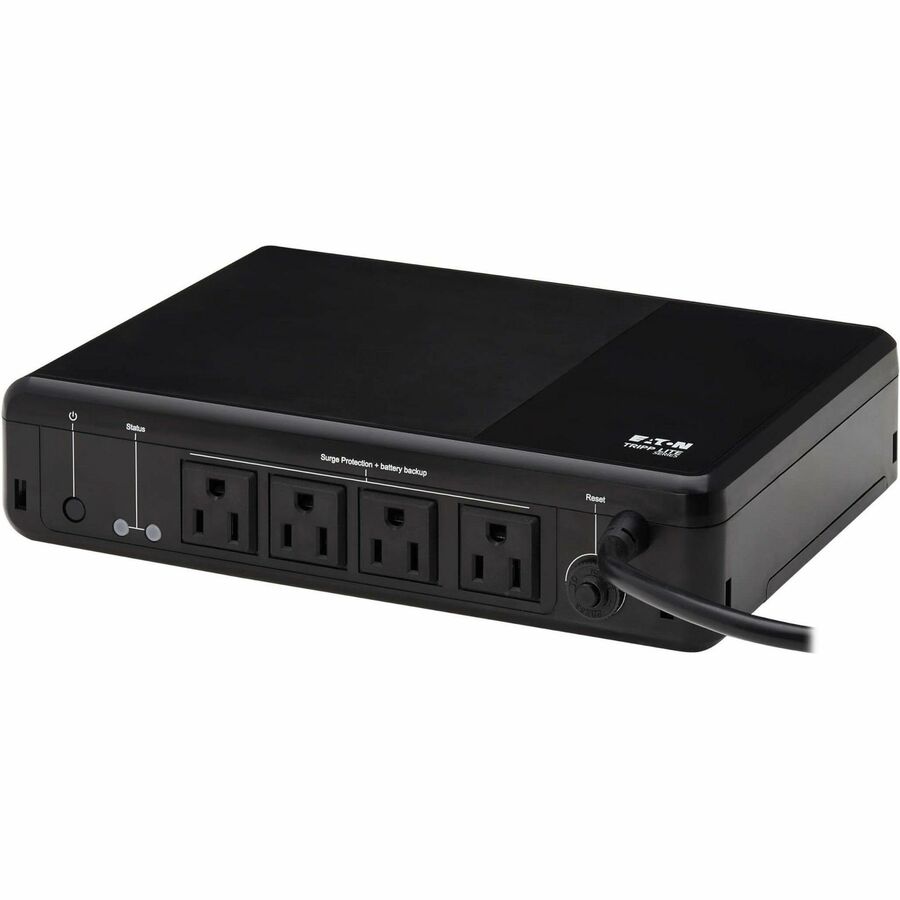

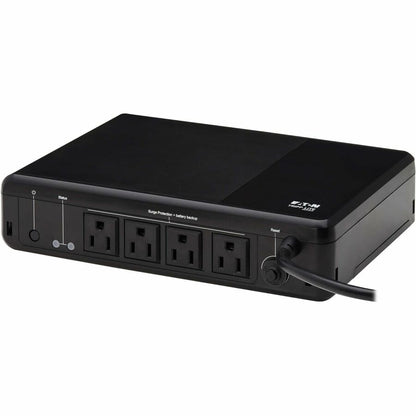

Eaton Tripp Lite Series 600VA 300W 120V Standby UPS - 4 NEMA 5-15R Outlets (Surge + Battery Backup), 5-15P Plug, Desktop - BC600R
Key Features
- 3-year limited warranty
- Automatically restarts when power is restored, saving you a costly site visit
- Keeps power running during brief outages to allow time for safe system shutdown

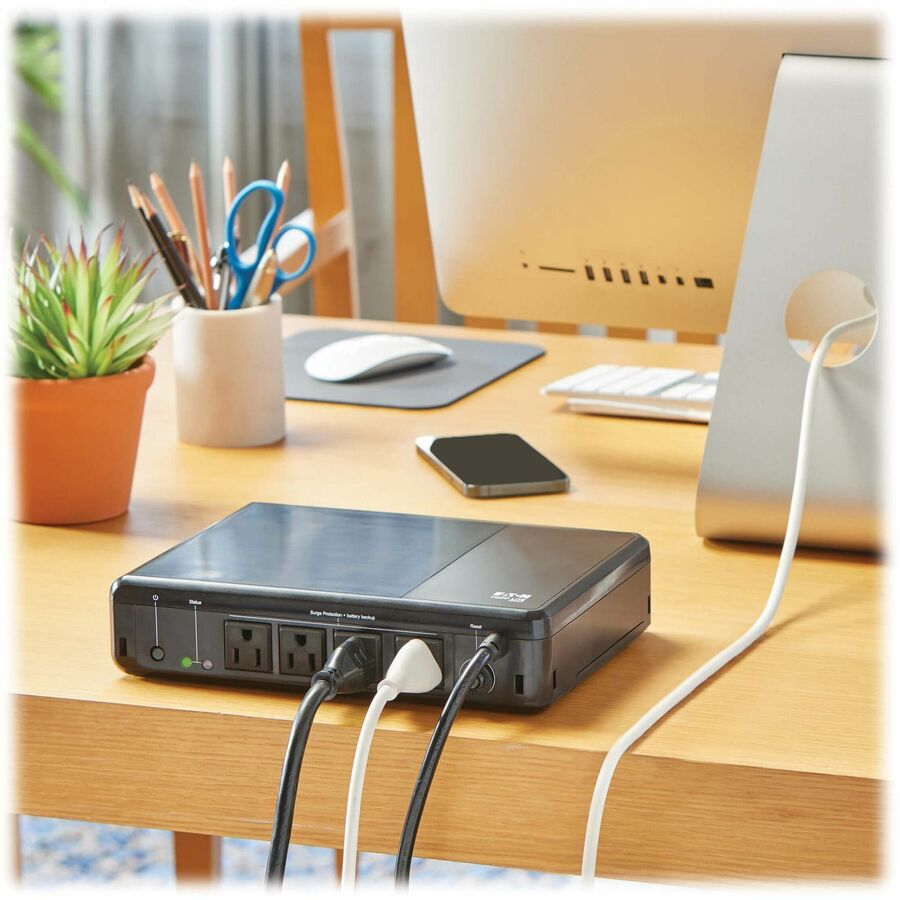

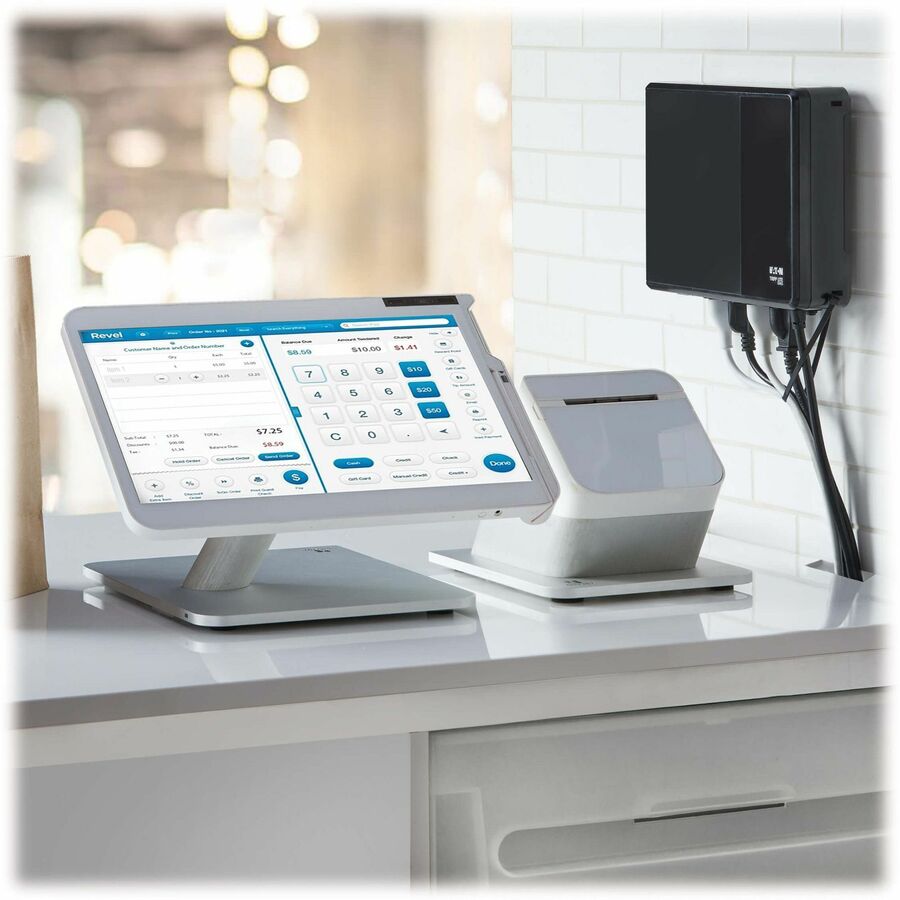

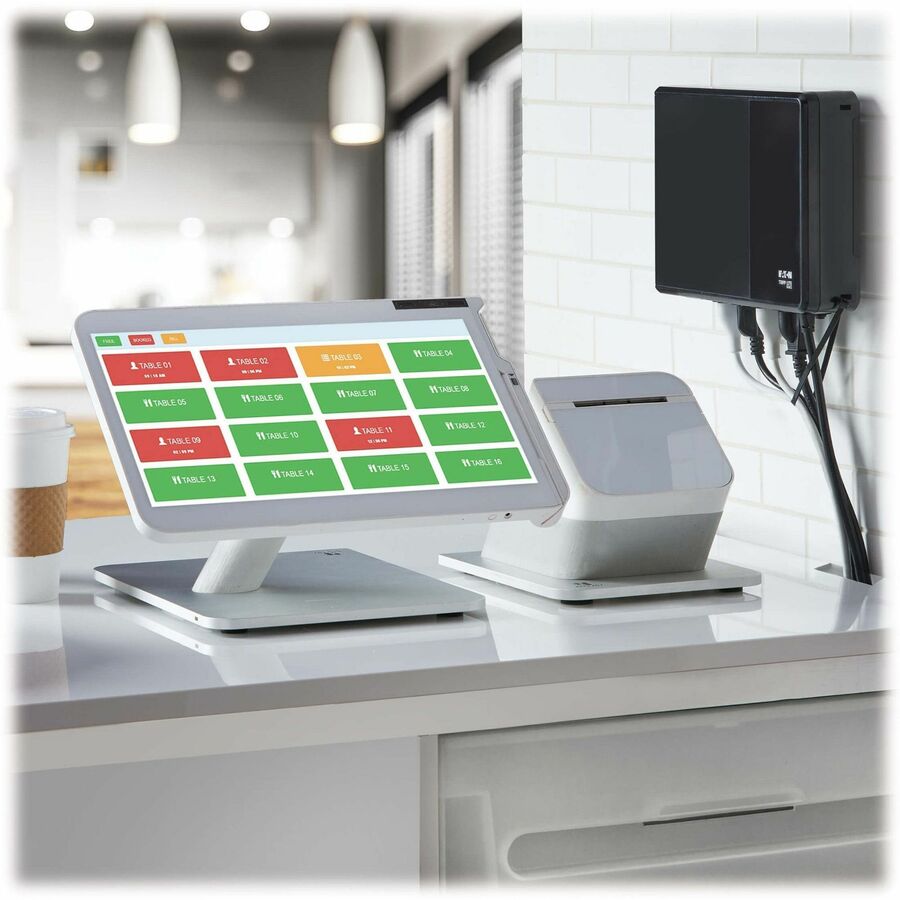

- Low-maintenance standby UPS provides battery backup and surge protection for retail point-of-sale, home networks and wireless access points
- Low-maintenance UPS sets up in minutes to start backing up your equipment
- Protects up to 3 devices against outages, brownouts, overvoltages, surges and line noise
- Recommended for locations where temperatures range within 32° and 122° F
Product Overview
600VA battery backup for PCs and retail point-of-sale application is a standby UPS that provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise. 300-watt, 120-volt UPS protects home/office computing, networking and point-of-sale equipment in retail, kiosks, foodservice and light industrial environments. It's easy to set up in minutes. Just plug it into a properly grounded wall outlet. Press the power button and connect equipment to the UPS outlets. Input power cable, power button and status LEDs are on the same side for easy access. UPS switches to battery power to keep connected equipment running during short blackouts and brownouts, giving you enough time to save data and complete a safe shutdown in case of a longer outage. Incoming utility power keeps the replaceable VRLA battery fully charged so backup power is always available. It restarts automatically once power is restored.General Information
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: BC600R
- Brand Name: Tripp Lite series
- Product Model: BC600R
- Product Name: BC600R 600VA Desktop/Surface/Wall Mountable UPS
- Packaged Quantity: 1 Each
- Product Type: Standby UPS
Technical Information

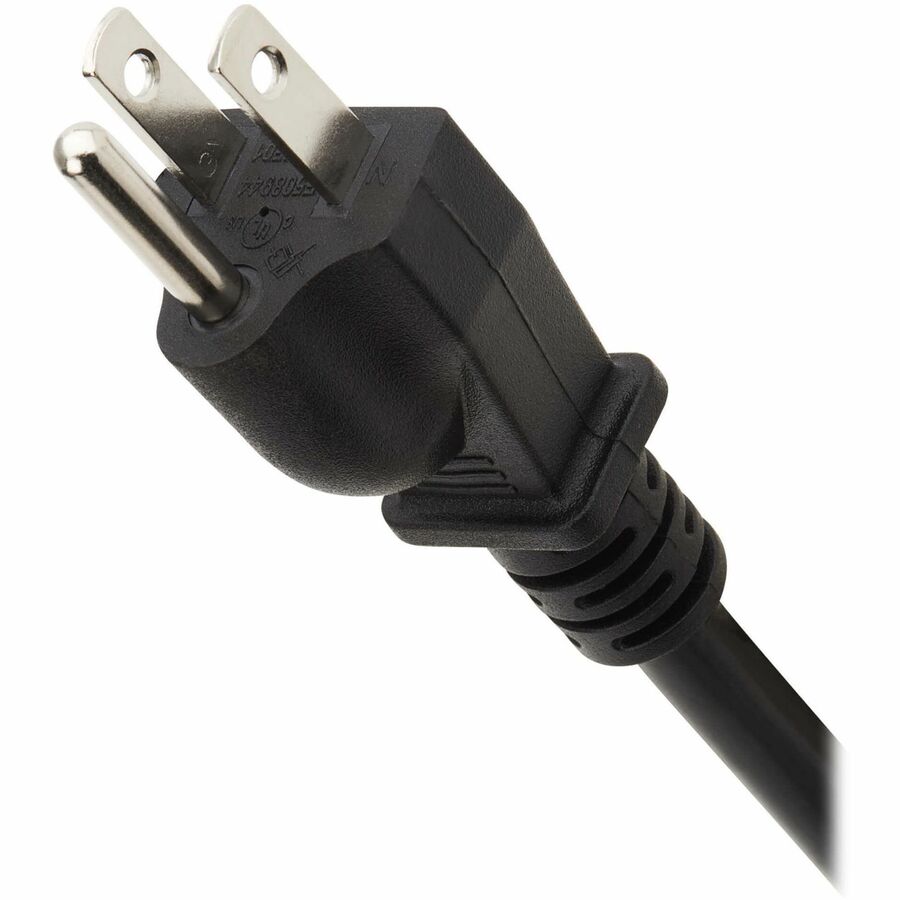

- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15R

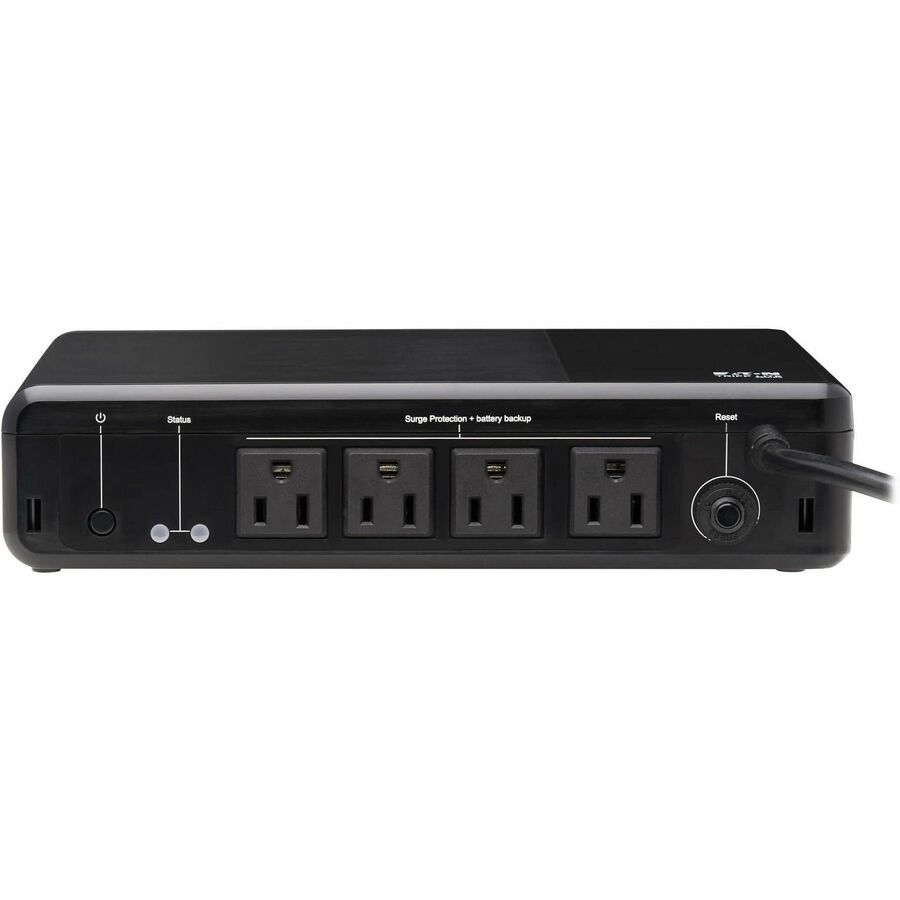

- Receptacle Detail: 4 x NEMA 5-15R
- Number of Battery & Surge Outlets: 4
- Cord Length: 5 ft
- Transfer Time: 10 ms
- EMI/RFI Noise Filter: Yes
- Phase: Single Phase
- Efficiency Detail: 97% (AC Mode)
- Application/Usage:
- POS
- Network
- Retail
- Kiosk
- Industrial
- Food Service
- Home Network
- Wireless Access Point
- Desktop
- Computer Peripheral
- Home/Office
- Hospital
- Features:
- Audible Alarm
- Cold Start Function
- Green Energy Saving
Power Description
- Load Capacity (VA): 600 VA
- Load Capacity (Watt): 300 W
- Input Voltage: 120 V AC
- Input Current: 5 A
- Output Voltage: 120 V AC
- Input Frequency: 60 Hz
- Output Frequency: 60 Hz
- Waveform Type: Pulse-width Modulated Sine Wave
- Surge Energy Rating: 190 J
- Circuit Breaker: Yes
- Output Power Factor: 0.5
Controls/Indicators
- Status Indicators:
LED Indicators:
- Low Battery or Fault Condition
- Power and Line/battery Mode Status
Battery Information
- DC System Voltage: 12 V DC
- Battery Characteristics: Valve-regulated
- Battery Chemistry: Lead Acid

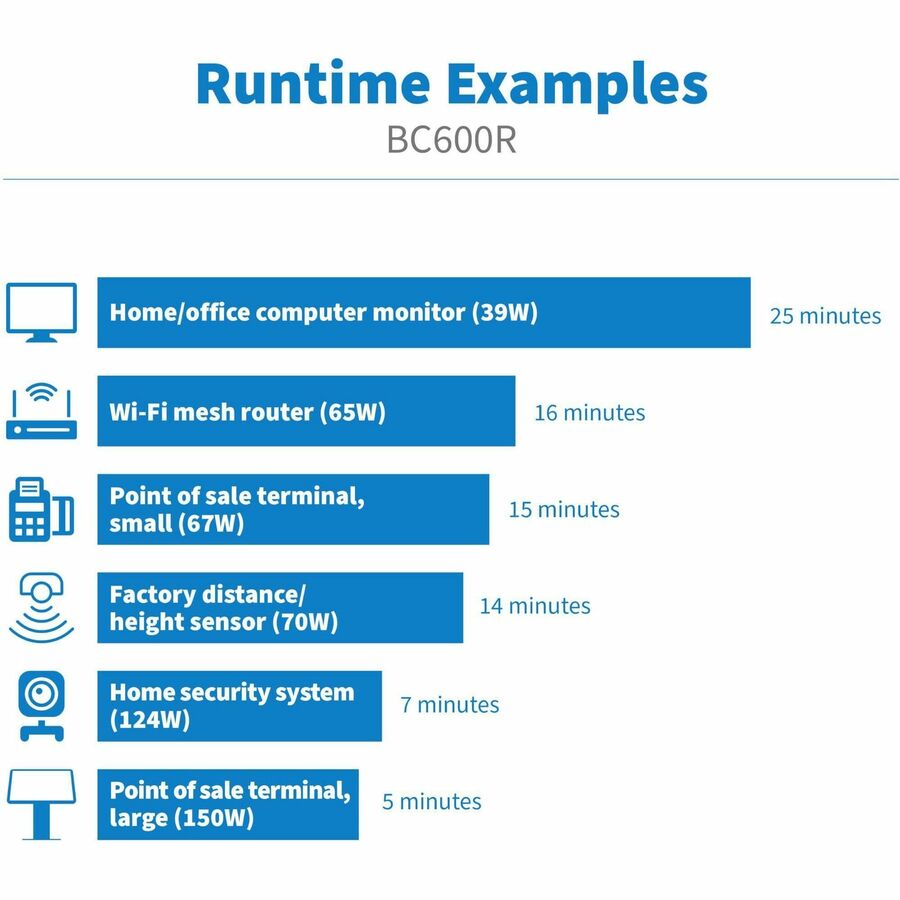

- Backup/Run Time (Full Load): 1.50 Minute
- Backup/Run Time (Half Load): 5 Minute
- Typical Battery Recharge Time: 8 Hour
- Replaceable Battery: Yes
Environmental Conditions
- Maximum Operating Elevation: 6561.68 ft
- Storage Temperature: 5°F (-15°C) - 122°F (50°C)
- Minimum Operating Temperature: 32°F (0°C)
- Maximum Operating Temperature: 122°F (50°C)
- Sound Emission: 40 dB
Physical Characteristics

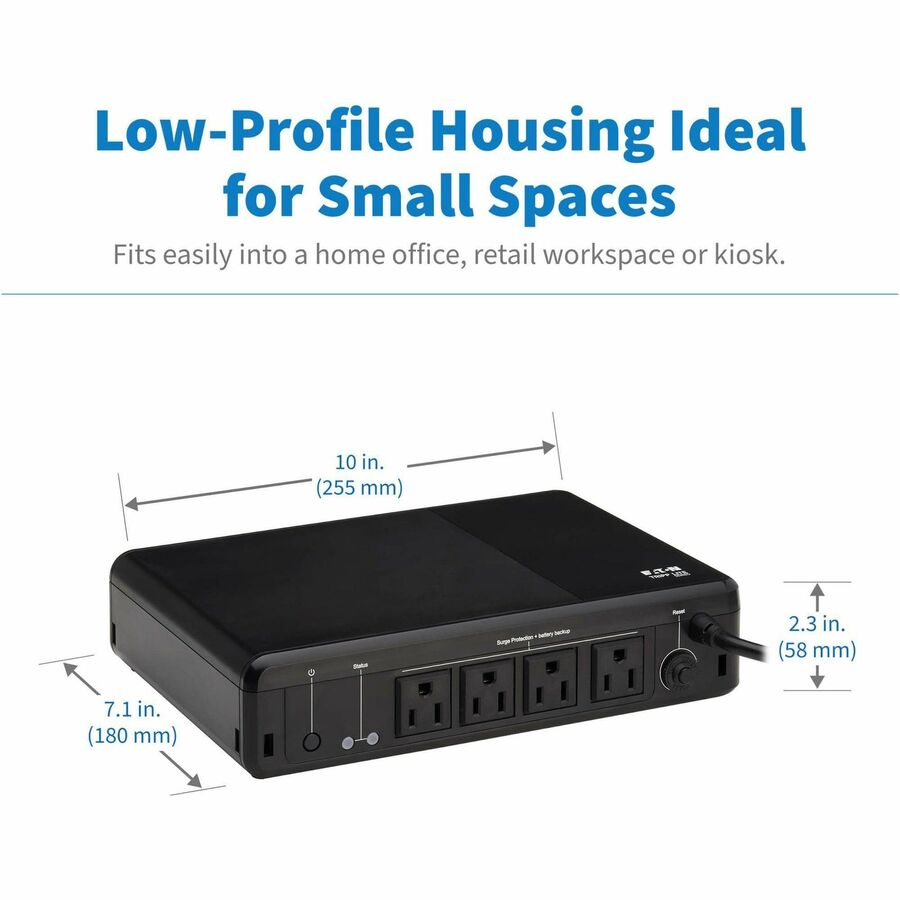

- Height: 2.3"
- Width: 10"
- Depth: 7.1"

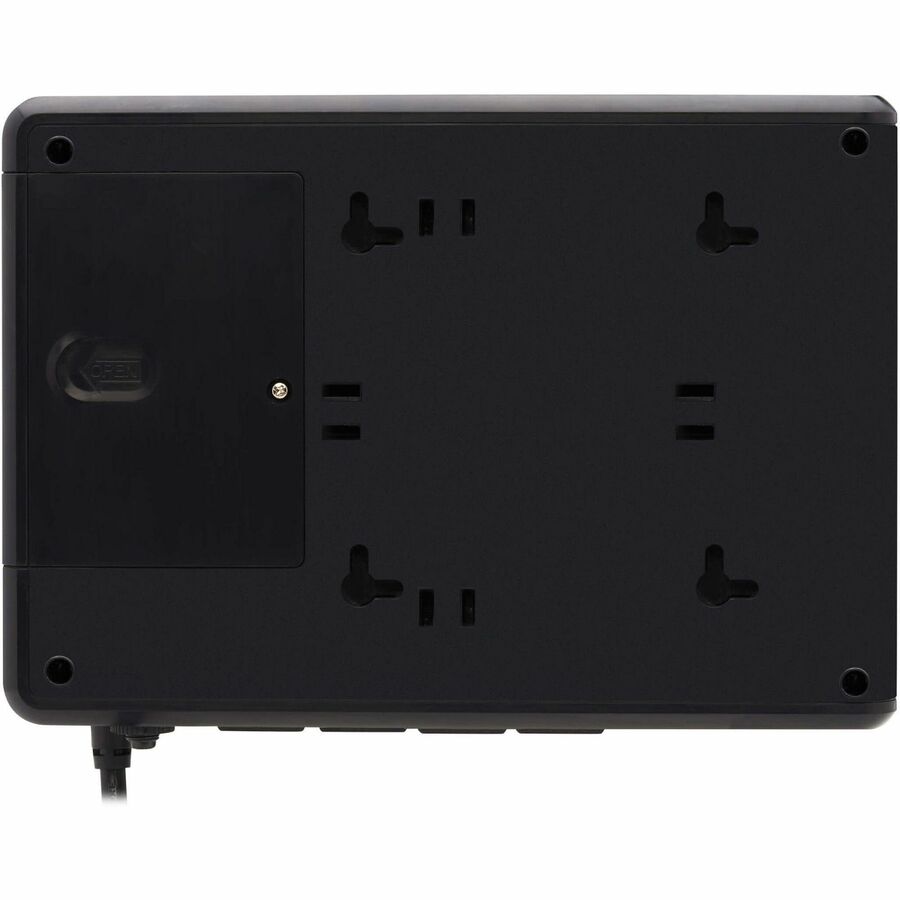

- Form Factor: Desktop/Surface/Wall Mountable
- Weight (Approximate): 4.41 lb
Miscellaneous
- Package Contents:
- BC600R 600VA Desktop/Surface/Wall Mountable UPS
- 4 x M4 x 12 mm Screws
- 4 x M4 x 20 mm Screws
- Quick Start Guide
- Energy Star: Yes
- Country of Origin: Vietnam
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 2 Year
